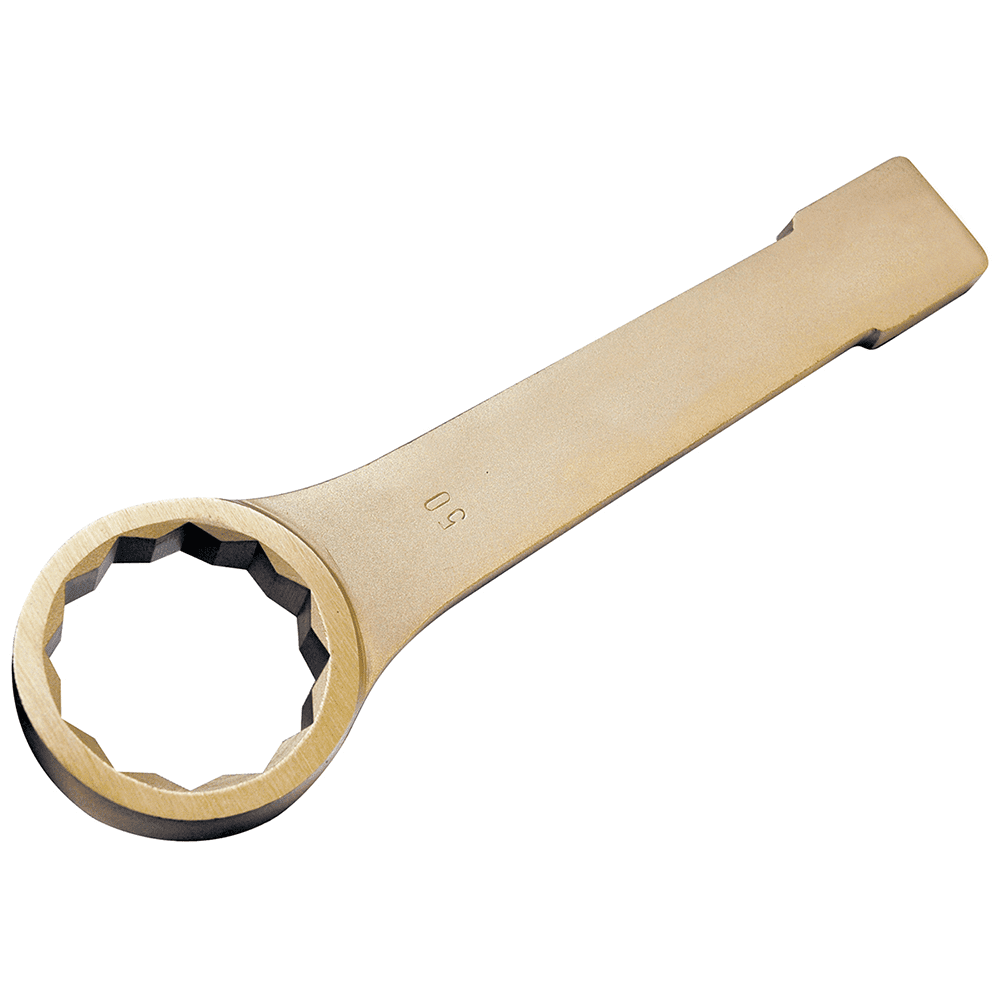

12-Point Box End Wrench, Single

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Includes (testing):

  • Box End, Single - 12-Point

Benefits

  • Fine-tooth engagement
  • Tight-space rotation
  • DIN-spec geometry

Applications & Usage

  • 12-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex201-005UA Ex201-005UB
No. S inch l inch Wt. lbs.
Ex201-005U 1/2 7 0.33
Ex201-010U 9/16 7 0.33
Ex201-015U 19/32 7 0.33
Ex201-020U 5/8 7 0.33
Ex201-025U 11/16 7 1/16 0.33
Ex201-030U 3/4 7 3/8 0.55
Ex201-035U 25/32 8 0.82
Ex201-040U 13/16 8 0.82
Ex201-045U 7/8 8 0.82
Ex201-050U 15/16 8 3/8 1.10
Ex201-055U 31/32 8 3/8 1.10
Ex201-060U 1 8 3/8 1.10
Ex201-065U 1 1/16 8 3/8 1.10
Ex201-070U 1 1/8 8 3/8 1.39
Ex201-075U 1 3/16 8 3/8 1.39
Ex201-080U 1 1/4 8 9/16 1.52
Ex201-085U 1 5/16 9 1.74
Ex201-090U 1 3/8 9 1.74
Ex201-095U 1 7/16 9 1.74
Ex201-100U 1 1/2 9 1.74
Ex201-105U 1 9/16 9 9/16 2.36
Ex201-110U 1 5/8 9 9/16 2.36
Ex201-115U 1 11/16 10 3/16 2.43
Ex201-120U 1 3/4 10 3/16 2.43
Ex201-125U 1 13/16 10 3/16 2.43
Ex201-130U 1 7/8 10 3/16 2.43
Ex201-135U 2 10 9/16 2.49
Ex201-140U 2 1/16 11 3/16 2.91
Ex201-145U 2 1/8 11 3/16 2.91
Ex201-150U 2 3/16 11 3/16 2.91
Ex201-155U 2 1/4 11 9/16 3.24
Ex201-160U 2 5/16 11 9/16 3.24
Ex201-165U 2 3/8 11 9/16 3.24
Ex201-170U 2 7/16 12 9/16 4.21
Ex201-175U 2 1/2 12 9/16 4.21
Ex201-180U 2 9/16 12 9/16 4.21
Metric Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex201-14A Ex201-14B
No. S mm l mm Wt. kg
Ex201-14 14 177 0.15
Ex201-15 15 177 0.15
Ex201-16 16 177 0.15
Ex201-17 17 185 0.15
Ex201-18 18 185 0.25
Ex201-19 19 200 0.25
Ex201-20 20 200 0.37
Ex201-21 21 200 0.37
Ex201-22 22 200 0.37
Ex201-23 23 210 0.50
Ex201-24 24 210 0.50
Ex201-25 25 210 0.50
Ex201-26 26 210 0.50
Ex201-27 27 210 0.50
Ex201-28 28 210 0.63
Ex201-29 29 210 0.63
Ex201-30 30 210 0.63
Ex201-32 32 215 0.69
Ex201-33 33 225 0.79
Ex201-34 34 225 0.79
Ex201-35 35 225 0.79
Ex201-36 36 225 0.79
Ex201-37 37 240 1.07
Ex201-38 38 240 1.07
Ex201-41 41 240 1.07
Ex201-42 42 240 1.07
Ex201-46 46 255 1.10
Ex201-47 47 265 1.13
Ex201-50 50 265 1.13
Ex201-52 52 280 1.32
Ex201-54 54 280 1.32
Ex201-55 55 280 1.32
Ex201-56 56 280 1.32
Ex201-58 58 290 1.47
Ex201-60 60 290 1.47
Ex201-63 63 315 1.91
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
Box wrenches in the regular pattern are designed for general service. The Heavy- Duty and Striking Face patterns are designed for the service indicated. The Electronic Hex Box patterns are designed for the lighter service encountered in electronic, carburetor and ignition work. Ratcheting Box and split box wrenches are for light duty and should not be used in heavy-duty applications. Never use a hammer on any wrench other than a Striking Face wrench. Use a sledge type hammer. Never use an extension on the wrench handle.
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Related PDFs

Catalog PDF 1
CAT_Safety_Tools_2023 thumbnail
CAT_Safety_Tools_2023 Download PDF
Catalog PDF 2
FLY_SAFETY TOOL POSTER thumbnail
FLY_SAFETY TOOL POSTER Download PDF
Operating Manual 1
SDS_Aluminum_Bronze thumbnail
SDS_Aluminum_Bronze Download PDF
Operating Manual 2
SDS_Copper_Beryllium thumbnail
SDS_Copper_Beryllium Download PDF

Related Articles

Non-Sparking & Non-Magnetic Safety Tools FAQ
Non-Sparking & Non-Magnetic Safety Tools FAQ

Usage

  • 12-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Fine-tooth engagement
  • Tight-space rotation
  • DIN-spec geometry

Usage

  • 12-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Fine-tooth engagement
  • Tight-space rotation
  • DIN-spec geometry
Empty tab. Edit page to add content here.
Alloy

Aluminum Bronze (AlBr), Copper Beryllium (CuBe)
Length-s

1/2", 9/16", 19/32", 5/8", 11/16", 3/4", 25/32", 13/16", 7/8", 15/16", 31/32", 1", 1-1/16", 1-1/8", 1-3/16", 1-1/4", 1-5/16", 1-3/8", 1-7/16", 1-1/2", 1-9/16", 1-5/8", 1-11/16", 1-3/4", 1-13/16", 1-7/8", 2", 2-1/16", 2-1/8", 2-3/16", 2-1/4", 2-5/16", 2-3/8", 2-7/16", 2-1/2", 2-9/16", 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 21 mm, 22 mm, 23 mm, 24 mm, 25 mm, 26 mm, 27 mm, 28 mm, 29 mm, 30 mm, 32 mm, 33 mm, 34 mm, 35 mm, 36 mm, 37 mm, 38 mm, 41 mm, 42 mm, 46 mm, 47 mm, 50 mm, 52 mm, 54 mm, 55 mm, 56 mm, 58 mm, 60 mm, 63 mm
