Pipe Cutting Machines/Belly Saws
Pipe Cutting Machines/Belly Saws

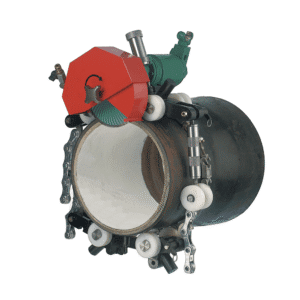

Heavy‑Duty Pneumatic & Hydraulic Pipe Cutting Machines

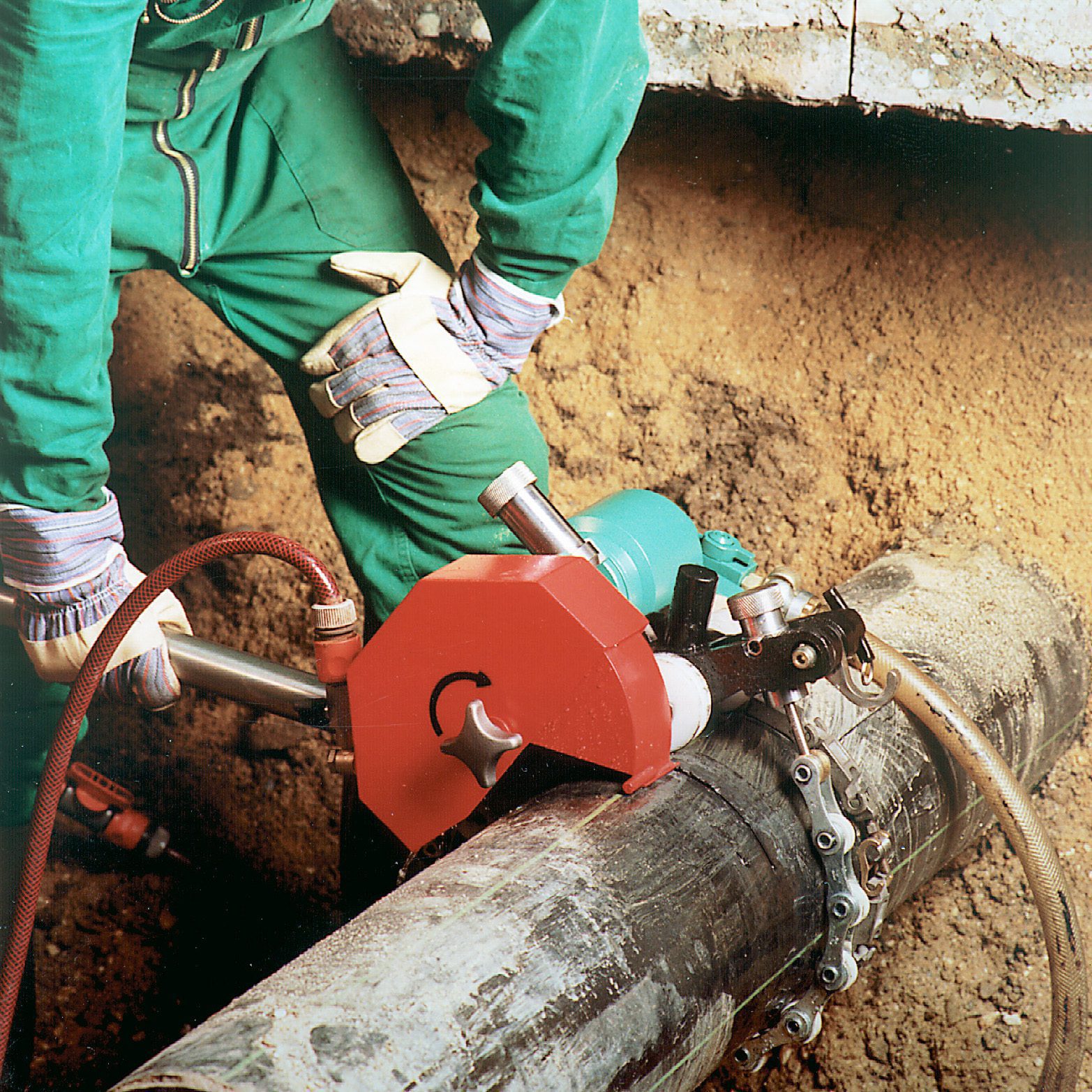

Built for demanding infrastructure and maintenance work, these machines deliver controlled, accurate cutting from 6" to 96" pipe diameters. They perform dependably in municipal water and gas operations, refineries, petrochemical facilities, and industrial plants. With a compact cutting profile, they help reduce excavation time and improve on‑site efficiency.
- Cuts steel, ductile iron, non‑ferrous metals, HDPE, plastic, and cement pipe
- Fully enclosed blade guard for improved operator safety
- Heavy‑duty pipe cutting machine for field and industrial use
- Cuts pipe from 6" to 96" diameter with adjustable cutting depth
- Guide chain ensures straight, accurate 90° cuts
- Compatible with carbide‑tipped and diamond‑coated blades; longitudinal clamp available
These pipe cutters are ATEX certified under class II 2 GcT6 for use in Ex Zones.
PRODUCT FILTER
Search :
Filter by tool type
Subcategories
Air Power
- Cutting Capacity: 6" to 96" Diameter Pipe
- Speed: 350 / 1800 RPM
- Motor Power: 2.4 HP / 4 HP
Hydraulic Power
- Cutting Capacity: 6" to 96" Diameter Pipe
- Speed: 350 / 1800 RPM
- Connection: 1/2" FF (HTMA)
- Motor Power: 2.7 HP
- Oil Speed: 6 GPM (up to 13 GPM) @ 2000 PSI
- Whip hoses & FF Couplings included
Accessory
- Guide carriages are used for both saw mounting and movement around the pipe
- Mounting points for added leverage to reduce operator effort
Accessory
- Saw blades for cutting steel, stainless steel, plastics, HDPE, PVC, Ductile Iron, cast iron, cement, concrete and clay
- 7" blade diameter for 2" maximum blade cutting depth
Accessory
- CS Unitec's tensioning chain allows the pipe cutting machine to smoothly roll while holding the saw firm against the pipe's surface
Accessory
- For steel, stainless steel, plastics, HDPE and PVC
- For use beveling pipe at 45 degrees, 60 degrees and 90 degrees
- For making chamfer angles 22.5 degrees, 30 degrees, 45 degrees
