Pole Tampers
- Backfill small areas in tight, narrow spaces or up against walls, mains, piping, utility poles, signs, fence posts and more
- Ideal for water, electric, gas and utility companies
- Compact clay, soil and asphalt, as well as any finely crushed or powdered material
- Standard or Vibro-Lo Pole Scabbler with Compactor Foot (size of choice)
Benefits
- Integrated Vibro-Lo™ low vibration technology – operates at 8x less vibration than standard models. The tamper utilizes vibration damping components to offset the hammer vibration created when the tamper butt impact the workpiece.
- Tamper heads convert the pole scabbler into a powerful pneumatic compaction tool, eliminating the need for separate equipment on small or remote job sites.
- Pneumatic drive delivers consistent, high frequency impact energy for uniform compaction and reliable material consolidation.
- Quick interchangeability allows crews to switch between scabbling and tamping tasks in seconds, increasing productivity and versatility on multi step repair jobs.
- Rugged, single piece construction ensures long service life under demanding field conditions, reducing downtime and replacement costs.
Applications & Usage
- Convert to Tamper using Pole Scabblers. Tamper heads compact backfill, patching materials, and repair mortars in hard to reach or confined areas where larger compactors cannot operate.
- Used to consolidate soil, gravel, and bedding materials around utility lines, pipes, and underground services.
- Provide controlled compaction for vertical surfaces, narrow trenches, and areas close to walls, foundations, or structural elements.
- With Convert to Tamper, help seat and densify concrete repair materials, ensuring strong adhesion and reducing voids in patching and resurfacing applications.
- Support overhead and elevated compaction tasks, improving access and operator safety.
- Commonly used by water, electric, gas, and municipal utility crews performing daily excavation, repair, and reinstatement work.
Technical Specifications
Standard Convert to Tamper
Vibro-Lo Convert to Tamper
| Length – 55" Blows per minute – 1100 Air consumption – 24.6 CFM @ 90 PSI Production rate – 130 sq. ft./hour Cutter life – 12,000 sq. ft. | |||
| Model No. | Description | Weight (lbs.) | Vibration Level (Aeq m/s2) |
|---|---|---|---|
| 150.5031 | LPS55 with 5" Round Compactor Foot | 28.6 | 44.5 |
| 150.5030 | LPS55 with 4" x 4" Compactor Foot | 28.6 | 43.0 |
| 150.5021 | LPS55 with 6" x 5" Compactor Foot | 29.75 | 43.6 |
| Length – 50" Blows per minute – 1300 Air consumption – 25 CFM @ 90 PSI Production rate – 130 sq. ft./hour Cutter life – 12,000 sq. ft. | |||
| Model No. | Description | Weight (lbs.) | Vibration Level (Aeq m/s2) |
|---|---|---|---|

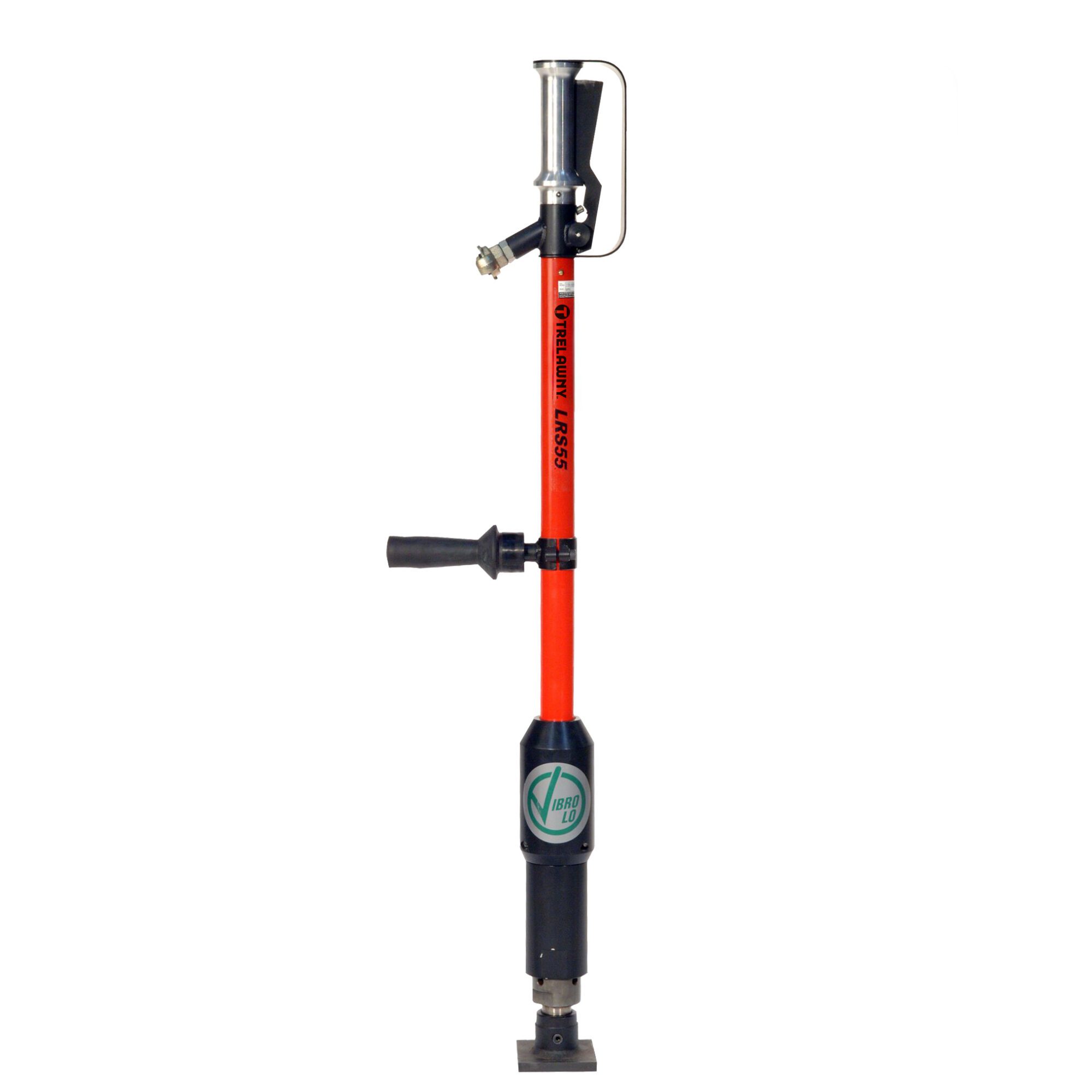

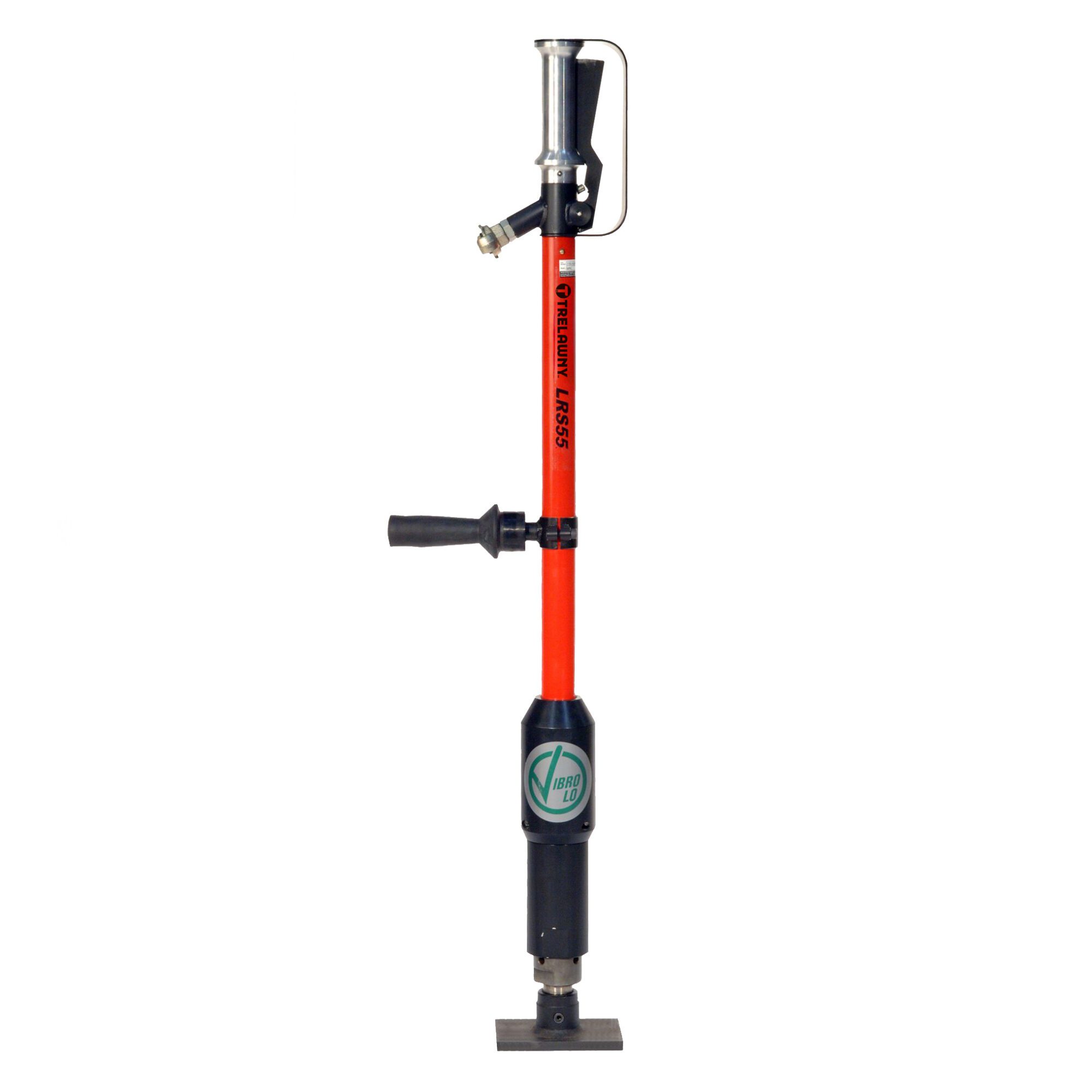

| 150.5331 | VL LRS55 with 5" Round Compactor Foot | 47.5 | 3.5 |
| 150.5330 | VL LRS55 with 4" x 4" Compactor Foot | 47.5 | 3.5 |
| 150.5335 | VL LRS55 with 6" x 5" Compactor Foot | 47.5 | 3.5 |
Related PDFs
Product Schematic 1
SCHEM_LPS55
Download PDF
Product Schematic 2
SCHEM_VLLRS55
Download PDF
Operating Manual 1
MANUAL_LPS55
Download PDF
Operating Manual 2
MANUAL_VLLRS55
Download PDF
