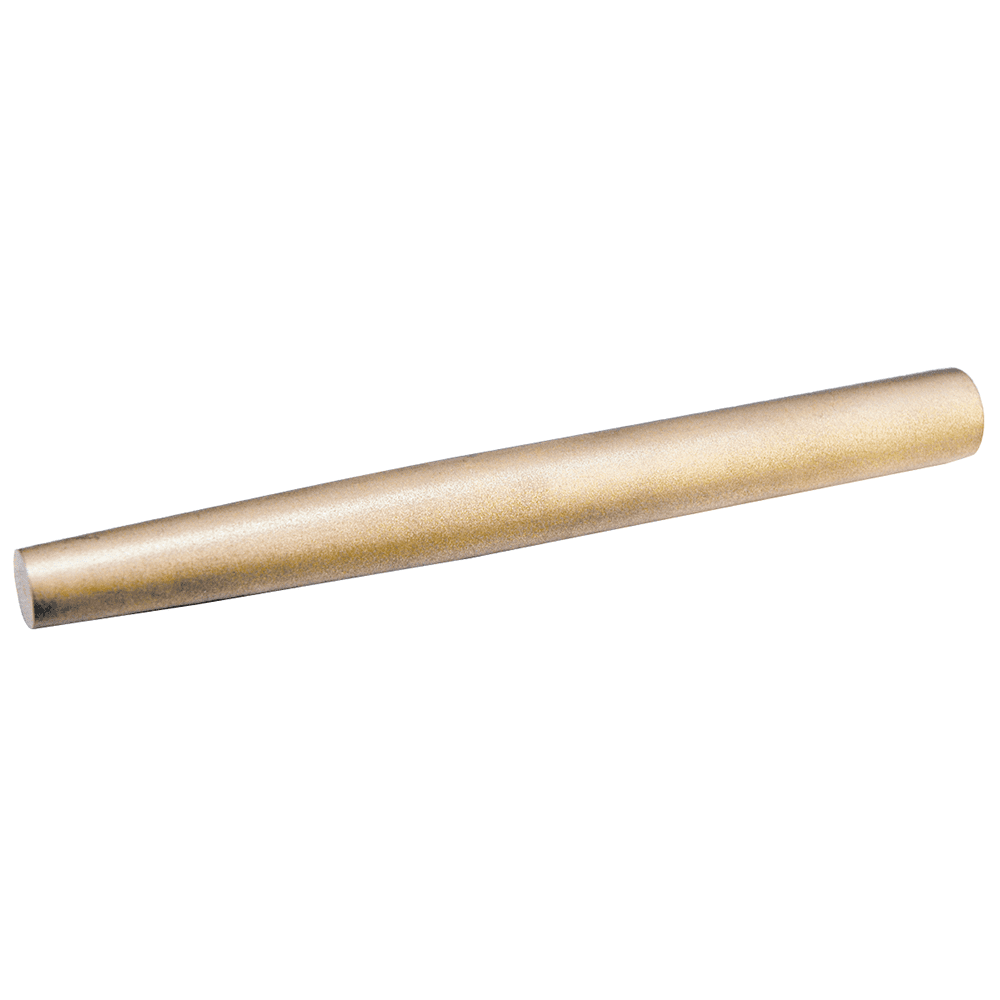

Straight Drift Pin

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Included Components

  • Drift Pin Straight Type

Benefits

  • Straight alignment tip
  • Provides safe drift force
  • Forged solid shaft

Applications & Usage

  • Straight Drift Pin is Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex301C-015UA Ex301C-015UB
No. a inch b inch l inch Wt. lbs.
Ex301C-005U* 1/16 3/8 6 0.17
Ex301C-010U* 1/8 3/8 6 0.18
Ex301C-015U 3/16 3/8 6 0.19
Ex301C-020U 1/4 3/8 6 0.19
Ex301C-025U 5/16 7/16 6 0.28
Ex301C-030U 3/8 9/16 6 0.38
Ex301C-035U 7/16 5/8 6 0.51
Ex301C-040U 1/2 11/16 6 0.65
Ex301C-045U 9/16 11/16 6 0.66
Ex301C-050U 5/8 3/4 8 1.10
Ex301C-055U 11/16 7/8 8 1.32
Ex301C-060U 3/4 15/16 10 1.97
Ex301C-065U 13/16 1 10 2.32
Ex301C-070U 7/8 1 10 2.35
Ex301C-075U 15/16 1-1/16 10 2.50
Ex301C-085U 1-1/16 1-1/4 11 3.23
Ex301C-095U 1-3/16 1-5/16 11 3.40
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex301C-5A Ex301C-5B
No. a mm b mm l mm Wt. kg.
Ex301C-1.5* 1.5 10 150 0.08
Ex301C-2* 2 10 150 0.08
Ex301C-3* 3 10 150 0.08
Ex301C-4* 4 10 150 0.08
Ex301C-5 5 10 150 0.08
Ex301C-6 6 10 150 0.09
Ex301C-7 7 12 150 0.13
Ex301C-8 8 12 150 0.13
Ex301C-9 9 14 150 0.17
Ex301C-10 10 14 150 0.18
Ex301C-11 11 16 150 0.23
Ex301C-12 12 16 150 0.23
Ex301C-13 13 18 150 0.29
Ex301C-14 14 18 150 0.30
Ex301C-15 15 20 200 0.49
Ex301C-16 16 20 200 0.50
Ex301C-17 17 22 200 0.60
Ex301C-18 18 22 200 0.61
Ex301C-19 19 24 250 0.89
Ex301C-20 20 24 250 0.91
Ex301C-21 21 26 250 1.05
Ex301C-22 22 26 250 1.07
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Related PDFs

Catalog PDF 1
CAT_Safety_Tools_2023 thumbnail
CAT_Safety_Tools_2023 Download PDF
Catalog PDF 2
FLY_SAFETY TOOL POSTER thumbnail
FLY_SAFETY TOOL POSTER Download PDF
Operating Manual 1
SDS_Aluminum_Bronze thumbnail
SDS_Aluminum_Bronze Download PDF
Operating Manual 2
SDS_Copper_Beryllium thumbnail
SDS_Copper_Beryllium Download PDF

Related Articles

Non-Sparking & Non-Magnetic Safety Tools FAQ
Non-Sparking & Non-Magnetic Safety Tools FAQ

Usage

  • Straight Drift Pin is Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Straight alignment tip
  • Provides safe drift force
  • Forged solid shaft

Usage

  • Straight Drift Pin is Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Straight alignment tip
  • Provides safe drift force
  • Forged solid shaft
Empty tab. Edit page to add content here.
Alloy

Aluminum Bronze (AlBr), Copper Beryllium (CuBe)
Inner-diameter

1/16", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1-1/16", 1-3/16", 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 21 mm, 22 mm
