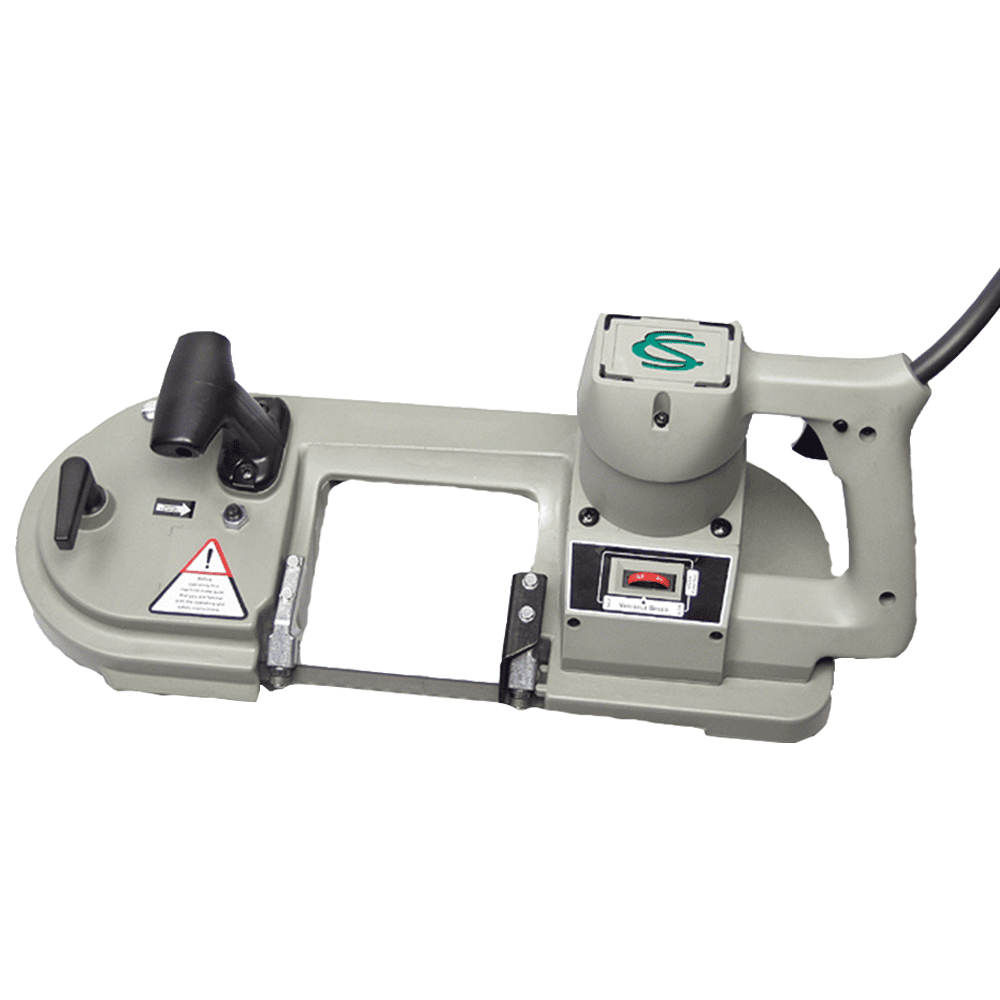

Electric Band Saw
- Cutting Capacity: Up to 8″ (Round), 9″x8-1/5″ (Rectangular)
- Blade Speed: 2.0-4.9 ft/s (Variable and 2 Speed options available)
- Motor Power: 6 Amp
Includes (testing):
- (1) Electric Band Saw
Benefits
- Heavy‑duty electric motors deliver strong, consistent cutting performance for industrial environments.
- Deep‑cut throat designs allow cutting of larger pipe and structural materials in a single pass.
- Variable‑speed control adapts blade speed to the material, improving cut quality and extending blade life.
- Cold‑cutting operation reduces sparks and heat, supporting safer cutting in sensitive environments.
- Durable build quality designed for long service life in construction, utility, marine, and industrial settings.
- Portable, compact construction makes the saw easy to maneuver in tight spaces or overhead positions.
Applications & Usage
- Electric Band Saw cuts steel, stainless steel, inconel, chrome alloys, aluminum, copper, cast iron, and plastic pipe.
- Ideal for plumbing, mechanical, and utility contractors working on installation, repair, or demolition.
- Performs controlled cuts through metal and composite materials during renovation, teardown, and decommissioning.
- Reliable in corrosive or high‑moisture environments such as shipyards, offshore platforms, and marine maintenance operations.
- Provides fast, clean cuts during industrial maintenance, shutdowns, and turnaround operations in refineries, chemical plants, and power facilities.
Technical Specifications

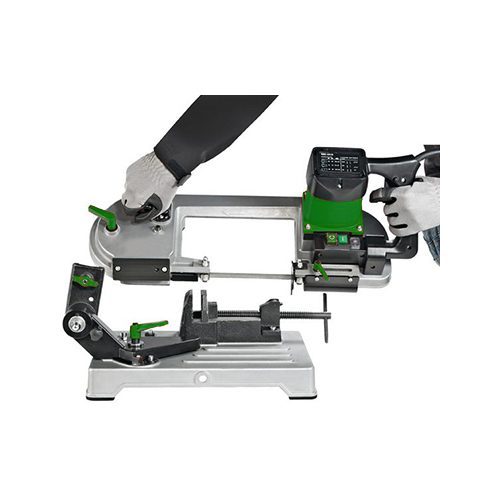

| Model No. 5 6020 0010-220 - Electric Band Saw w/cutting table | |
|---|---|
| Motor Power and Specs | 6 Amp, 220V |
| Blade Speed (ft/sec) | 3.3 / 4.4 2 speeds |
| Capacity (Round) | 4" |
| Capacity (Rectangular) | 4" x 4" |
| Blade Size | 52.56" x 0.5" x 0.025"* |
| Housing | Aluminum |
| Overall Length | 25" |
| Weight | 18 lbs.** |
| *Exact blade size is 1335mm x 13mm x 0.65mm **Weight of saw only. Weight of saw, stationary cutting table and vise is 40 lbs. | |
| Model No. 5 6078 0010-220 - Deep Throat™ Electric | |
|---|---|
| Motor Power and Specs | 6 Amp, 220V |
| Blade Speed (ft/sec) | 2.0-4.9 Variable |
| Capacity (Round) | 7" |
| Capacity (Rectangular) | 7" x 7" |
| Blade Size | 66" x 5/8" |
| Housing | Stainless Steel |
| Overall Length | 28-3/4" |
| Weight | 28 lbs. |

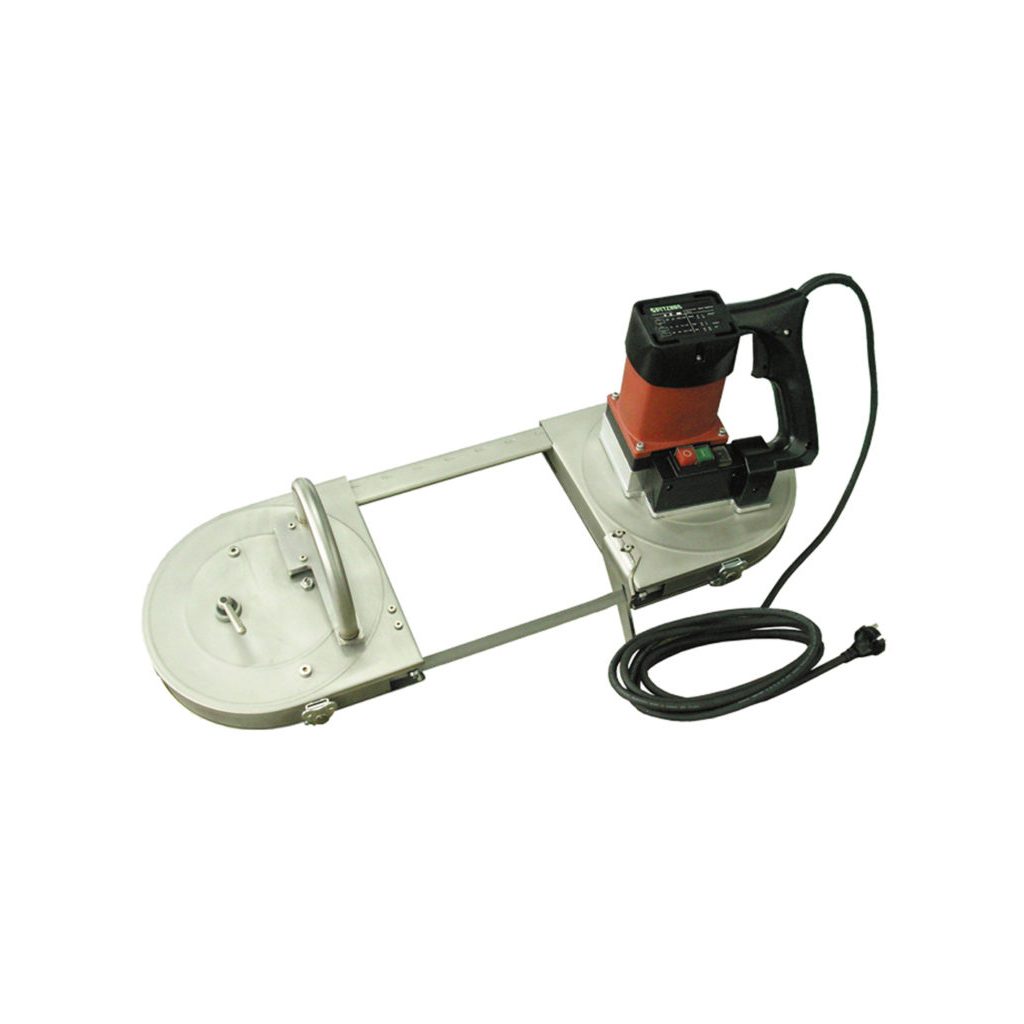

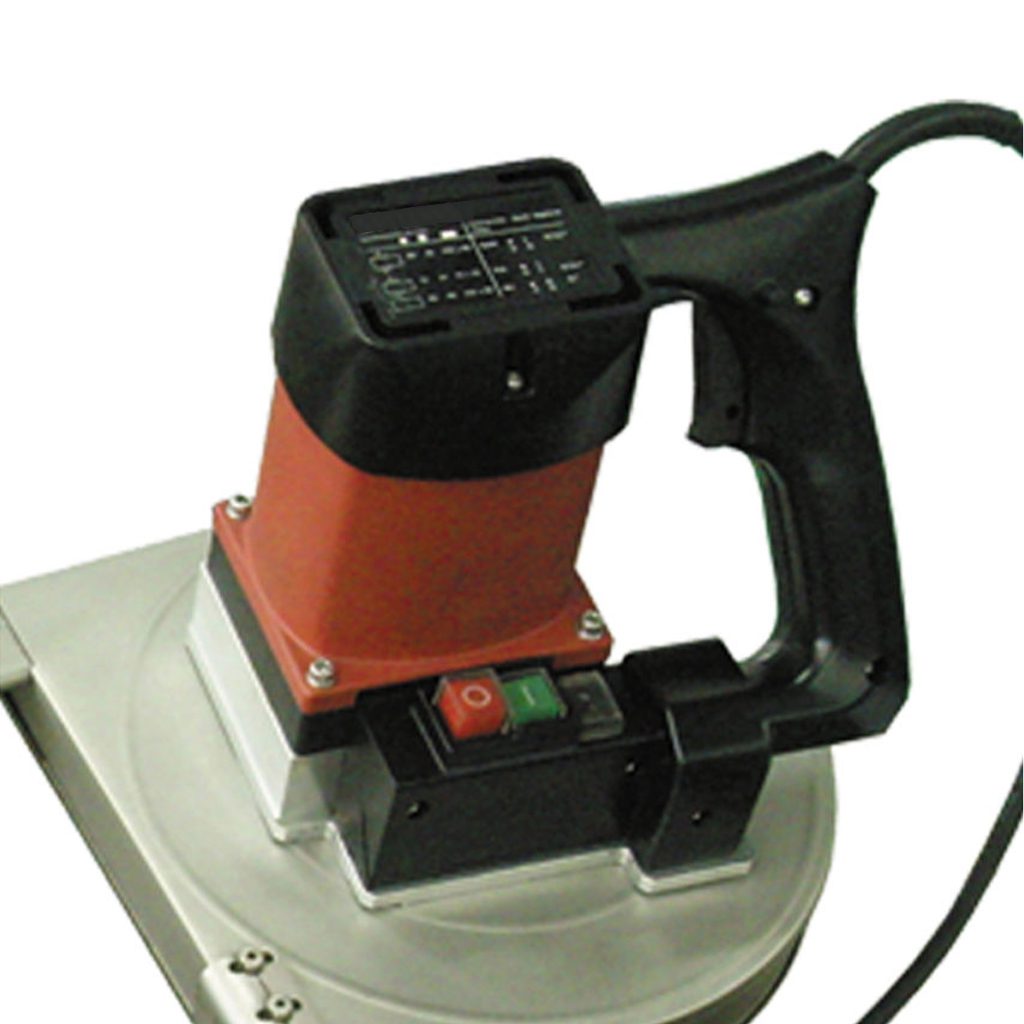

| Model No. 5 6079 0010-220 - Wide Mouth™ Electric | |
|---|---|
| Motor Power and Specs | 6 Amp, 220V |
| Blade Speed (ft/sec) | 2.0-4.9 Variable |
| Capacity (Round) | 8" |
| Capacity (Rectangular) | 9" x 8-1/2" |
| Blade Size | 71" x 5/8" |
| Housing | 5/8" Stainless Steel |
| Overall Length | 30-3/4" |
| Weight | 34 lbs. |
Optional Accessories
OptionalOptionalOptionalOptional
OptionalOptionalRelated PDFs
Catalog PDF 1
CAT_Saws
Download PDF

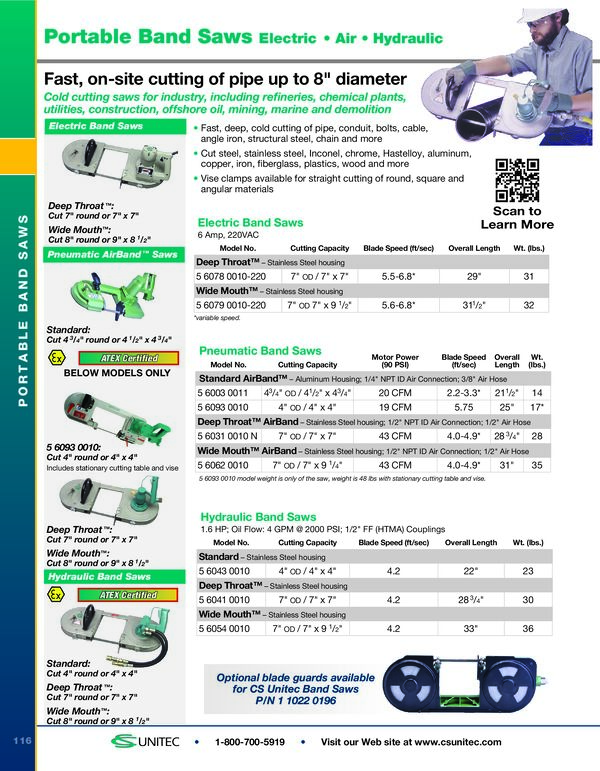

Catalog PDF 2
CAT_Electric_Band_Saws
Download PDF

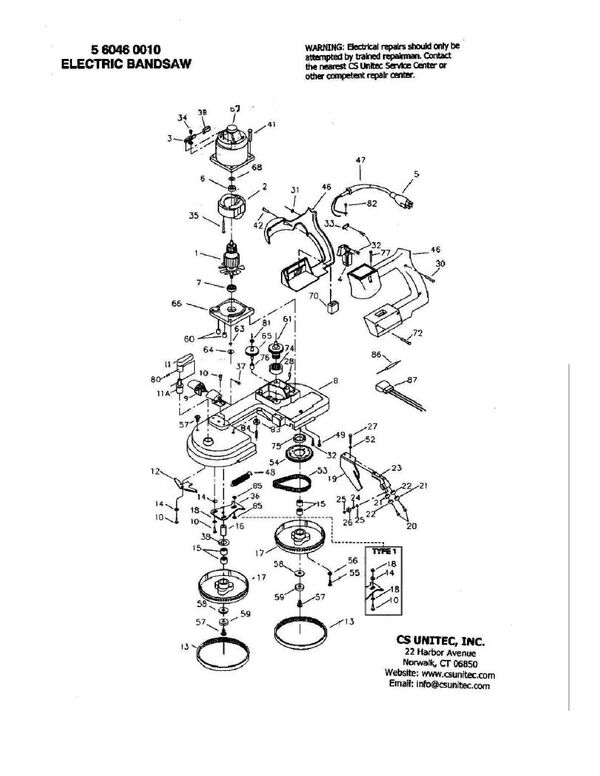

Product Schematic 1
SCHEM_560460010
Download PDF

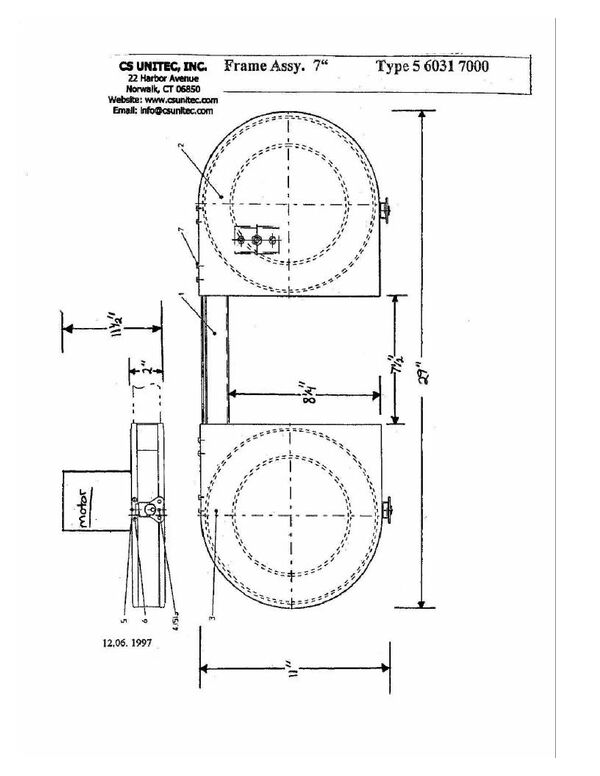

Product Schematic 2
SCHEM_560317000
Download PDF

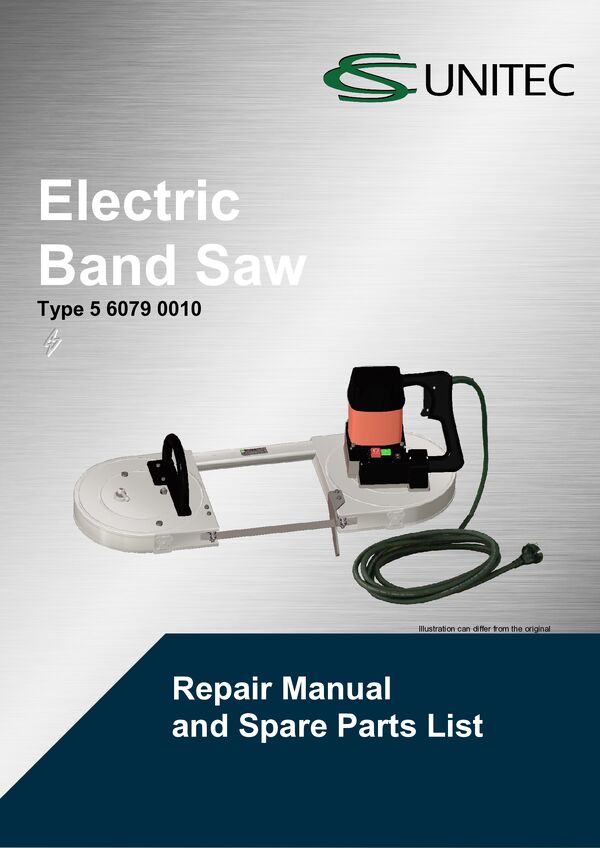

Product Schematic 3
SCHEM_560790010
Download PDF

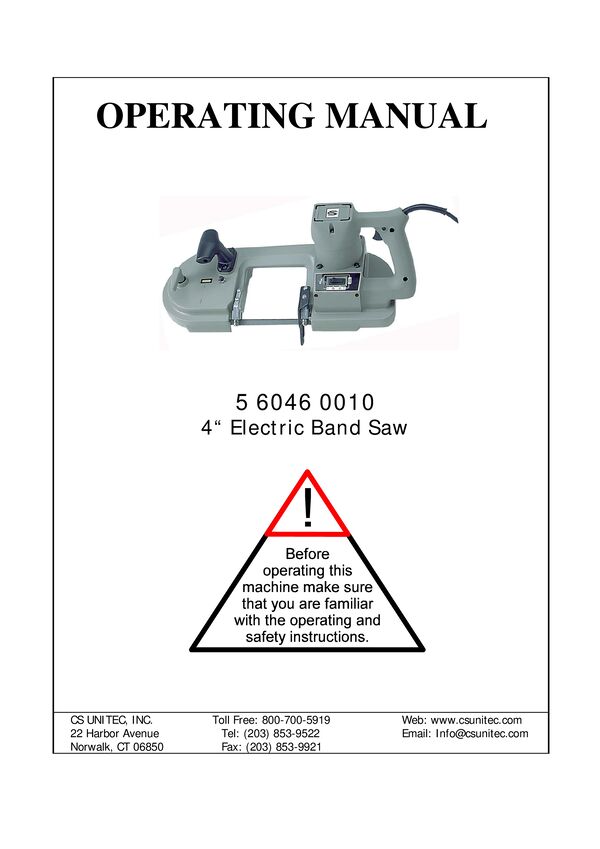

Operating Manual 1
MANUAL_560460010
Download PDF

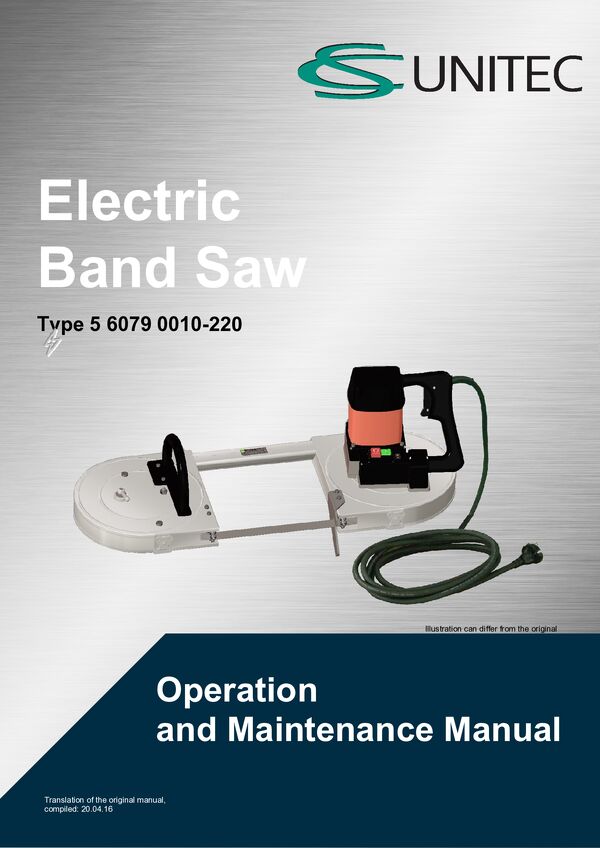

Operating Manual 2
