Electric Pipe Belt Grinder – PIPE-MAX
- Ideal for Stainless Steel and other Metals
- Grind / Polish Pipe up to 14″
- Power: 15 Amp
- Variable Speed
- Adapts to Pipe Contours
Includes (testing):
PIPE-MAX Standard Equipment:
- 1 Pipe-Max – basic machine, 110 V
- 1 QUICK-LOCK cable, 13 feet
- 1 additional handgrip
- 2 PIPE-MAX grinding belts, grit 40
- 2 PIPE-MAX grinding belts, grit 60
- 2 PIPE-MAX grinding belts, grit 80
- 2 PIPE-MAX grinding belts, grit 120
- 2 PIPE-MAX SC-fleece belts, medium
- 2 PIPE-MAX SC-fleece belts, fine
- Extra Carbon Brush Set
Benefits
- Powerful 15‑amp motor delivers consistent performance for demanding grinding and polishing applications on stainless steel, aluminum, and other metals.
- Variable speed control from 950 to 3500 RPM allows precise adjustment for heavy grinding, blending, or high gloss polishing.
- Front hard rubber contact roller drives the abrasive belt with stability, ensuring straight, edge free weld seam removal on flat surfaces.
- Flexible sanding belt automatically adapts to pipe contours, enabling fast, uniform polishing around the entire circumference with minimal effort.
- Innovative contour‑following system with an elastic return roller ensures the belt conforms smoothly to pipe diameters without requiring high pressure, improving control and finish quality.
- Quick and easy sanding‑belt changes reduce downtime and increase productivity during multi‑stage finishing processes.
Applications & Usage
- Electric Pipe Belt Grinder combines the capabilities of a grinder and a pipe belt sander. Designed for sanding, grinding, blending, and polishing stainless steel, aluminum, and other high quality metals.
- Ideal for processing pipes and handrails from small diameters up to 14″, making it suitable for architectural metalwork, fabrication shops, and industrial installations.

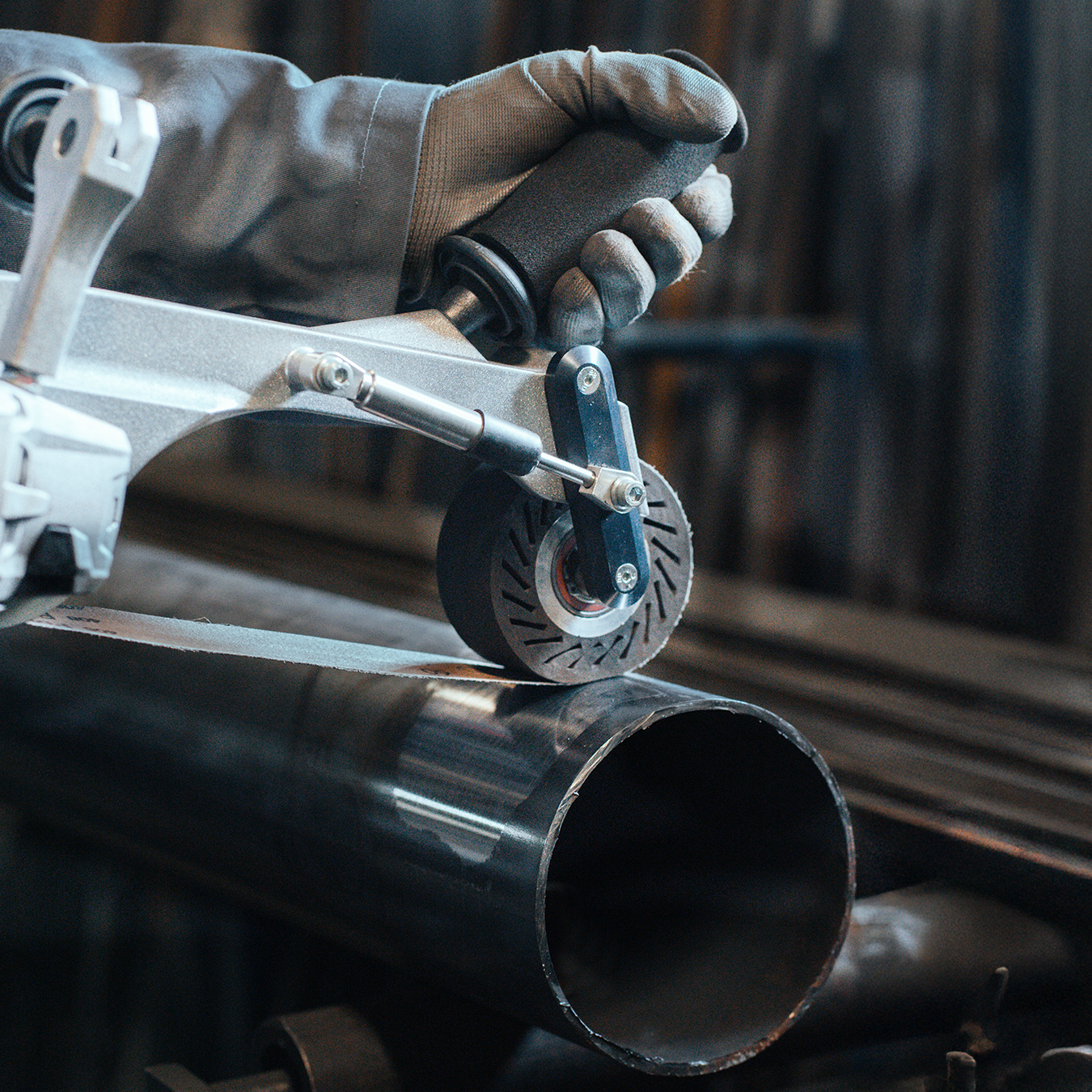

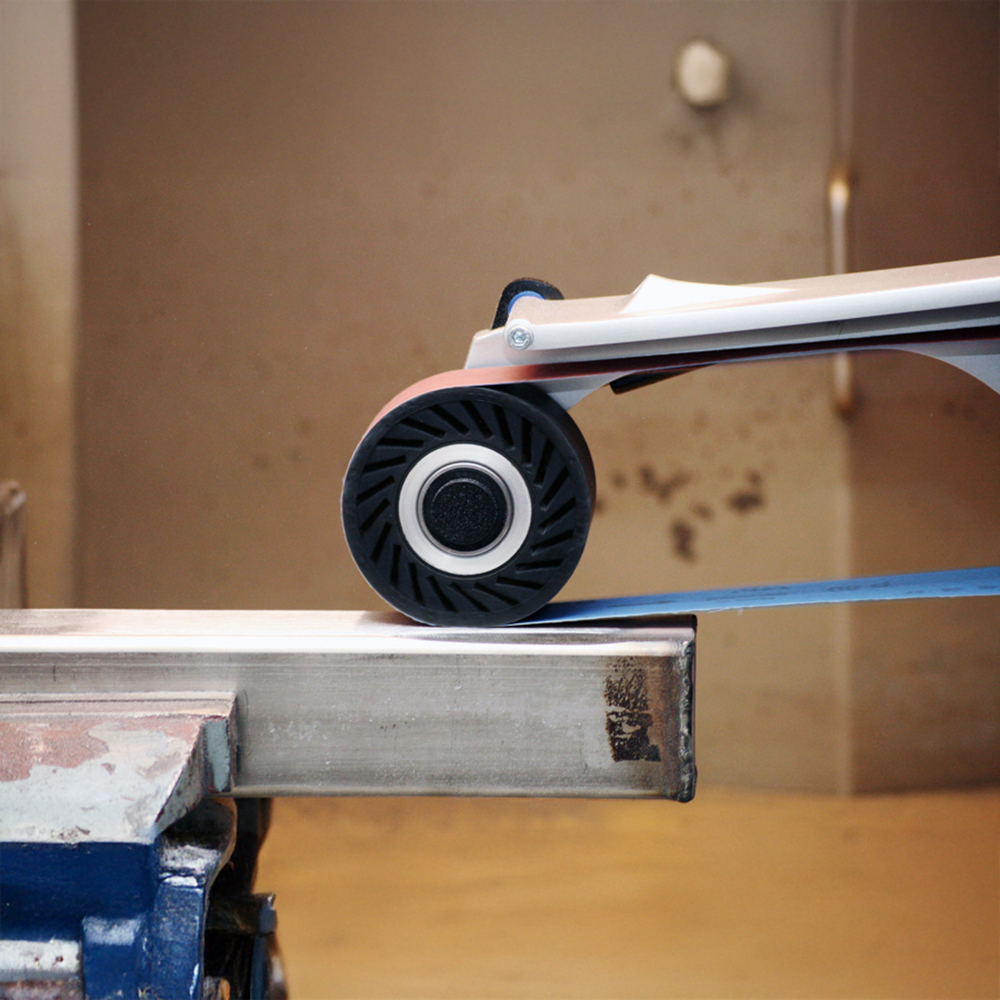

- Electric Pipe Belt Grinder grinds weld seams on flat surfaces in a straight line using the front hard rubber contact roller, leaving no edges, waves, or distortion.

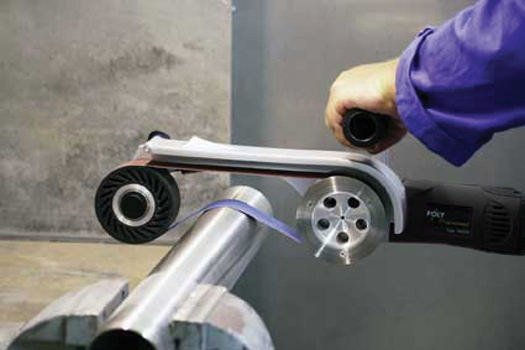

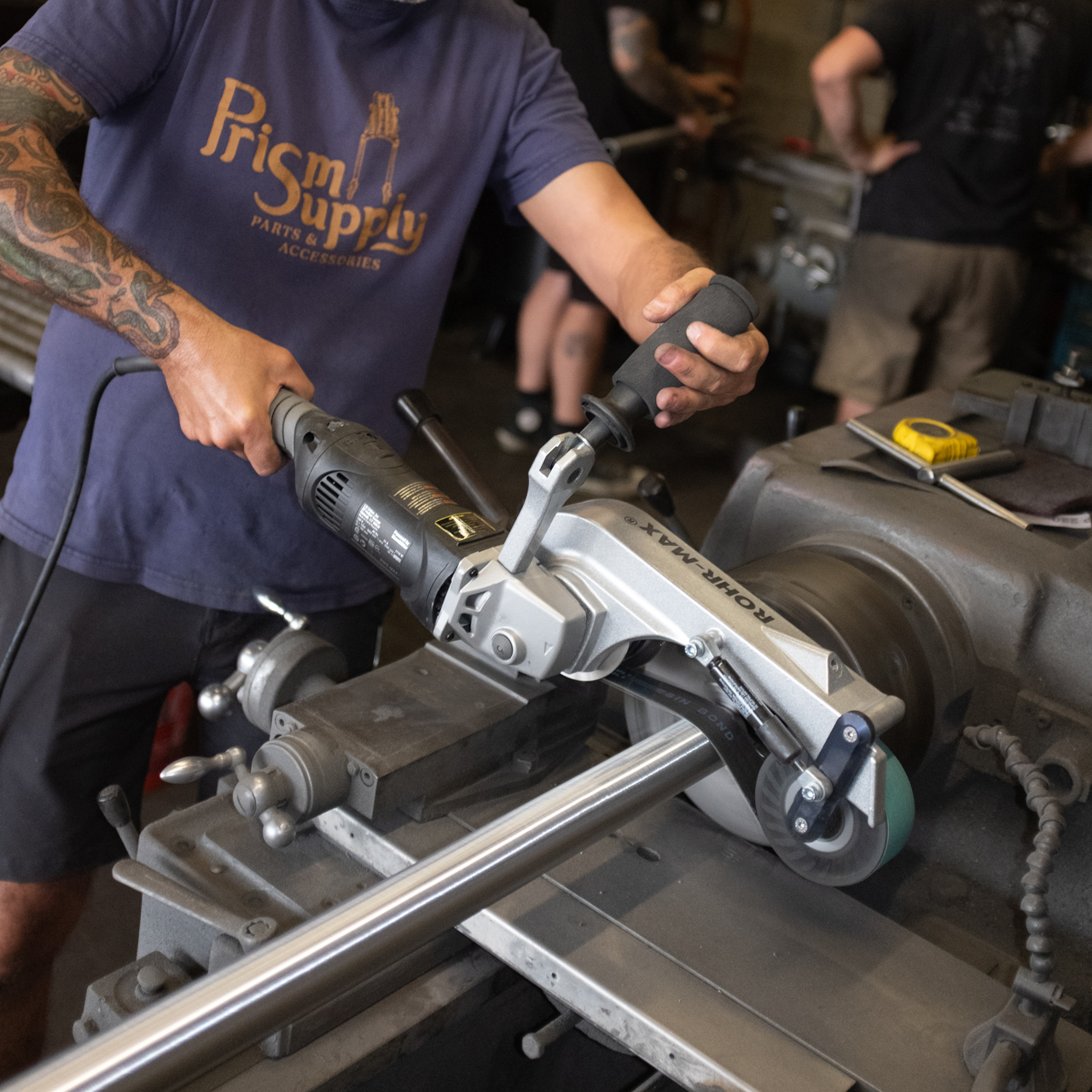

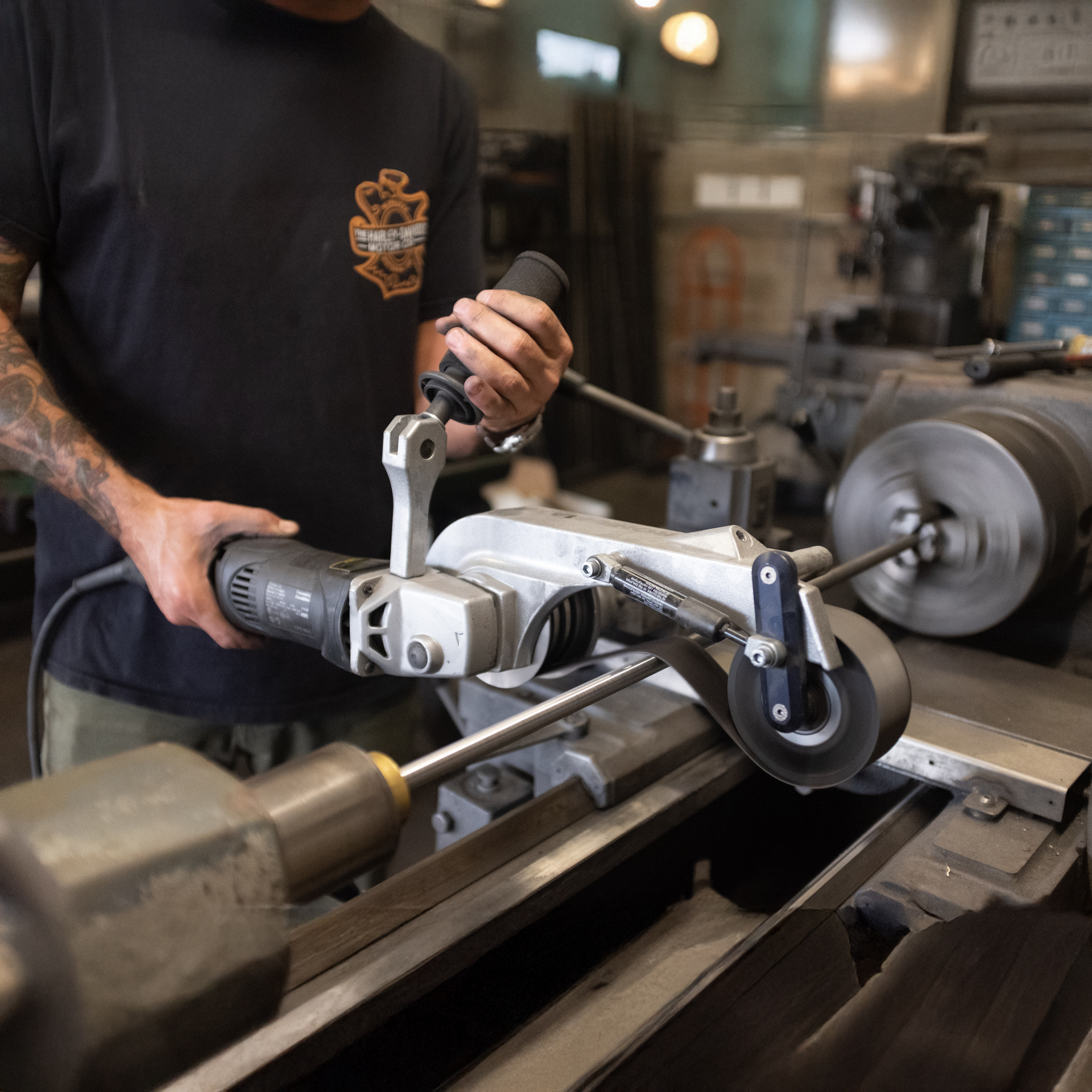

- For pipe and handrail finishing, the flexible sanding belt wraps around the pipe and follows every contour, allowing operators to polish the entire circumference in just a few passes.
- The soft PUR grinding roller allows comfortable longitudinal grinding on flat surfaces, making it ideal for removing spot welds, leveling transitions, and eliminating deep scratches.
- Combining the capabilities of a grinder and a pipe belt sander, the PIPE‑MAX eliminates the need for multiple tools and streamlines metal‑finishing operations.
Technical Specifications
| PIPE-MAX | |
| Item ID: | 38502A |
|---|---|
| Belt Size | 30.7" x 1.6" (Exact size: 780mm x 40mm) |
| Belt Speed | 950 to 3500 RPM |
| Power | 15 Amp (1710 Watts) 110V (Also avail: 220 V) |
| Pipe ø Max. | 14" |
| Weight | 11.25 lbs. |
| Cancer and Reproductive Harm - www.P65Warnings.ca.gov | |
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs

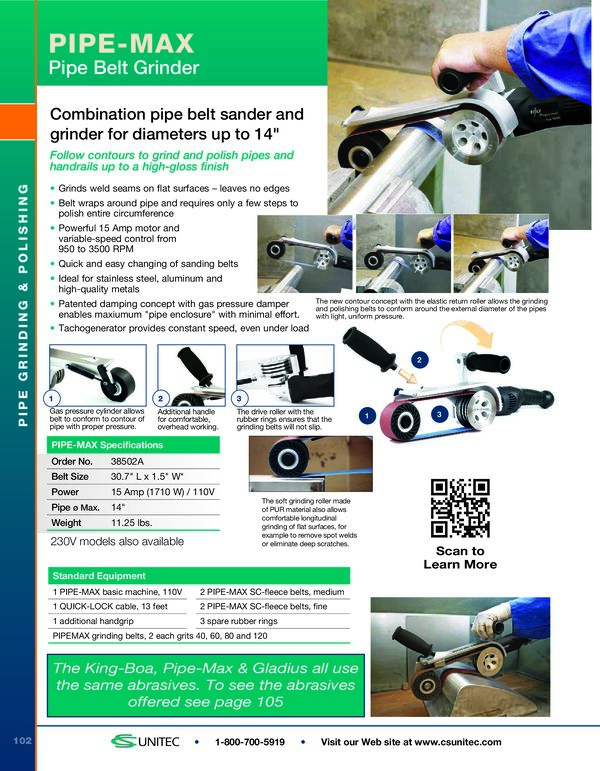

Catalog PDF
CAT_PipeMax
Download PDF
Product Schematic
SCHEM_PipeMax
Download PDF
Operating Manual 1

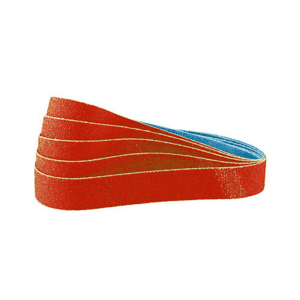

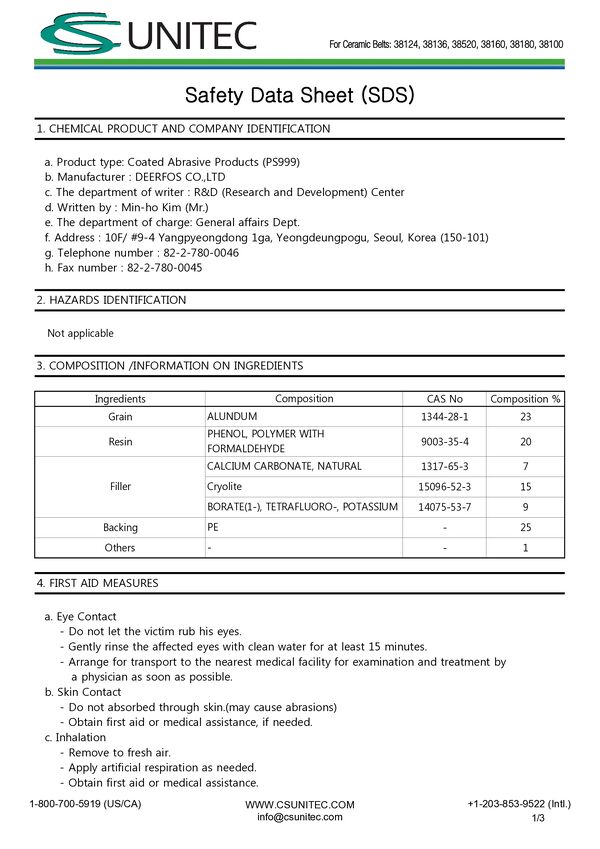

SDS_Ceramic_Belts
Download PDF
Operating Manual 2

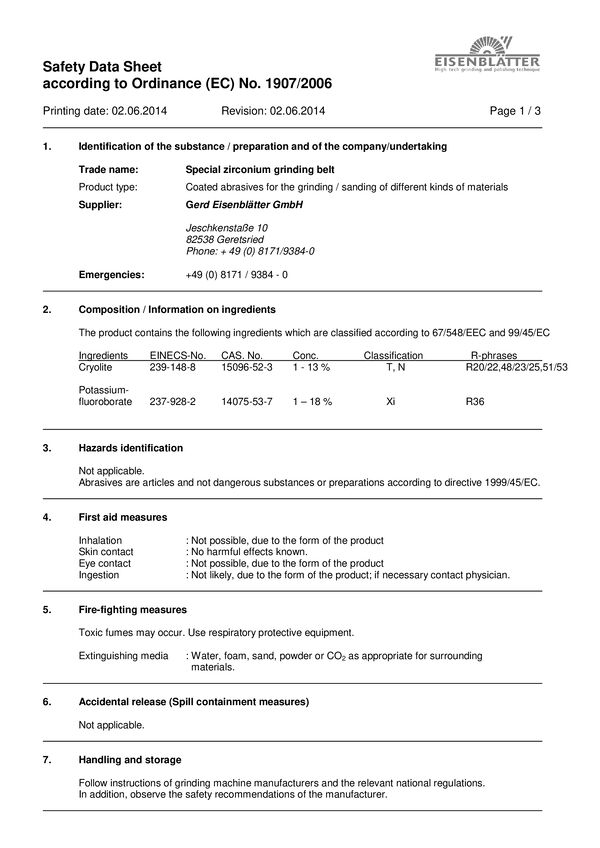

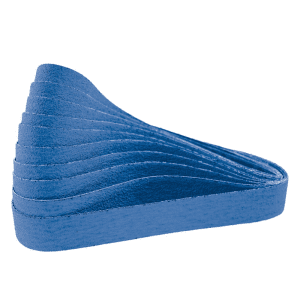

SDS_Zirconium_Belt
Download PDF
