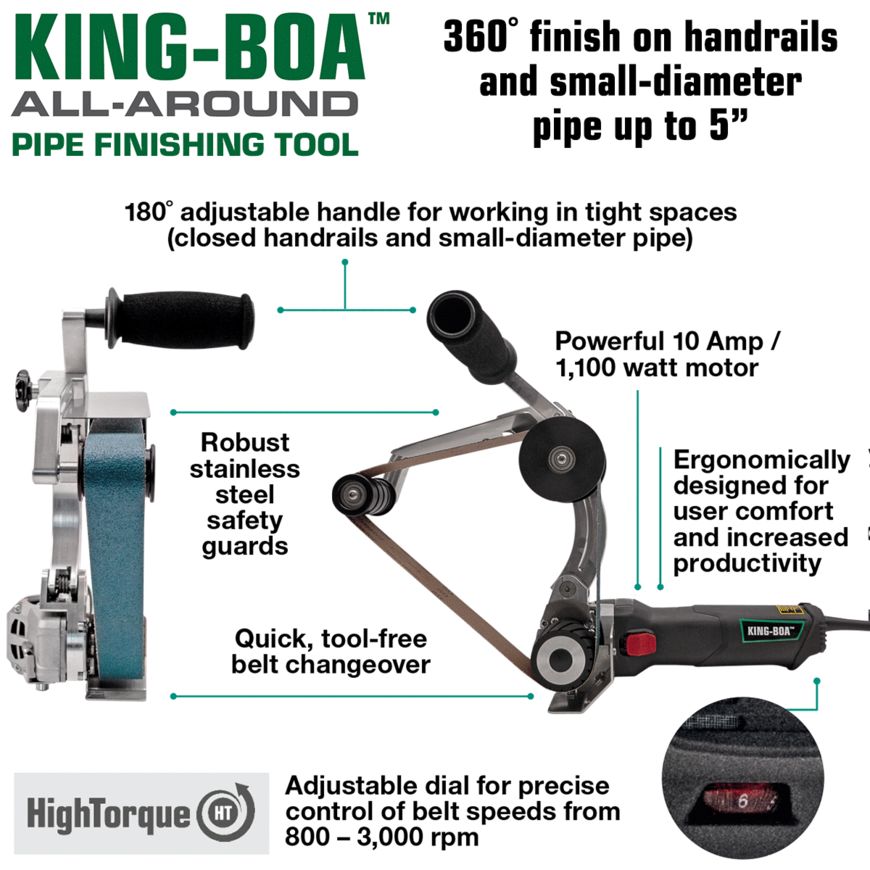

KING-BOA™ Round Tubing Sander
- Ideal for Stainless Steel and other Materials
- Grind / Polish Railings and Pipes up to 5”
- Adapts to railing contours
- Sanding Arm for 270º Excellent Coverage
- Power: 10 Amp
- Speed: 800-3000 RPM
Includes (testing):
- 1 KING-BOA Railing Belt Sander
- 1 Motor Protection Dust Guard
- 6 Zirconium Belts (2 ea. 60, 80, & 120 Grit)
- 2 SC Fleece Belts (1 medium & 1 fine)
Benefits
- Fast, efficient, and uniform finishing:
- Wraps around the rail 270° - Rotate slightly to 360°
- Minimal pressure needed to conform belts to railings
- Use in narrow spaces:
- Low profile
- Additional side handle can be rotated 180°
- Ergonomically designed for user comfort:
- increased productivity and reduced fatigue to produce uniform finishes
- designed for professional use
- Increased safety:
- Stainless steel belt guards
- Soft-start
- Abrasive belt efficiency:
- Easy, fast change out of sanding belts
- Uniform belt sizes for all CS Unitec pipe/railing polishing tools
Applications & Usage
- Wrap around pipe sander for metal hand rails, railing, and tubing
- 270° sanding arm for quick progress, perfect finish, and simple operation – rotate slightly for full 360? finish
- Uniform belt tension and minimal user pressure for high-quality, consistent finishes
- Blend, finish, and polish round railings and pipe up to a mirror finish
- For use on all metals – Steel, Stainless steel, Aluminum, Bronze, Iron, and more
Technical Specifications
| Part No. | 38810U |
|---|---|
| Power | 10 Amp, 1100 watt |
| Capacity | 5" (Maximum Pipe Dia.) |
| Belt Speed | 800 - 3000 rpm |
| Belt Size | 30.7" x 1.5" (780mm x 40mm) |
| Weight | 9 lbs. |
| Standard Equipment | 1 KING-BOA Railing Belt Sander 1 Motor Protection Dust Guard 6 Zirconium Belts (2 each of 60, 80, & 120 Grit) 2 SC Fleece Belts (1 medium & 1 fine) |
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs
Catalog PDF
FLY_KingBoa
Download PDF

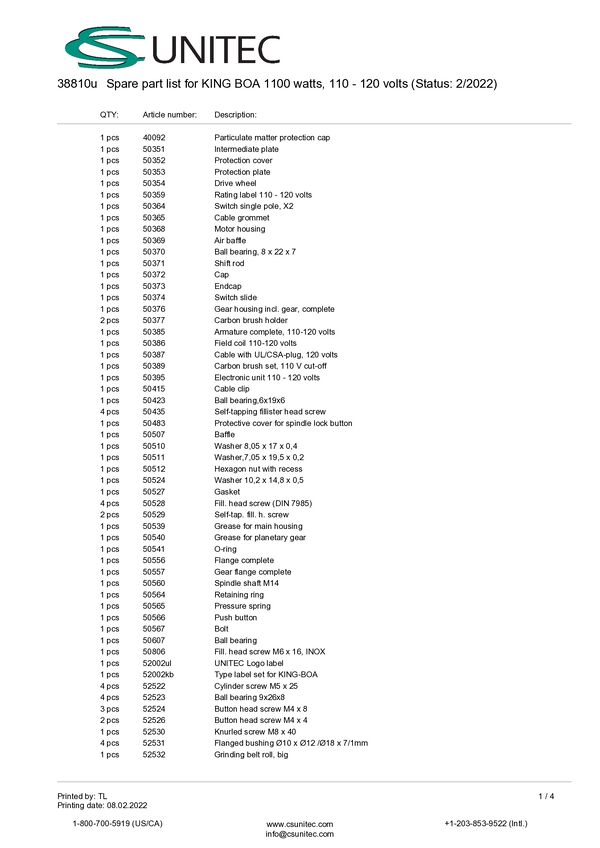

Product Schematic
SCHEM_KingBoa
Download PDF

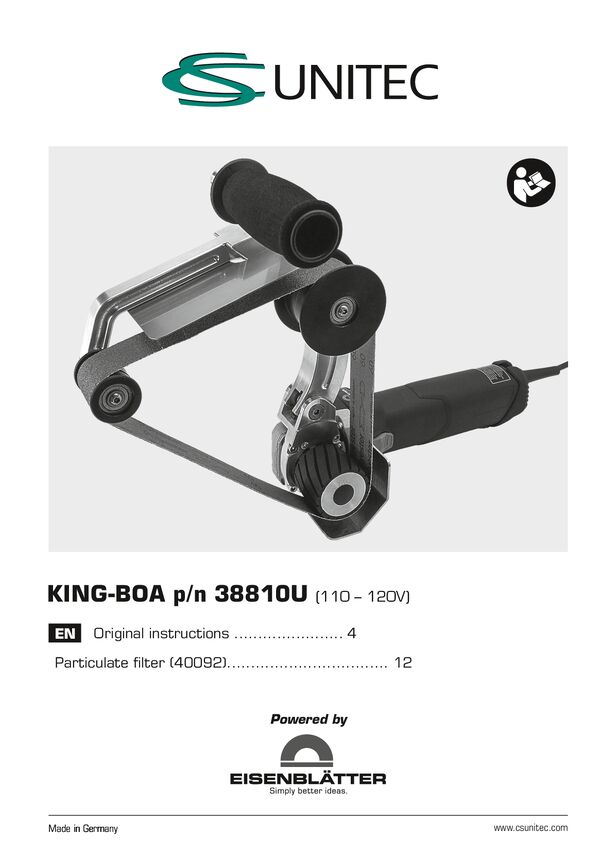

Operating Manual
MANUAL_KingBoa
Download PDF
Usage
- Wrap around pipe sander for metal hand rails, railing, and tubing
- 270° sanding arm for quick progress, perfect finish, and simple operation – rotate slightly for full 360? finish
- Uniform belt tension and minimal user pressure for high-quality, consistent finishes
- Blend, finish, and polish round railings and pipe up to a mirror finish
- For use on all metals – Steel, Stainless steel, Aluminum, Bronze, Iron, and more
Benefits
- Fast, efficient, and uniform finishing:
- Wraps around the rail 270° - Rotate slightly to 360°
- Minimal pressure needed to conform belts to railings
- Use in narrow spaces:
- Low profile
- Additional side handle can be rotated 180°
- Ergonomically designed for user comfort:
- increased productivity and reduced fatigue to produce uniform finishes
- designed for professional use
- Increased safety:
- Stainless steel belt guards
- Soft-start
- Abrasive belt efficiency:
- Easy, fast change out of sanding belts
- Uniform belt sizes for all CS Unitec pipe/railing polishing tools
Usage
- Wrap around pipe sander for metal hand rails, railing, and tubing
- 270° sanding arm for quick progress, perfect finish, and simple operation – rotate slightly for full 360? finish
- Uniform belt tension and minimal user pressure for high-quality, consistent finishes
- Blend, finish, and polish round railings and pipe up to a mirror finish
- For use on all metals – Steel, Stainless steel, Aluminum, Bronze, Iron, and more
Benefits
- Fast, efficient, and uniform finishing:
- Wraps around the rail 270° - Rotate slightly to 360°
- Minimal pressure needed to conform belts to railings
- Use in narrow spaces:
- Low profile
- Additional side handle can be rotated 180°
- Ergonomically designed for user comfort:
- increased productivity and reduced fatigue to produce uniform finishes
- designed for professional use
- Increased safety:
- Stainless steel belt guards
- Soft-start
- Abrasive belt efficiency:
- Easy, fast change out of sanding belts
- Uniform belt sizes for all CS Unitec pipe/railing polishing tools
