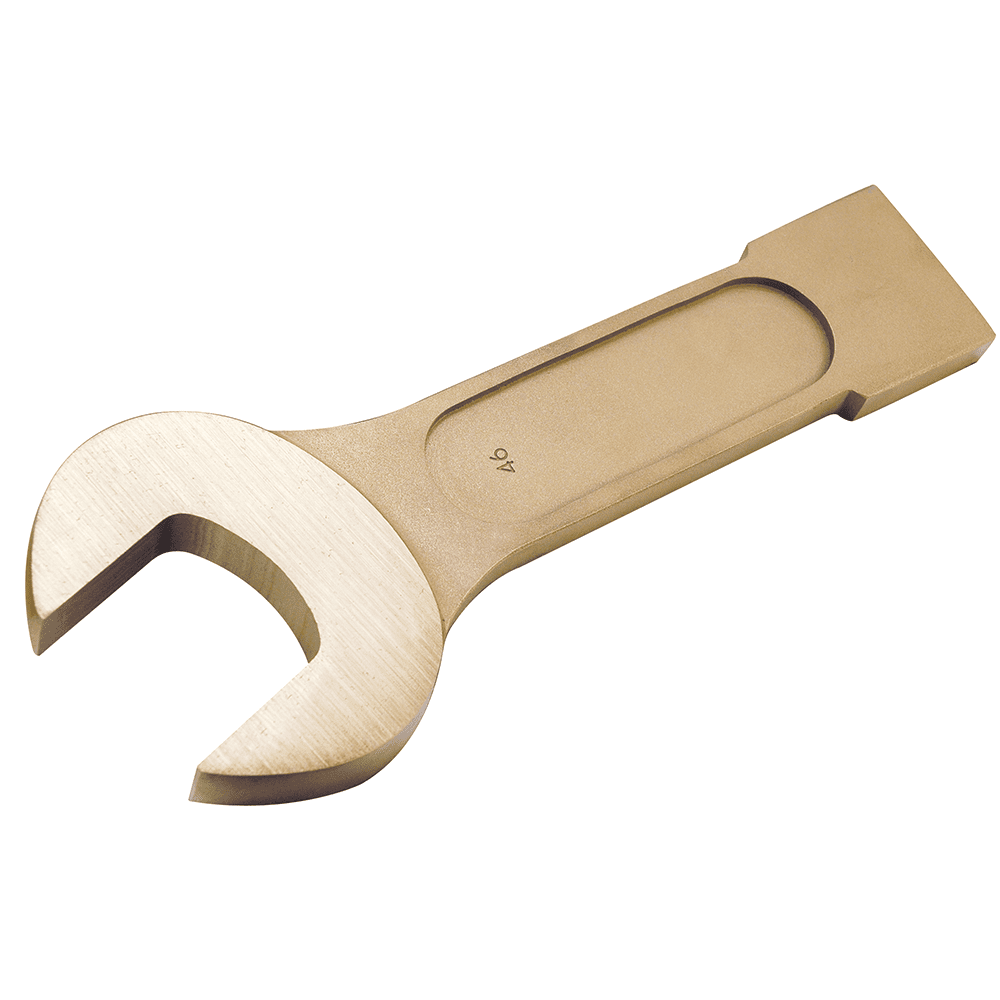

Open End Striking Wrench
- Non-Sparking
- Non-Magnetic
- Corrosion Resistant
Includes (testing):
-
Striking Wrench, Open End
Benefits
- Large impact head
- Strong open jaws
- Built for heavy torque
Applications & Usage
- Open End Striking Wrench Non-Sparking & Non-Magnetic
- Corrosion Resistant
- ISO 9001:2015 certified production, TUV materials certified
- Lifetime Warranty
Technical Specifications
Standard Sizes
Metric Sizes
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
| A = Aluminum Bronze | B = Copper Beryllium | |
|---|---|---|
| Example: | Ex200-010UA | Ex200-010UB |

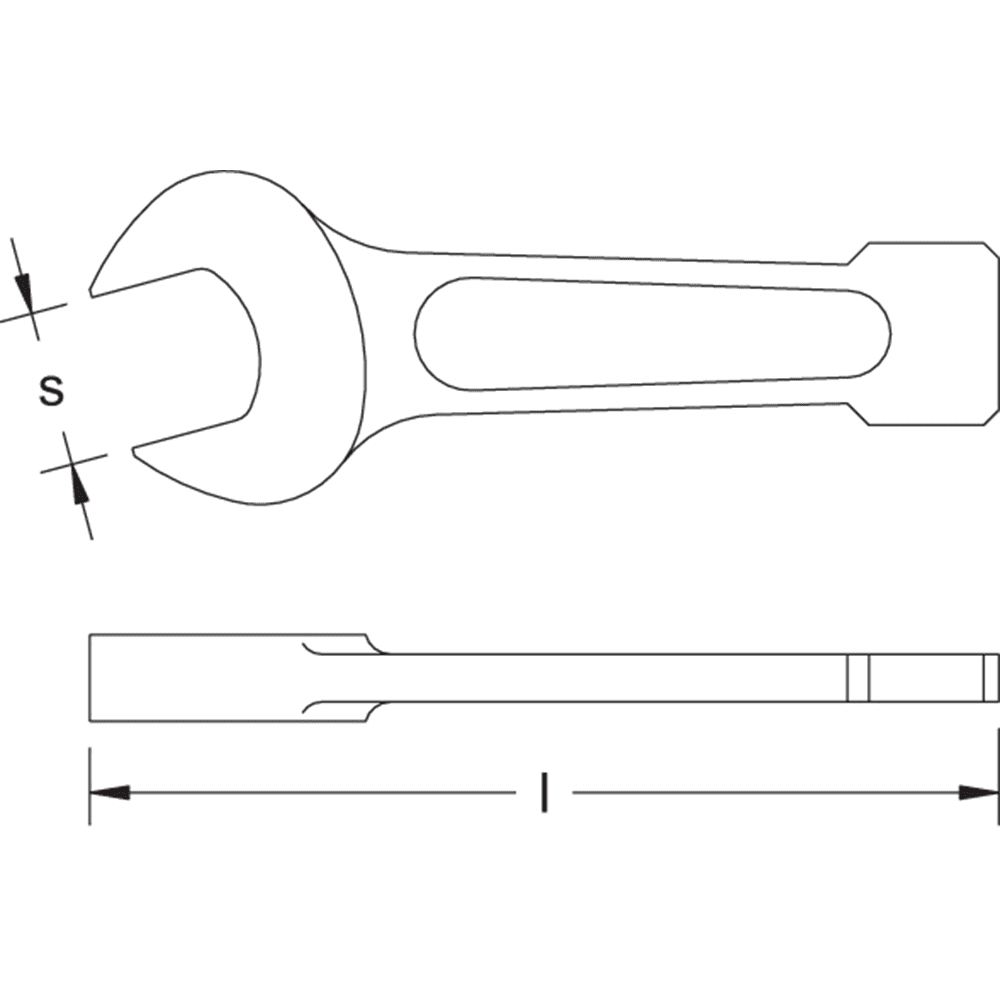

| No. | S inch | l inch | Wt. lbs. |
|---|---|---|---|
| Ex200-010U | 11/16 | 5 9/16 | 0.40 |
| Ex200-015U | 3/4 | 5 9/16 | 0.42 |
| Ex200-020U | 7/8 | 6 | 0.57 |
| Ex200-025U | 15/16 | 6 3/8 | 0.73 |
| Ex200-030U | 1 | 7 3/16 | 0.95 |
| Ex200-035U | 1 1/16 | 7 3/16 | 0.95 |
| Ex200-040U | 1 1/8 | 7 3/16 | 0.95 |
| Ex200-045U | 1 3/16 | 7 9/16 | 1.17 |
| Ex200-050U | 1 1/4 | 7 9/16 | 1.17 |
| Ex200-055U | 1 5/16 | 7 3/4 | 1.28 |
| Ex200-060U | 1 3/8 | 8 3/8 | 1.87 |
| Ex200-065U | 1 7/16 | 8 3/8 | 1.87 |
| Ex200-070U | 1 1/2 | 8 3/8 | 2.16 |
| Ex200-075U | 1 9/16 | 9 | 2.20 |
| Ex200-080U | 1 5/8 | 9 | 2.29 |
| Ex200-085U | 1 11/16 | 9 | 2.81 |
| Ex200-090U | 1 3/4 | 9 | 2.81 |
| Ex200-095U | 1 13/16 | 9 | 3.26 |
| Ex200-100U | 1 7/8 | 11 | 3.52 |
| Ex200-105U | 2 | 11 3/16 | 3.77 |
| Ex200-110U | 2 1/16 | 11 3/16 | 4.85 |
| Ex200-115U | 2 1/8 | 12 1/4 | 4.85 |
| Ex200-120U | 2 3/16 | 12 3/8 | 4.85 |
| Ex200-125U | 2 1/4 | 12 3/8 | 4.85 |
| Ex200-130U | 2 5/16 | 12 3/4 | 6.08 |
| Ex200-135U | 2 3/8 | 12 3/4 | 6.08 |
| Ex200-140U | 2 7/16 | 14 | 9.61 |
| Ex200-145U | 2 1/2 | 14 | 9.61 |
| Ex200-150U | 2 9/16 | 14 | 9.61 |
| Ex200-155U | 2 5/8 | 15 | 10.69 |
| Ex200-160U | 2 3/4 | 15 | 10.69 |
| Ex200-165U | 2 13/16 | 15 | 10.69 |
| Ex200-170U | 2 15/16 | 15 3/4 | 12.26 |
| Ex200-175U | 3 | 15 3/4 | 12.26 |
| EX200-180U | 3 1/8 | 15 3/4 | 12.26 |
| Ex200-185U | 3 1/4 | 16 9/16 | 14.33 |
| Ex200-190U | 3 3/8 | 16 9/16 | 14.33 |
| Ex200-195U | 3 1/2 | 16 9/16 | 14.33 |
| Ex200-200U | 3 5/8 | 18 | 17.86 |
| Ex200-205U | 3 3/4 | 18 | 17.86 |
| Ex200-210U | 3 7/8 | 18 | 17.86 |
| A = Aluminum Bronze | B = Copper Beryllium | |
|---|---|---|
| Example: | Ex200-17A | Ex200-17B |
| No. | S mm | l mm | Wt. kg |
|---|---|---|---|
| Ex200-17 | 17 | 140 | 0.18 |
| Ex200-18 | 18 | 140 | 0.18 |
| Ex200-19 | 19 | 140 | 0.19 |
| Ex200-22 | 22 | 150 | 0.26 |
| Ex200-24 | 24 | 160 | 0.33 |
| Ex200-26 | 26 | 180 | 0.43 |
| Ex200-27 | 27 | 180 | 0.43 |
| Ex200-28 | 28 | 180 | 0.43 |
| Ex200-29 | 29 | 190 | 0.53 |
| Ex200-30 | 30 | 190 | 0.53 |
| Ex200-32 | 32 | 195 | 0.58 |
| Ex200-35 | 35 | 210 | 0.85 |
| Ex200-36 | 36 | 210 | 0.85 |
| Ex200-37 | 37 | 210 | 0.85 |
| Ex200-38 | 38 | 225 | 0.98 |
| Ex200-41 | 41 | 225 | 1.04 |
| Ex200-42 | 42 | 225 | 1.10 |
| Ex200-46 | 46 | 255 | 1.48 |
| Ex200-50 | 50 | 280 | 1.71 |
| Ex200-52 | 52 | 280 | 2.20 |
| Ex200-55 | 55 | 310 | 2.20 |
| Ex200-56 | 56 | 310 | 2.20 |
| Ex200-60 | 60 | 320 | 2.76 |
| Ex200-63 | 63 | 350 | 4.36 |
| Ex200-65 | 65 | 350 | 4.36 |
| Ex200-70 | 70 | 375 | 4.85 |
| Ex200-75 | 75 | 395 | 5.56 |
| Ex200-80 | 80 | 410 | 6.20 |
| Ex200-85 | 85 | 415 | 6.50 |
| Ex200-90 | 90 | 435 | 7.45 |
| Ex200-95 | 95 | 450 | 8.10 |
| Aluminum-Bronze (AlBr) Alloy | Copper-Beryllium (CuBe2) Alloy | |
|---|---|---|
| Zone Compatibility | Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 | Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 |
| Hardness | 27 HRC | 38 HRC |
| Durability | Not as durable as CuBe. | Very durable due to high hardness and tensile strength. |
| Magnetic Properties | Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. | Non-ferrous components; safer for applications demanding non-magnetic properties. |
| Composition | Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance | Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance |
| Proper Use | Misuse |
| Open-End wrenches are designed for a wide variety of work. Their box opening adds still more to their versatility and strength. The Flare Nut pattern with its hex box opening is especially useful in air conditioning and refrigeration work where tubing terminates on flare nuts. The thinner and slimmer electronic pattern is designed for work where access and clearance are limited. | Do not use the open end of these wrenches to free a "frozen" nut or final tighten a hex nut. Use the box opening. Never use a hammer on any wrench other than a Striking Face wrench. Never use an extension on the wrench handle. |
