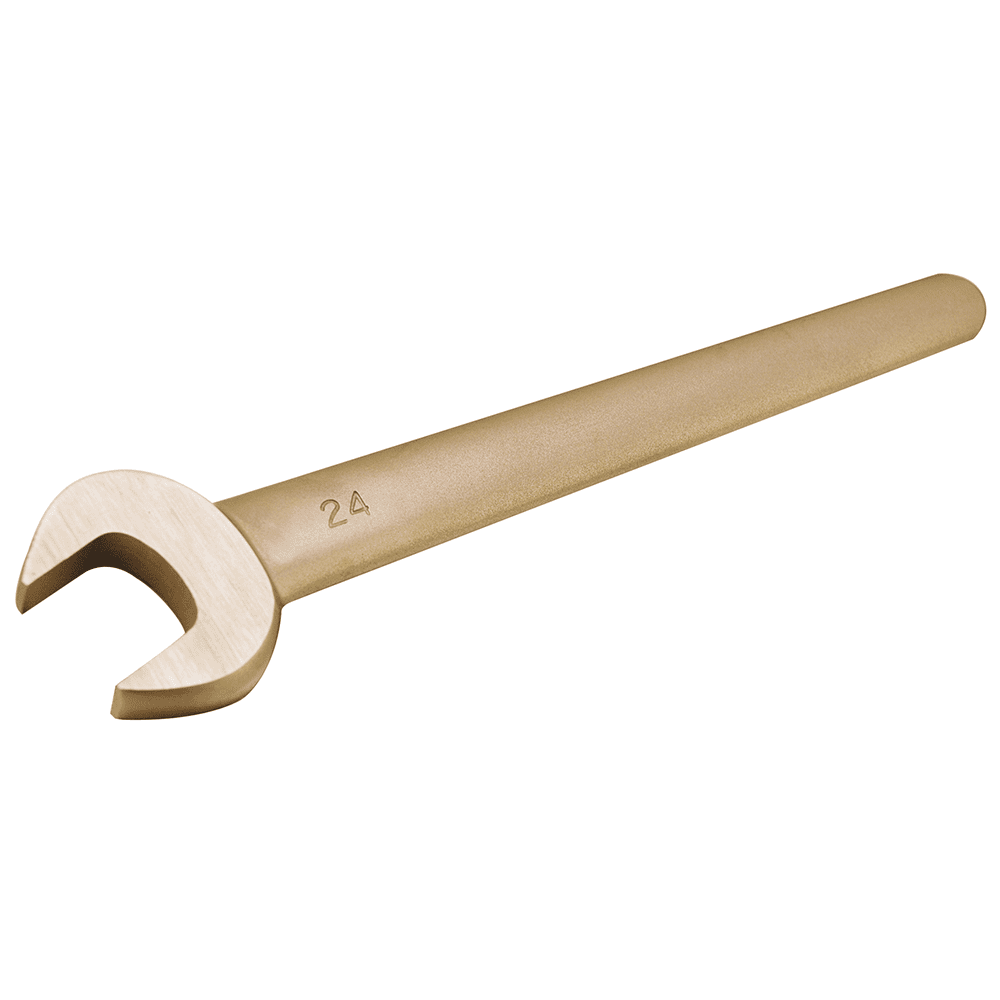

Open End Wrench

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Included Components

  • Open End Wrench

Benefits

  • Slim open jaw
  • Quick nut access
  • Shop-duty strength

Applications & Usage

  • Open End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex205-005UA Ex205-005UB
No. S inch l inch Wt. lbs.
Ex205-005U 1/4 3 3/8 0.02
Ex205-010U 5/16 3 3/4 0.04
Ex205-015U 11/32 4 0.06
Ex205-020U 3/8 4 3/16 0.09
Ex205-025U 11/32 4 3/8 0.10
Ex205-030U 7/16 4 9/16 0.11
Ex205-035U 1/2 4 3/4 0.13
Ex205-040U 9/16 5 0.18
Ex205-045U 19/32 5 1/8 0.21
Ex205-050U 5/8 5 3/8 0.24
Ex205-055U 11/16 5 9/16 0.24
Ex205-060U 3/4 6 3/16 0.33
Ex205-065U 25/32 6 5/16 0.36
Ex205-070U 13/16 6 15/16 0.39
Ex205-075U 7/8 7 3/16 0.42
Ex205-080U 15/16 8 0.53
Ex205-085U 31/32 8 1/8 0.58
Ex205-090U 1 8 3/16 0.60
Ex205-095U 1 1/16 9 0.73
Ex205-100U 1 1/8 9 1/2 0.80
Ex205-105U 1 3/16 10 3/16 0.88
Ex205-110U 1 1/4 11 1.15
Ex205-115U 1 5/16 11 5/16 1.30
Ex205-120U 1 3/8 11 3/4 1.46
Ex205-125U 1 7/16 12 1.61
Ex205-130U 1 1/2 12 3/8 1.74
Ex205-135U 1 9/16 12 7/8 2.05
Ex205-140U 1 5/8 13 3/16 2.31
Ex205-145U 1 11/16 13 3/4 2.46
Ex205-150U 1 3/4 14 3/16 2.67
Ex205-155U 1 13/16 14 3/4 2.84
Ex205-160U 1 7/8 14 15/16 3.24
Ex205-165U 2 15 3/16 3.81
Ex205-170U 2 1/16 15 3/8 4.23
Ex205-175U 2 1/8 15 3/4 4.65
Ex205-180U 2 3/16 16 5.07
Ex205-185U 2 1/4 16 3/16 5.50
Metric Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex205-6A Ex205-6B
No. S mm l mm Wt. kg
Ex205-6 6 85 0.01
Ex205-7 7 90 0.02
Ex205-8 8 95 0.02
Ex205-9 9 100 0.03
Ex205-10 10 105 0.04
Ex205-11 11 110 0.04
Ex205-12 12 115 0.05
Ex205-13 13 120 0.06
Ex205-14 14 125 0.08
Ex205-15 15 130 0.10
Ex205-16 16 135 0.11
Ex205-17 17 140 0.11
Ex205-18 18 150 0.13
Ex205-19 19 155 0.15
Ex205-20 20 160 0.16
Ex205-21 21 165 0.18
Ex205-22 22 180 0.19
Ex205-23 23 190 0.21
Ex205-24 24 200 0.24
Ex205-25 25 205 0.27
Ex205-26 26 215 0.30
Ex205-27 27 225 0.33
Ex205-28 28 235 0.36
Ex205-29 29 245 0.38
Ex205-30 30 255 0.40
Ex205-32 32 275 0.52
Ex205-33 33 280 0.57
Ex205-34 34 285 0.62
Ex205-35 35 295 0.67
Ex205-36 36 300 0.73
Ex205-37 37 305 0.75
Ex205-38 38 310 0.79
Ex205-41 41 330 1.05
Ex205-42 42 340 1.10
Ex205-46 46 370 1.29
Ex205-47 47 375 1.35
Ex205-50 50 380 1.73
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
Open-End wrenches are designed for a wide variety of work. Their box opening adds still more to their versatility and strength. The Flare Nut pattern with its hex box opening is especially useful in air conditioning and refrigeration work where tubing terminates on flare nuts. The thinner and slimmer Electronic pattern is designed for work where access and clearance are limited. Do not use the open end of these wrenches to free a "frozen" nut or final tighten a hex nut. Use the box opening. Never use an extension on the wrench handle.
