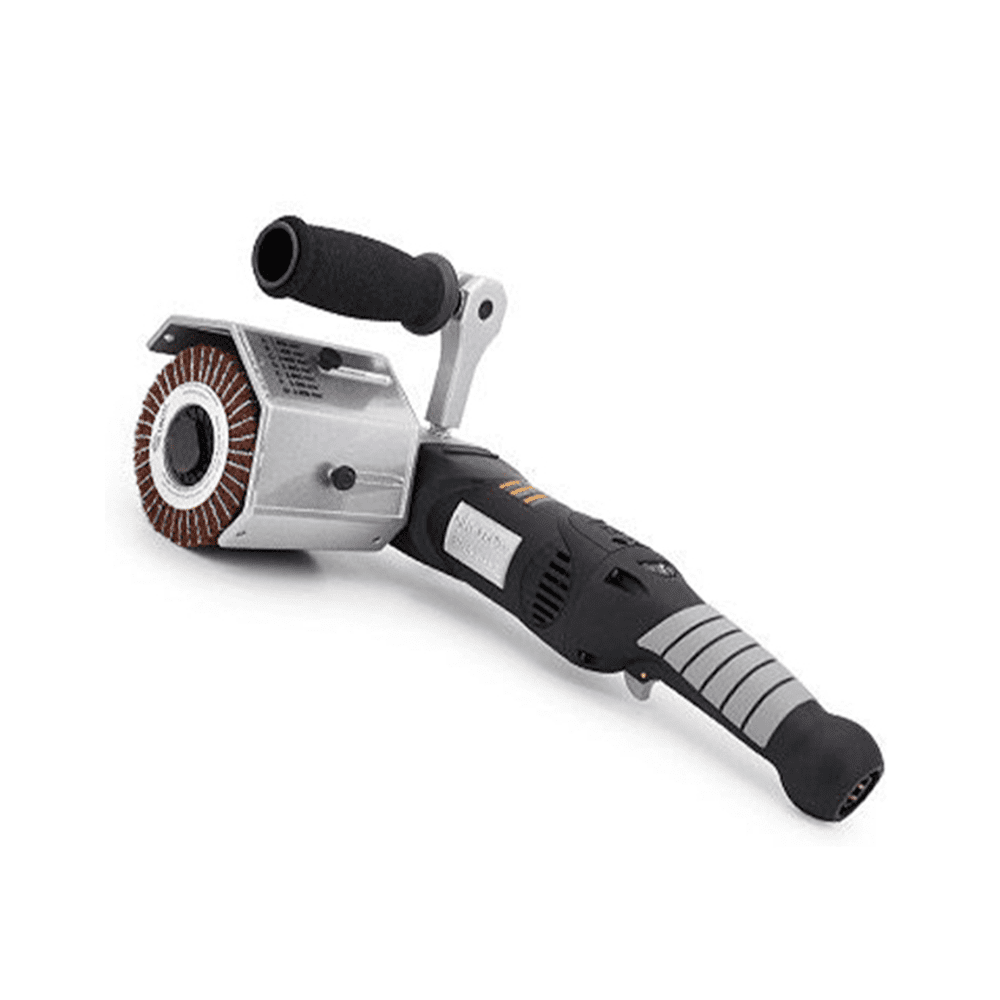

Professional Linear Finishing System
- Ideal for Stainless Steel
- Turn Mill Scale to Mirror Finish
- Power: 15 Amp
- Speed: 1000-3800 RPM Variable
- Wheel Diameter: 4-1/8″
- Wheel Widths: 2″, 4″ and 6″ Options
Includes (testing):
PTX ECO SMART

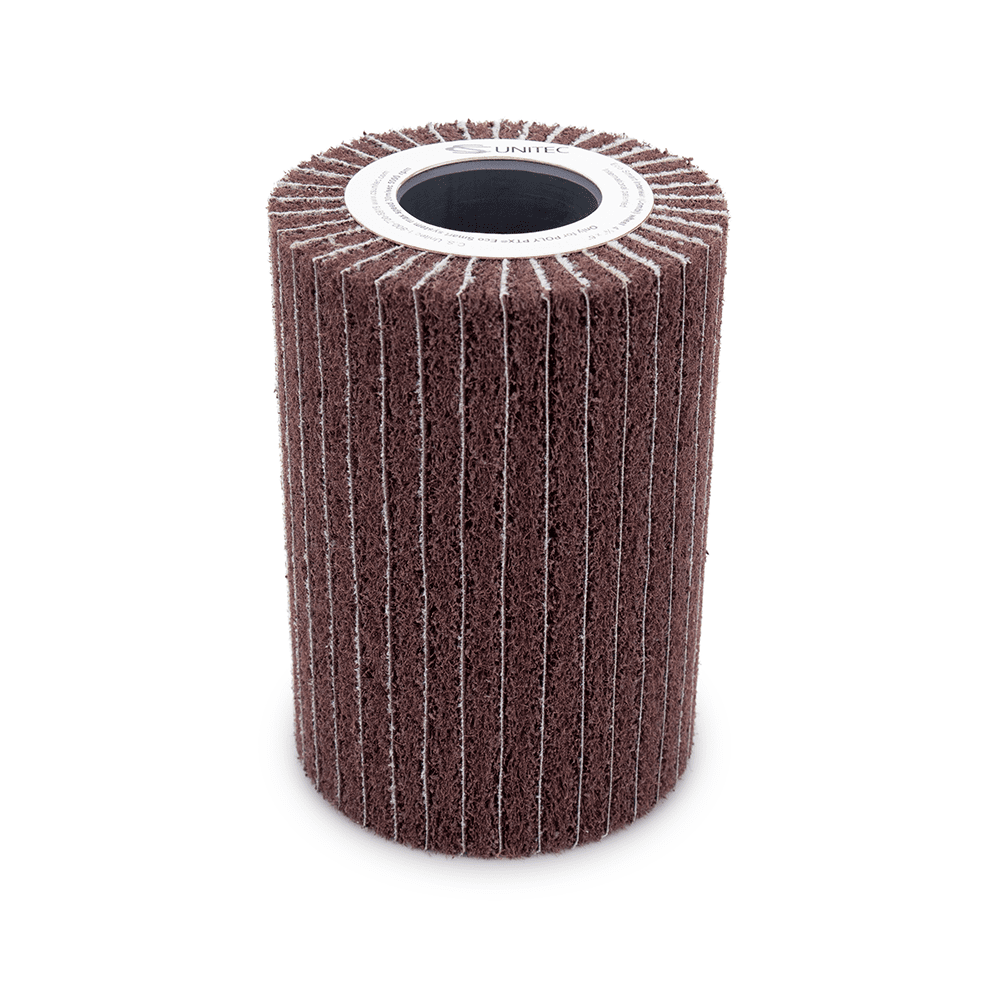

- 4″ Interleaf (Combi) Wheel – P/N 47312
- Shaft Adapter – P/N 42004

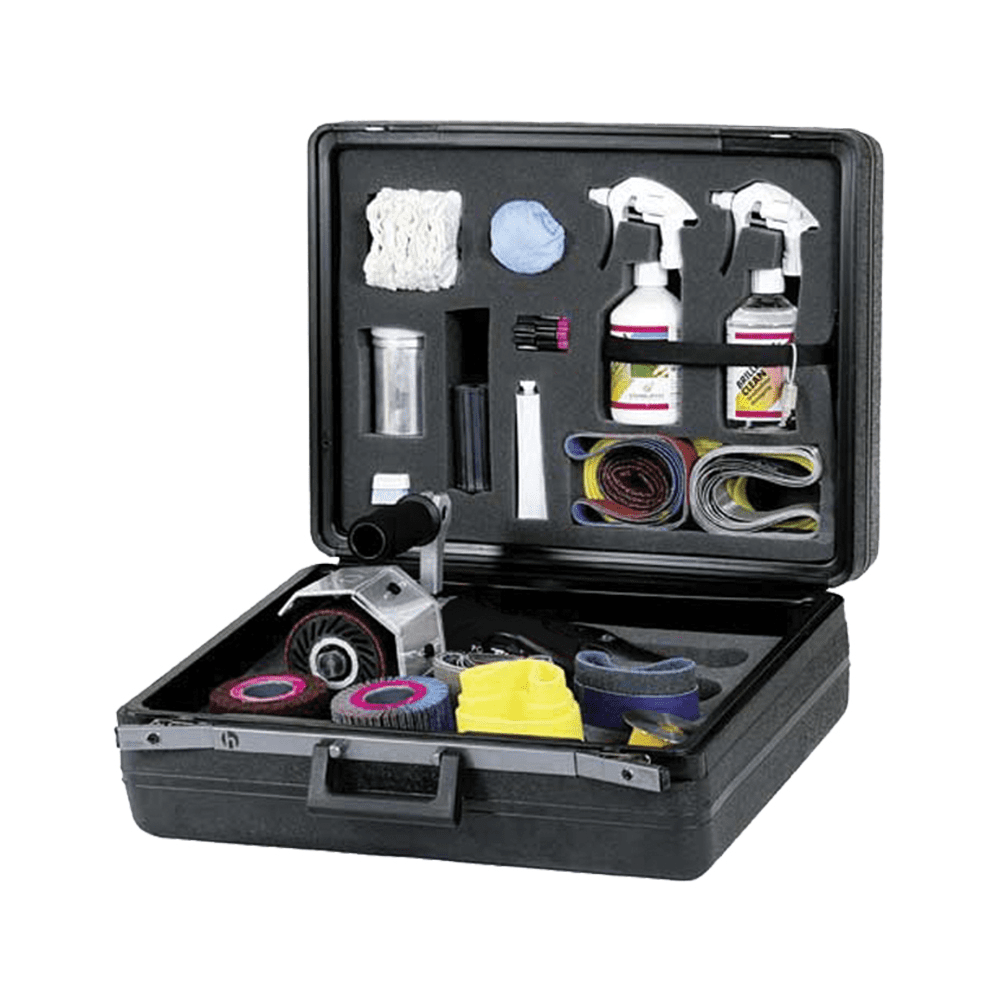

PTX Professional Kit for Metal
This set comes in a strong, impact-resistant transport case and contains everything you need for shadow-free industrial finishes. Match or create any finish up to a mirror finish on metals. Prevent marks and fingerprints with newly developed cleaning products and preservatives.
Kit Contents:
- 1 PTX Eco Smart machine
- 1 Professional Case (P/N 80002)
- 1 40 grit flap wheel, 4″ x 4-1/8″ (P/N 47211)
- 1 80 grit interleaf (combi) wheel, 4″ x 4-1/8″ (P/N 47312)
- 1 Expansion roller, 3-1/2″ x 4″ (P/N 47005)
- 2 80 grit grinding belt sleeve, 3-1/2″ x 4″ (P/N 42080)

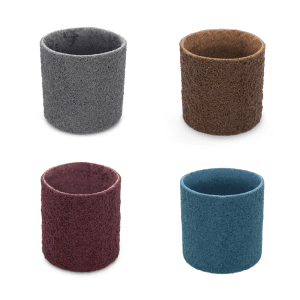

- 1 Fine fleece (Nonwoven) sleeve, 3-1/2″ x 4″ (P/N 42012)
- 1 Medium fleece (Nonwoven) sleeve, 3-1/2″ x 4″ (P/N 42011)
- 2 A45 TZ Pyramid sleeves, 3-1/2″ x 4″ (P/N 42245)
- 2 A30 TZ Pyramid sleeves, 3-1/2″ x 4″ (P/N 42230)
- 2 A16 TZ Pyramid sleeves, 3-1/2″ x 4″ (P/N 42216)
- 2 A06 TZ Pyramid sleeves, 3-1/2″ x 4″ (P/N 42206)
- 3 SuperPolish sleeves, 3-1/2″ x 4″ (P/N 42013N)
- 1 Belt driving roller (P/N 47006)
- 2 80 grit grinding belts, 1.2″ x 24″ (P/N 49080)

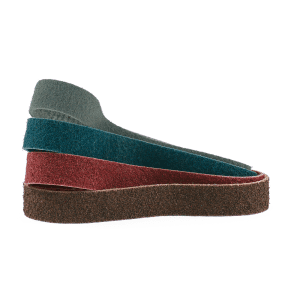

- 1 Medium fleece (Nonwoven) belt, 1.2″ x 26″ (P/N 49002)
- 2 A45 TZ Pyramid belts, 1.2″ x 24″ (P/N 49345)
- 2 A30 TZ Pyramid belts, 1.2″ x 24″ (P/N 49330)
- 2 A16 TZ Pyramid belts, 1.2″ x 24″ (P/N 49316)
- 2 A06 TZ Pyramid belts, 1.2″ x 24″ (P/N 49306)

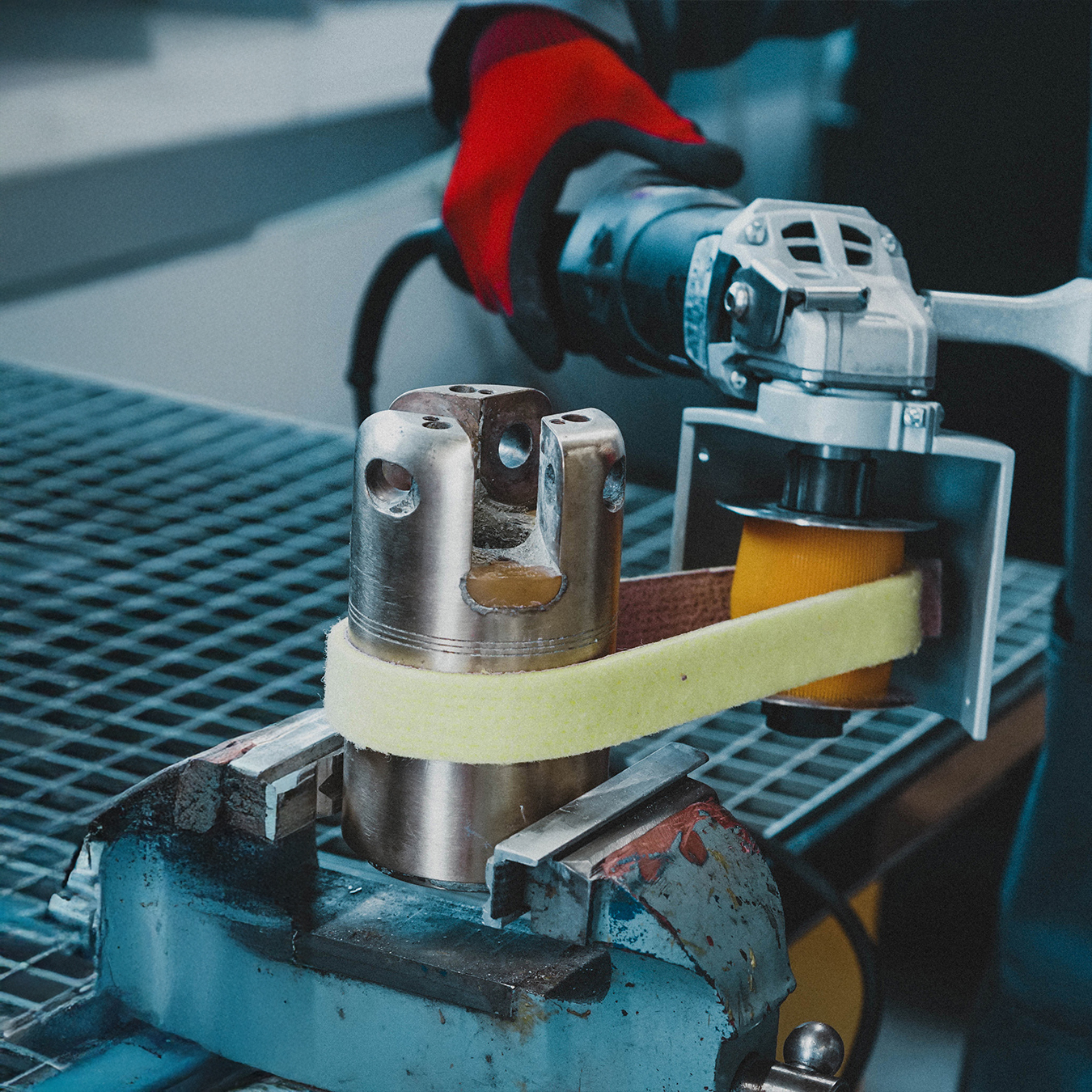

- 3 SuperPolish belts, 1.2″ x 26″ (P/N 49004N)
- 1 Mini high gloss polishing paste, pink (P/N 40015T)
- 2 Mini polishing pastes, white and blue [P/N 40013 (white) P/N 40014 (blue)]
- 1 PTX Brightex® Softclean Powder scatter can (P/N 40029)
- 5 Microfiber cloths (P/N 40031)
- 1 Brilliance clean spray bottle (P/N 40050)
- 1 INOX-protect spray bottle (P/N 40040)

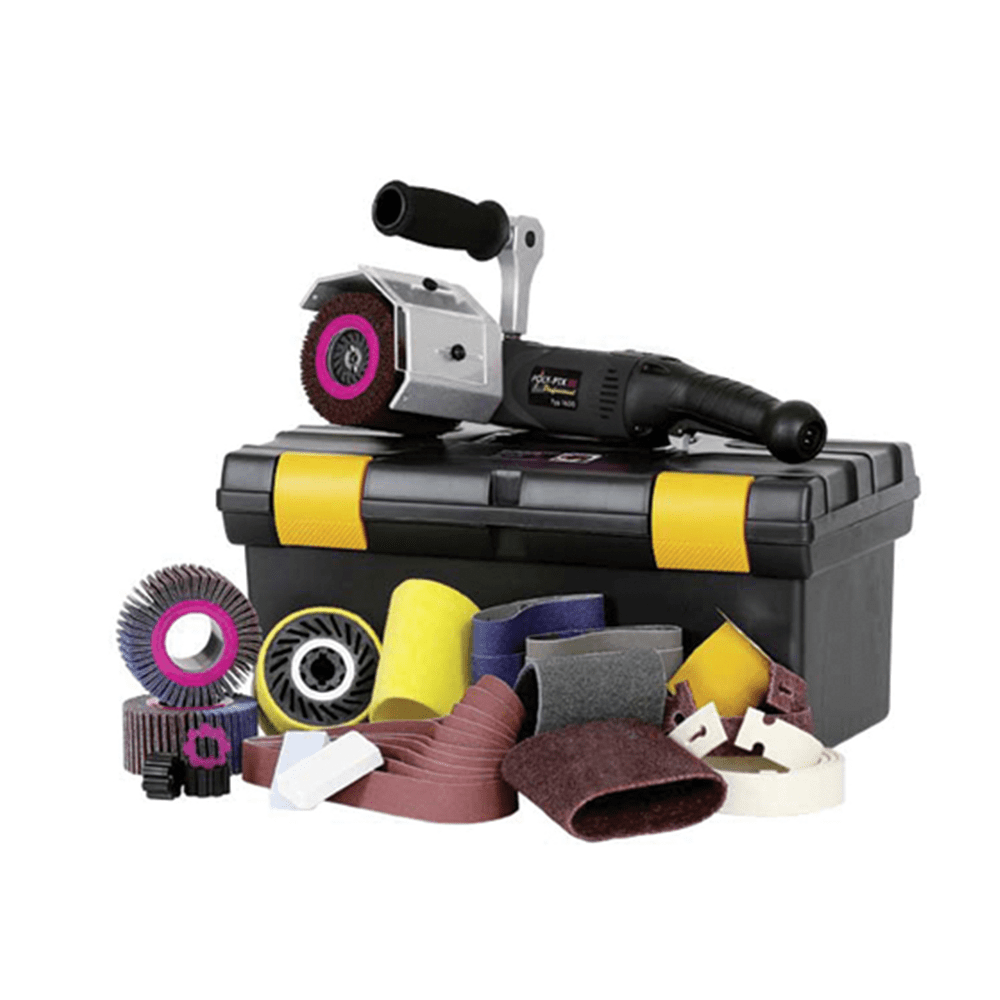

PTX Basic Kit for Metal
Basic set for coarse finishing to #4 finish on flat surfaces and pipes.
Kit Contents:
- 1 PTX Eco Smart machine
- 1 Carrying Case (P/N 40008)
- 1 60 grit flap wheel, 4″ x 4-1/8″ (P/N 47212)
- 1 80 grit interleaf (combi) wheel, 4″ x 4-1/8″ (P/N 47312)
- 1 Expansion roller, 3-1/2″ x 4″ (P/N 47005)
- 1 Medium fleece (Nonwoven) sleeve, 3-1/2″ x 4″ (P/N 42011)
- 1 Belt driving roller (P/N 47006)
- 1 80 grit grinding belt, 1.2″ x 24″ (P/N 49080)
- 1 Medium fleece (Nonwoven) belt, 1.2″ x 26″ (P/N 49002)
- 1 40 grit grinding belt, 3.6″ x 4″ (P/N 42040)
- 1 60 grit grinding belt, 3.6″ x 4″ (P/N 42060)
- 1 80 grit grinding belt, 3.6″ x 4″ (P/N 42080)
- 1 120 grit grinding belt, 3.6″ x 4″ (P/N 42120)

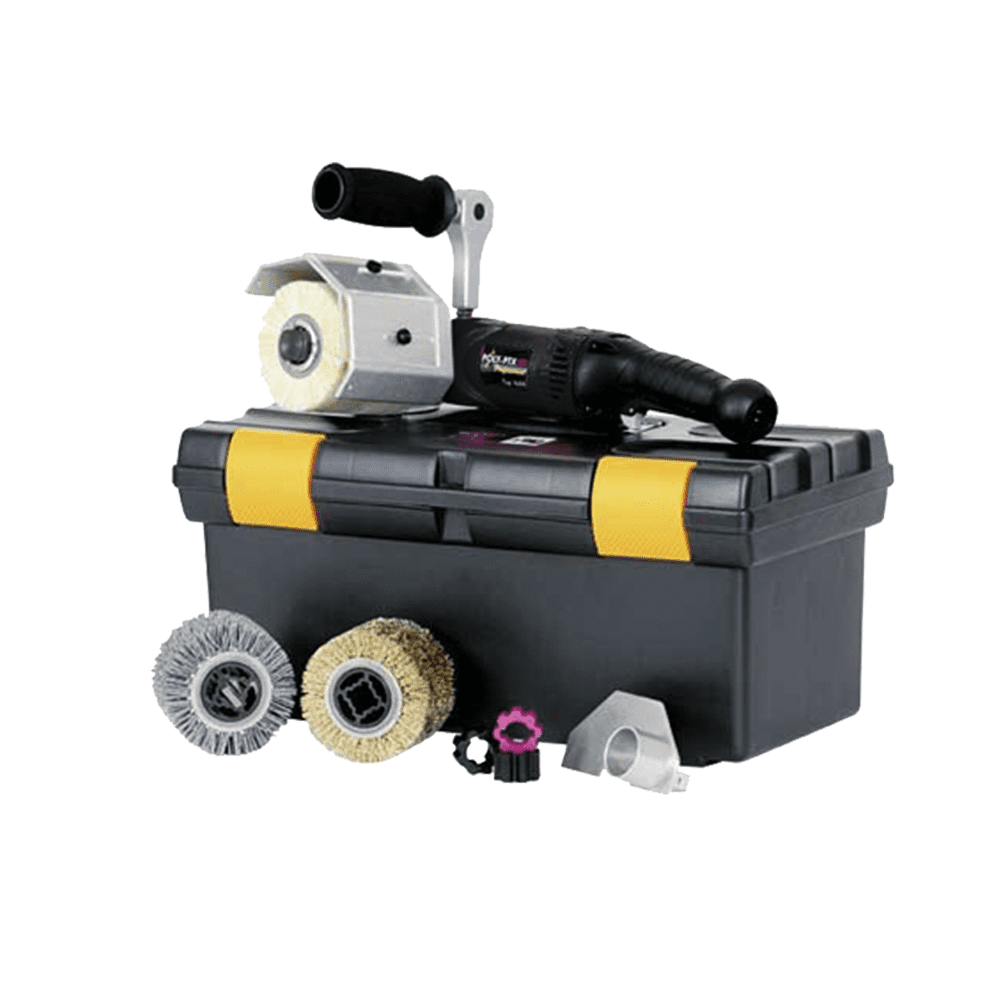

PTX Kit for Woodworking
The complete set for treating wooden surfaces. Strong transport case with PTX Eco Smart and a range of brush wheels for various wood structures. Suction cover for extracting grinding dust particles.
Kit Contents:
- 1 PTX Eco Smart machine
- 1 Carrying Case (P/N 40008)
- 1 Suction cover (P/N 40005)
- 1 Spacer ring (P/N 40007)
- 1 PTX stranded wire wheel (P/N 46301)
- 1 Bristle wheel (P/N 46101)
- 1 Fiber wheel (P/N 46400)
Benefits
- Balanced straight‑line handling, high torque, and electronic speed control allow the PTX to produce matte, satin, brushed, and mirror finishes with exceptional consistency.
- Enhances the appearance of stainless steel and nonferrous metals, delivering professional grade results across a wide range of materials.
- The Eco Smart mounting system allows abrasive wheels to slide onto the finned rubber shaft and automatically secure during operation, eliminating the need for tools or hardware.
- Quick wheel changes reduce downtime and increase productivity, especially in high‑volume finishing environments.
- The finned shaft design ensures 100% concentricity and vibration free performance, resulting in smoother finishes and greater operator comfort.

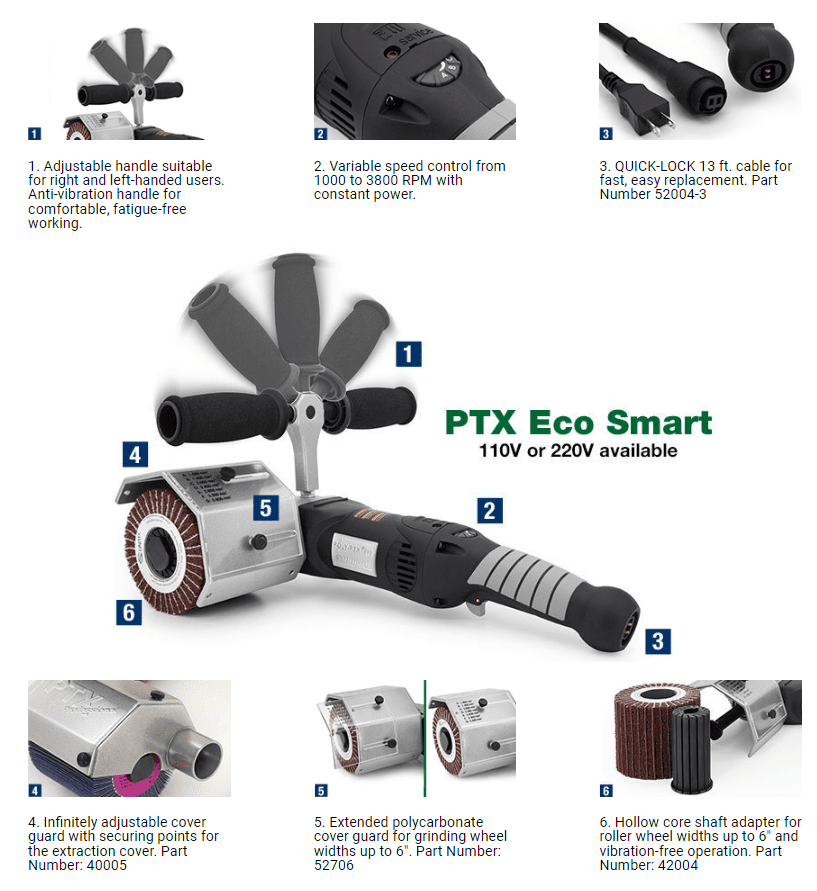

- Adjustable handle suitable for right and left-handed users. Anti-vibration handle for comfortable, fatigue-free working.
- The infinitely adjustable cover guard (Part No. 40005) provides secure positioning for the extraction cover, improving dust control and operator safety during grinding and polishing.
- The extended polycarbonate cover guard (Part No. 52706) accommodates grinding wheel widths up to 6", offering enhanced protection and visibility when working with larger abrasives.
Applications & Usage
- Professional Linear Finishing System is ideal for grinding, blending, and polishing stainless steel, steel, aluminum, brass, bronze, copper, wood, and rigid plastic with consistent, high‑quality results.
- Designed for creating and matching linear finishes. This includes #3, #4 appliance finish, #6 satin, and #8 reflective on flat, curved, square, and contoured surfaces.

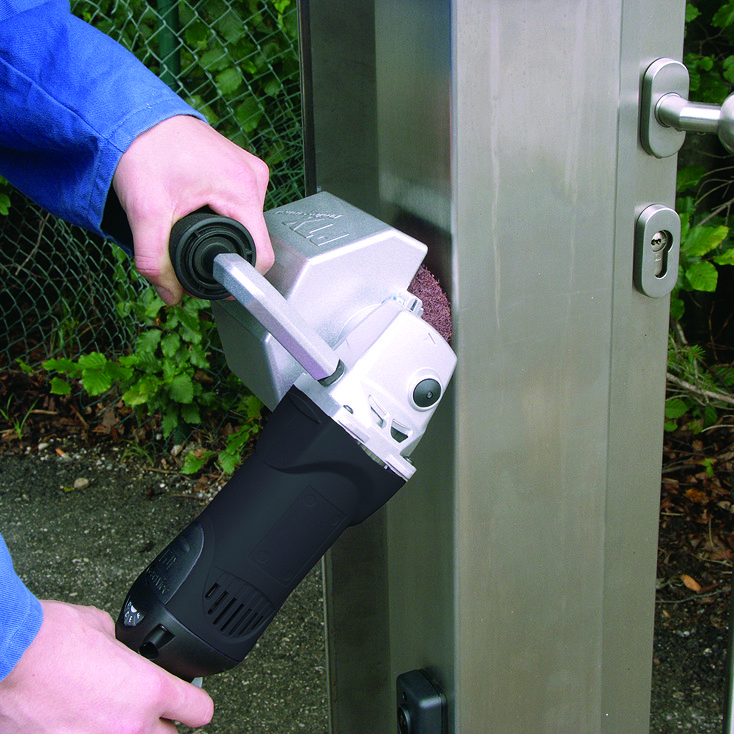

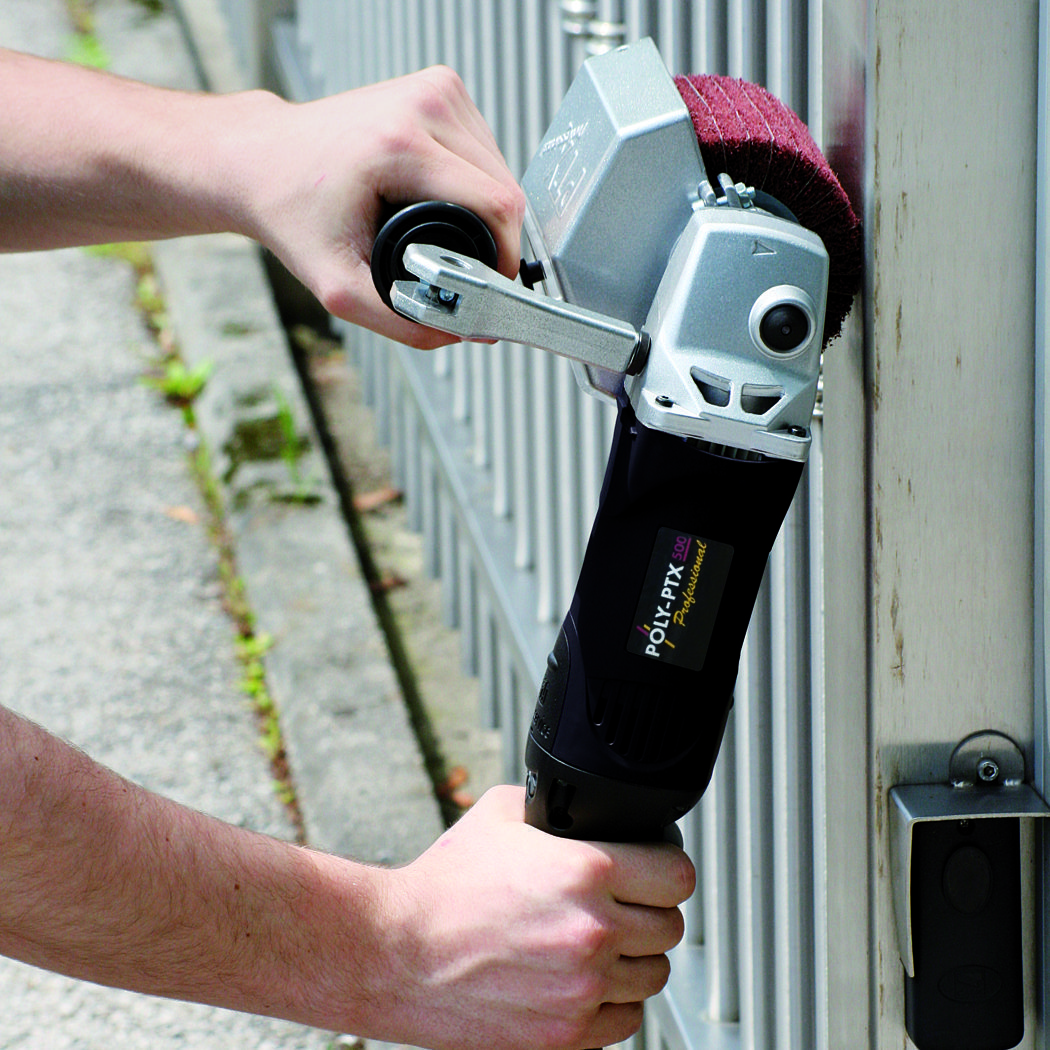

- The PTX is suitable for finishing open and closed pipe constructions, making it an excellent tool for handrails, tubing, architectural metalwork, and fabrication projects.

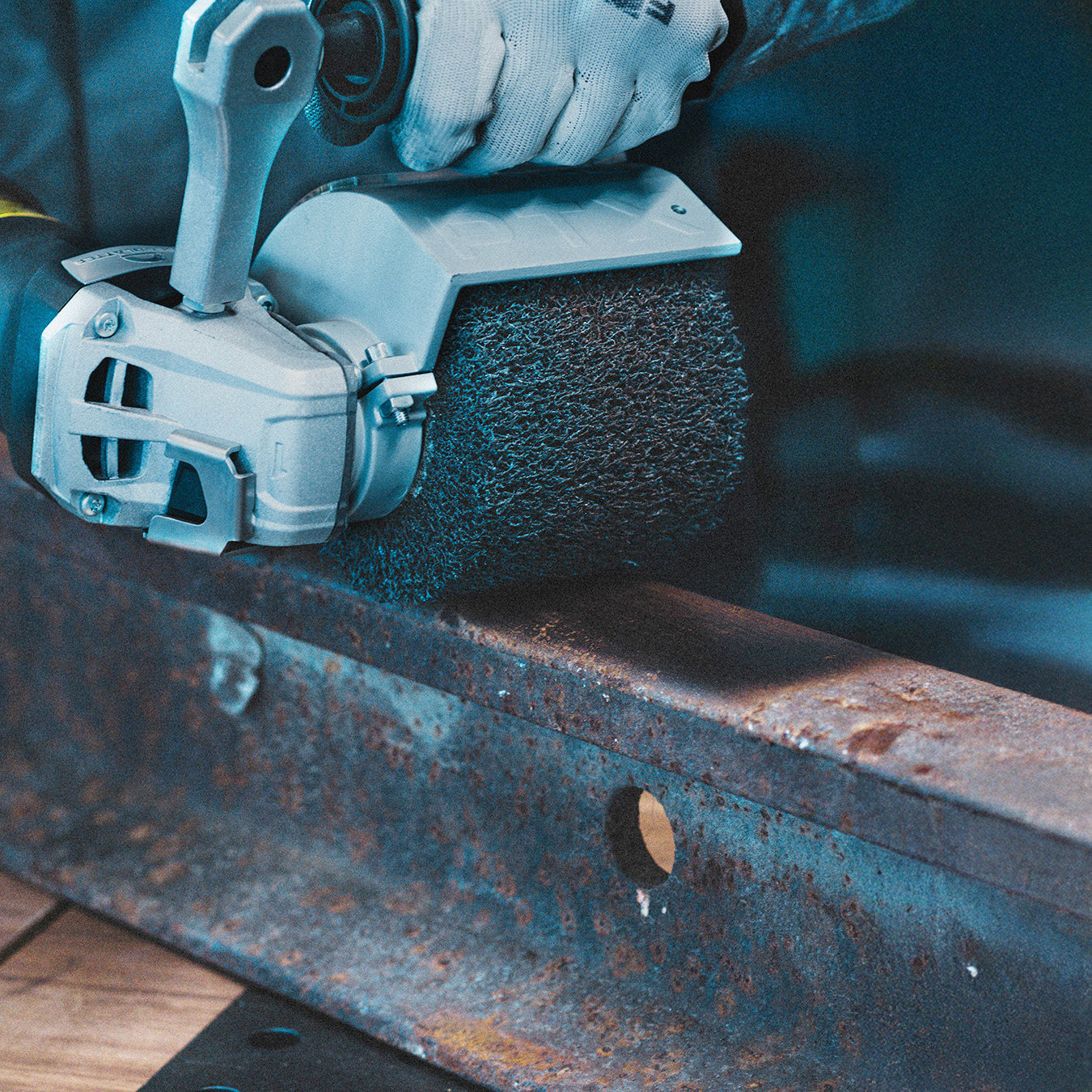

- Performs both coarse grinding and fine finishing, allowing operators to remove welds, deep scratches, oxidation, rust, and paint before producing decorative or mirror‑grade finishes.
- Professional Linear Finishing System ideal for metal fabrication shops, custom builders, finish carpenters, and maintenance teams who require precise, repeatable surface finishing.
- Its versatility makes it suitable for restoration, refinishing, and new fabrication work across industrial, commercial, and architectural applications.
Technical Specifications
| PTX Eco Smart - Electric Specifications | |
| Item ID: | PTX Eco Smart |
|---|---|
| Power | 15 Amp (1710 Watts) 110 Volt / 60 Hz (Also avail: 230 V / 50 Hz) |
| Speed Control Dial | Variable speed control from 1000 to 3800 RPM with tachogenerator for constant power, even under load |
| Wheel Width | 2", 4" or 6" wide abrasives |
| Wheel Diameter | Up to 4-1/2" |
| Weight | 7.25 lbs |
| Package Contents | 4" Interleaf (combi) wheel - P/N 47312 Shaft adapter - P/N 42004 Carrying case - P/N 40008 |
| Cancer and Reproductive Harm - www.P65Warnings.ca.gov | |
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs
Catalog PDF
CAT_PTX_Eco
Download PDF

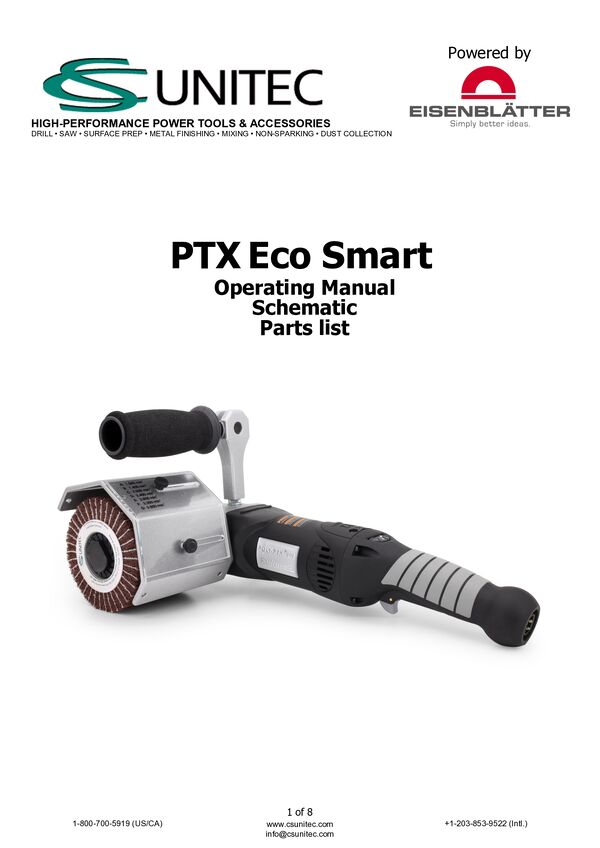

Product Schematic 1
SCHEM_PTXEco
Download PDF

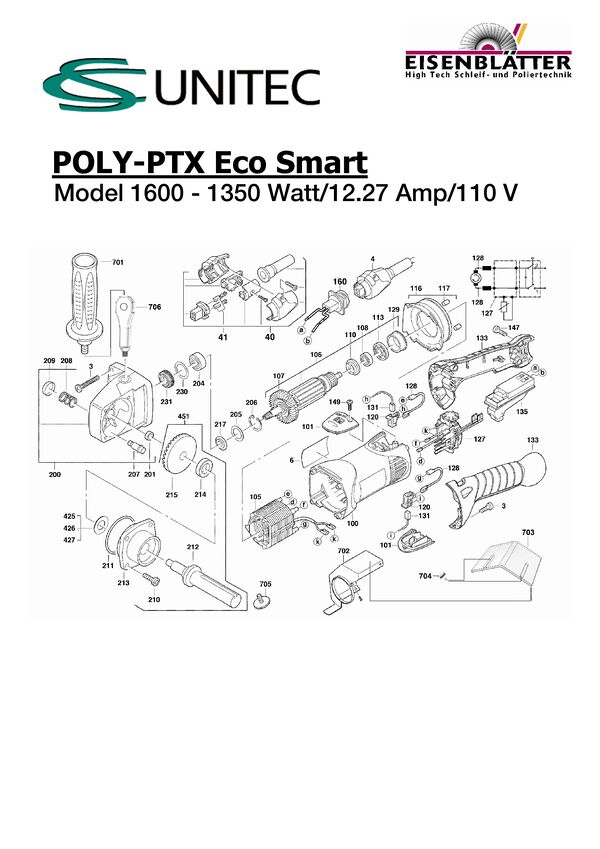

Product Schematic 2
SCHEM_PTXEco1600
Download PDF

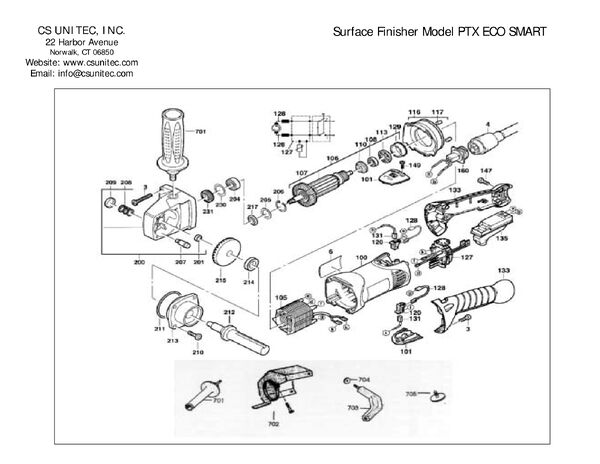

Product Schematic 3
SCHEM_LEGACY_PTXEco800
Download PDF

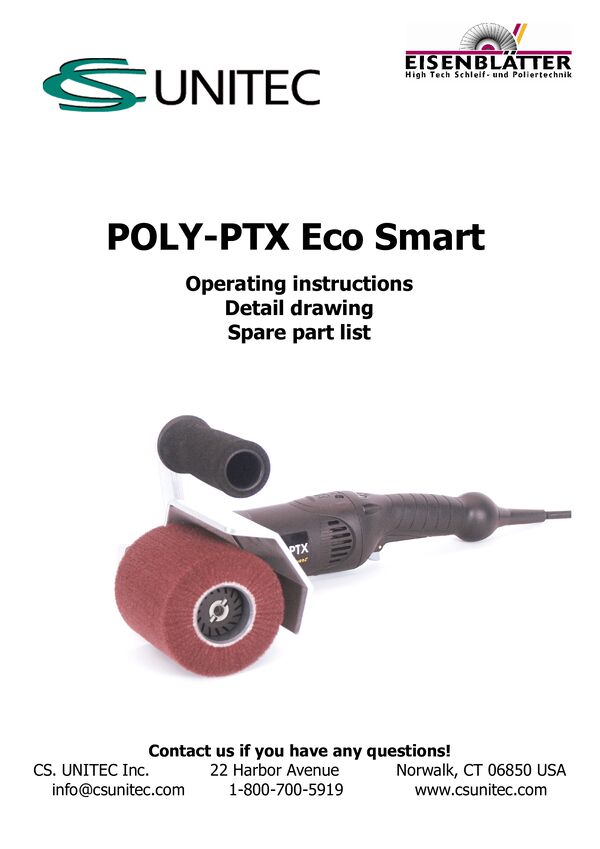

Operating Manual 1
MANUAL_PTXEco1800
Download PDF
Operating Manual 2
MANUAL_PTXEco1600
Download PDF
