Reduced Sparking EB Diamond Grinding and Cutting Discs
- Reduce sparks, dust and material waste
- Save time changing discs
- Ideal for grinding and cutting steel and stainless steel, as well as natural stone, granite, marble, fiberglass and other materials
Includes (testing):
- 1 disc per pack
Benefits
- Reduce spark by up to 1/100 of that produced by resinoid wheels
- Diamond grit protrudes higher off the EB diamond disc than traditional diamond wheels, providing greater durability, longer service life and cutting
- High-tensile steel backing disc reduces plate thickness for a lightweight wheel that allows for high-rotation grinding
- High yield strength makes the steel backing disc elastic, helping to ensure that operators do not grind the material by over-removal
- Reduced sparking increases the visibility of the workpiece
- Not ATEX approved - sparks will occur during grinding (see note below)
- The EB diamond wheel wears approximately 1% as much as a resinoid wheel, therefore significantly reducing the amount of abrasive dust emitted
Applications & Usage
- Reduce sparks, dust and material waste
- Save time changing discs
- Ideal for grinding and cutting steel and stainless steel, as well as natural stone, granite, marble, fiberglass and other materials
Technical Specifications

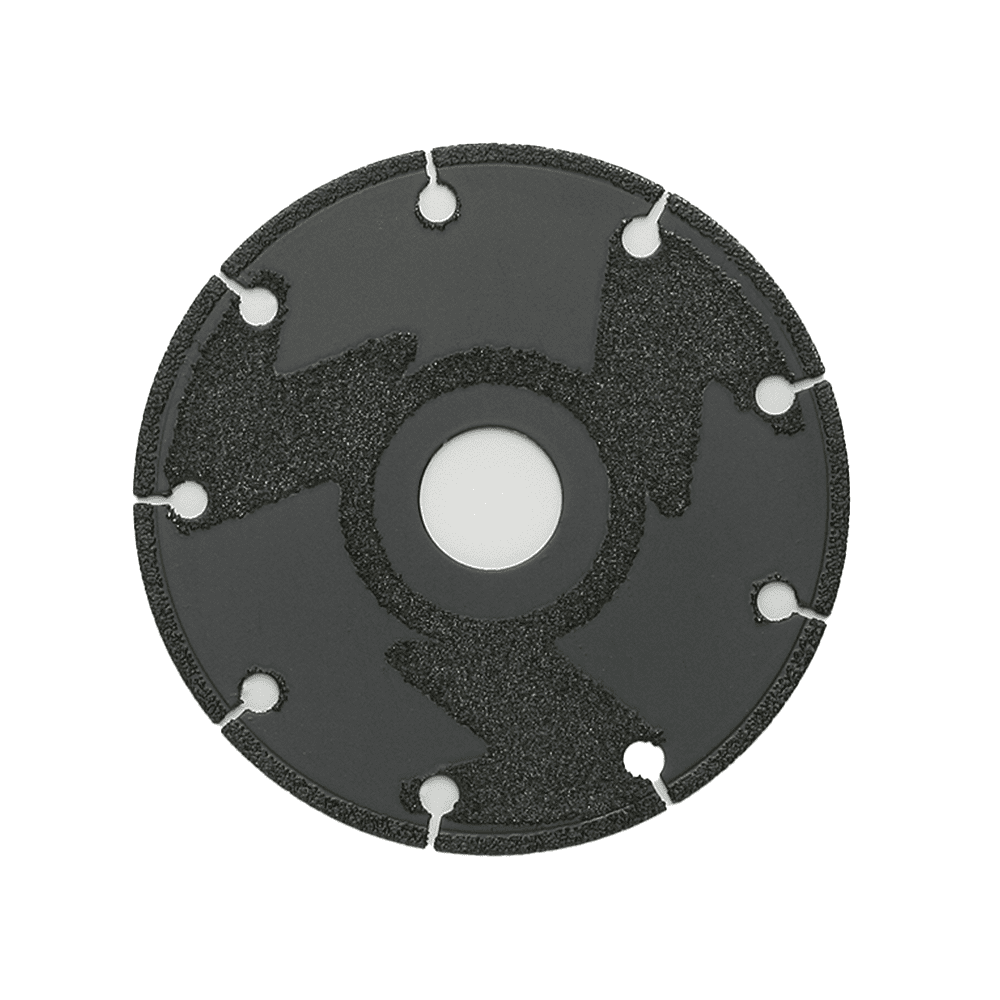

EB Cut Off Wheels
| Dimensions | Diameter: 4", 4-1/2", 7", 9" |
|---|---|
| Grit | 30, 50 |
| Arbor size | 7/8" |
| Part No. | Size (dia. x arbor) | Grit | Max. Speed | Quantity |
|---|---|---|---|---|
| EBC4007850C | 4" x 7/8" | 50 | 13,000 RPM | 1 disc |
| EBC4507830C | 4-1/2" x 7/8" | 30 | 13,000 RPM | 1 disc |
| EBC4507850C | 4-1/2" x 7/8" | 50 | 13,000 RPM | 1 disc |
| EBC7007850C | 7" x 7/8" | 50 | 8,500 RPM | 1 disc |
| EBC9007850C | 9" x 7/8" | 50 | 8,500 RPM | 1 disc |

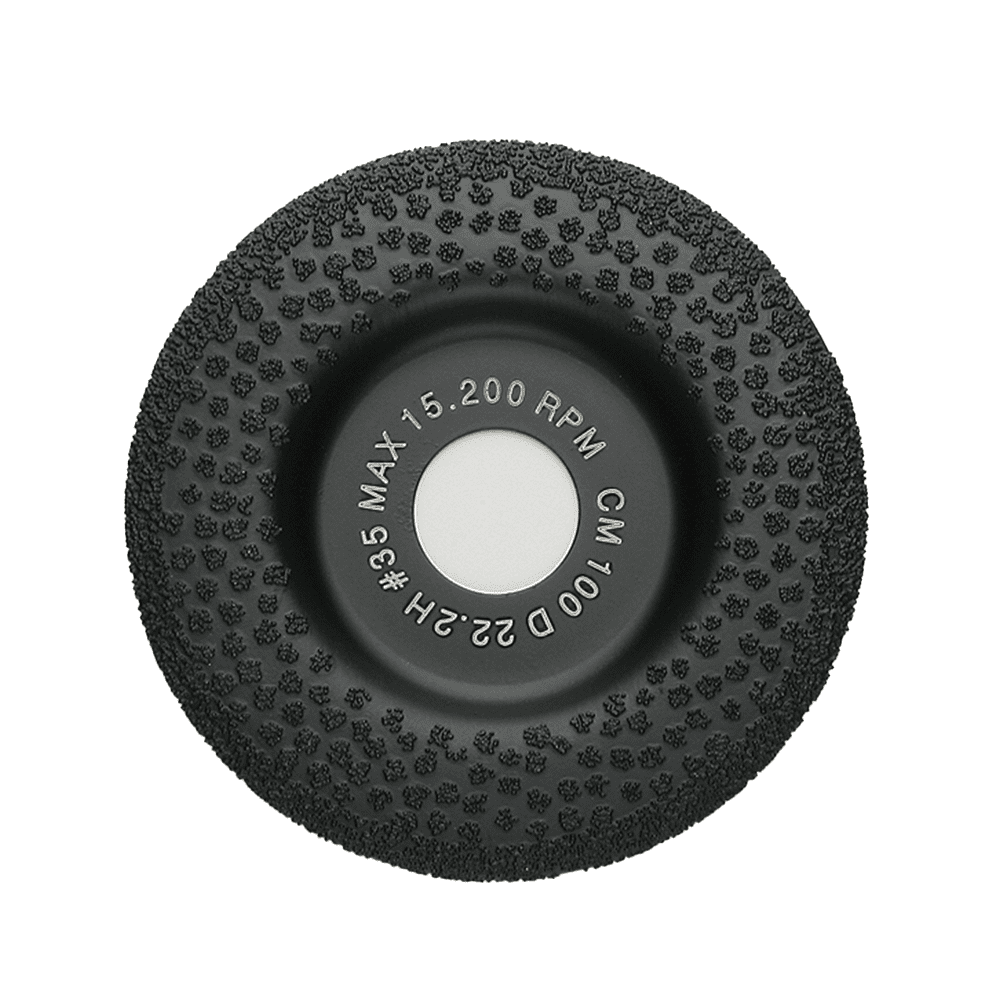

EB Combination Wheels
| Dimensions | Diameter: 4", 5", 7" |
|---|---|
| Grit | 35, 50 |
| Arbor size | 7/8” |
| Part No. | Size (dia. x arbor) | Grit | Max. Speed | Quantity |
|---|---|---|---|---|
| EB4007835CM | 4" x 7/8" | 35 | 13,000 RPM | 1 disc |
| EB4507850CM | 4" x 7/8" | 50 | 13,000 RPM | 1 disc |
| EB5007850CM | 5" x 7/8" | 50 | 13,000 RPM | 1 disc |
| EB7007835CM | 7" x 7/8" | 35 | 8,500 RPM | 1 disc |
| EB7007850CM | 7" x 7/8" | 50 | 8,500 RPM | 1 disc |

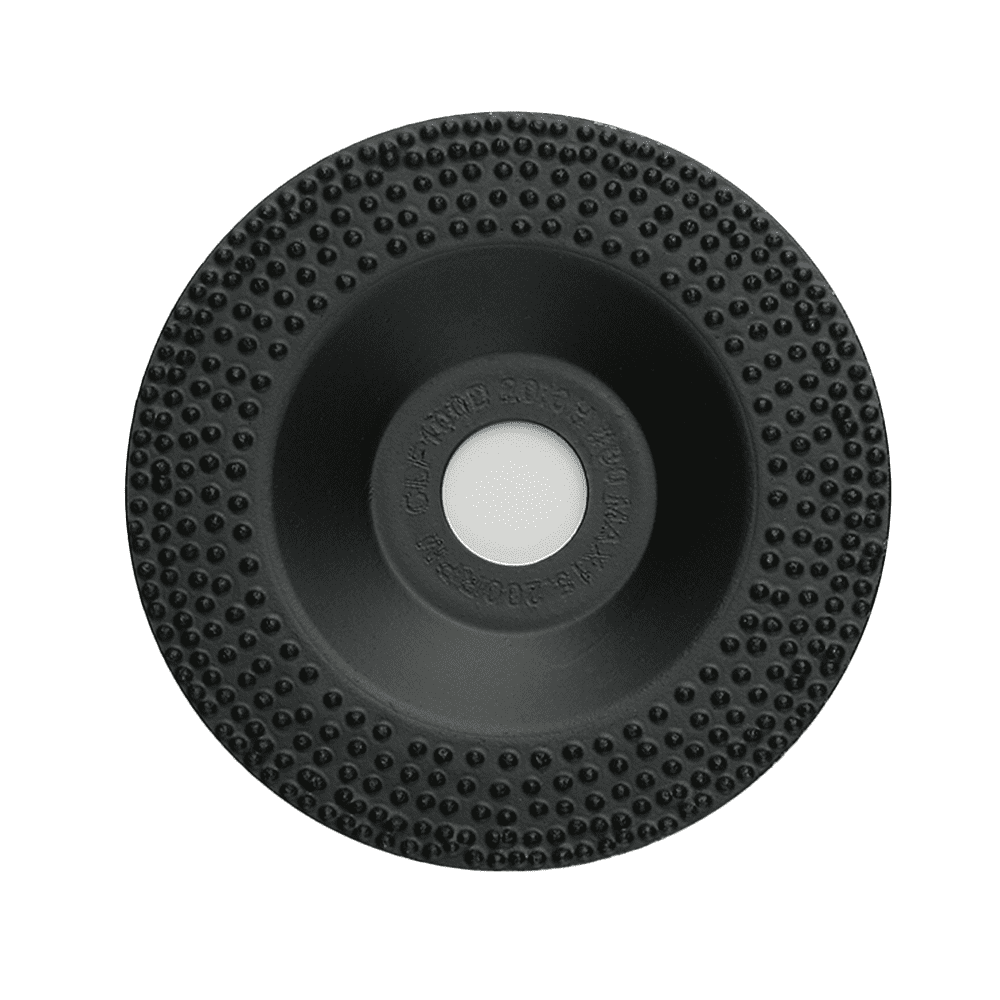

EB Cluster Wheels
| Dimensions | Diameter: 4", 4-1/2", 7" |
|---|---|
| Grit | 80 |
| Arbor Size | 7/8" |
| Part No. | Size (dia. x arbor) | Grit | Max. Speed | Quantity |
|---|---|---|---|---|
| EB4007880CLSF | 4" x 7/8" | 80 | 13,000 RPM | 1 disc |
| EB7007880CLSF | 7" x 7/8" | 80 | 8,500 RPM | 1 disc |

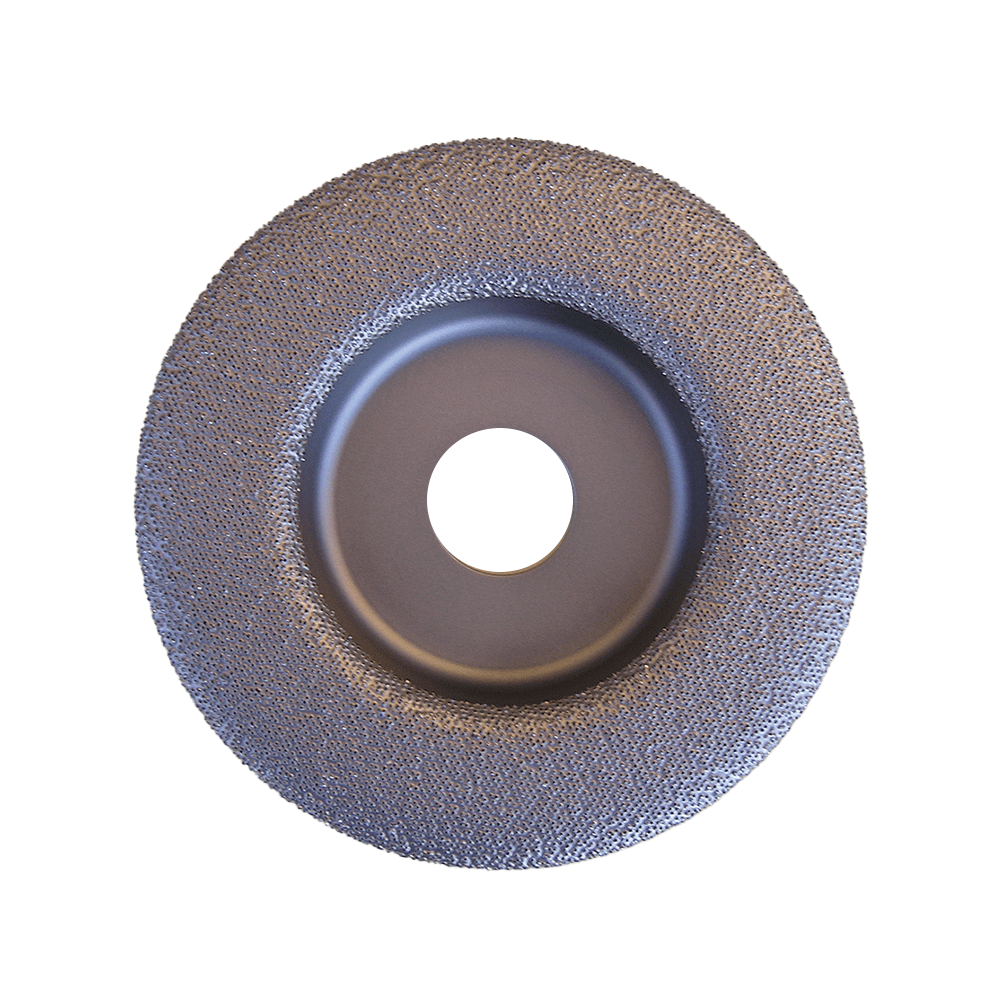

EB Diamond Discs
| Dimensions | Diameter: 4", 7" |
|---|---|
| Max. speed | 13,000 RPM (4") or 8500 RPM (7") |
| Ideal speed | 6000 RPM (4") or 3300 RPM (7") |
| Grits | 50 |
| Arbor size | 7/8” |
| Part No. | Size (dia. x arbor) | Grit | Max. Speed | Quantity |
|---|---|---|---|---|
| EB4007850 | 4" x 7/8" | 50 | 13,000 RPM | 1 disc |
| EB7007850 | 7" x 7/8" | 50 | 8,500 RPM | 1 disc |
Related PDFs

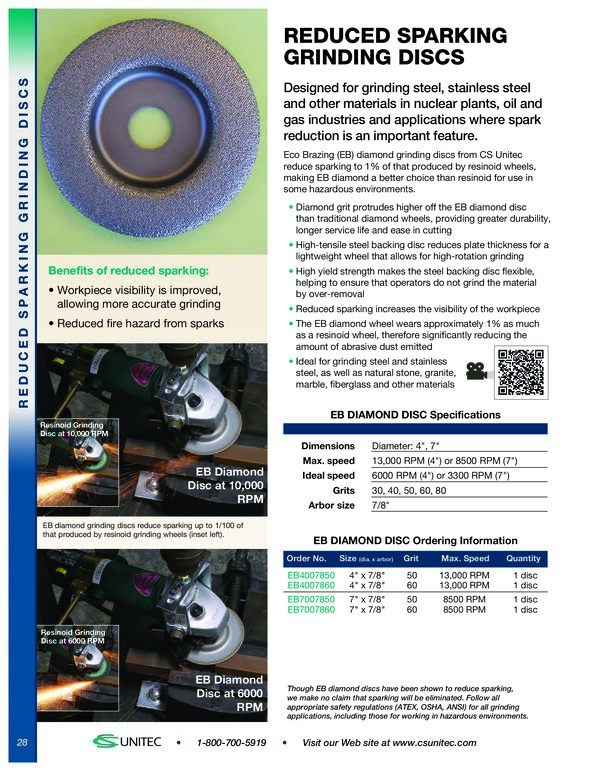

Catalog PDF
CAT_EB_Diamond_Discs
Download PDF
Operating Manual

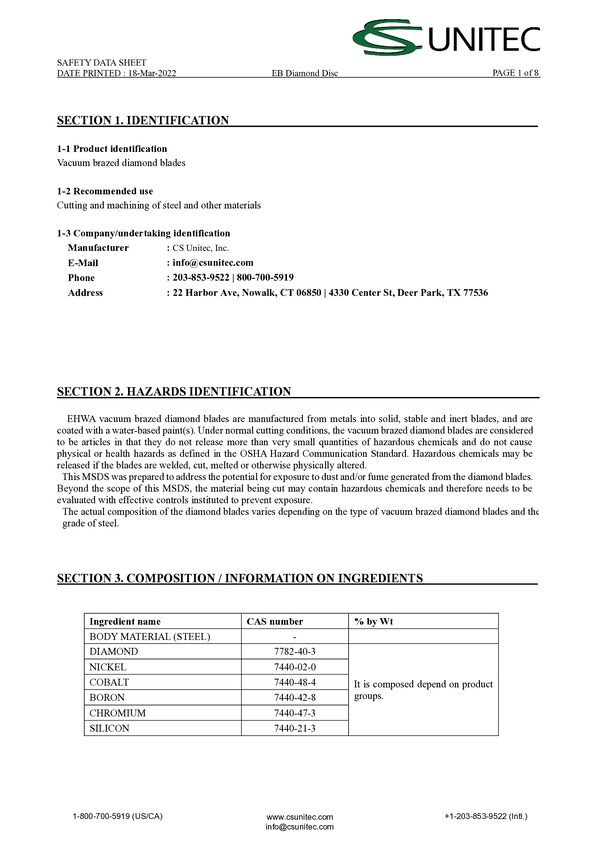

SDS_EB_Diamond_Discs
Download PDF
Usage
- Reduce sparks, dust and material waste
- Save time changing discs
- Ideal for grinding and cutting steel and stainless steel, as well as natural stone, granite, marble, fiberglass and other materials
Benefits
- Reduce spark by up to 1/100 of that produced by resinoid wheels
- Diamond grit protrudes higher off the EB diamond disc than traditional diamond wheels, providing greater durability, longer service life and cutting
- High-tensile steel backing disc reduces plate thickness for a lightweight wheel that allows for high-rotation grinding
- High yield strength makes the steel backing disc elastic, helping to ensure that operators do not grind the material by over-removal
- Reduced sparking increases the visibility of the workpiece
- Not ATEX approved - sparks will occur during grinding (see note below)
- The EB diamond wheel wears approximately 1% as much as a resinoid wheel, therefore significantly reducing the amount of abrasive dust emitted
Usage
- Reduce sparks, dust and material waste
- Save time changing discs
- Ideal for grinding and cutting steel and stainless steel, as well as natural stone, granite, marble, fiberglass and other materials
Benefits
- Reduce spark by up to 1/100 of that produced by resinoid wheels
- Diamond grit protrudes higher off the EB diamond disc than traditional diamond wheels, providing greater durability, longer service life and cutting
- High-tensile steel backing disc reduces plate thickness for a lightweight wheel that allows for high-rotation grinding
- High yield strength makes the steel backing disc elastic, helping to ensure that operators do not grind the material by over-removal
- Reduced sparking increases the visibility of the workpiece
- Not ATEX approved - sparks will occur during grinding (see note below)
- The EB diamond wheel wears approximately 1% as much as a resinoid wheel, therefore significantly reducing the amount of abrasive dust emitted
