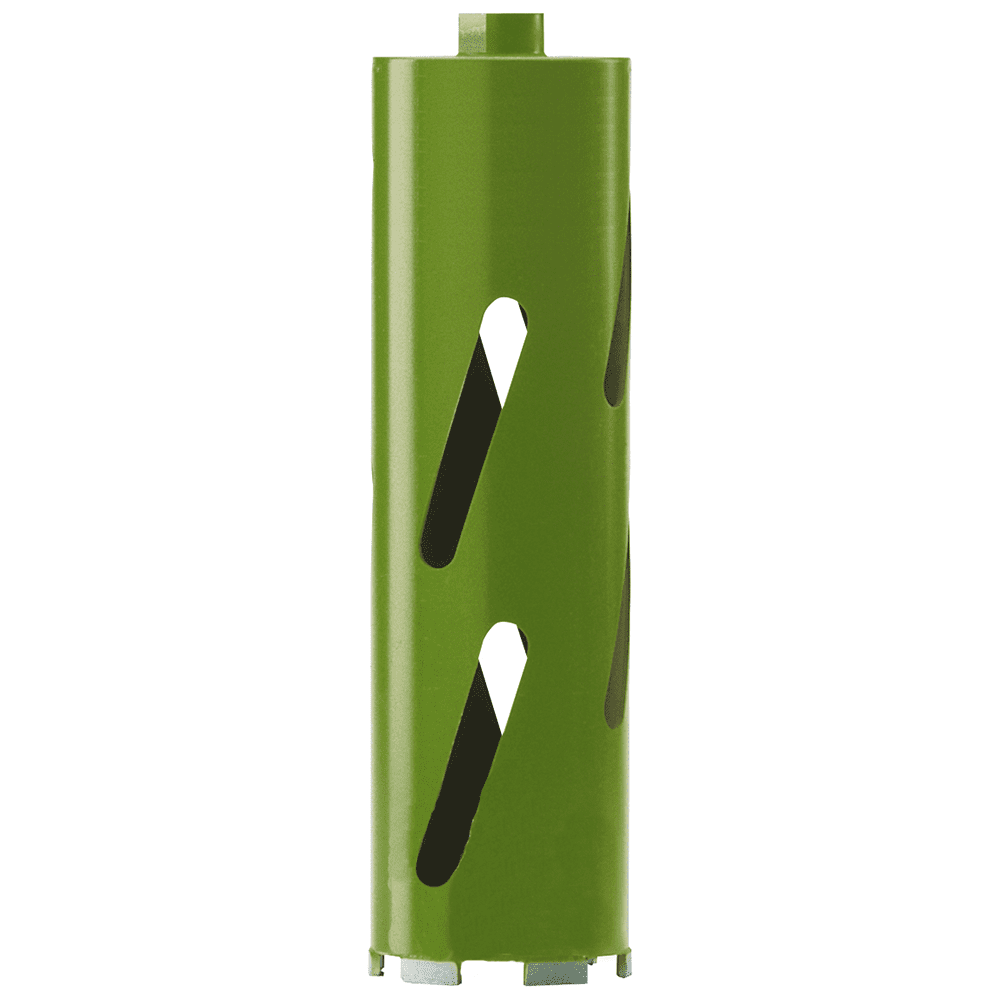

Segmented Dry Core Drill Bit
- Drilling Depth: 9″
- Segment Height: 7 mm
- Thread: 5/8″ x 11 female
- Diamond segments offer faster penetration and long life
- Quickly drills through block and brick with no water
Includes (testing):
- Segmented Dry Core Drill Bit
Benefits
- Diamond segments offer faster penetration in concrete, block, brick, and masonry.
- Premium diamond segments and durable barrel construction ensure extended bit life, even in abrasive substrates.
- Designed for clean, dry drilling, eliminating the need for water supply, slurry management, or surface protection.
- Balanced design minimizes vibration for straighter holes and improved operator control.
- Compatible with electric and pneumatic dry drilling core motors.
Applications & Usage
- Segmented Dry Core Drill Bit diamond bits Ideal for drilling in finished spaces, commercial interiors, hospitals, schools, offices, and residential buildings where dry drilling is essential.
- Suitable for drilling holes for small to medium diameter pipes, fixtures, and fittings in concrete or block walls.
- Dry drilling minimizes disruption and cleanup, making it ideal for retrofit work in active facilities.
- Handheld applications, less feed pressure required due to segments.
- Useful in plants, warehouses, and production facilities where water cannot be used near equipment or electrical systems.
Technical Specifications
| Part No. | Size Description | Maximum RPM | Minimum RPM |
|---|---|---|---|
| 4CB026-Dry | 1" dia. x .110 | 6000 | 2300 |
| 4CB032-Dry | 1-1/4" dia. x .110 | 6000 | 2300 |
| 4CB040-Dry | 1-1/2" dia. x .110 | 5000 | 1600 |
| 4CB045-Dry | 1-3/4" dia. x .110 | 5000 | 1600 |
| 4CB052-Dry | 2" dia. x .118 | 5000 | 1200 |
| 4CB057-Dry | 2-1/4" dia. x .118 | 5000 | 1200 |
| 4CB065-Dry | 2-1/2" dia. x .118 | 5000 | 1200 |
| 4CB078-Dry | 3" dia. x .118 | 5000 | 800 |
| 4CB089-Dry | 3-1/2" dia. x .118 | 5000 | 800 |
| 4CB102-Dry | 4" dia. x .125 | 5000 | 700 |
| 4CB108-Dry | 4-1/4" dia. x .125 | 5000 | 700 |
| 4CB112-Dry | 4-1/2" dia. x .125 | 5000 | 700 |
| 4CB127-Dry | 5" dia. x .125 | 3500 | 700 |
| 4CB152-Dry | 6" dia. x .125 | 2500 | 600 |
Related PDFs
Catalog PDF
CAT_Core_Drills
Download PDF
Usage
- Segmented Dry Core Drill Bit diamond bits Ideal for drilling in finished spaces, commercial interiors, hospitals, schools, offices, and residential buildings where dry drilling is essential.
- Suitable for drilling holes for small to medium diameter pipes, fixtures, and fittings in concrete or block walls.
- Dry drilling minimizes disruption and cleanup, making it ideal for retrofit work in active facilities.
- Handheld applications, less feed pressure required due to segments.
- Useful in plants, warehouses, and production facilities where water cannot be used near equipment or electrical systems.
Benefits
- Diamond segments offer faster penetration in concrete, block, brick, and masonry.
- Premium diamond segments and durable barrel construction ensure extended bit life, even in abrasive substrates.
- Designed for clean, dry drilling, eliminating the need for water supply, slurry management, or surface protection.
- Balanced design minimizes vibration for straighter holes and improved operator control.
- Compatible with electric and pneumatic dry drilling core motors.
Usage
- Segmented Dry Core Drill Bit diamond bits Ideal for drilling in finished spaces, commercial interiors, hospitals, schools, offices, and residential buildings where dry drilling is essential.
- Suitable for drilling holes for small to medium diameter pipes, fixtures, and fittings in concrete or block walls.
- Dry drilling minimizes disruption and cleanup, making it ideal for retrofit work in active facilities.
- Handheld applications, less feed pressure required due to segments.
- Useful in plants, warehouses, and production facilities where water cannot be used near equipment or electrical systems.
Benefits
- Diamond segments offer faster penetration in concrete, block, brick, and masonry.
- Premium diamond segments and durable barrel construction ensure extended bit life, even in abrasive substrates.
- Designed for clean, dry drilling, eliminating the need for water supply, slurry management, or surface protection.
- Balanced design minimizes vibration for straighter holes and improved operator control.
- Compatible with electric and pneumatic dry drilling core motors.
