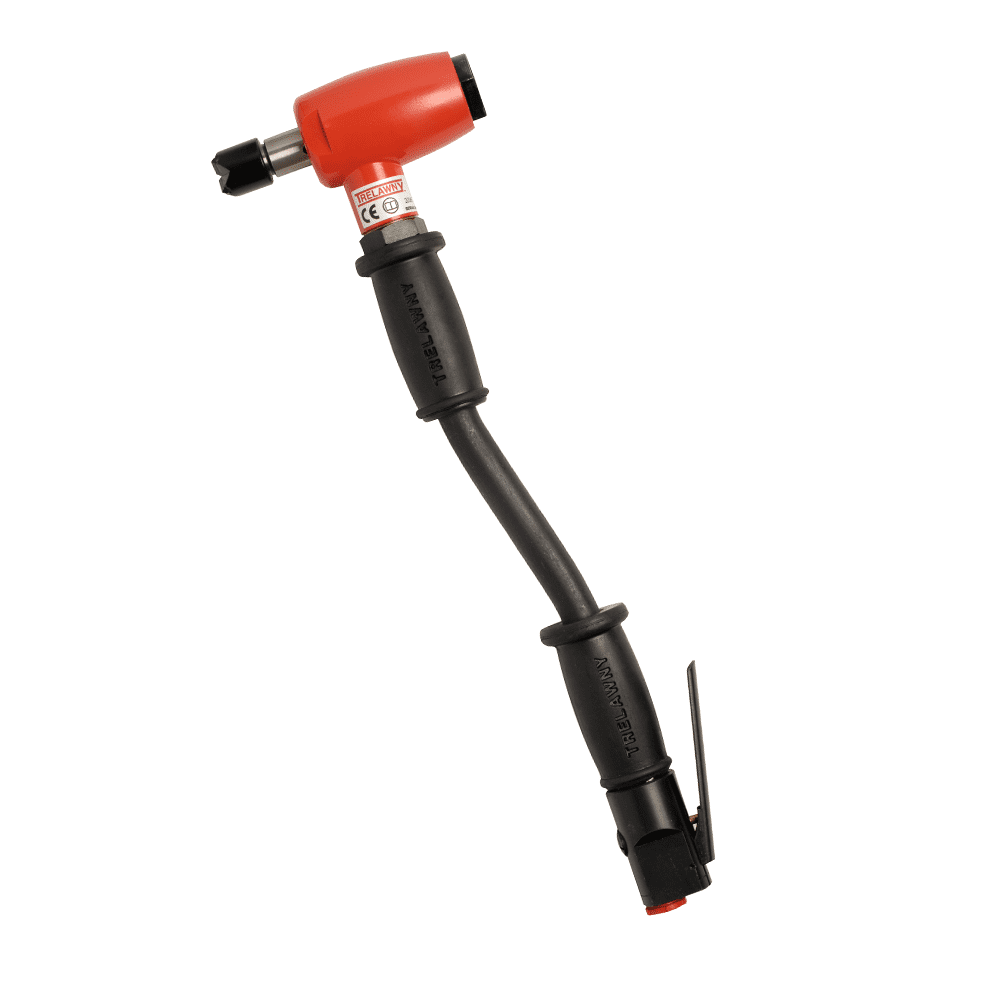

Handheld Scaling Hammers – Single Head
- Blows per Minute: 3000
- Production Rate: 50 sq. ft./hr.
- Air Consumption: 7 CFM @ 90 PSI
- Handle Types: Long & Short Available
- Scaling Hammer
Benefits
- Vibration reduced technology engineered to minimize hand arm vibration, helping reduce the risk of vibration related injuries during extended use.
- Optional spark-resistant copper beryllium replacement heads ideal for hazardous or potentially explosive environments, providing safer operation in refineries, offshore rigs, and chemical plants.
- Detachable taper fit cutter head allows quick, cost effective replacement of the cutter head while extending piston life and reducing long term maintenance costs.
- Precise, single head impact offers controlled, focused material removal, perfect for tight areas, edges, and localized descaling.
Applications & Usage

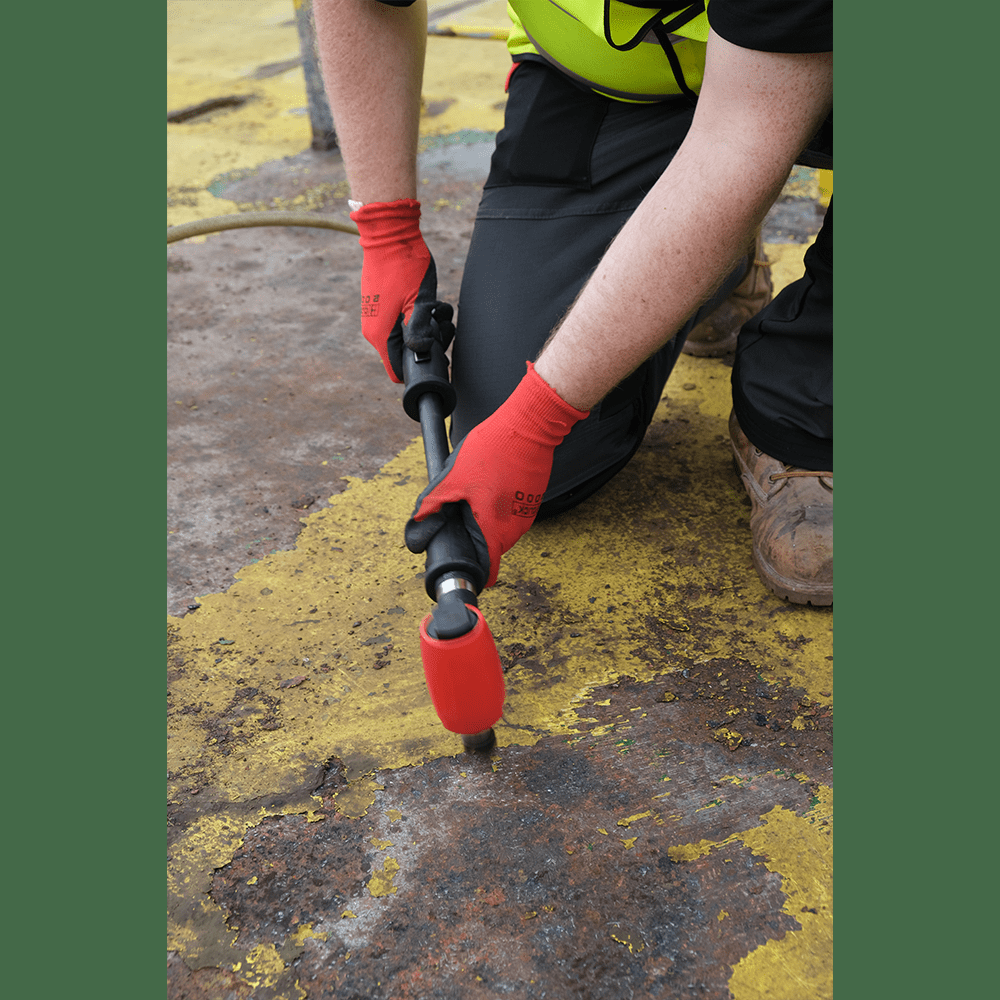

- Single Head Pneumatic Handheld Scaling Hammers designed for breaking through thick scale, heavy corrosion, and hard industrial coatings, these hammers excel in marine, industrial, and construction environments.
- Used on pipes and cylindrical surfaces where targeted descaling is needed.
- For ship decks and marine structures exposed to saltwater corrosion.
- Ideal for use on oil platforms and offshore installations requiring rugged, reliable tools.
- For bridge structures and structural steel needing localized corrosion removal.
Technical Specifications
| Blows per minute – 3000 Production rate – 50 sq. ft./hour Cutter life – 5,300 sq. ft. Air Consumption – 7 CFM @ 90 PSI Noise Level – 88.1 dB(a) | ||||||||
| Description | Model No. | Weight (lbs.) | Dimensions (LxH) | Handle Type | Vibration Levels (m/s2) | Reduced Sparking | IMPA | ISSA |
| SF1 TCT Cruciform Piston | 151.5100 | 5.5 | 19" x 6" | Long | 6.8 | 590288 (590382 Equivalent) | 5509301 | |
| SF1 Steel Bush Hammer Piston | 151.5105 | 5.5 | 19" x 6" | Long | 6.8 | - | - | |
| SF1 CuBe Cruciform Piston | 151.5110 | 5.5 | 19" x 6" | Long | 6.8 | 590289 | - | |
| SF1 TCT Cruciform Piston | 199.5150 | 5.5 | 9.25" x 6 | Short | 6.8 | - | - | |
Related PDFs
Catalog PDF 1
CAT_Scaling_Hammers
Download PDF
Catalog PDF 2
CAT_Metalworking_2024
Download PDF
Product Schematic
SCHEM_Scaling_Hammers
Download PDF
Operating Manual
MANUAL_Scaling_Hammers
Download PDF
Usage
- Single Head Pneumatic Handheld Scaling Hammers designed for breaking through thick scale, heavy corrosion, and hard industrial coatings, these hammers excel in marine, industrial, and construction environments.
- Used on pipes and cylindrical surfaces where targeted descaling is needed.
- For ship decks and marine structures exposed to saltwater corrosion.
- Ideal for use on oil platforms and offshore installations requiring rugged, reliable tools.
- For bridge structures and structural steel needing localized corrosion removal.
Benefits
- Vibration reduced technology engineered to minimize hand arm vibration, helping reduce the risk of vibration related injuries during extended use.
- Optional spark-resistant copper beryllium replacement heads ideal for hazardous or potentially explosive environments, providing safer operation in refineries, offshore rigs, and chemical plants.
- Detachable taper fit cutter head allows quick, cost effective replacement of the cutter head while extending piston life and reducing long term maintenance costs.
- Precise, single head impact offers controlled, focused material removal, perfect for tight areas, edges, and localized descaling.
Usage
- Single Head Pneumatic Handheld Scaling Hammers designed for breaking through thick scale, heavy corrosion, and hard industrial coatings, these hammers excel in marine, industrial, and construction environments.
- Used on pipes and cylindrical surfaces where targeted descaling is needed.
- For ship decks and marine structures exposed to saltwater corrosion.
- Ideal for use on oil platforms and offshore installations requiring rugged, reliable tools.
- For bridge structures and structural steel needing localized corrosion removal.
Benefits
- Vibration reduced technology engineered to minimize hand arm vibration, helping reduce the risk of vibration related injuries during extended use.
- Optional spark-resistant copper beryllium replacement heads ideal for hazardous or potentially explosive environments, providing safer operation in refineries, offshore rigs, and chemical plants.
- Detachable taper fit cutter head allows quick, cost effective replacement of the cutter head while extending piston life and reducing long term maintenance costs.
- Precise, single head impact offers controlled, focused material removal, perfect for tight areas, edges, and localized descaling.
