VARILEX® Grinding, Blending and Polishing Tool
- Excellent Blending and finishing tool
- Powerful 15 Amp Motor
- Variable Speed: Adjustable from 2400 to 8900 RPM
- Disc Diameter: 4-1/2″ to 7″
Order machine only or kits. Kits include:
Varilex® 1802 HT Basic Starter Kit
- 1 VARILEX® 1802 HT
- 110 V with 5/8"-11 spindle
- 1 Wheel guard for discs up to 5"
- 1 Carrying Case
- 1 EASY-LOCK SPEED NUT
- 2 PLANTEX® CERAMIC, 5", grit 40
- 2 PLANTEX®, 5", grit 40
- 2 PLANTEX® CERAMIC, 5", grit 60
- 2 PLANTEX®, 5", grit 60
- 1 VARILEX® 1802 HT, 110V, 5/8" spindle
- 1 Carrying Case
- 1 FIX backing pad - 4-7/16"
- 1 Wheel guard for discs up to 5"
- 3 FIX fleece discs 4-1/2"
- (1 each - coarse, medium, fine)
- 1 EASY-LOCK SPEED NUT
- 2 FIX FLEECE TOP 4-1/2" (1 each - grit 80, 180)
- 2 FIX flap discs 4-1/2" (1 each -grit 40, 60)
- 2 FIX SuperPolish discs 4-1/2"
- 1 FIX clean 4-1/2"
- 1 PTX Brightex® Softclean Powder scatter can
- 4 FIX Zirconium discs 4-1/2" (1 each - grit 40 - 120)
- 2 Mini-polishing pastes, white and blue
- 1 Carry Case
- 1 FIX backing pad
- 8 FIX Zirconium discs 4-1/2" (2 each - 40, 60, 80, 120 grit)
- 10 FIX TZ Pyramid discs 4-1/2" (2 each - 280, 400, 600, 1200, 2000 grit)
- 8 FIX Surface Conditioning discs 4-1/2" (2 each - coarse, medium, fine, superfine)
- 6 FIX Super Polish discs 4-1/2"
- 2 Mini-polishing pastes, white and blue
- 1 PTX polishing cream, pink
- 1 PTX Brightex® Softclean Powder scatter can
- 2 PTX microfiber cloths
- 1 Sample size PTX Poly Protection
- 1 Sample size PTX Brilliance Clean
Benefits
- Powerful 15 Amp, 1750 Watt motor
- Variable speed from 2400 to 8900 RPM
- Up to 7" diameter
- Motor design allows for exceptional performance at low RPM – without motor overheating or burnout
- Ability to change discs in seconds, without tools, using the patented EASY-LOCK clamping nut (see accessories) and spindle lock
- A balanced handle that ensures fatigue-free grinding
- Works with the Flexible Drive Shaft
Applications & Usage
- VARILEX is compatible with grinding, blending, polishing, cutting, and cleaning accessories.

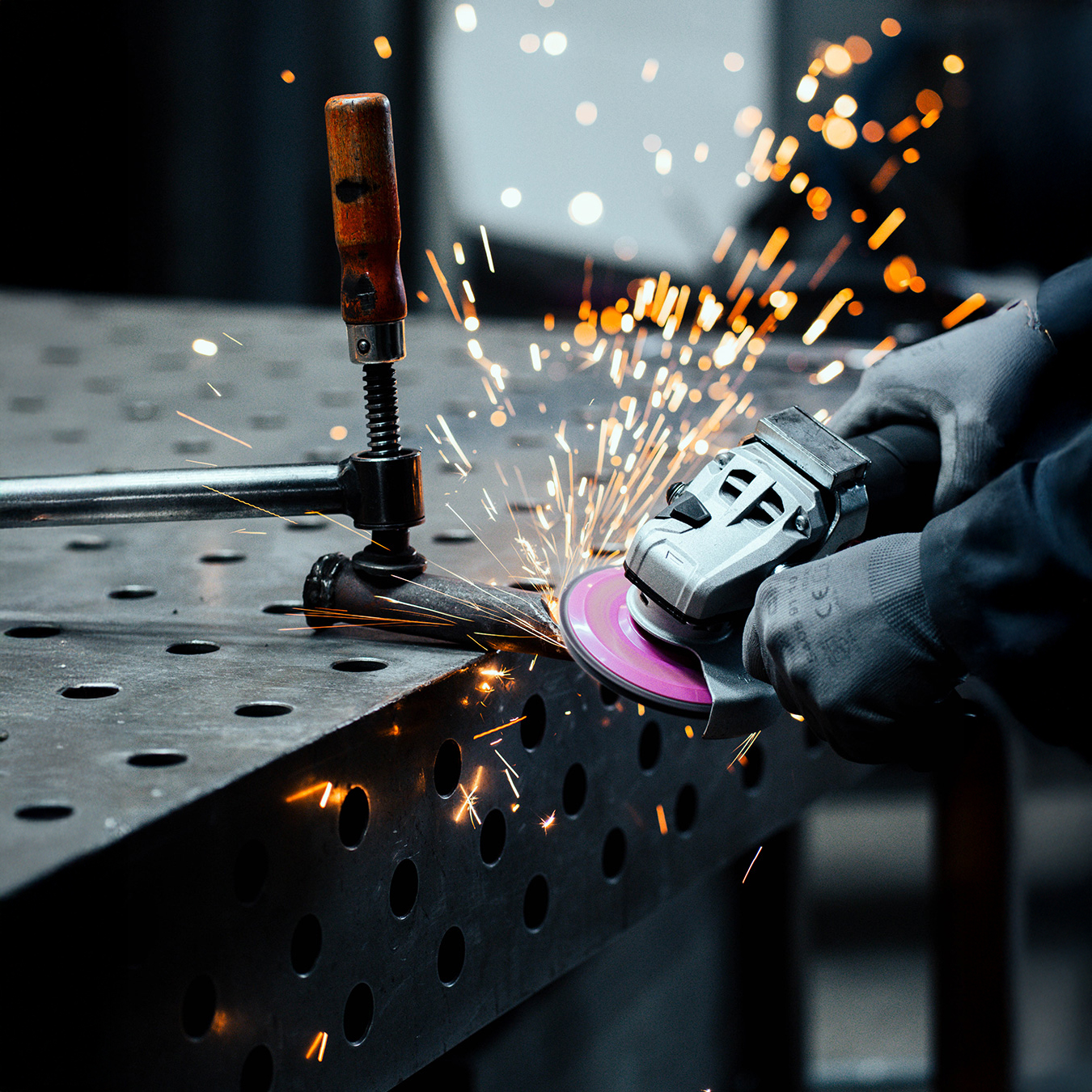

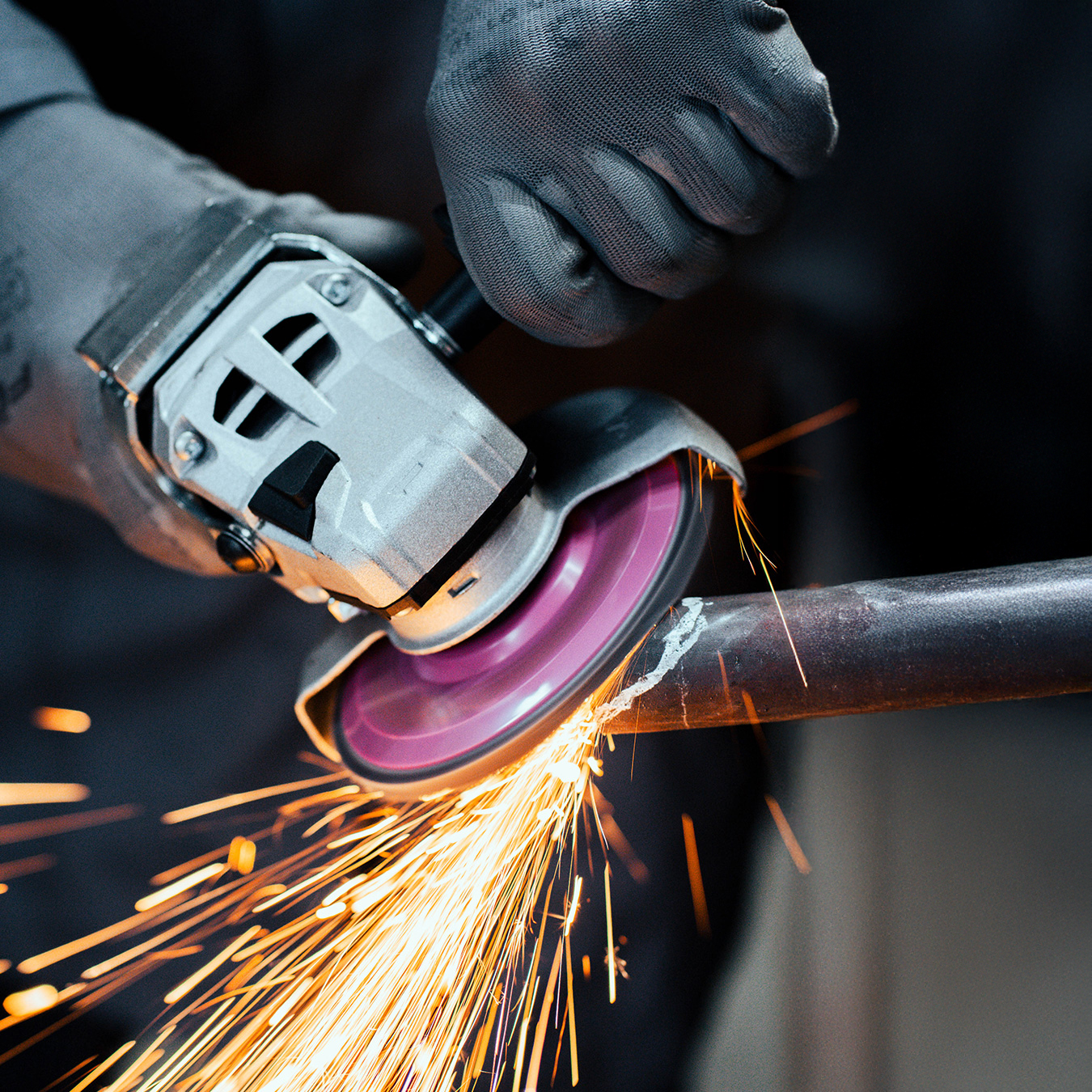

- Weld blending and finishing on stainless steel, carbon steel, aluminum, and other non-ferrous metals.
- Surface grinding for removing weld seams, mill scale, oxidation, rust, and surface imperfections.
- Satin finishing and brushed finishes on architectural stainless steel and decorative metalwork.

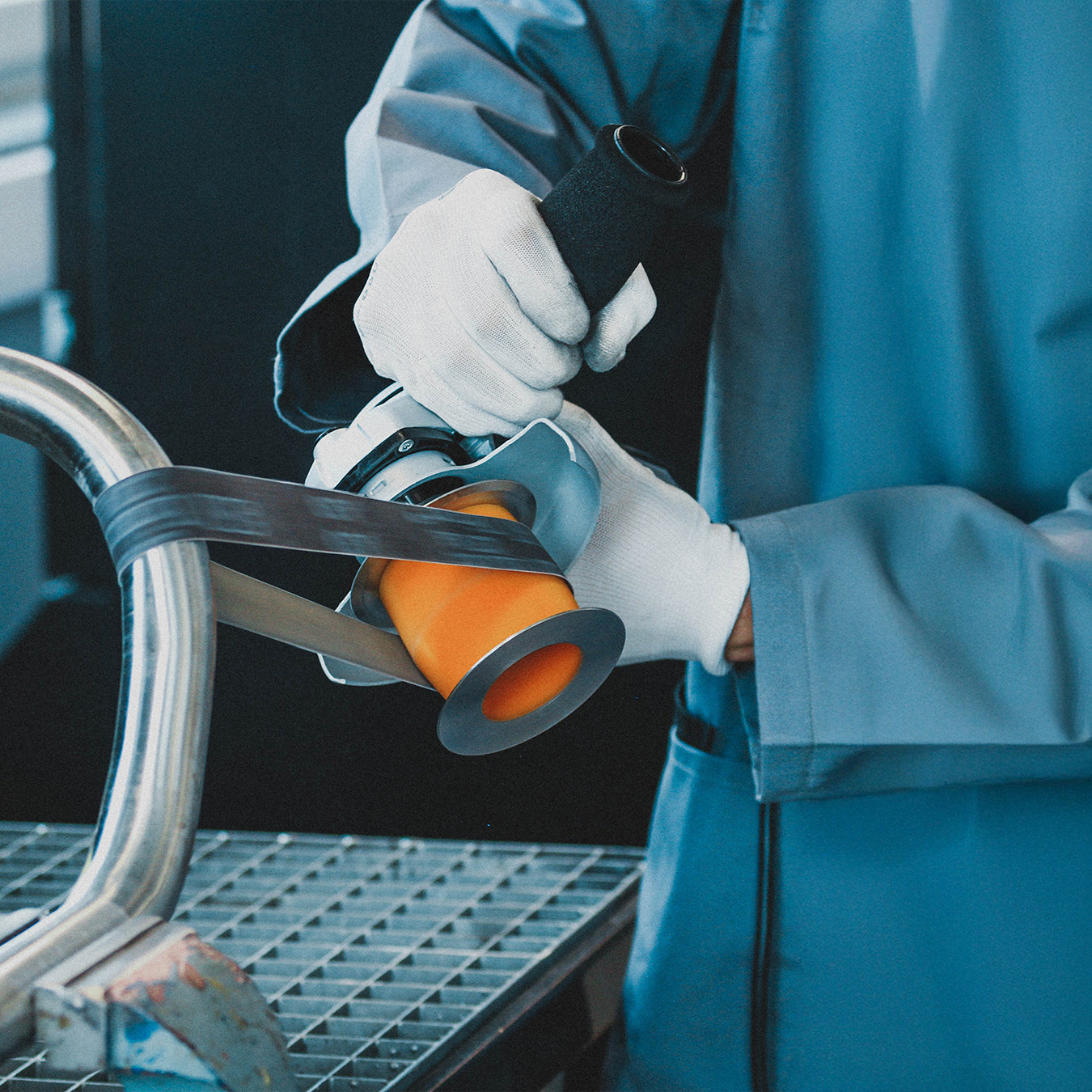

- Mirror polishing of stainless steel, aluminum, brass, copper, and other metals when used with the appropriate polishing accessories.
Technical Specifications
| VARILEX® 1802 HT Specifications | |
| Item ID: | 65030U |
|---|---|
| Power | 15 Amp (1750 Watts) 110 Volt / 60Hz (available in 230 V / 50Hz) |
| Variable Speed | Infinitely adjustable from 2400 to 8900 RPM |
| Diameters | 4-1/2" to 7" |
| Spindle Thread | 5/8" - 11 UNC |
| Weight | 6.2 lbs. (2.8kg) |
| Cancer and Reproductive Harm - www.P65Warnings.ca.gov | |
