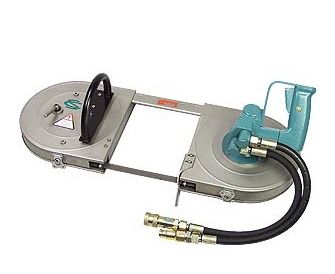

Portable Hydraulic Band Saw

Hydraulic power for heavy-duty mining, utility, marine and construction applications

  • 1/2" FF Couplings Hydraulic Band Saw
  • 1/2" FF Couplings Hydraulic Band Saw
  • Hydraulic bandsaw for cutting steel, stainless steel, Inconel, chrome, Hastelloy, aluminum, copper, iron, Fiberglass, plastic, wood and more
  • Deep cut, portable band saw, cuts up to 9" OD
  • 1/2" Flush face houses included
  • Band saw blades and clamps available



CS Unitec's Hydraulic Portable Band Saws are ideal for shutdowns/turnarounds and the toughest use in refineries, chemical plants, gas utilities, offshort oil, mining, marine and demolition. Call 1-800-700-5919 for technical questions/inquiries.

  • Standard Hydraulic Saw
  • Deep Throat™ Hydraulic Saw
  • Wide Mouth™ Hydraulic Saw
Model 5 6043 0010 – Hydraulic – 1/2" FF (HTMA) Couplings
Motor Power and Specs*1.6 HP, 2000 PSI, 4 GPM
Blade Speed (ft/sec)4.2
Capacity (Round)4"
Capacity (Rectangular)4" x 4"
Blade Size44-7/8" x 1/2"
HousingStainless Steel
Overall Length22"
Weight (lbs.)23
deep throat hydraulic band saw
Model 5 6041 0010

Model 5 6041 0010 – Deep Throat™ Hydraulic – 1/2" FF (HTMA) Couplings
Motor Power and Specs*1.6 HP, 2000 PSI, 4 GPM
Blade Speed (ft/sec)4.2
Capacity (Round)7"
Capacity (Rectangular)7" X 7"
Blade Size66" x 5/8"
HousingStainless Steel
Overall Length28-3/4"
Weight (lbs.)28
deep throat hydraulic band saw
Model 5 6041 0010

Model 5 6054 0010 – Wide Mouth™ Hydraulic – 1/2" FF (HTMA) Couplings
Motor Power and Specs*1.6 HP, 2000 PSI, 4 GPM
Blade Speed (ft/sec)4.2
Capacity (Round)8"
Capacity (Rectangular)9" x 8-1/2"
Blade Size71" x 5/8"
HousingStainless Steel
Overall Length30-3/4"
Weight (lbs.)35.6
wide mouth hydraulic band saw
Model 5 6054 0010
