Pneumatic Portable Band Saw – AirBand™

Portable Band Saw Ideal for hazardous atmospheres and wet environments

  • Pneumatic Band Saw AirBand Wide Mouth Model
  • Pneumatic Band Saw AirBand Model
  • pneumatic portable band saws
  • Pneumatic Band Saws AirBand
  • Pneumatic Band Saw AirBand Wide Mouth Model
  • Pneumatic Band Saw AirBand Model
  • pneumatic portable band saws
  • Pneumatic Band Saws AirBand
  • NEW and REDUCED pricing on select models!
  • Portable band saw for cutting steel, stainless steel, Inconel, chrome, Hastellow, aluminum, copper, iron, Fiberglass, plastic, wood and more
  • Safer in hazardous atm. than electric saws
  • Reduces need for hot work permits
  • Cuts up to 9" OD
  • Band saw blades and clamps available

ATEX Certified for Ex Zones
*Atex certification for some models
Request a Quote
Band Saw Blades Available

Ideal for shutdowns/ turnarounds and the toughest use in refineries, chemical plants, gas utilities, offshore oil, mining, marine and demolition. Call 1-800-700-5919 for technical questions/inquiries.

  • AIRBAND™
  • Airband™ 4" with Table
  • Deep Throat™ AirBand
  • Wide Mouth™ AirBand
  • Vise Clamp Option

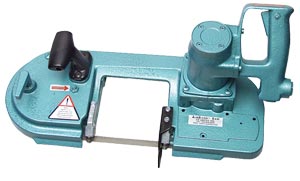

Model No. 5 6003 0011 - AirBand - Aluminum Housing
Motor Power and Specs.0.7HP, 90PSI, 20CFM
Capacity (Round)4" OD
Capacity (Rectangular)4-1/2" x 4-3/4"
Blade Speed (ft/sec)2.2-3.3 (var.)
Blade Size (inch)44-7/8" L x 1/2" W x 0.025" T
Overall Length21-1/2"
Air ConnectionR 1/4" female
Air Hose3/8"
Weight (lbs.)14
Pneumatic air-powered band saw for cuts up to 4-1/2" x 4-3/4"




5 6003 0011 Blades (Per Blade)
8/12 TPI*part no. 9 2506 0040Cuts material 1/2" and thicker
10/14 TPI*part no. 9 2506 0030Cuts material 3/16" to 1/2" thick
14 TPIpart no. 9 2506 0020Cuts material 3/16" to 1/2" thick
18 TPIpart no. 9 2506 0010Cuts material 1/8" to 1/4" thick

* Variable tooth pitch (10/14 TPI and 8/12 TPI) saw blades cut faster and last longer than standard pitch blades. Varying tooth size and gullet depth reduce harmonic vibration for quieter, more efficient cutting.
Model No. 5 6093 0100 - AirBand - Aluminum Housing w/Cutting Table
Motor Power and Specs.0.7HP, 90PSI, 19CFM
Capacity4"
Blade Speed (ft/sec)5.75
Capacity 4"
Blade Size (metric)1335mm x 13mm x 0.65mm*
Blade Size (inch)52.56" x 0.5" x 0.025"*
Overall Length25"
Air ConnectionR 1/4" female
Air Hose3/8"
Weight (lbs.)17**
4" band saw freehand or with stationery table
Model No. 5 6093 0010. Shown with stationary table and vise clamp.

5 6093 0100 includes 3-pack of 10/14 TPI blades, part no. 9 2506 0660 (see below)
* Exact dimensions of blades are 1335mm x 13mm x 0.65mm.
** Weight of saw only. Weight of saw, stationary cutting table and vise is 48 lbs.



5 6093 0010 Blades - Qty. 3 per pack
8/12 TPI*part no. 9 2506 0650Cuts material 1/2" and thicker
10/14 TPI*part no. 9 2506 0660Cuts material 3/16" to 1/2" thick
18 TPIpart no. 9 2506 0680Cuts material 3/16" to 1/2" thick
24 TPIpart no. 9 2506 0690Cuts material 1/8" to 1/4" thick

* Variable tooth pitch (10/14 TPI and 8/12 TPI) saw blades cut faster and last longer than standard pitch blades. Varying tooth size and gullet depth reduce harmonic vibration for quieter, more efficient cutting.

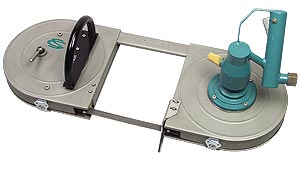

Model No. 5 6031 0010 N - DeepThroat™ AirBand - Stainless Steel Housing
Motor Power and Specs.1.3 HP, 90 PSI, 43 CFM
Blade Speed (ft/sec)4.0-4.9 Variable
Capacity (Round)7"
Capacity (Rectangular)7" x 7"
Blade Size66" x 5/8"
Overall Length28-3/4"
Air Connection1/2" NPT (ID)
Air Hose1/2"
Weight (lbs.)28
wide mouth air band saw
Model No. 5 6031 0010
5 6031 0010 N Blades - Qty. per piece
8 TPIpart no. 9 2506 0200Cuts material 3/4" and thicker
8/12 TPI*part no. 9 2506 0240Cuts material 1/2" and thicker
10/14 TPI*part no. 9 2506 0230Cuts material 3/16" to 1/2" thick
14 TPIpart no. 9 2506 0220Cuts material 3/16" to 1/2" thick

* Variable tooth pitch (10/14 TPI and 8/12 TPI) saw blades cut faster and last longer than standard pitch blades. Varying tooth size and gullet depth reduce harmonic vibration for quieter, more efficient cutting.
Model No. 5 6062 0010 - Wide Mouth™ AirBand - Stainless Steel Housing
Motor Power and Specs.1.3 HP, 90 PSI, 43 CFM
Blade Speed (ft/sec)4.0-4.9 Variable
Capacity (Round)8"
Capacity (Rectangular)9" x 8-1/2"
Blade Size71" x 5/8"
Overall Length30-3/4"
Air Connection1/2" NPT (ID)
Air Hose1/2"
Weight (lbs.)35
wide mouth air band saw
Model No. 5 6062 0010
5 6062 0010 Blades - Qty. per piece
6/10 TPI*part no. 9 2506 0330Cuts material 3/4" and thicker
8/12 TPI*part no. 9 2506 0340Cuts material 1/2" and thicker
10/14 TPI*part no. 9 2506 0350Cuts material 3/16" to 1/2" thick

* Variable tooth pitch saw blades cut faster and last longer than standard pitch blades. Varying tooth size and gullet depth reduce harmonic vibration for quieter, more efficient cutting.

bandsaw clamp

Vise Clamp for Straight Cutting

Securely clamp to round, square and angular materials for accurate cuts.

Model No. 5 6030 9000 – Clamp-on vise for 4-3/4" Band Saws
(Models 5 6003 0010, 5 6046 0010 and 5 6043 0010)

  • Rounds: 4-3/4"
  • Squares: 4-1/2"
  • Angles: 4-1/2"

Model No. 5 6031 9400 – Clamp-on vise for 7" Deep Throat™ Band Saws

(Models 5 6031 0010, 5 6041 0010 and 5 6040 0010)

  • Rounds: 7"
  • Squares: 5"
  • Angles: 5"
