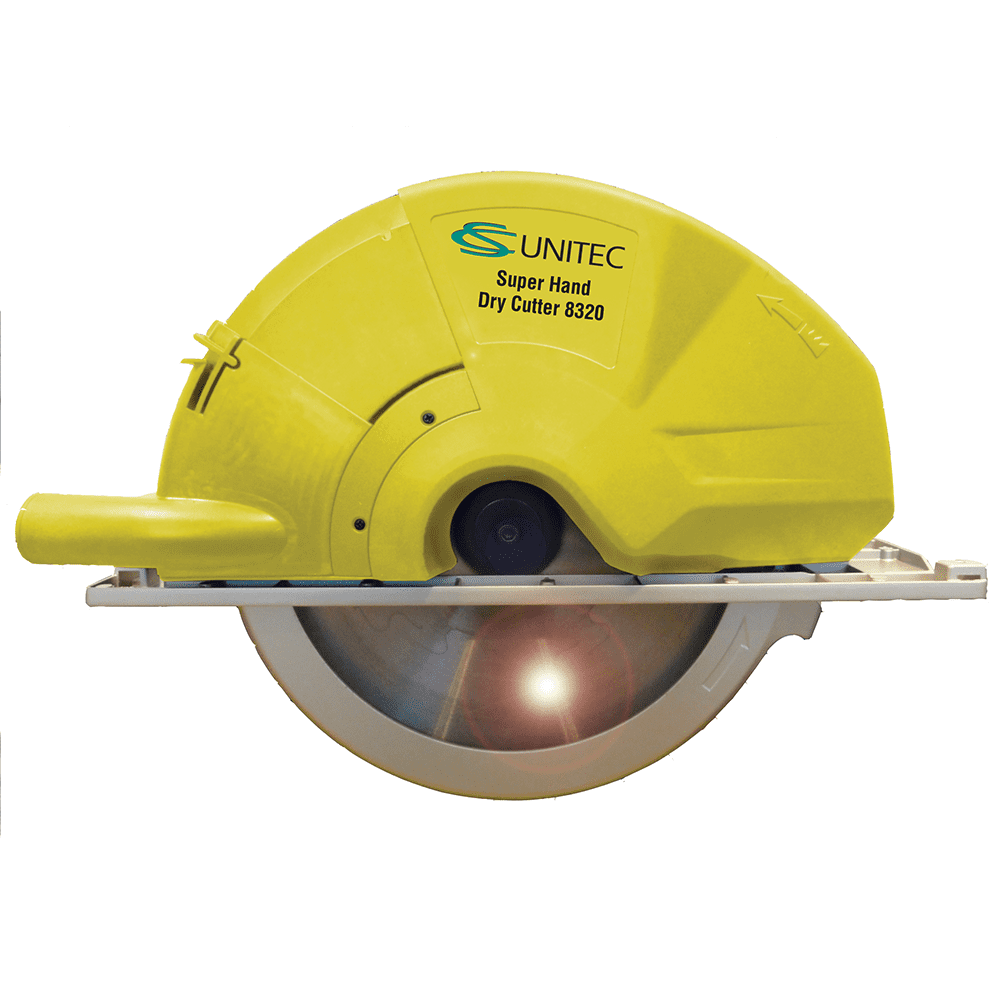

12-5/8″ Dry Cut Metal Saw
- Cutting Capacity: 12-5/8″ dia., 4-3/4″ depth, 3/8″ steel
- Speed: 1400 RPM
- Motor Power: 16 Amp
- 12-5/8″ Saw includes a saw blade (Part No. 608276)
Benefits
- Largest portable dry cut metal saw on the market, providing exceptional cutting capacity for heavy duty applications.
- High quality tungsten carbide‑tipped blade delivers long life and smooth cutting performance.
- Side mounted tilt tray collects chips for cleaner operation and easier disposal.
- Motor protection with optical overload indicator helps prevent overheating and extends tool life.
- Dust collection port supports cleaner, safer work environments.
- Cuts up to 4‑3/4" deep and 3/8" thick steel plate, offering excellent versatility for field and shop use.
- No coolant, burr‑free cutting, reducing cleanup time and eliminating secondary finishing.
Applications & Usage
- 12-5/8″ Dry Cut Metal Saw for cutting steel plate, structural profiles, and fabricated components.
- Ideal for production environments requiring clean, accurate cuts without secondary deburring.
- Dry cuts steel, sandwich panels, I-beams, trapezoidal sheets, conduits, metal pipes and more – without coolant.
- Cutting I‑beams, channels, angle iron, and metal decking on job sites.
- Useful for installing structural supports, framing, and metal infrastructure.
- Portable design makes it ideal for contractors and technicians who need high‑capacity cutting away from the shop.
- Clean, burr‑free cuts reduce time spent on finishing in the field.
Technical Specifications
| 12-5/8″ Dry Cut Metal Saw | |
| Part No. | 608270 U |
|---|---|
| Motor Power | 16 Amp/110V* |
| Blade Diameter | 12-5/8" (320mm) |
| Max. Depth of Cut | 4-3/4" (120mm) |
| Speed (Free) | 1,400 RPM |
| Arbor Size | 1" |
| Blade Part No. | 608276 (12-5/8" dia.) |
| Blade No. of Teeth | 84T |
| Weight | 21 lbs |
| *230V also available - Part No. 608270, Optional 12-5/8" Saw Blade for Model 8320 SHDC P/N 608276SI, 84T, for stainless steel. Blade specially coated, increasing cutting life by 2.5X | |
Optional Accessories
OptionalOptionalBlade Diameter: 12 5/8" • Teeth: 84 • Use Material: Stainless & thick steel
$0.00
In stock
OptionalRelated PDFs
Catalog PDF 1
CAT_Circular_Saws
Download PDF
Catalog PDF 2
CAT_Saws
Download PDF
Catalog PDF 3
CAT_Metalworking_2024
Download PDF
Product Schematic
MANUAL_SHDC8320
Download PDF
Usage
- 12-5/8″ Dry Cut Metal Saw for cutting steel plate, structural profiles, and fabricated components.
- Ideal for production environments requiring clean, accurate cuts without secondary deburring.
- Dry cuts steel, sandwich panels, I-beams, trapezoidal sheets, conduits, metal pipes and more – without coolant.
- Cutting I‑beams, channels, angle iron, and metal decking on job sites.
- Useful for installing structural supports, framing, and metal infrastructure.
- Portable design makes it ideal for contractors and technicians who need high‑capacity cutting away from the shop.
- Clean, burr‑free cuts reduce time spent on finishing in the field.
Benefits
- Largest portable dry cut metal saw on the market, providing exceptional cutting capacity for heavy duty applications.
- High quality tungsten carbide‑tipped blade delivers long life and smooth cutting performance.
- Side mounted tilt tray collects chips for cleaner operation and easier disposal.
- Motor protection with optical overload indicator helps prevent overheating and extends tool life.
- Dust collection port supports cleaner, safer work environments.
- Cuts up to 4‑3/4" deep and 3/8" thick steel plate, offering excellent versatility for field and shop use.
- No coolant, burr‑free cutting, reducing cleanup time and eliminating secondary finishing.
Usage
- 12-5/8″ Dry Cut Metal Saw for cutting steel plate, structural profiles, and fabricated components.
- Ideal for production environments requiring clean, accurate cuts without secondary deburring.
- Dry cuts steel, sandwich panels, I-beams, trapezoidal sheets, conduits, metal pipes and more – without coolant.
- Cutting I‑beams, channels, angle iron, and metal decking on job sites.
- Useful for installing structural supports, framing, and metal infrastructure.
- Portable design makes it ideal for contractors and technicians who need high‑capacity cutting away from the shop.
- Clean, burr‑free cuts reduce time spent on finishing in the field.
Benefits
- Largest portable dry cut metal saw on the market, providing exceptional cutting capacity for heavy duty applications.
- High quality tungsten carbide‑tipped blade delivers long life and smooth cutting performance.
- Side mounted tilt tray collects chips for cleaner operation and easier disposal.
- Motor protection with optical overload indicator helps prevent overheating and extends tool life.
- Dust collection port supports cleaner, safer work environments.
- Cuts up to 4‑3/4" deep and 3/8" thick steel plate, offering excellent versatility for field and shop use.
- No coolant, burr‑free cutting, reducing cleanup time and eliminating secondary finishing.
