Air Pipe Cutting Machine (Belly Saw)
- Cutting Capacity: 6″ to 96″ Diameter Pipe
- Speed: 350 / 1800 RPM
- Motor Power: 2.4 HP / 4 HP
Includes (testing):
| 6″ to 16″ (150-400mm) | 6″ to 32″ (150-800mm) | 6″ to 63″ (150-1600mm) | |||
|
16PK Kit
(Qty.) x Part
|
32PK Kit
(Qty.) x Part
|
63PK Kit
(Qty.) x Part
|
|||
|---|---|---|---|---|---|
|
|
|||||
|
(1) Drive Unit
P/N 5 8010 0050
|
(1) Drive Unit
P/N 5 8010 0050
|
(1) Drive Unit
P/N 5 8010 0050
|
|||
|
(1) Guide Carriage, small
|
(1) Guide Carriage, small
|
(2) Guide Carriage, small
|
|||
|
(1) Chain Tensioner, small
|
(1) Guide Carriage, large
|
(2) Guide Carriage, large
|
|||
|
(1) Guide Chain, 16″ OD
|
(1) Chain Tensioner, large
|
(2) Chain Tensioner, large
|
|||
|
(1) 7″ Dia. Carbide-tipped blade
|
(1) Tensioning Chain
|
(2) Tensioning Chain
|
|||
|
(1) 7″ Dia. Diamond blade
|
(1) Guide Chain, 32″ OD
|
(1) Guide Chain, 63″ OD
|
|||
|
(1) Tool Kit
P/N 5 8002 9200
|
(1) 7″ Dia. Carbide-tipped blade
|
(1) 7″ Dia. Carbide-tipped blade
|
|||
|
(1) Steel Transport Box
P/N 5 8002 9300
|
(1) 7″ Dia. Diamond blade
|
(1) 7″ Dia. Diamond blade
|
|||
|
(1) Tool Kit
P/N 5 8002 9200
|
(1) Tool Kit
P/N 5 8002 9200
|
(1) Tool Kit
P/N 5 8002 9200 (1) Steel Transport Box P/N 5 8002 9300 |
|||
|
(1) Steel Transport Box
P/N 5 8002 9300
|
(1) Steel Transport Box
P/N 5 8002 9300
|
||||
Benefits
- Safe for hazardous environments & ATEX‑certified for explosive‑risk zones, suitable for refineries, petrochemical plants, and gas utilities.
- Fast cutting performance on steel, ductile iron, non‑ferrous metals, HDPE, plastic, cement, and concrete pipe.
- Fully enclosed blade guard enhances operator safety during cutting.
- Guide chain is adjustable ensures straight 90° cuts, reducing rework and improving accuracy.
- Semi‑automatic operation reduces operator fatigue and increases productivity.
Applications & Usage

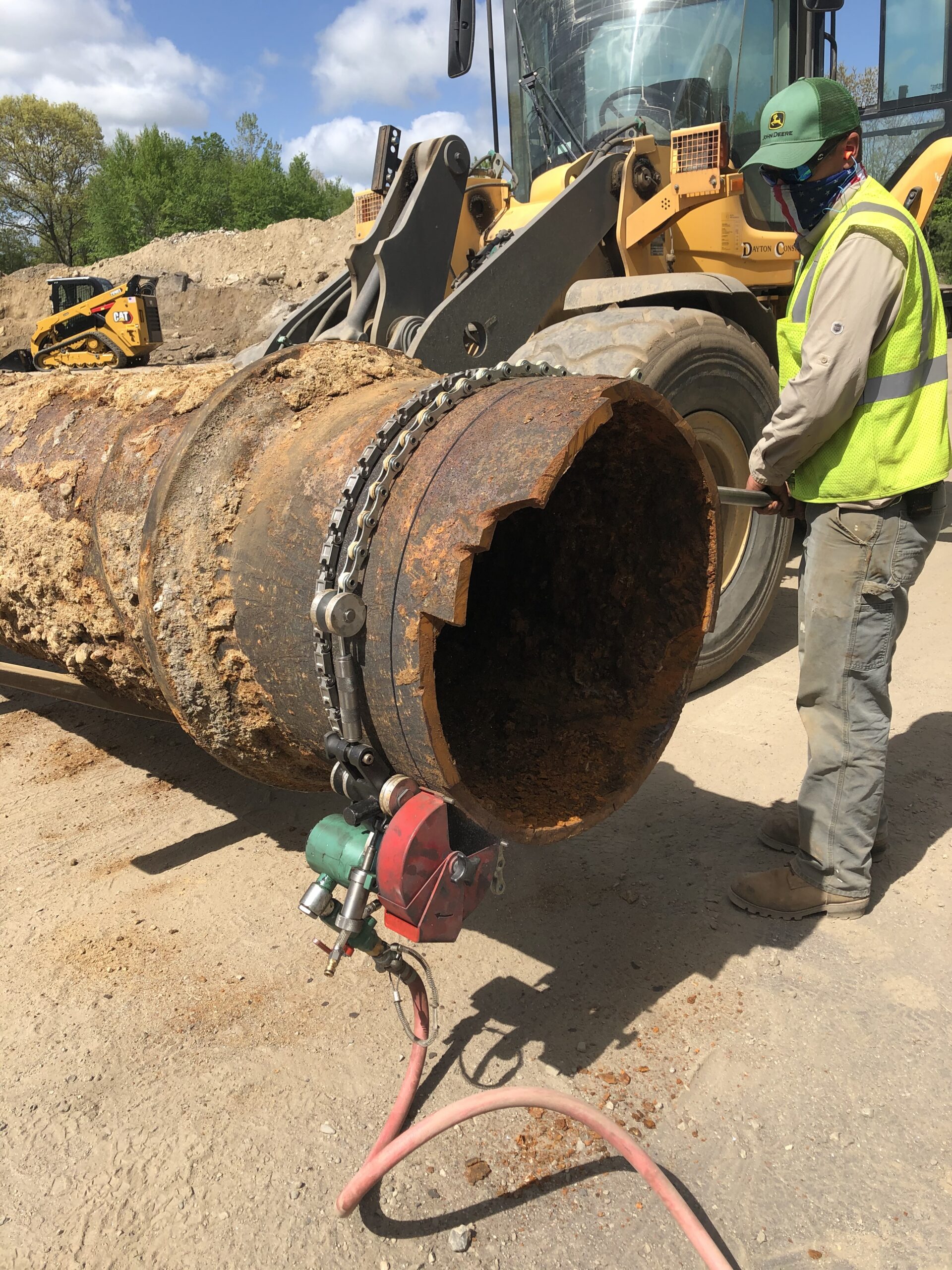

- Air Pipe Cutting Machines for safe cutting in hazardous, explosive‑risk environments where electric tools are prohibited.
- Cut pipe quickly from 6″ to 63″ dia. with wall thicknesses from 1/4″ to 2″.
- Cutting steel, ductile iron, HDPE, and composite pipe during installation or modification.
- Used for cutting large‑diameter pipe and structural components on ships and offshore platforms.
- Suitable for above‑ground and underground pipeline work.
- ATEX certified for use in Ex Zones (ATEX II 2G Ex h IIB T6 Gb)
Technical Specifications
When ordering, specify pipe diameter and application for assistance with determining required blade, feed handle, guide carriage & chain and tensioning chain & tensioner.
| Pneumatic Pipe Cutting Machine | ||
| Item ID: | 5 8002 7000 | 5 8010 0050 |
|---|---|---|
| Power | 2.4 HP / 1.80 kW | 4 HP / 2.40 kW |
| Blade Arbor | 7/8" | 7/8" |
| Air Consumption | 77 CFM @ 90 PSI | 106 CFM @ 90 PSI |
| Speed | 350/1800 RPM | 1800 RPM |
| Blade Dia. | 7" | 7" |
| Hose Connection | 1/2" NPT | 3/4" NPT |
| Weight | 28 lbs. | 28 lbs. |
| Pipe Cutting Machine Kits | ||
| For Pipe Diameters | 4 HP Kit Item ID: | 2-Speed (2.4 HP) Kit Item ID: |
|---|---|---|
| 6" to 16" (150-400mm) | 5 8010 16PK | 5 8002 16PK |
| 6" to 32" (150-800mm) | 5 8010 32PK | 5 8002 32PK |
| 6" to 63" (150-1600mm) | 5 8010 63PK | 5 8002 63PK |
