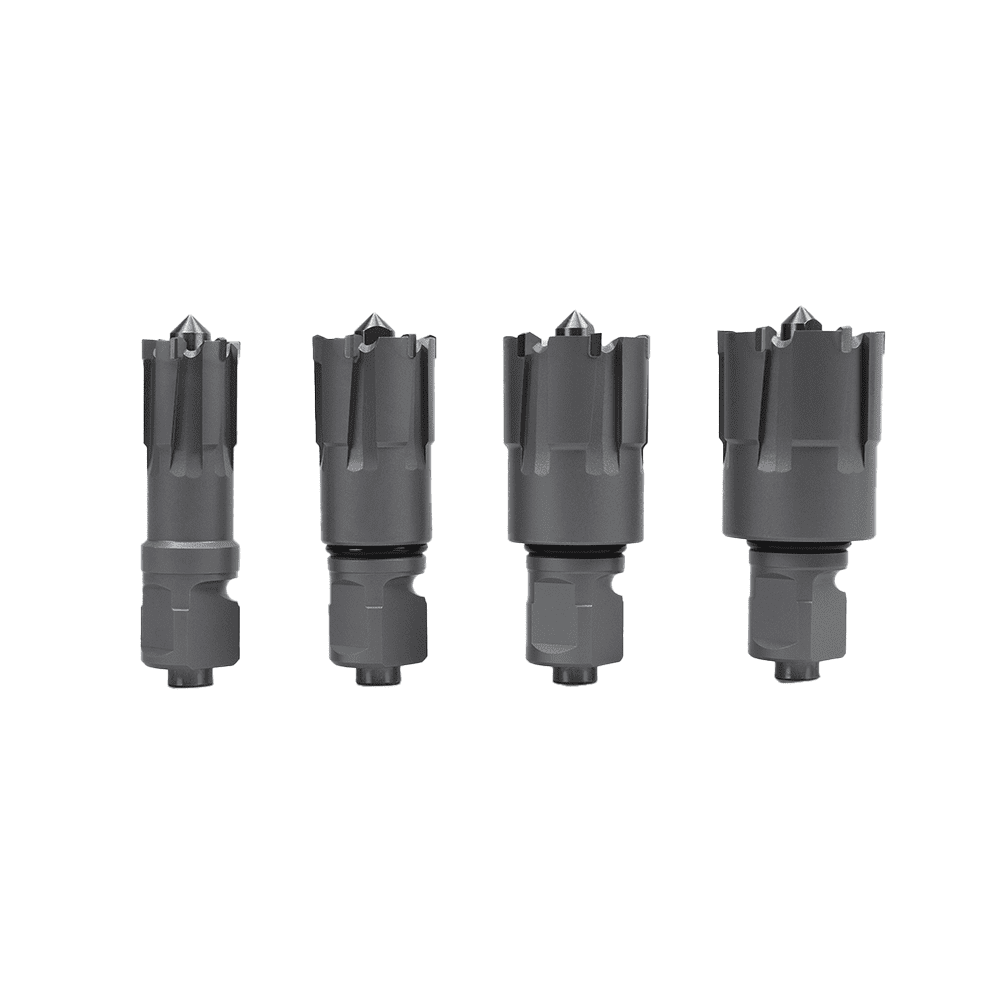

Railroad Annular Cutting Bits (4-Series)
- Cutters for Rail Drills
- Diameter: Up to 1-11/16″
- Drilling Depth: 1-3/8″
- Shank: 3/4″
- Pilot pin included with each cutter
- 4 Series Annular Cutter
- Pilot Pin
Benefits
- Carbide-tipped for long life and quick, efficient cutting through rust and corrosion.
- Produces smooth, burr‑free holes ideal for bolting, bonding, and rail component installation – better than spade drills.
- More cutting teeth to distribute the load evenly. Carbide tips provide exceptional wear resistance, long tool life, and achieve faster feed rates.
- Pilot pin included with each cutter.
- Armor plating available upon request.
Applications & Usage
- Railroad Annular Cutting Bits are carbide tipped, ideal for drilling holes in rail for joint bars, bonding, signaling equipment, and track hardware.
- Used during installation of new track sections, turnout systems, and rail infrastructure components.
- Suitable for drilling hardened rail profiles used in passenger transit systems.
- Supports maintenance and installation on in plant rail networks, crane rails, and material handling tracks.
Technical Specifications
1-3/8" Depth
| Order No. | Diameter | Order No. | Diameter | |
|---|---|---|---|---|
| 4-1-124 C | 3/4" | 4-1-140 C | 1-1/4" | |
| 4-1-128 C | 7/8" | 4-1-142 C | 1-5/16" | |
| 4-1-130 C | 15/16" | 4-1-144 C | 1-3/8" | |
| 4-1-132 C | 1" | 4-1-146 C | 1-7/16" | |
| 4-1-134 C | 1-1/16" | 4-1-148 C | 1-1/2" | |
| 4-1-136 C | 1-1/8" | 4-1-152 C | 1-5/8" | |
| 4-1-138 C | 1-3/16" | 4-1-154 C | 1-11/16" |
