Hydraulic Magnetic Drills
- Cutting Capacity: Up to 4″ Diameter
- Twist Drill Capacity: 1-1/4″ Diameter

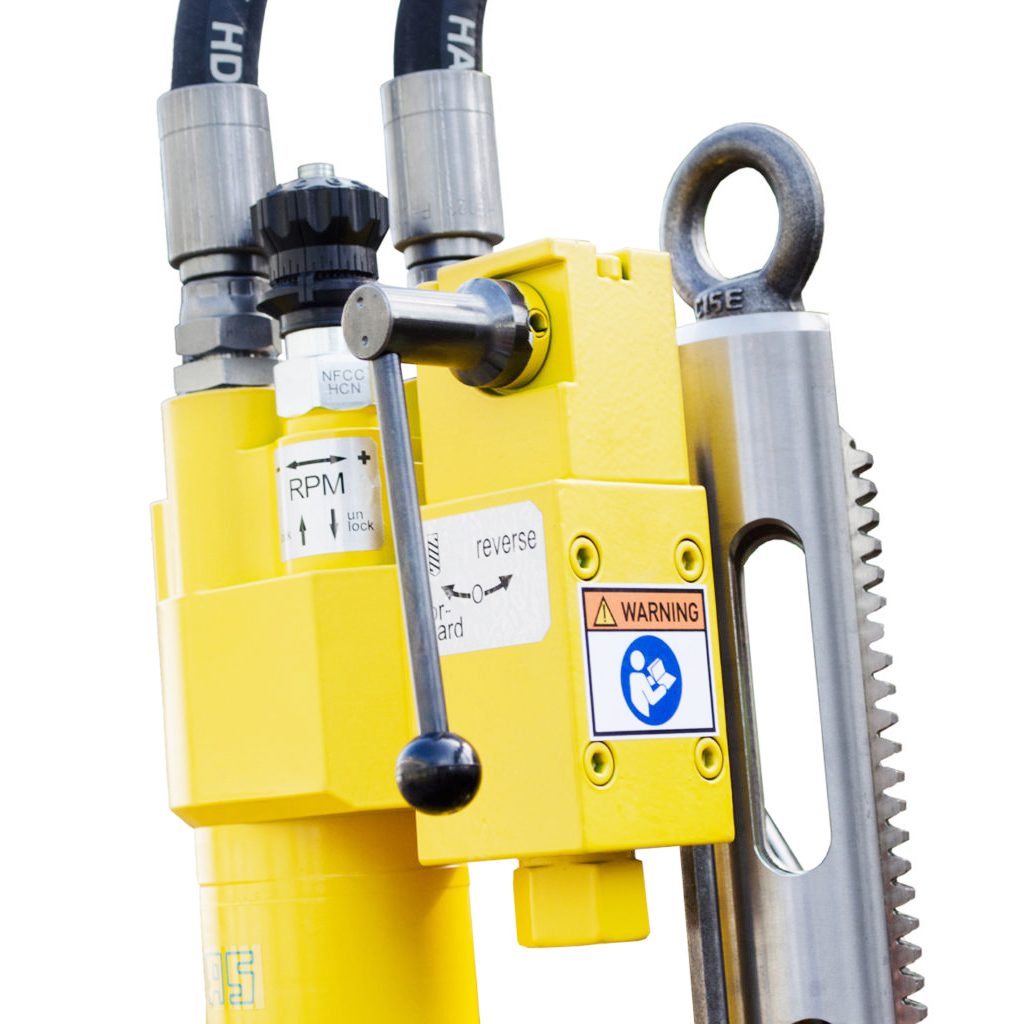

- Reversible for Tapping: up to 1-1/8″ dia.
- Ideal for Underwater Applications
- Stroke: Up to 12″
- Magnetic Force: 1300 lbs.
- Morse Taper: MT3
- Speed: Variable speeds up to 630 RPM
- Whip hoses & FF Couplings included

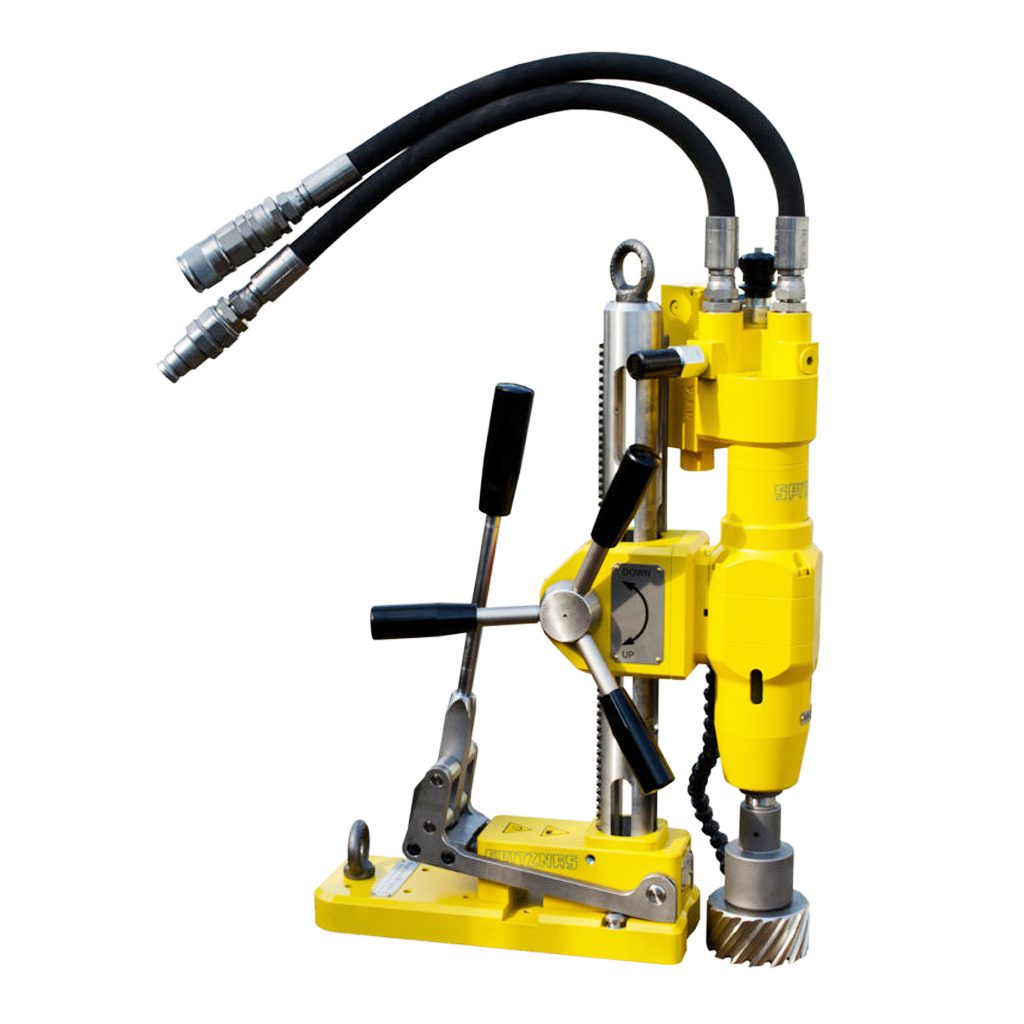

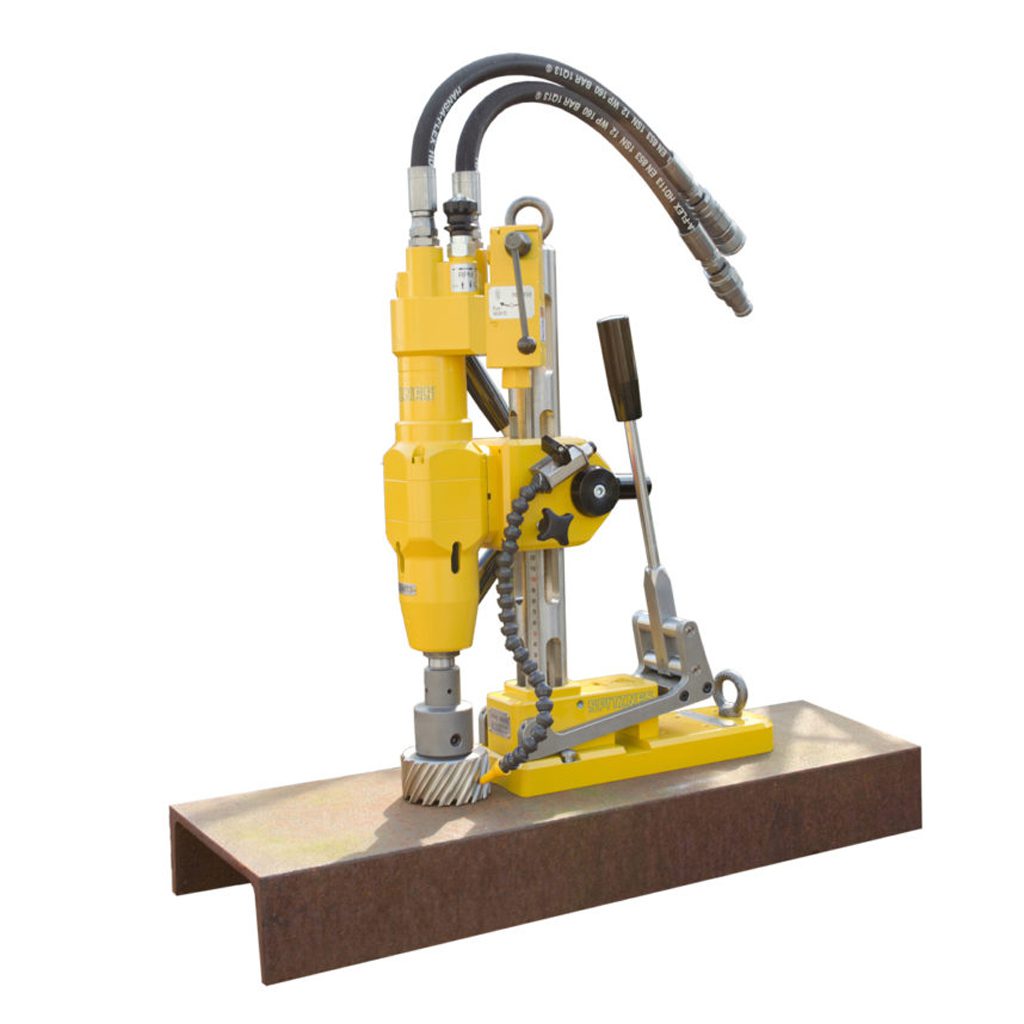

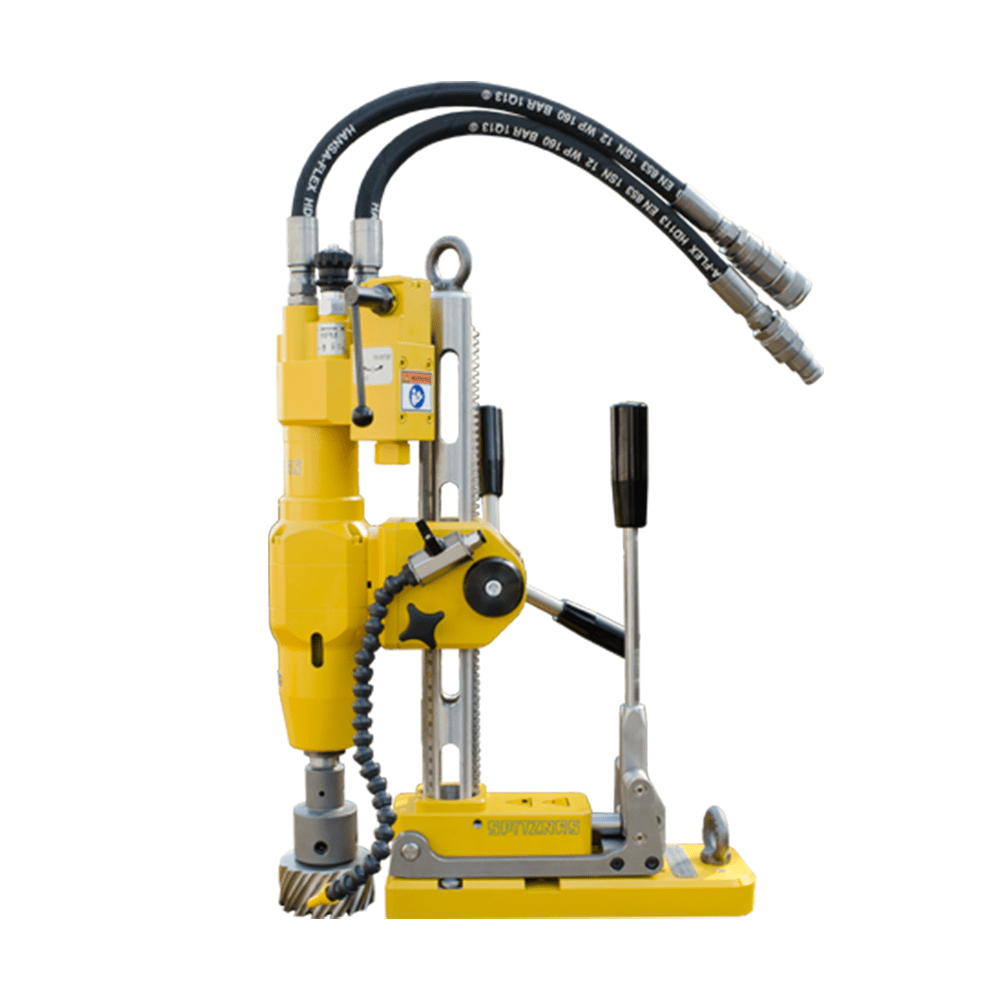

2 1345 Drills

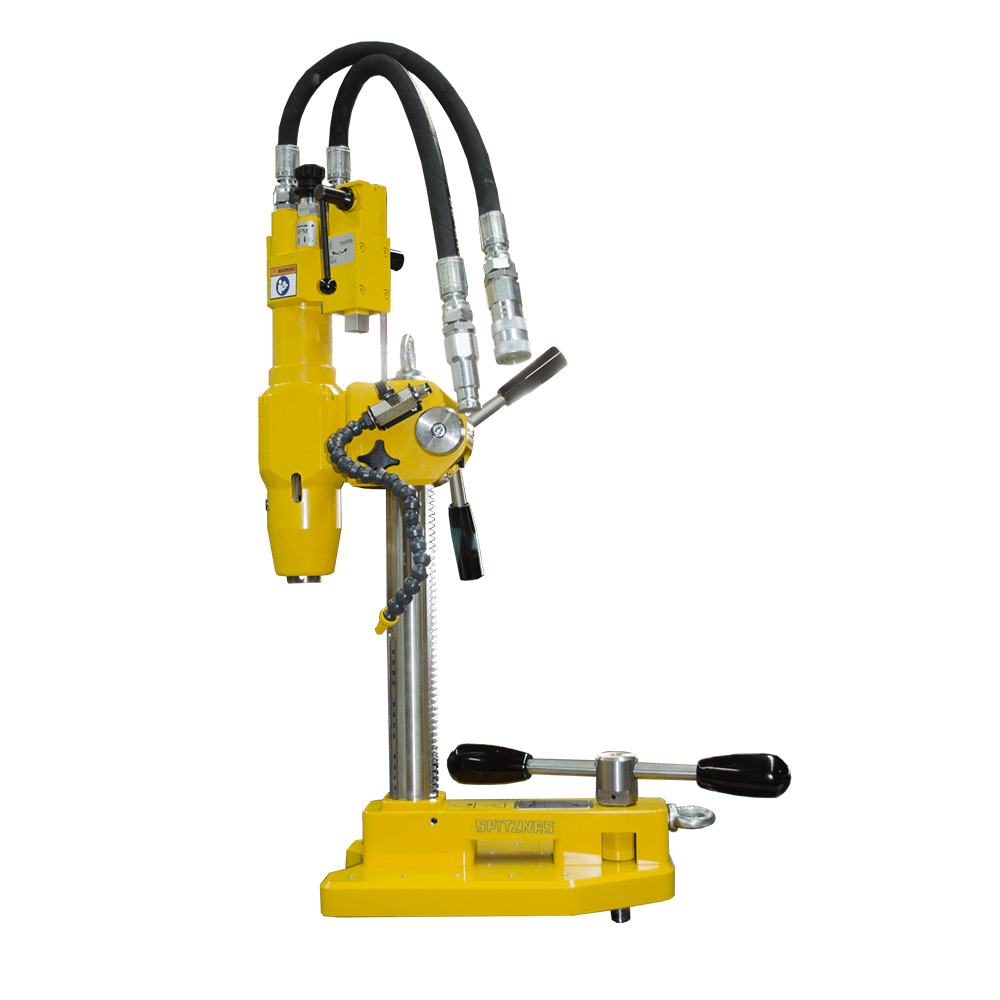

- Hydraulic Magnetic Drill
- Hydraulic hose set
- Coolant bottle
- Arbor adapter to 3/4″ Weldon
- Arbor adapter to 1-1/4″ Weldon
- Safety chain
- Drift key
- Allen keys
- Carrying case

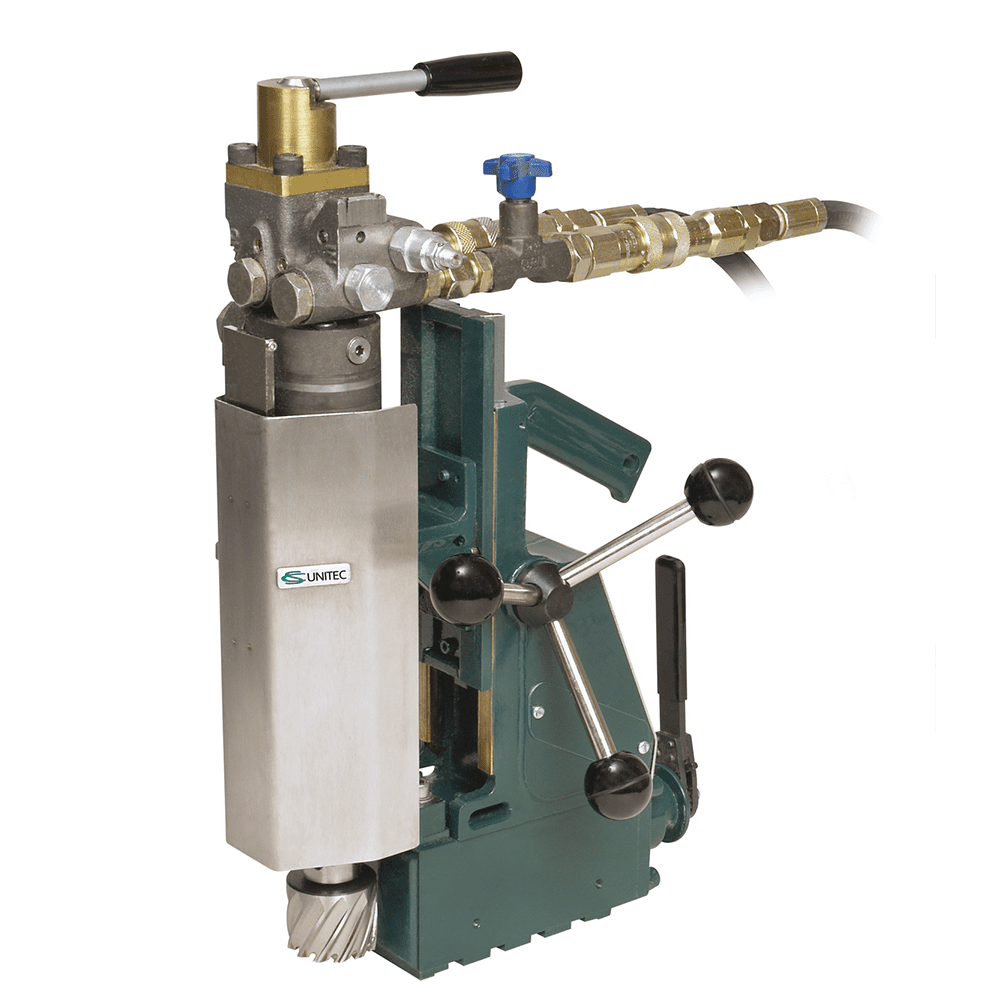

HB 4400 Drill
- HB 4400 Hydraulic Magnetic Drill
- Safety straps
- Allen keys
- Operating instructions
Benefits
- The 2 1345 0020 drill includs reversible motor for tapping.
- Manually operated permanent magnet with lever control, and ratchet control in Model HB 4400.
- Model HB 4400 includes automatic lubrication, ensuring smooth drilling, reduced heat, and extended cutter life during continuous operation.
- High torque output provides powerful, consistent drilling through thick structural steel, hardened materials, and heavy plate.
- Durable, industrial grade construction withstands extreme jobsite conditions, including offshore, mining, and heavy manufacturing.
Applications & Usage

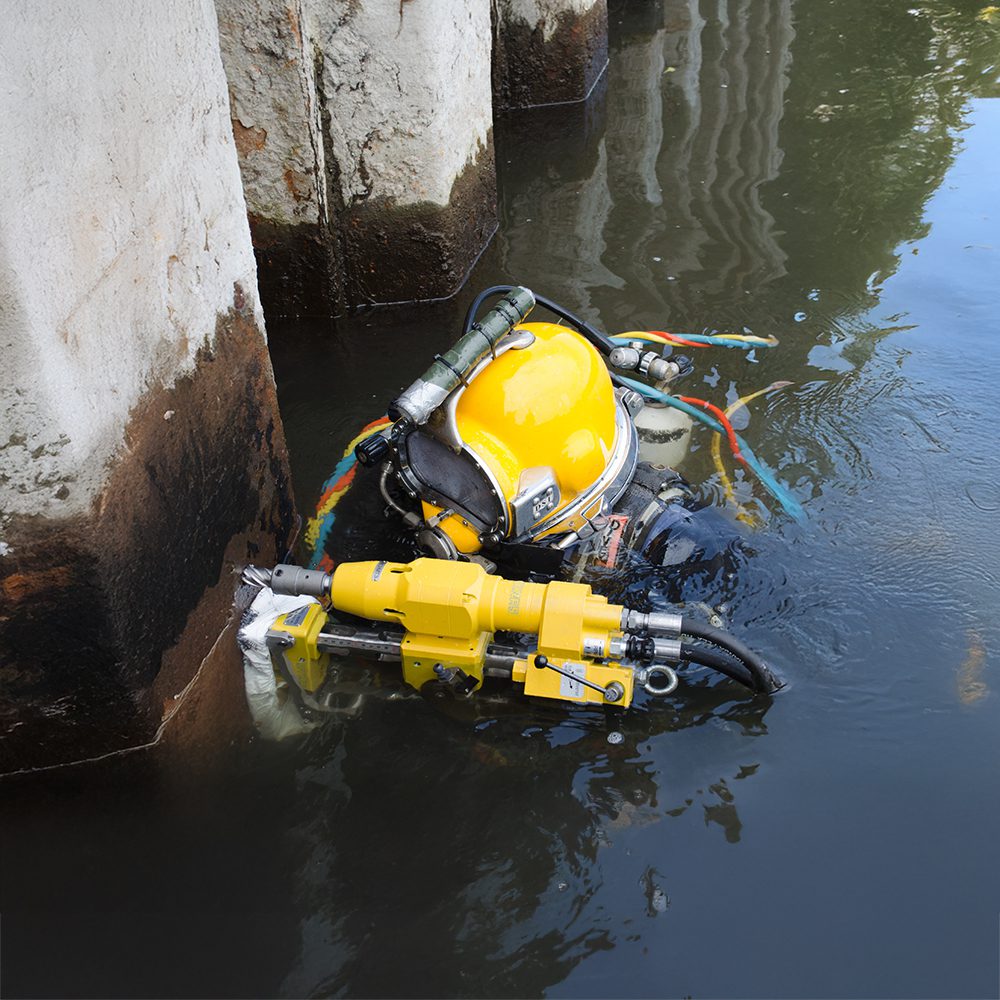

- Hydraulic magnetic drills are ideal for subsea, industrial construction, marine, and mining applications.
- These cut holes in structural steel and other metals – even underwater.
- Ideal for pipeline work, tank fabrication, refinery maintenance, and structural modifications.
- Useful for installing supports, brackets, and mechanical systems in underground or confined environments.
- Vertical, horizontal, and overhead drilling on large I‑beams, columns, and steel frameworks.
- ATEX models are available.
- See Recommended Speed and Feed Charts for Annular Cutters
Technical Specifications
| Item IDs: 2 1345 Model Drills | |
| Motor Power (Hydraulic) | 3.4 HP |
| Weight | 50 lbs. |
| Stroke | 12" |
| Hole Capacity | 4" dia |
| Twist Drill Capacity | 1-1/4" dia. |
| Tapping Capacity | 1-1/8" dia. |
| No Load Speed, Variable | 40-250 RPM |
| Hydraulic Supply | 5.25 to 6 GPM @ 2000 PSI (140 Bar) |
| Magnetic Base Size | 12-4/5" L x 7-1/2" W (Item ID: 2 1345 0020) |
| Dimensions | 21-1/2"H x 15-7/16" L x 7-3/4"W |
| Magnetic Force (3/8" plate) | 3306 lbs. (Item ID: 2 1345 0020) |
| Spindle | MT3 |
| ATEX Certification | II2GExhIIBT5Gb |

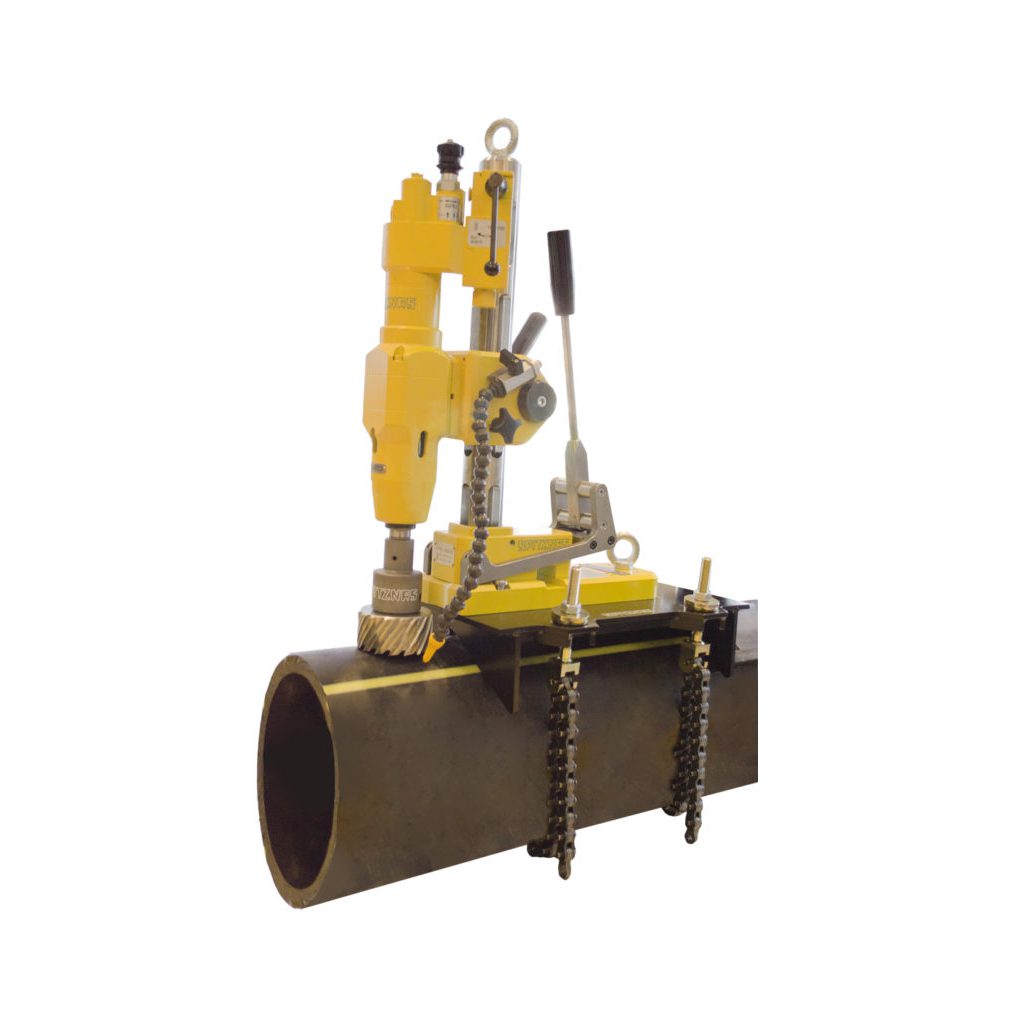

| Special magnets available to fit pipe contours. Contact CS Unitec for more information. | |
| Item ID: HB 4400 Drill | |
| Motor Power (Hydraulic) | 3.4 HP |
| Weight | 50 lbs. |
| Stroke | 12" |
| Hole Capacity | 4" dia |
| Twist Drill Capacity | 1-1/4" dia. |
| Tapping Capacity | 1-1/8" dia. |
| No Load Speed, Variable | 40-250 RPM |
| Hydraulic Supply | 5.25 to 6 GPM @ 2000 PSI (140 Bar) |
| Magnetic Base Size | 11-11/16" L x 4" W (Item ID: 2 1345 0010), 12-4/5" L x 7-1/2" W (Item ID: 2 1345 0020) |
| Dimensions | 21-1/2"H x 15-7/16" L x 7-3/4"W |

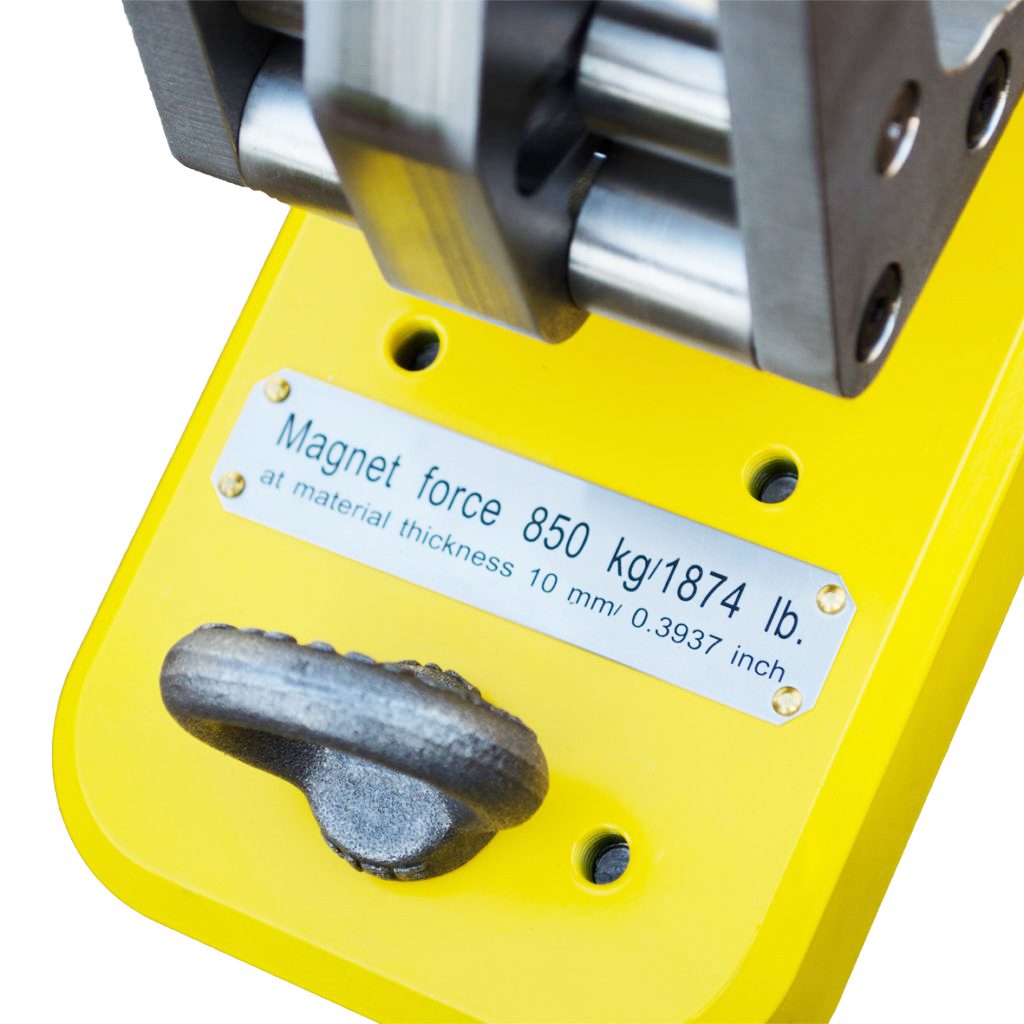

| Magnetic Force (3/8" plate) | 1874 lbs. (Item ID: 2 1345 0010), 3306 lbs. (Item ID: 2 1345 0020) |
| Spindle | MT3 |
| ATEX Certification | II2GExhIIBT5Gb |
| Wide Base Model Available | Order Item ID: 2 1345 0020 |
| Special magnets available to fit pipe contours. Contact CS Unitec for more information. | |
Optional Accessories
Optional
OptionalDepth: 2 3/8" • Diameter: Kit
$0.00
In stock
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs

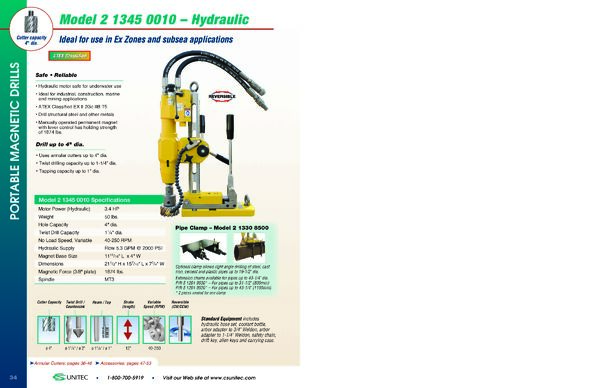

Catalog PDF 1
CAT_213450010
Download PDF
Catalog PDF 2
CAT_HB4400
Download PDF

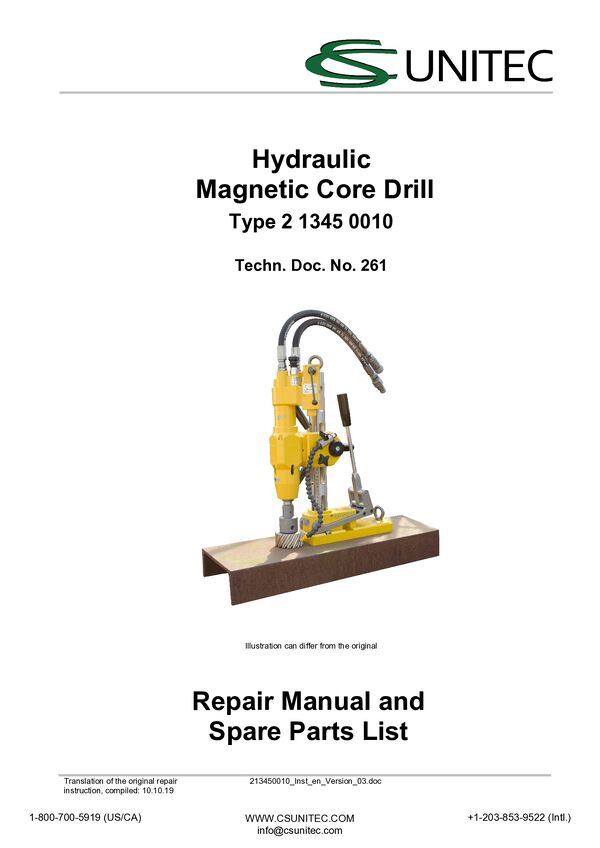

Product Schematic 1
SCHEM_213450010
Download PDF

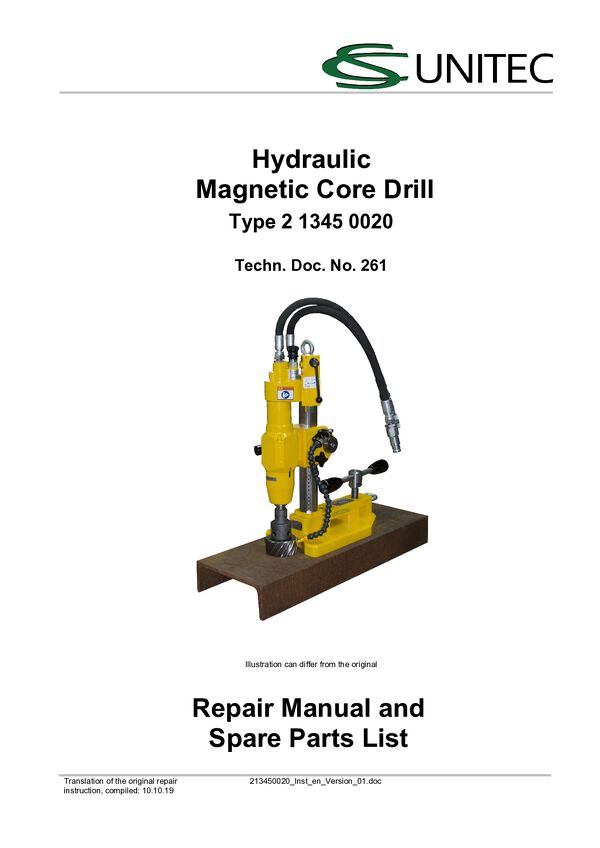

Product Schematic 2
SCHEM_213450020
Download PDF

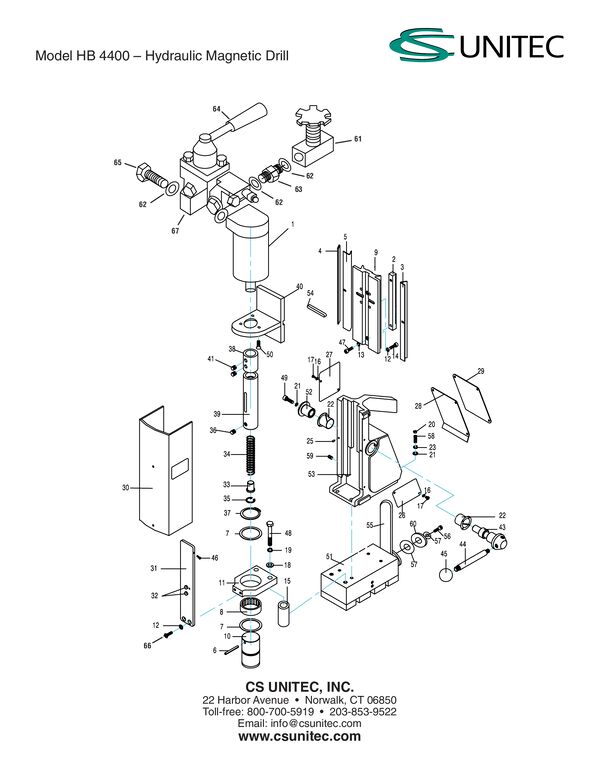

Product Schematic 3
SCHEM_HB4400
Download PDF

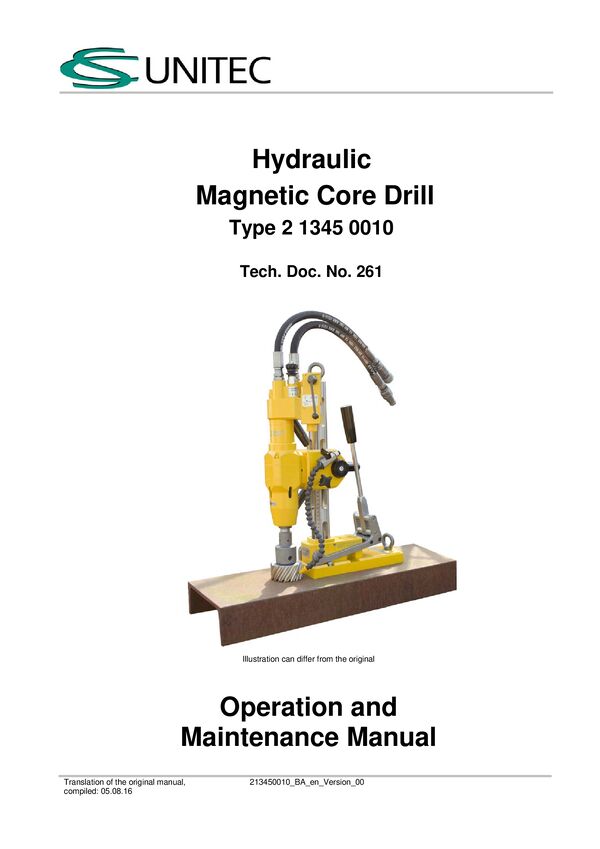

Operating Manual 1
MANUAL_213450010
Download PDF

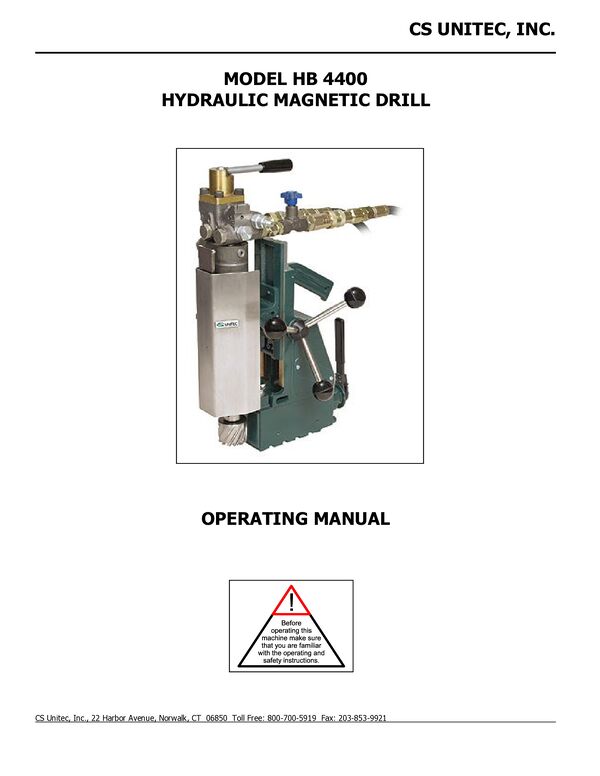

Operating Manual 2
MANUAL_HB4400
Download PDF
Usage
- Hydraulic magnetic drills are ideal for subsea, industrial construction, marine, and mining applications.
- These cut holes in structural steel and other metals – even underwater.
- Ideal for pipeline work, tank fabrication, refinery maintenance, and structural modifications.
- Useful for installing supports, brackets, and mechanical systems in underground or confined environments.
- Vertical, horizontal, and overhead drilling on large I‑beams, columns, and steel frameworks.
- ATEX models are available.
- See Recommended Speed and Feed Charts for Annular Cutters
