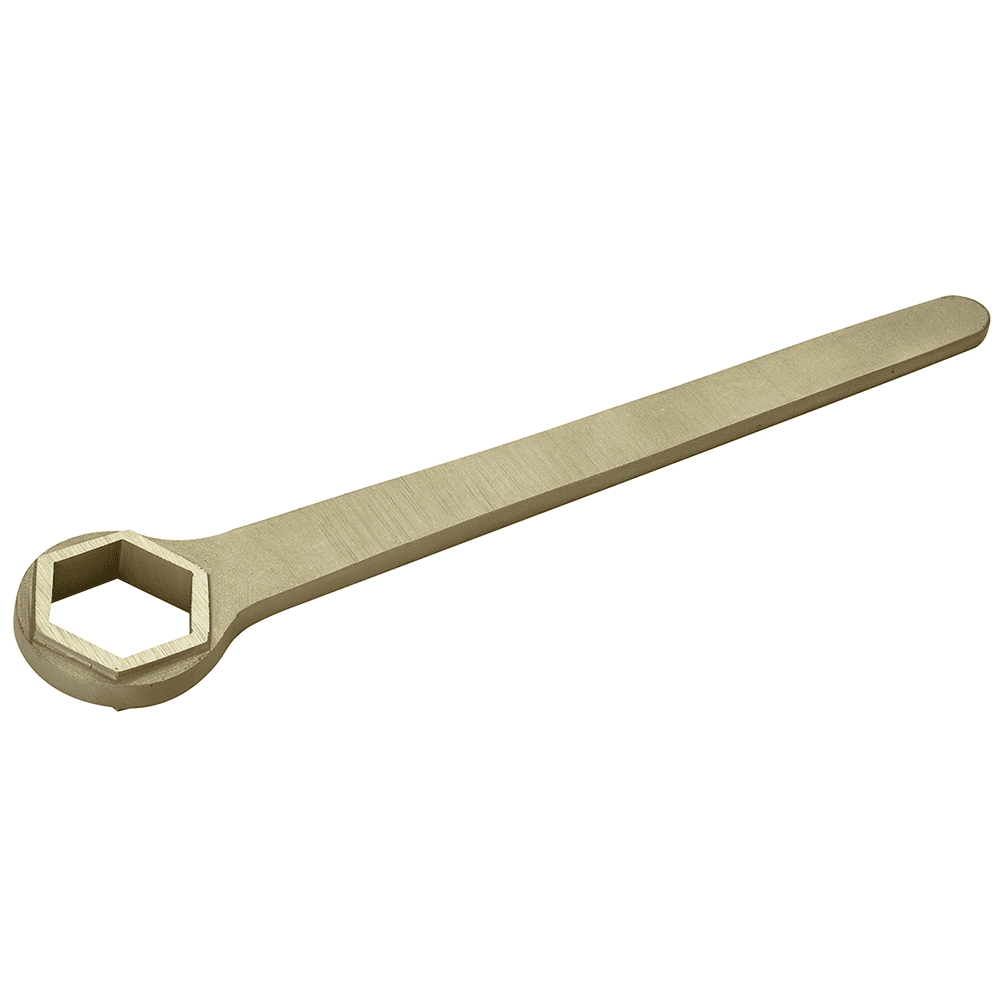

6-Point Box End Wrench

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Included Components

  • Box End Wrench – 6-Point

Benefits

  • Strong 6-point grip
  • Reduced slip risk
  • High-torque build

Applications & Usage

  • 6-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex204-005UA Ex204-005UB
No. Material s inch l inch Wt. lbs.
Ex204-005UA Aluminum Bronze 11/16 6-9/16 0.26
Ex204-005UB Copper Beryllium 11/16 6-9/16 0.26
Ex204-010UA Aluminum Bronze 3/4 6-9/16 0.42
Ex204-010UB Copper Beryllium 3/4 6-9/16 0.42
Ex204-015UA Aluminum Bronze 7/8 9-9/16 0.71
Ex204-015UB Copper Beryllium 7/8 9-9/16 0.71
Ex204-020UA Aluminum Bronze 15/16 9-9/16 0.71
Ex204-020UB Copper Beryllium 15/16 9-9/16 0.71
Ex204-025UA Aluminum Bronze 1 9-9/16 0.77
Ex204-025UB Copper Beryllium 1 9-9/16 0.77
Ex204-030UA Aluminum Bronze 1-1/16 9-9/16 0.84
Ex204-030UB Copper Beryllium 1-1/16 9-9/16 0.84
Ex204-035UA Aluminum Bronze 1-3/16 10-3/4 1.10
Ex204-035UB Copper Beryllium 1-3/16 10-3/4 1.10
Ex204-040UA Aluminum Bronze 1-1/4 10-3/4 1.37
Ex204-040UB Copper Beryllium 1-1/4 10-3/4 1.37
Ex204-045UA Aluminum Bronze 1-7/16 12-3/8 2.43
Ex204-045UB Copper Beryllium 1-7/16 12-3/8 2.43
Ex204-050UA Aluminum Bronze 1-5/8 15 2.65
Ex204-050UB Copper Beryllium 1-5/8 15 2.65
Ex204-055UA Aluminum Bronze 1-13/16 16-3/8 3.75
Ex204-055UB Copper Beryllium 1-13/16 16-3/8 3.75
Ex204-060UA Aluminum Bronze 2 16-3/8 3.95
Ex204-060UB Copper Beryllium 2 16-3/8 3.95
Metric Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex204-17A Ex204-17B
No. Material s mm l mm Wt. kg
Ex204-17A Aluminum Bronze 17 165 0.12
Ex204-17B Copper Beryllium 17 165 0.12
Ex204-19A Aluminum Bronze 19 205 0.19
Ex204-19B Copper Beryllium 19 205 0.19
Ex204-20A Aluminum Bronze 20 205 0.22
Ex204-20B Copper Beryllium 20 205 0.22
Ex204-24A Aluminum Bronze 24 240 0.32
Ex204-24B Copper Beryllium 24 240 0.32
Ex204-27A Aluminum Bronze 27 240 0.38
Ex204-27B Copper Beryllium 27 240 0.38
Ex204-30A Aluminum Bronze 30 270 0.50
Ex204-30B Copper Beryllium 30 270 0.50
Ex204-32A Aluminum Bronze 32 270 0.62
Ex204-32B Copper Beryllium 32 270 0.62
Ex204-36A Aluminum Bronze 32 310 1.10
Ex204-36B Copper Beryllium 36 310 1.10
Ex204-41A Aluminum Bronze 36 375 1.20
Ex204-41B Copper Beryllium 41 375 1.20
Ex204-46A Aluminum Bronze 46 410 1.70
Ex204-46B Copper Beryllium 46 410 1.70
Ex204-50A Aluminum Bronze 50 410 1.90
Ex204-50B Copper Beryllium 50 410 1.90
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
Box wrenches in the regular pattern are designed for general service. The Heavy- Duty and Striking Face patterns are designed for the service indicated. The Electronic Hex Box patterns are designed for the lighter service encountered in electronic, carburetor and ignition work. Ratcheting Box and split box wrenches are for light duty and should not be used in heavy-duty applications. Never use a hammer on any wrench other than a Striking Face wrench. Use a sledge type hammer. Never use an extension on the wrench handle.
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Related PDFs

Catalog PDF 1
CAT_Safety_Tools_2023 thumbnail
CAT_Safety_Tools_2023 Download PDF
Catalog PDF 2
FLY_SAFETY TOOL POSTER thumbnail
FLY_SAFETY TOOL POSTER Download PDF
Operating Manual 1
SDS_Aluminum_Bronze thumbnail
SDS_Aluminum_Bronze Download PDF
Operating Manual 2
SDS_Copper_Beryllium thumbnail
SDS_Copper_Beryllium Download PDF

Related Articles

Non-Sparking & Non-Magnetic Safety Tools FAQ
Non-Sparking & Non-Magnetic Safety Tools FAQ

Usage

  • 6-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Strong 6-point grip
  • Reduced slip risk
  • High-torque build

Usage

  • 6-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Strong 6-point grip
  • Reduced slip risk
  • High-torque build
Empty tab. Edit page to add content here.
Alloy

Aluminum Bronze (AlBr), Copper Beryllium (CuBe)
Length-s

11/16", 3/4", 7/8", 15/16", 1", 1-1/16", 1-3/16", 1-1/4", 1-7/16", 1-5/8", 1-13/16", 2", 17 mm, 19 mm, 20 mm, 24 mm, 27 mm, 30 mm, 32 mm, 36 mm, 41 mm, 46 mm, 50 mm
