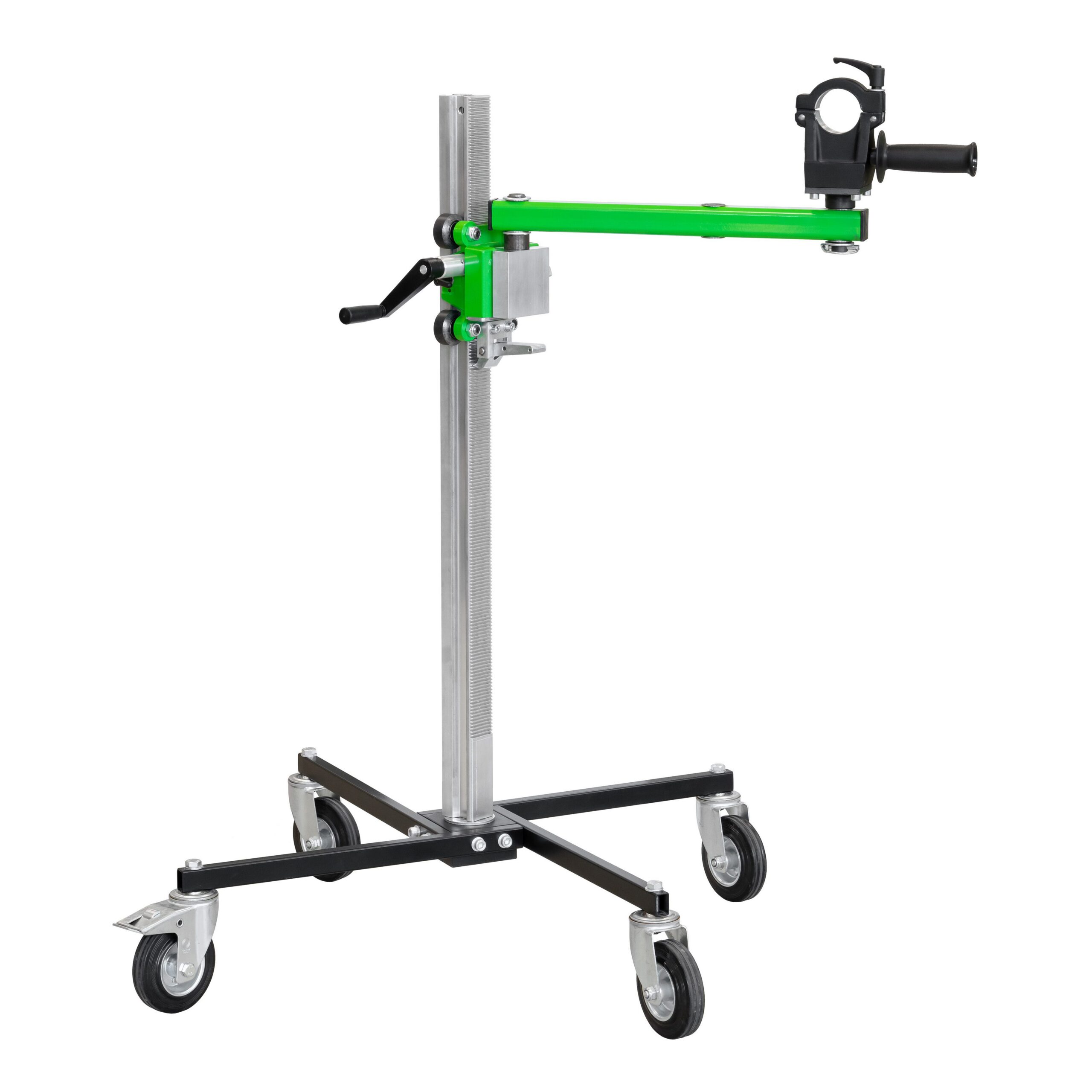

Core Drill Stand EBW 1300

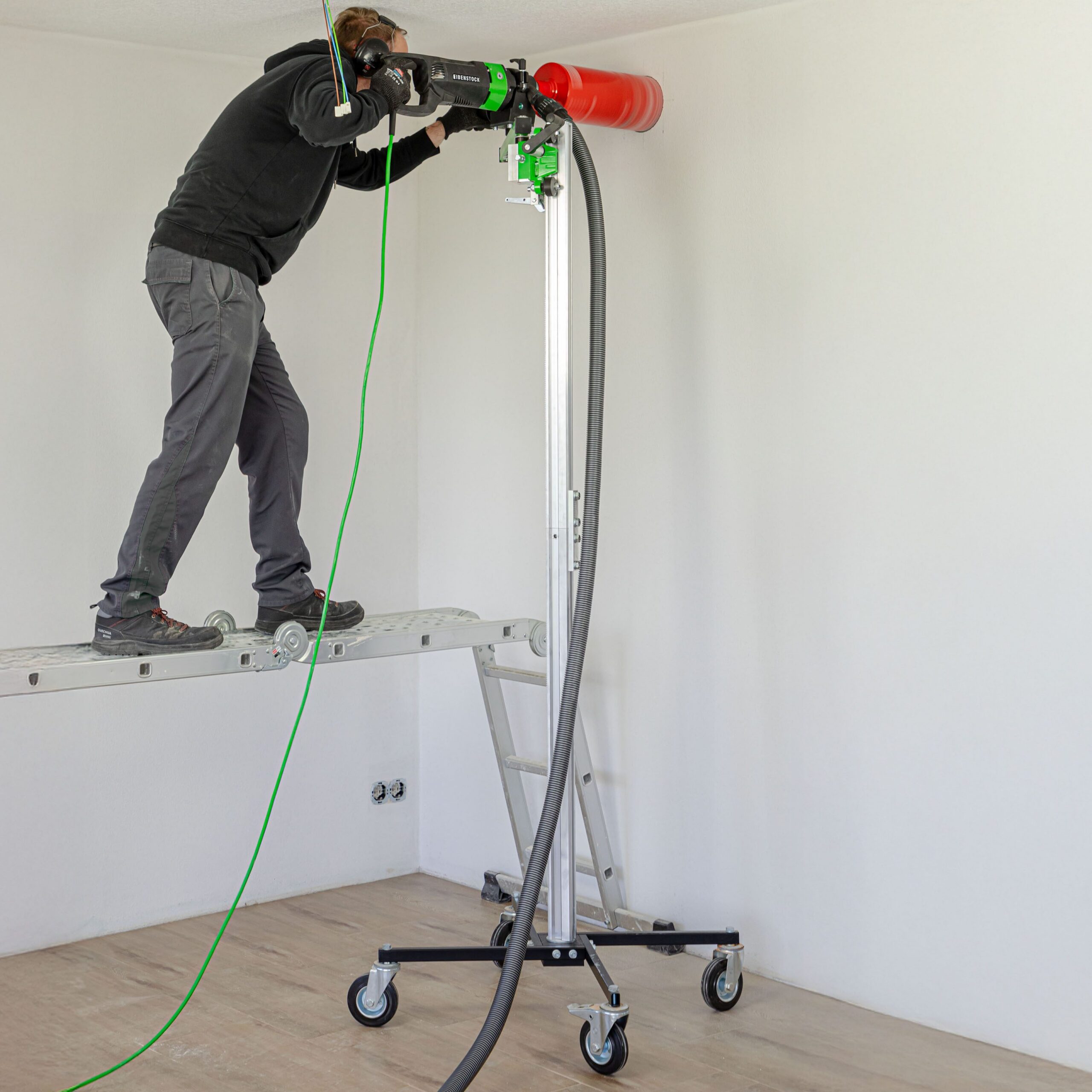

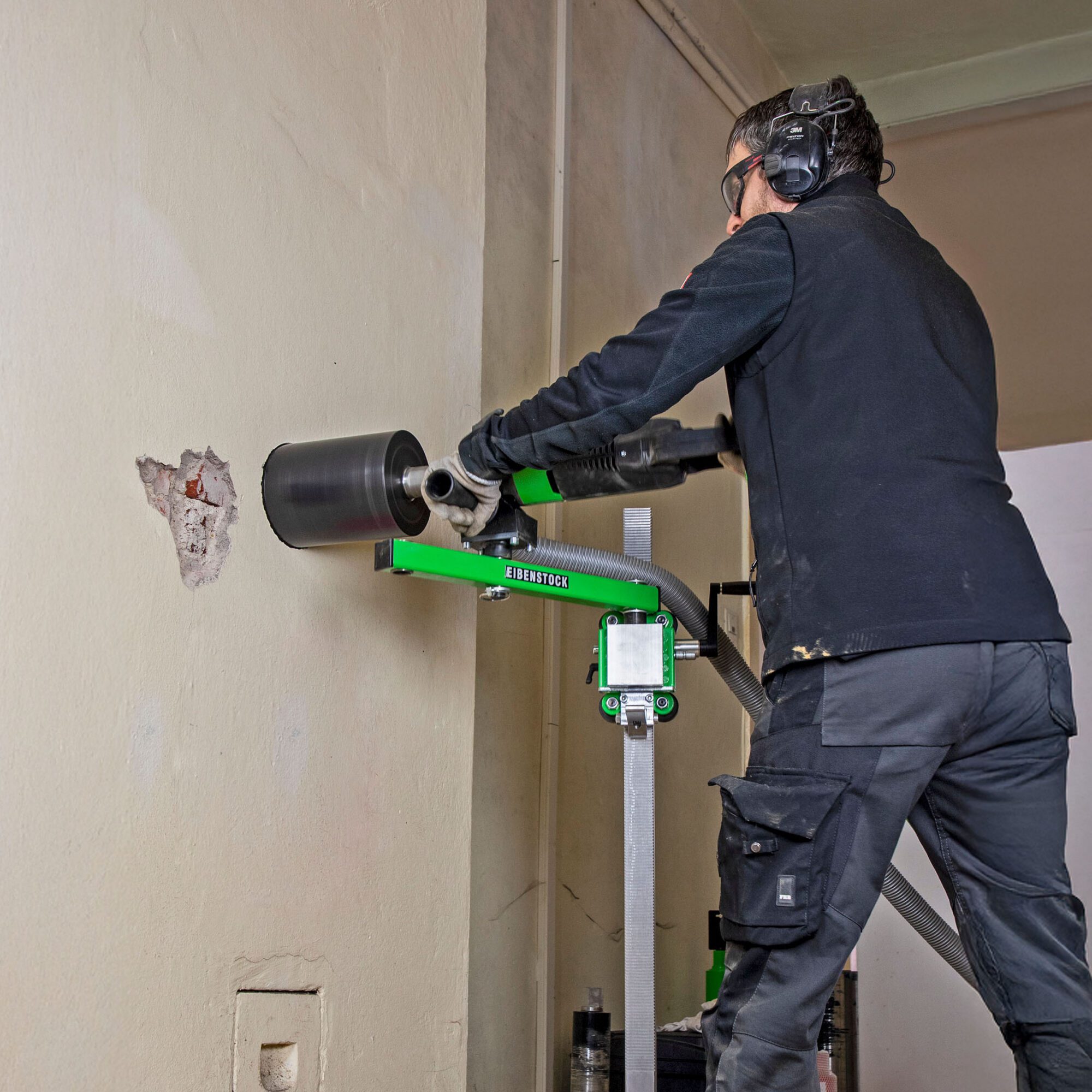

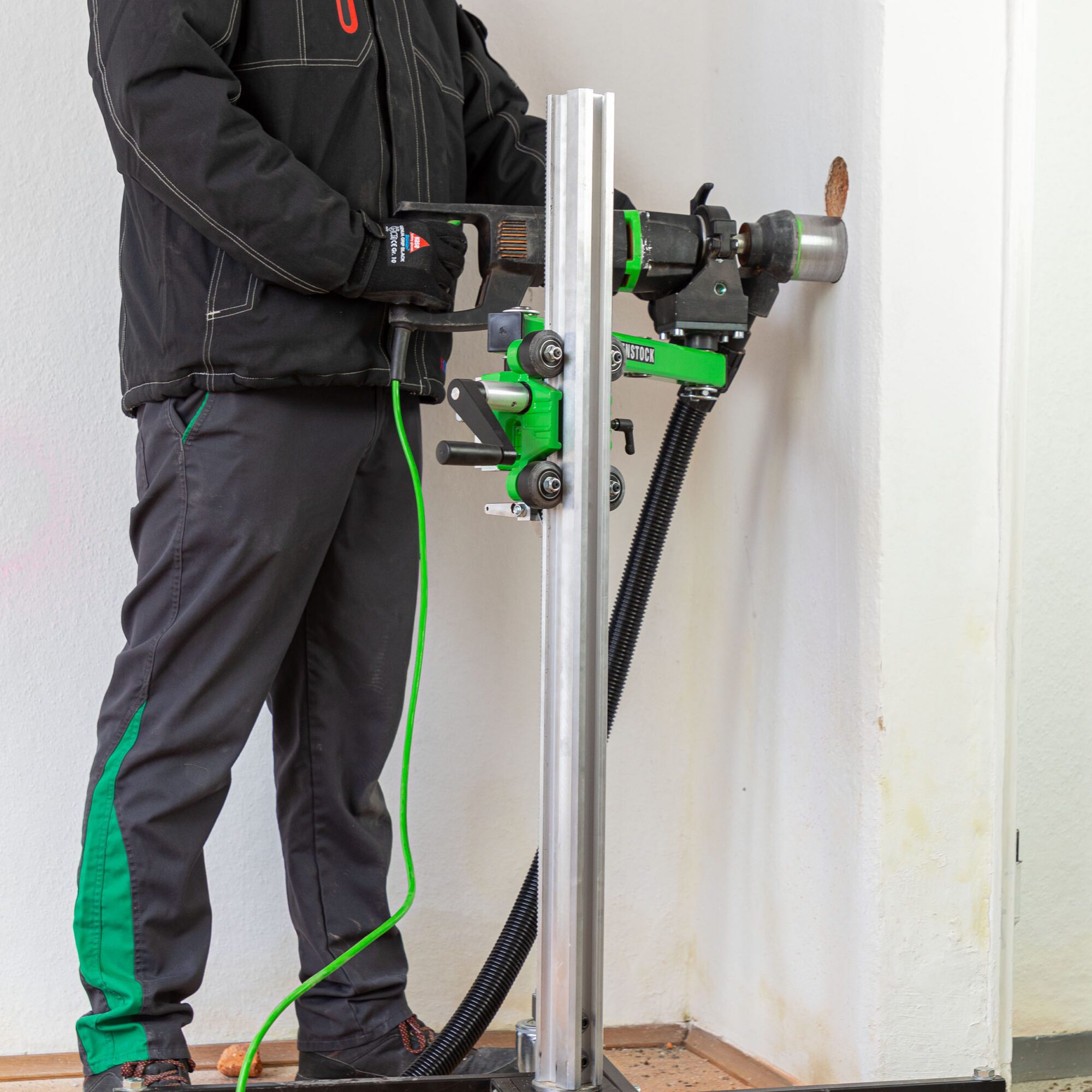

- Ideal for higher level drilling in walls
- Simple assembly

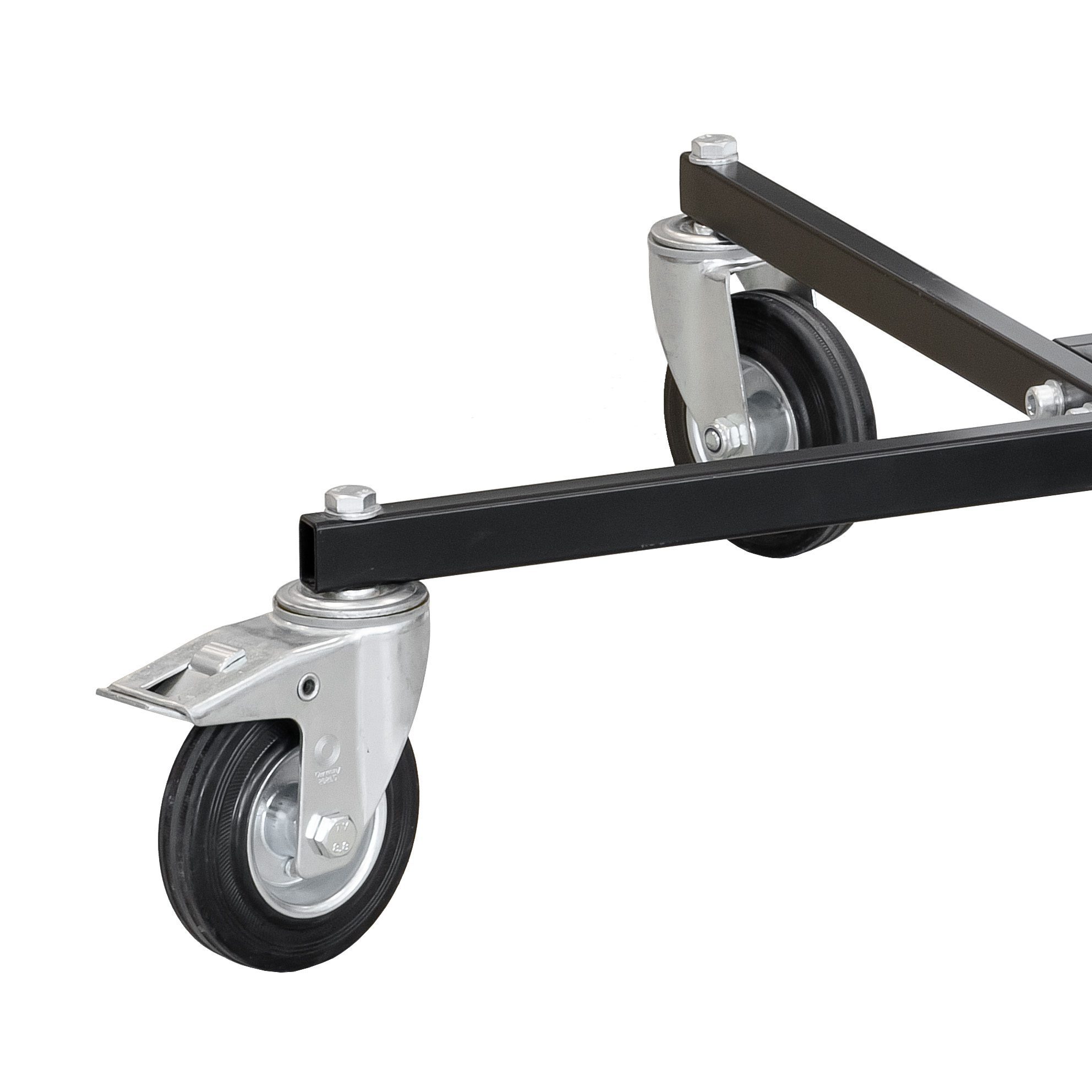

- Equipped with caster for easy mobility
Includes (testing):
- Core Drill Stand
Benefits

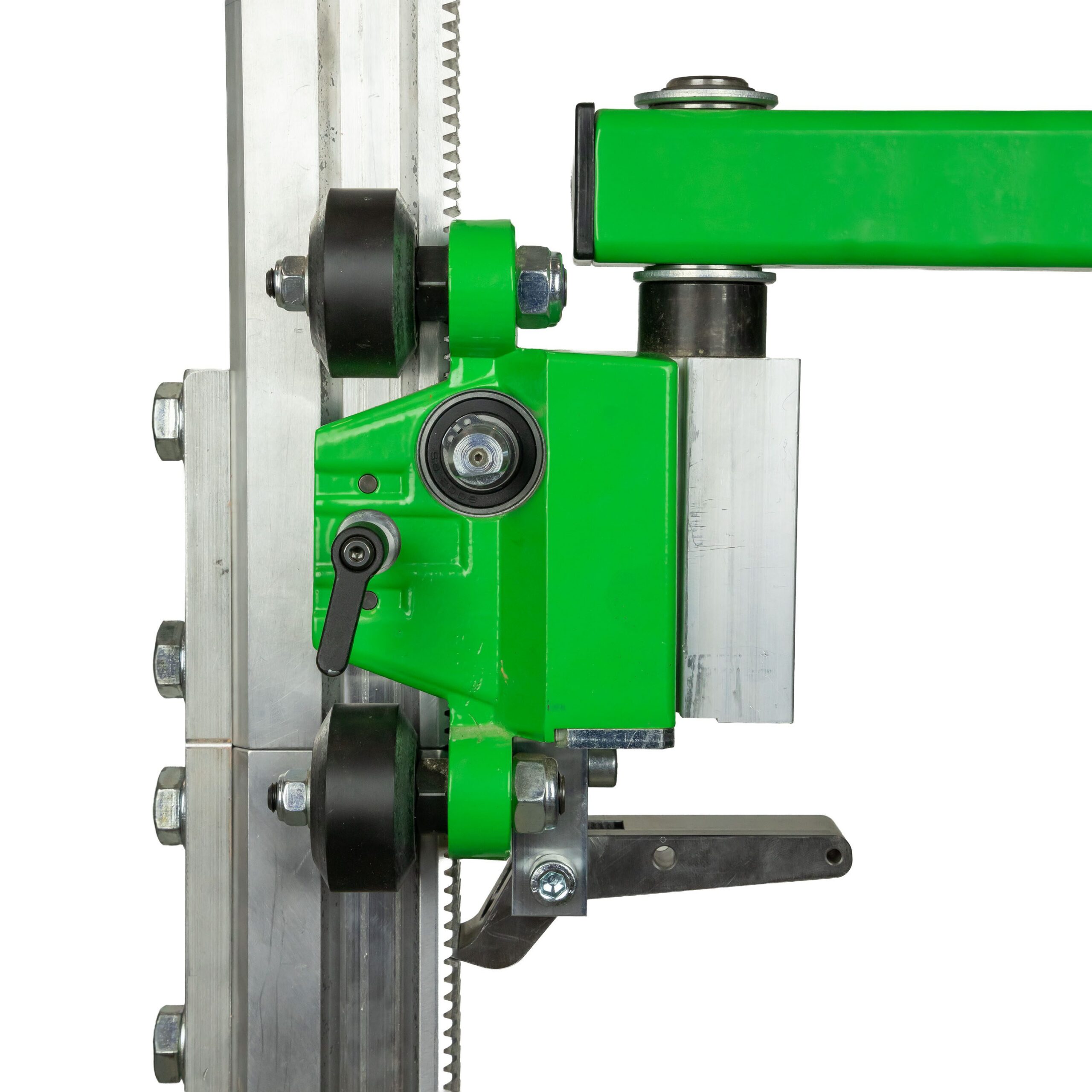

- The drill rig provides increased safety features for operators including a mechanical lock between slide and column for safe lowering, prevention of arm/hand injury from jamming, and fatigue free, relaxed drilling.
- High efficiency for series drillings at the same height.
- Short set-up times, no need to set up anchor stands for wall drilling, and no assembly damage to the wall compared to other "conventional" drill rigs.
- Save time and increase profitability with fast and easy set up for hole alignment.

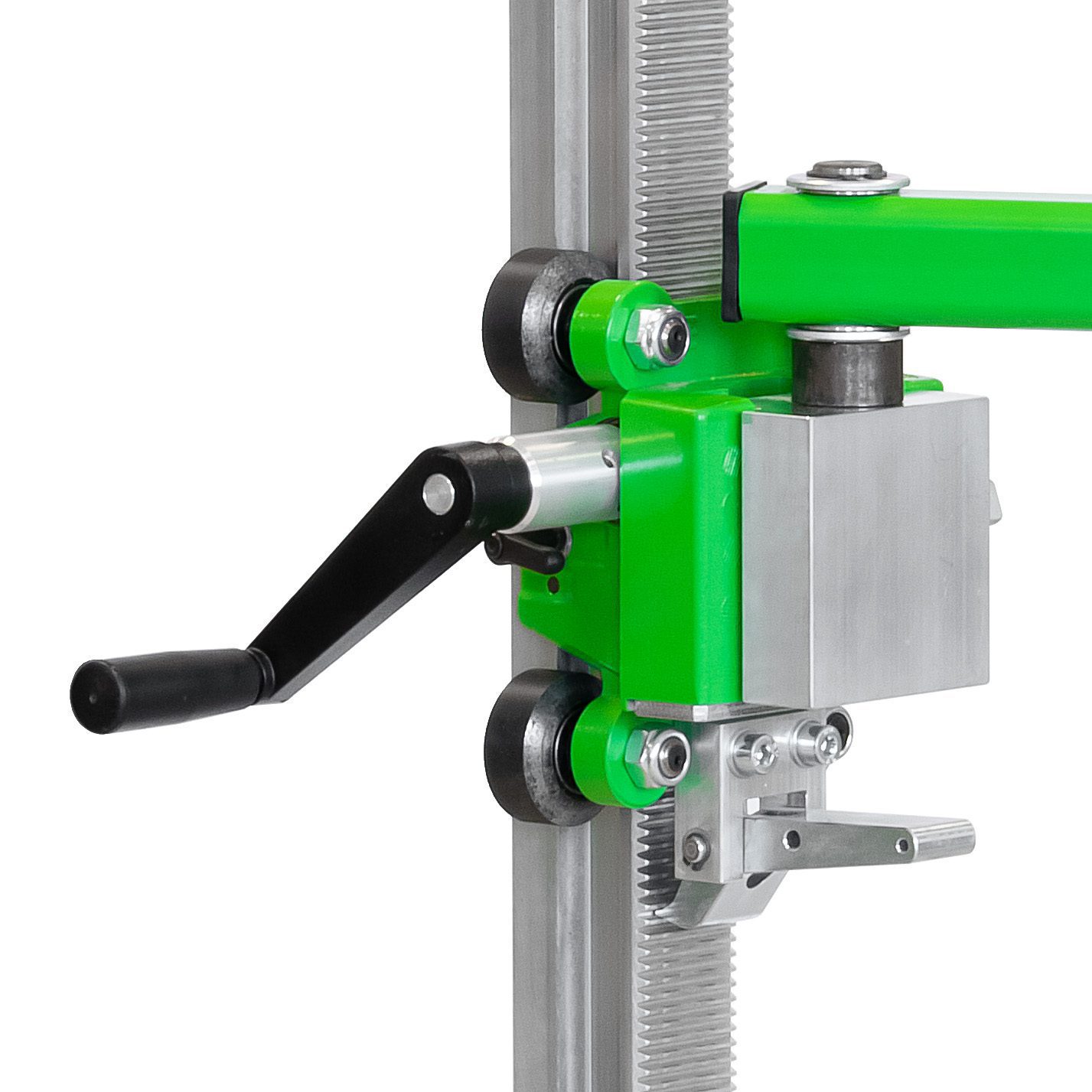

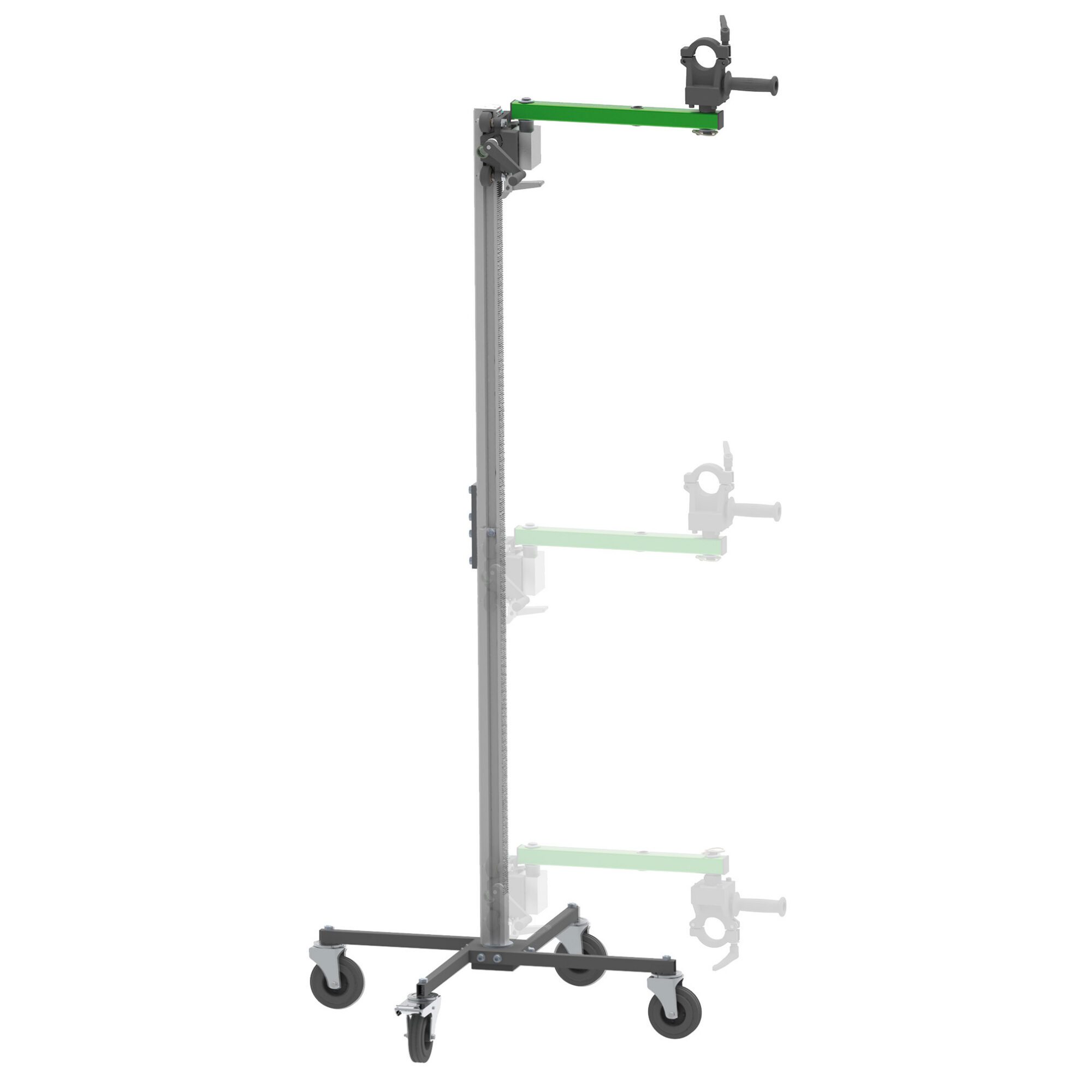

- Flexible, stepless adjustment of drilling height by crank feed.
- Easy and compact to transport.
Applications & Usage
- Core Drill Stand provides a heavy duty column and base provide excellent rigidity for straight, accurate coring.

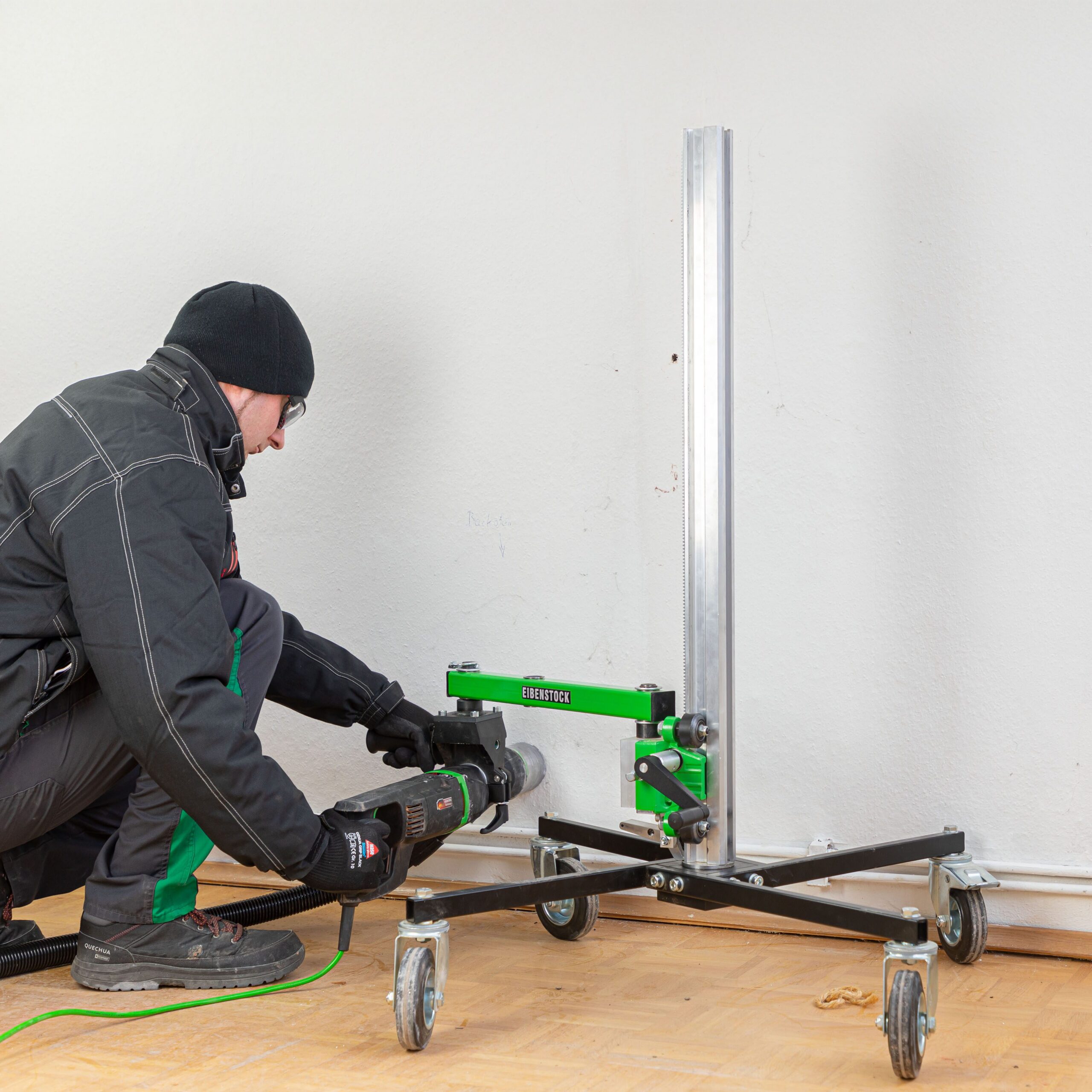

- Ideal for drilling through reinforced concrete walls, slabs, beams, and columns.
- Essential for deep or large diameter penetrations requiring maximum stability.
- Common in industries such as sanitary, heating and ventilation construction, electricians, civil engineering, drilling operators, and machine rental.
- Drills accurate holes for service entrances, conduit banks, cable trays, and utility penetrations, common in commercial, industrial, and institutional projects.

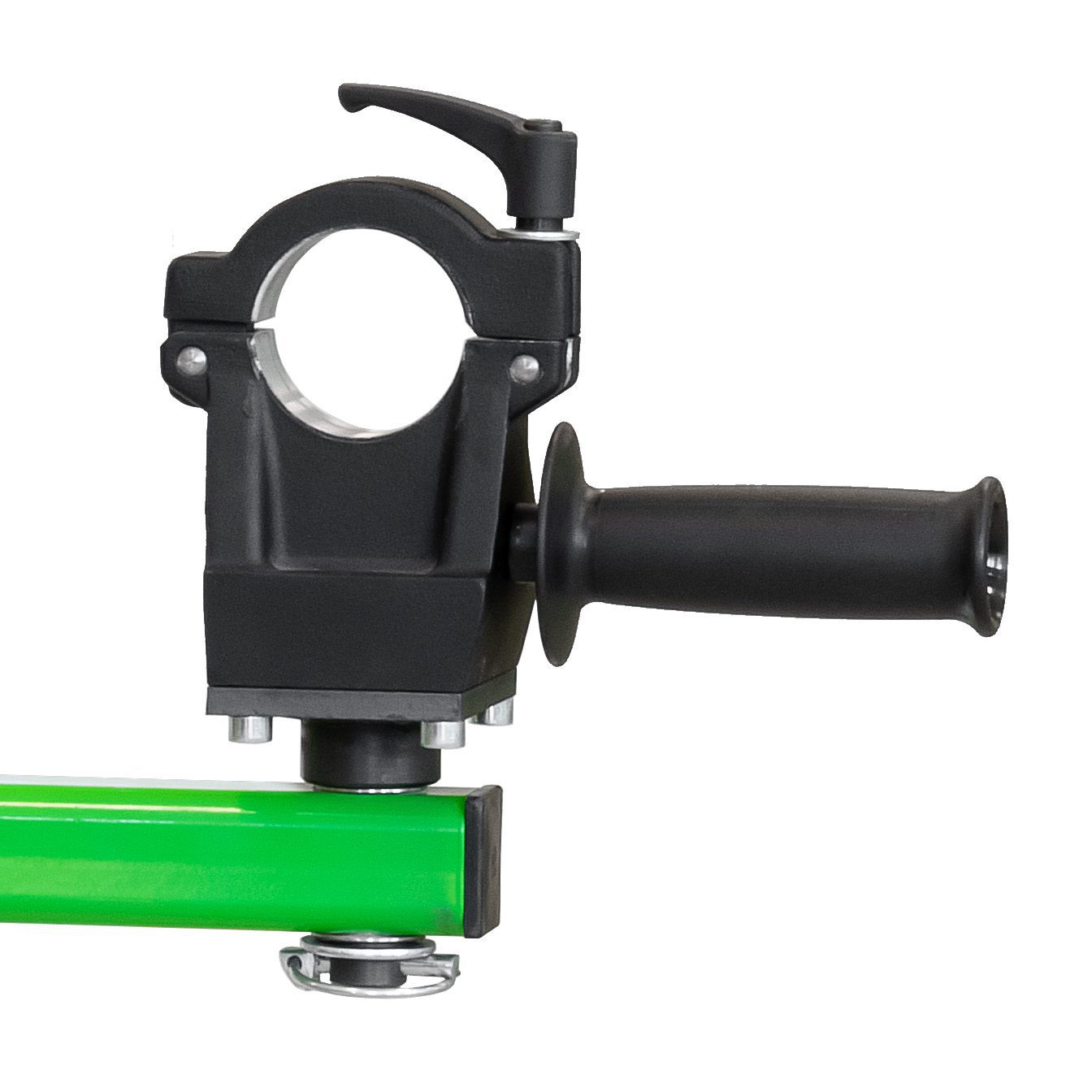

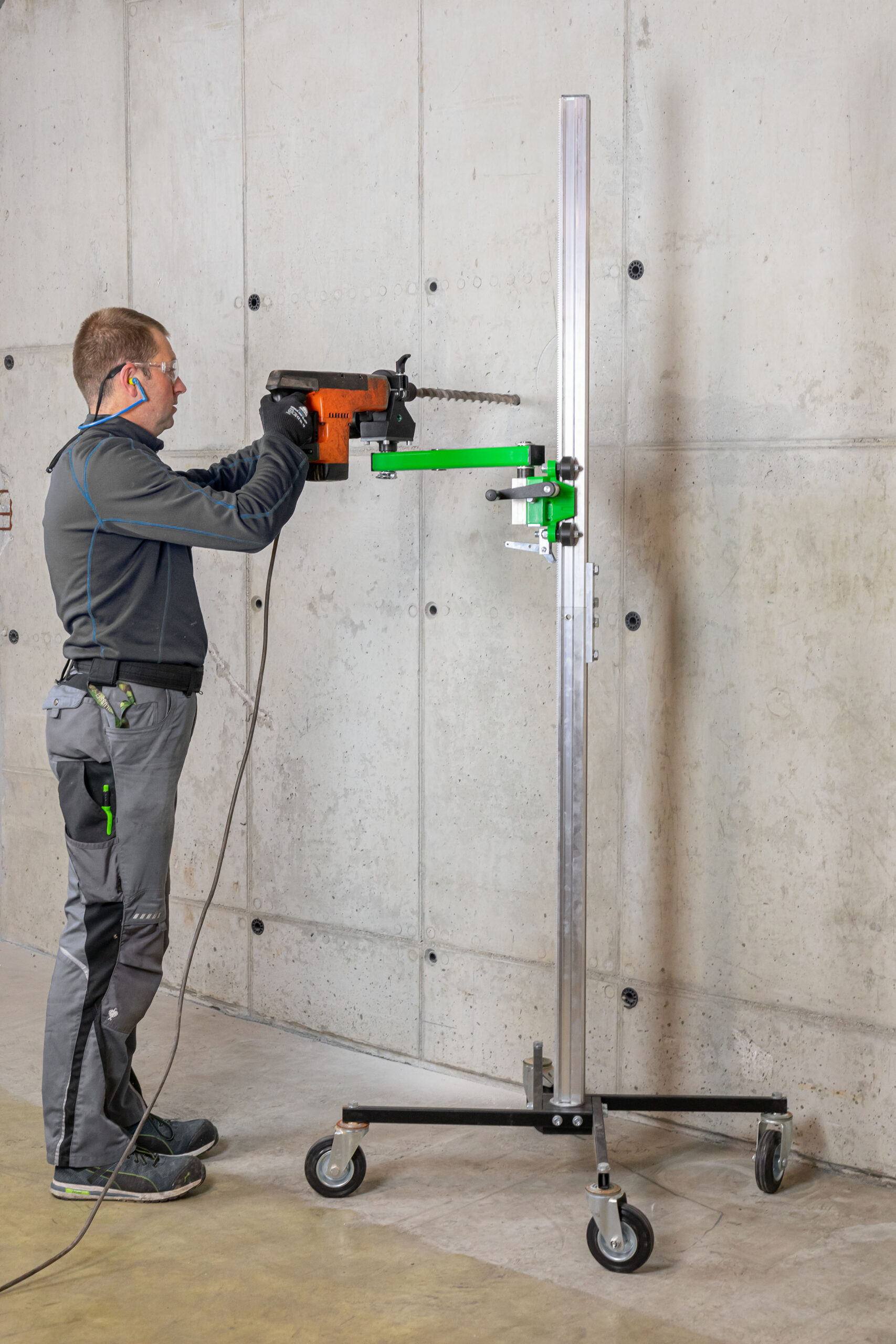

- For EIBENSTOCK diamond core drills as well as core drills and hammer drills from various manufacturers with a 60 mm collar diameter.
Technical Specifications
| Item ID: EBW 1300 | ||
| Working Height | 9" to 51" | |
| Collar Diameter | 2-1/3" (60mm) | |
| Weight | 54 lbs. | |
| Standard height: 51". Accessory column extension (3582G000) required to meet 91" | ||
Related PDFs
Catalog PDF
CAT_Core_Drills
Download PDF

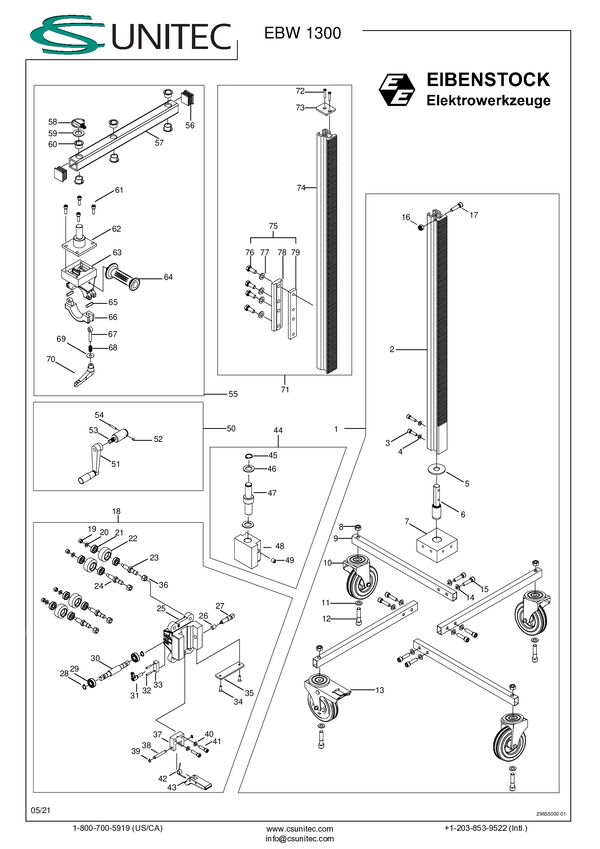

Product Schematic
