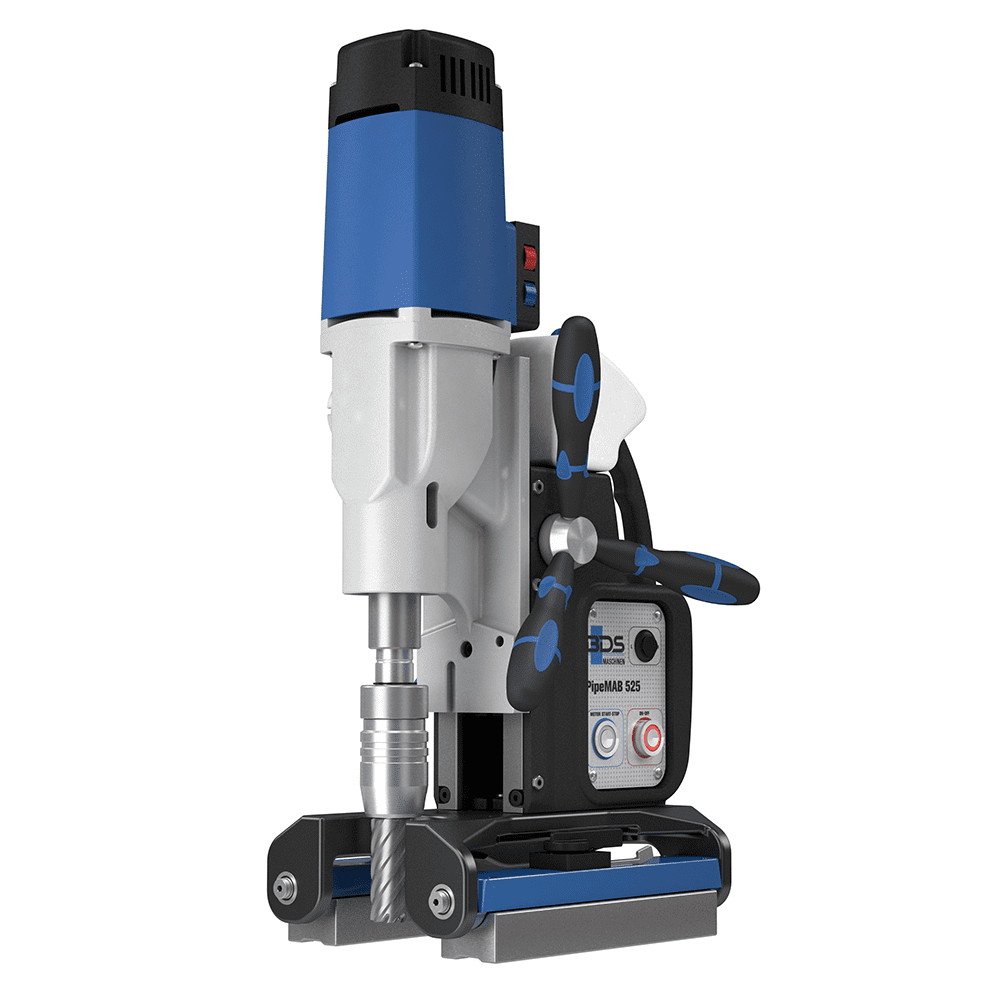

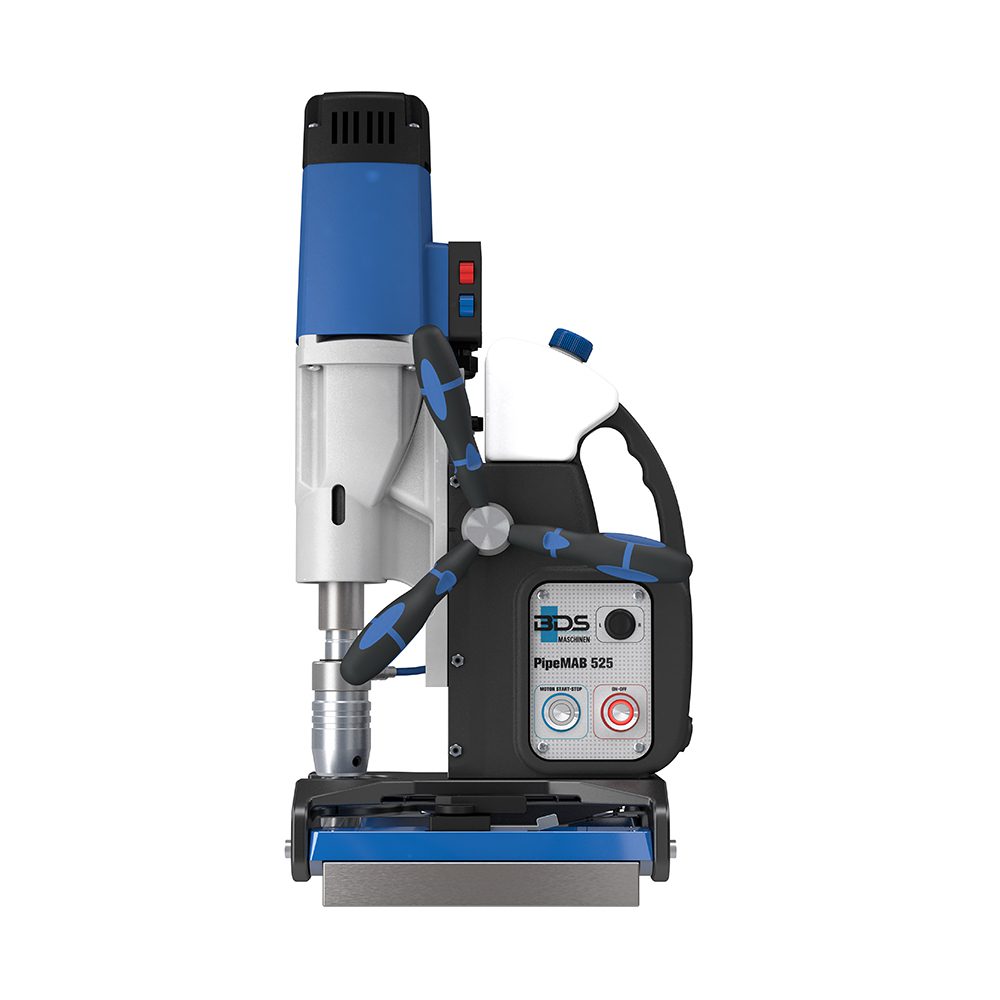

PipeMAB 525
- Magnetic Drill for Pipes
- Cutter Capacity: 2-3/8″ Diameter
- Twist Drill Capacity: 1″ Diameter
- Stroke: 6-1/3″
- Morse Taper: MT3
- Magnetic Force: 2250 lbs.
- Reversible motor for tapping (15/16″)
- Speed Ranges (RPM): 70-280 | 180-580
- Patented Permanent Magnet System
- Other Sizes Available: PipeMAB 200 | PipeMAB 825
Includes (testing):
- PipeMAB 525
- Extended MT3 to 3/4″ weldon shank adapter
- Carrying case
- Safety Strap
- Gravity lubrication bottle
- 2″ Pilot Pin
- Allen key
- Operating manual
- Warranty certificate
Benefits
- Flexibility: Ideal for drilling, tapping, reaming and countersinking on pipe, flat & curved surfaces
- Increased Safety: Highly stable, permanent magnet stays active independent of electricity
- Increase Cutting Tool Life: Variable speed control, adjustable torque and automatic lubrication for reduced cutting tool costs and increased life
- Strong Magnets: Adhere to material as thin as 9/64" (3 mm)
- Elongated Tool Holder: For maximum utilization of pipe drilling machine stroke
- Accuracy: 2 magnet system allows the magnetic drill to swing away for clearing debris and hole inspection
- Maneuverability: At only 43lbs and with a patented swing arm system the PipeMAB 525 can be moved and adjusted with ease
Applications & Usage

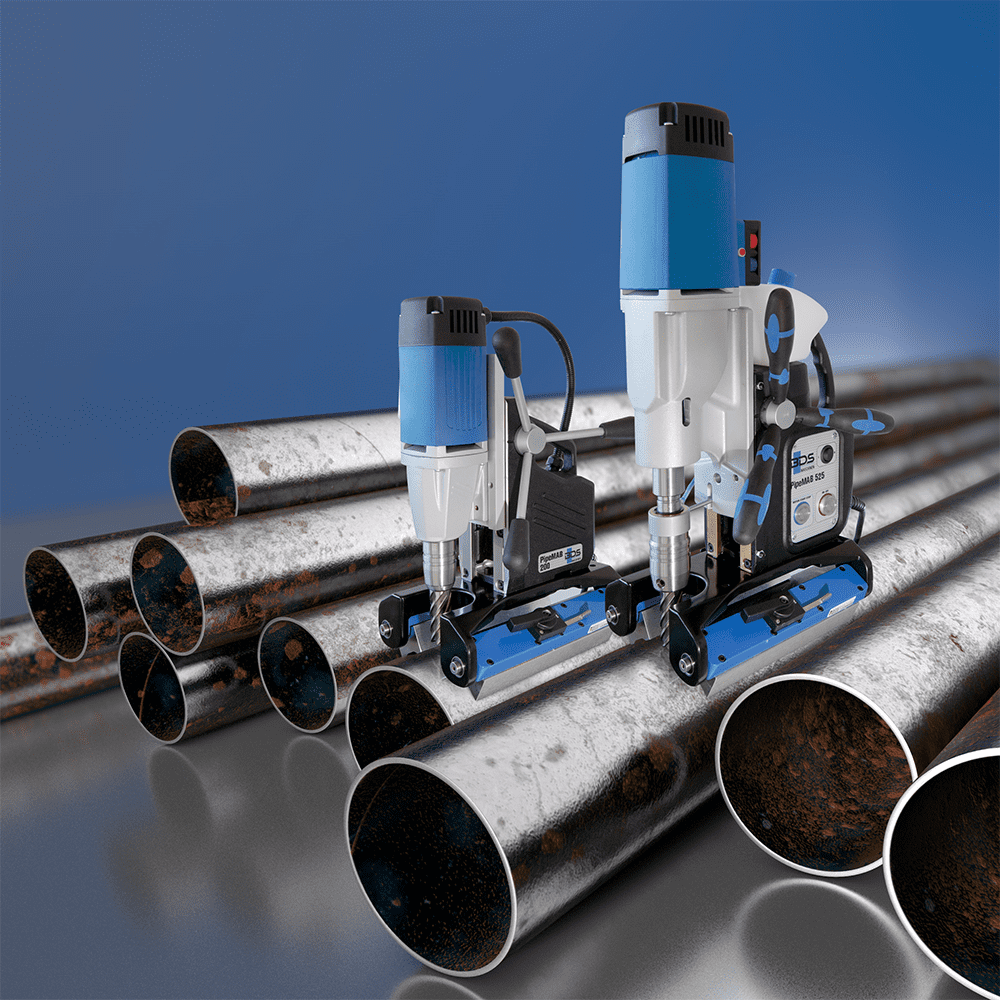

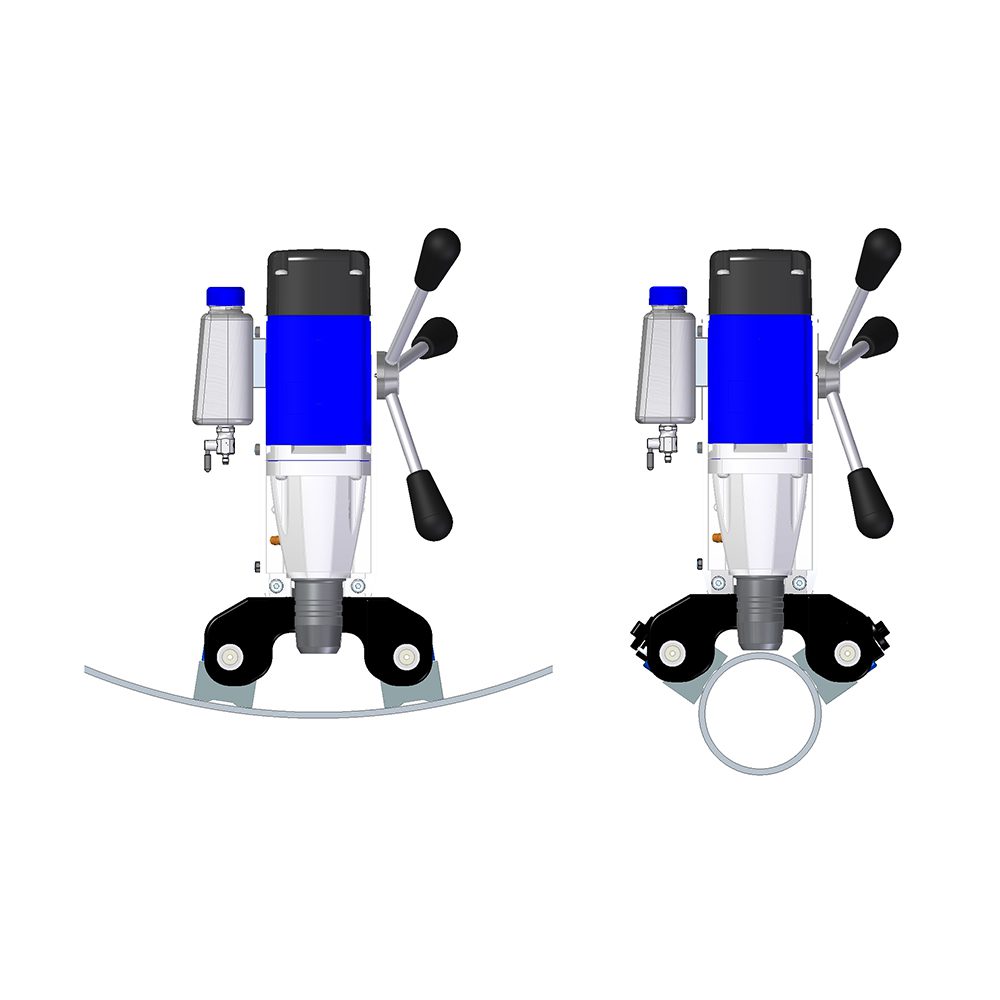

The NEW PipeMAB 525 magnetic drill dramatically reduces the time and effort required to drill, tap, ream and countersink in pipe. Equipped with a patented swivel magnetic clamping system, PipeMAB models can drill on pipe 3” (85mm) OD and larger, inner pipe wall (ID) as well as flat and curved surfaces. The 2 permanent magnets strong clamping force allows for great flexibility with adhesion on ferrous materials as thin as 9/64”.
This pipe system combined with the features of the PipeMAB 525 makes for the most versatile pipe drilling machine on the market.
Technical Specifications
| PipeMAB 525 | |
|---|---|
| Motor Power | 14.5 Amp / 110 Volt |
| Weight | 43 lbs. |
| Hole Capacity | 2-3/8" dia. |
| Twist Drill Capacity | 1" dia. |
| Tapping Capacity | 15/16" dia. |
| Speeds | 70-280 & 180-580 RPM |
| Stroke | 6-1/3" |
| Magnet Base Size | 10.5" L x 7.5" W x 3.5" H |
| Dimensions | 20.7" H x 10.5" L x 7.5" W |
| Magnetic Force (3/4" plate) | 2250 lbs |
| Arbor Bore | 3/4" Weldon Shank |
| Spindle Taper | MT3 |
| Pipe Magnet System Equipped | Yes |
| Automatic Lubrication | Included |
| *220 V model also available | |
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs

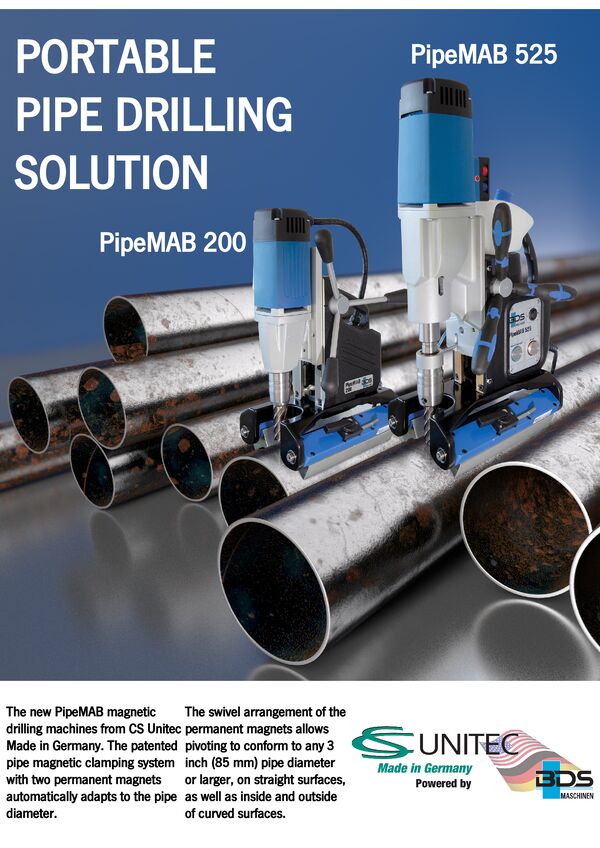

Catalog PDF

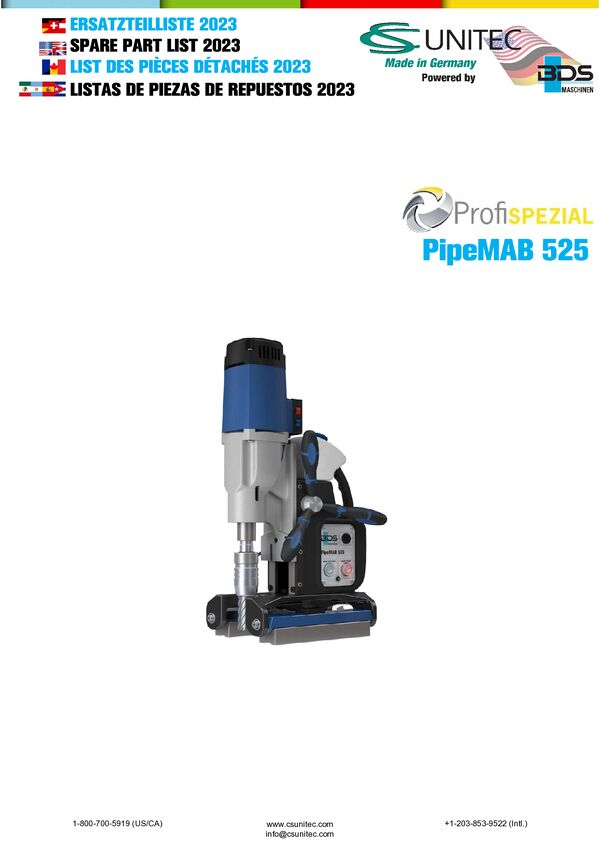

Product Schematic
