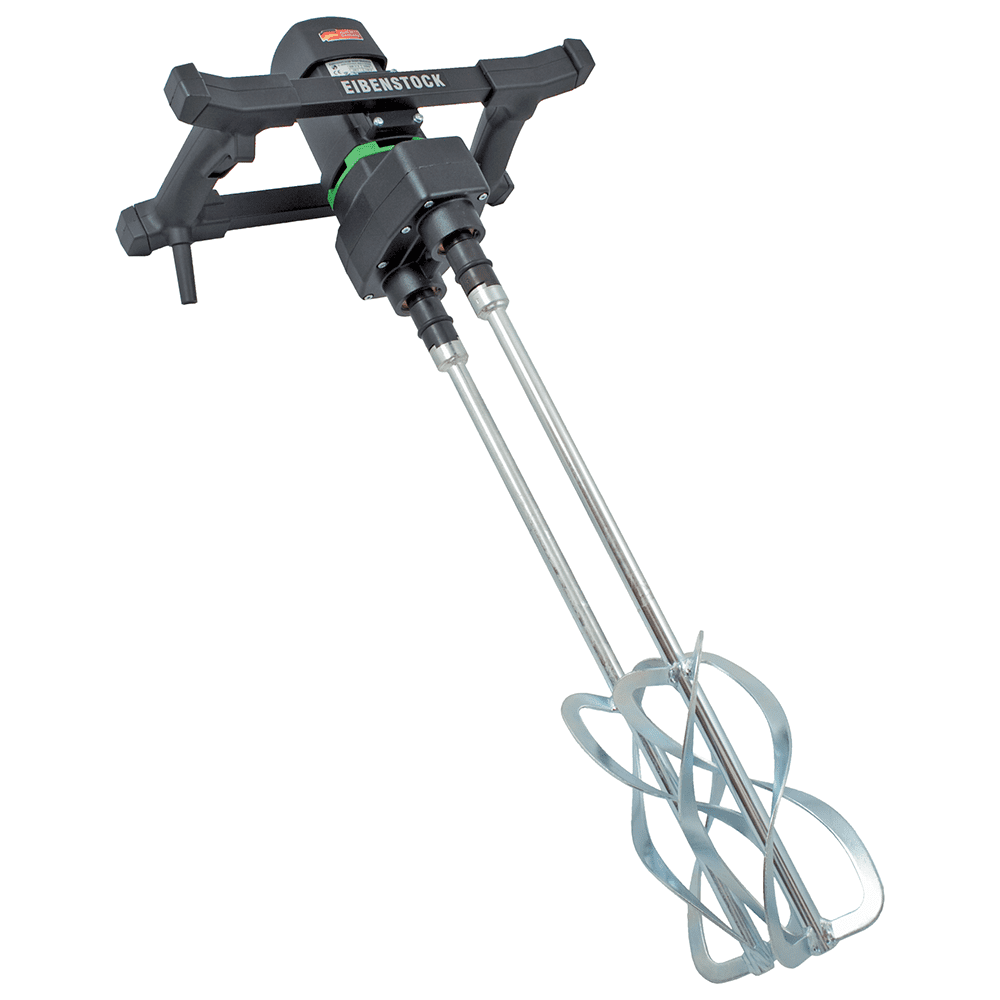

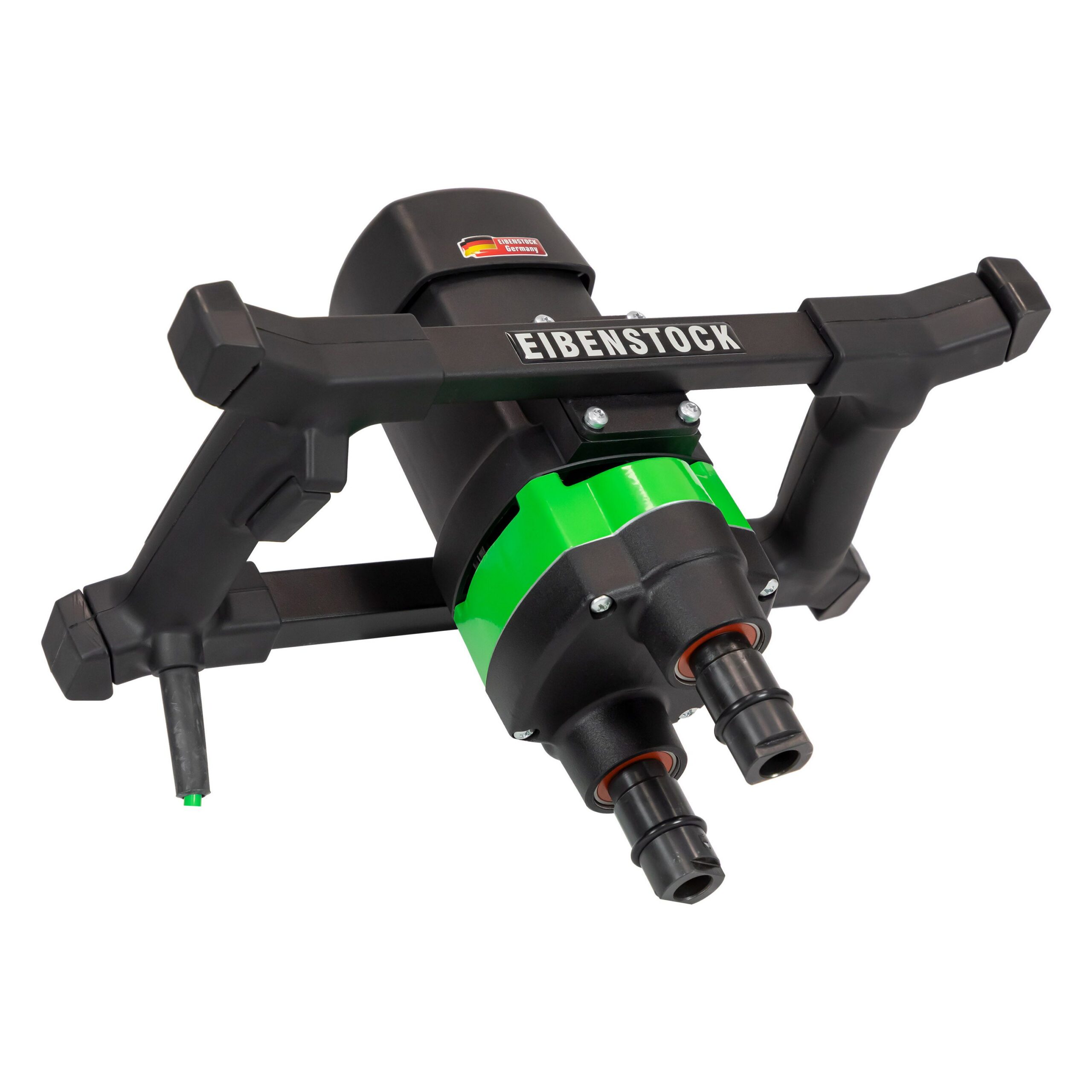

EZR 24 R R/RL – Dual Paddle Mixer
- Load Speed: 180-440 RPM
- Capacity: 5 bags, 25 gal.
- Output: Up to 1200 lbs/hour
- Power: 14.5 Amp
Includes (testing):
- EZR 24 R R/RL Mixing Drill

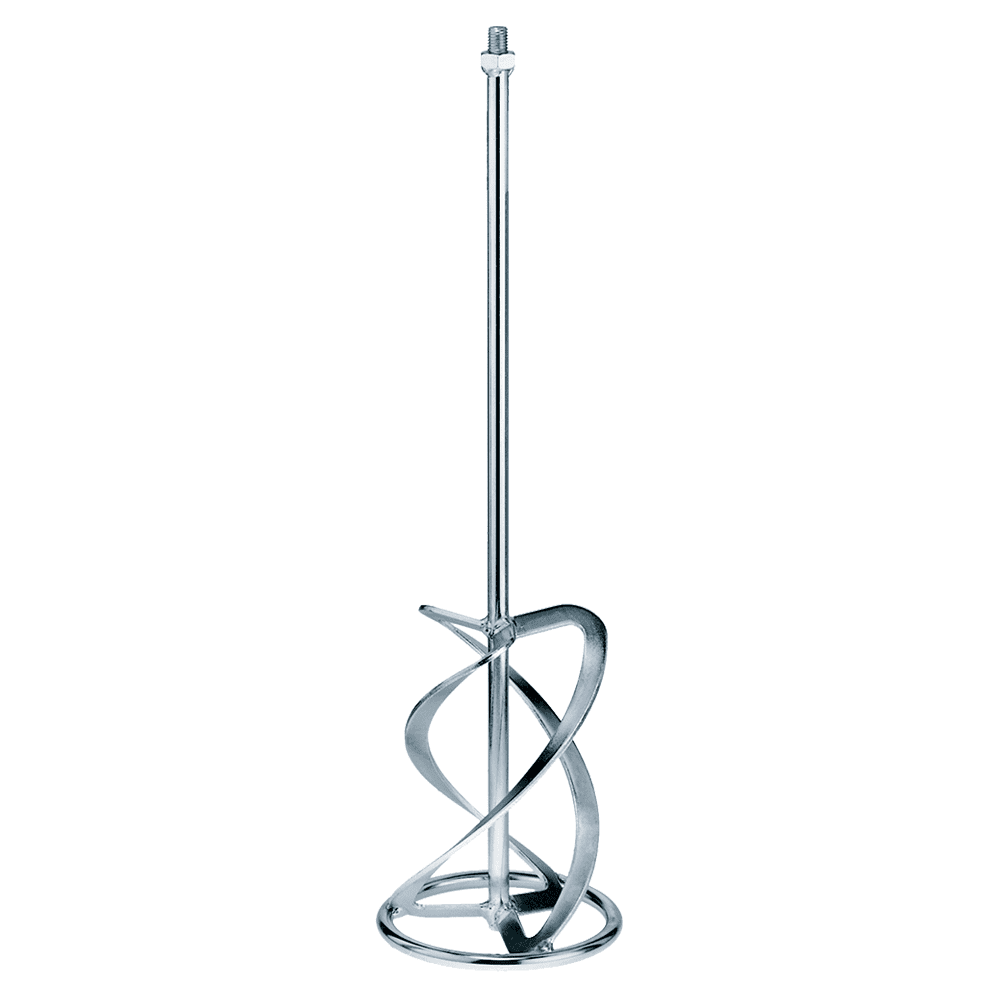

- Mixing Paddles Pair (P/N 31630000)
Benefits
- Now with 20% more torque!

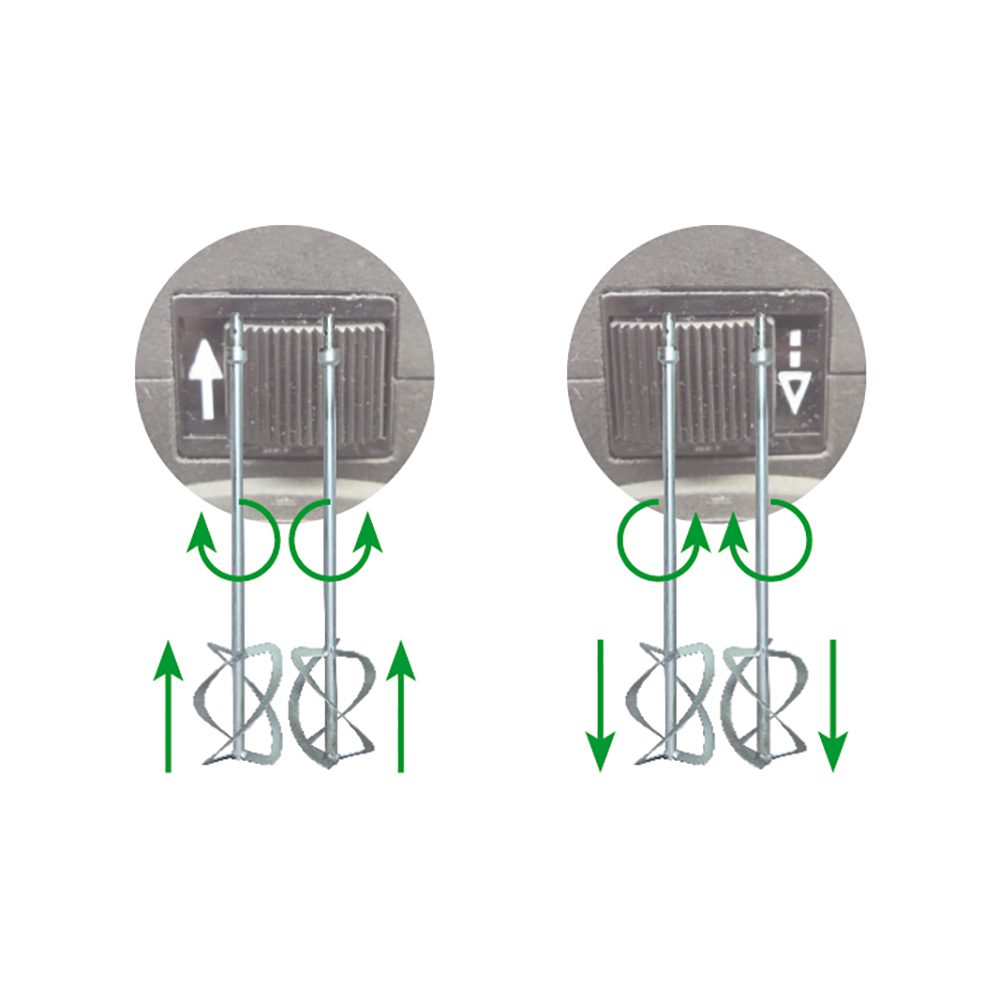

- Clockwise/counterclockwise paddle rotation with no paddle change out needed
- Blade rotation eliminates counter-torque
- Easy to handle, even while mixing the most demanding of materials

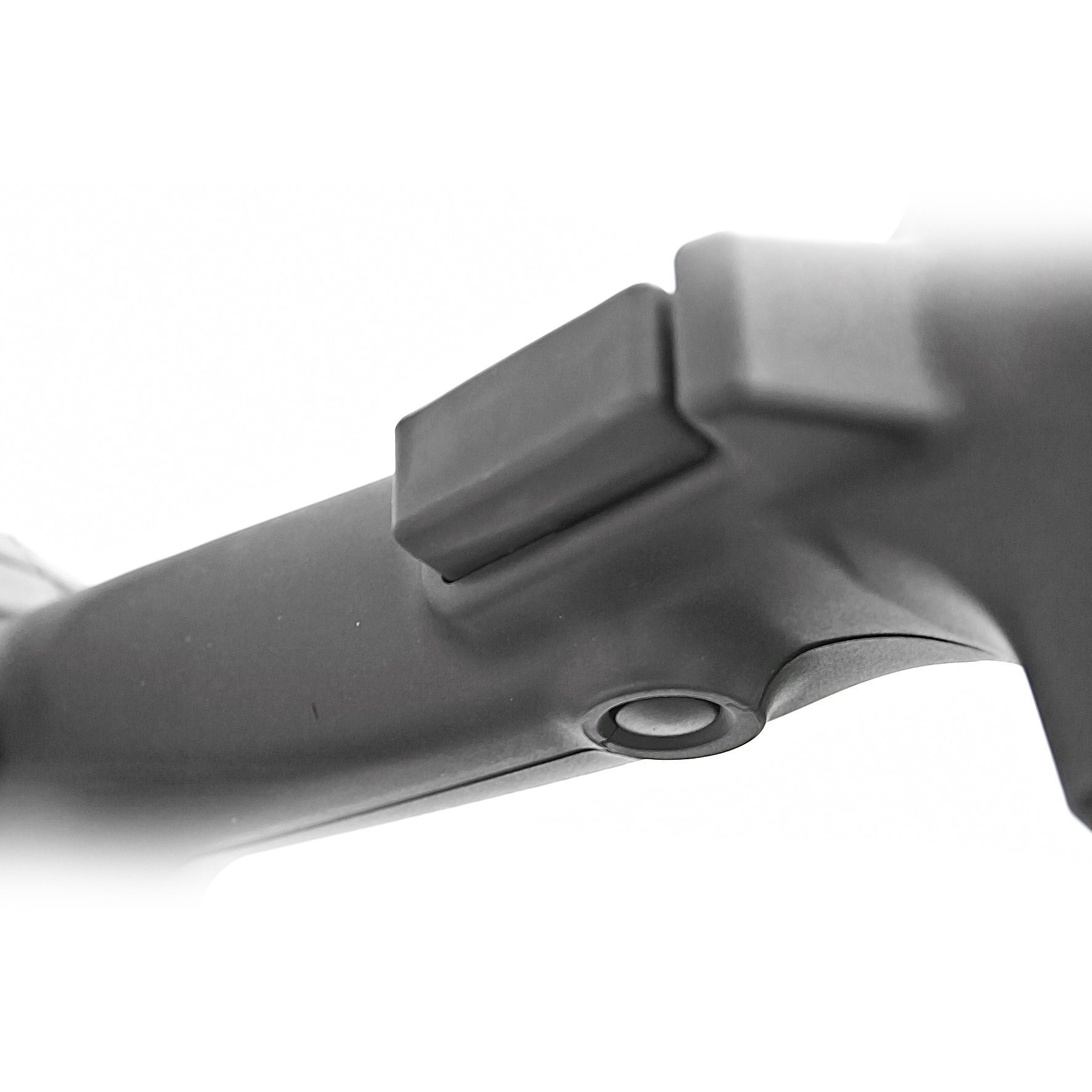

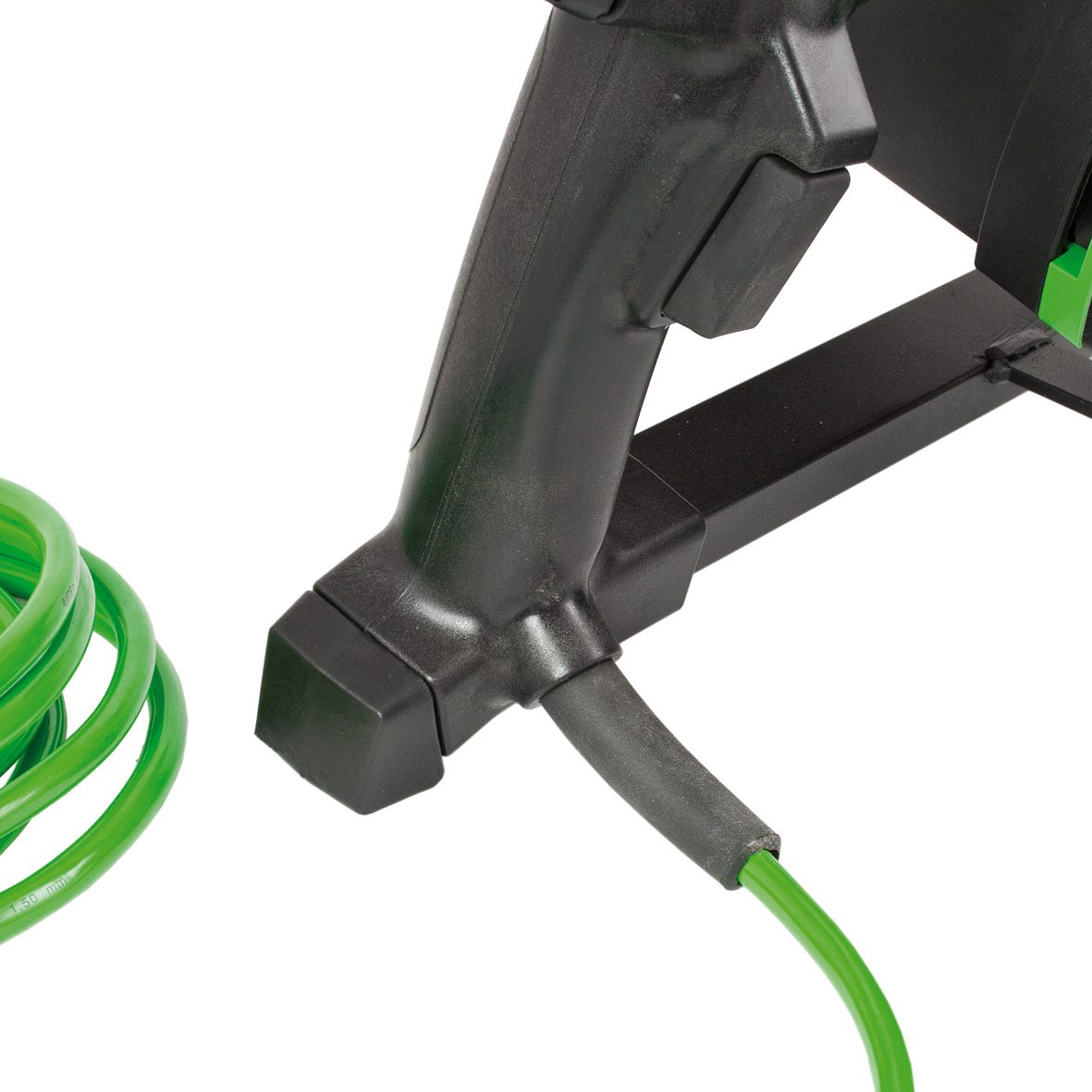

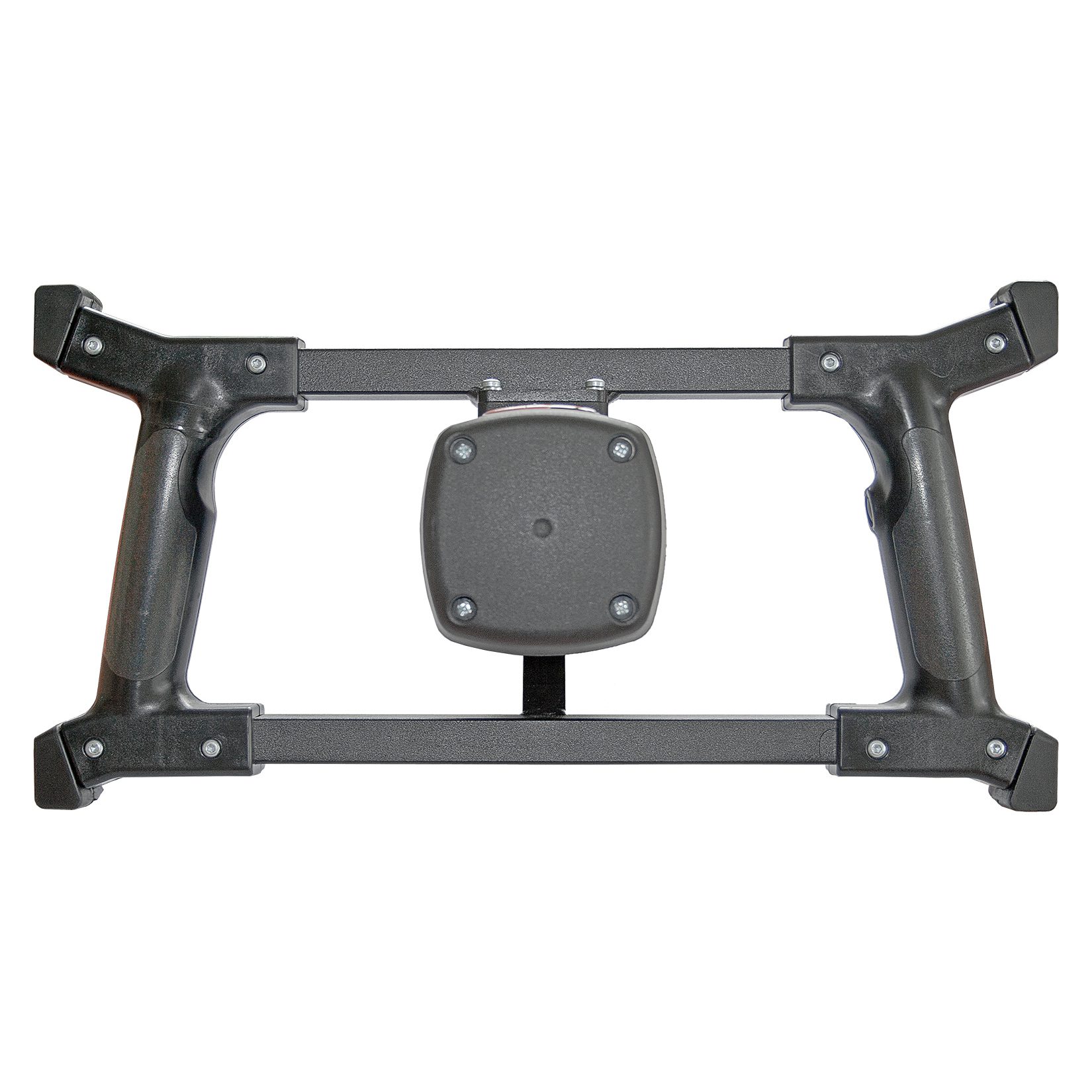

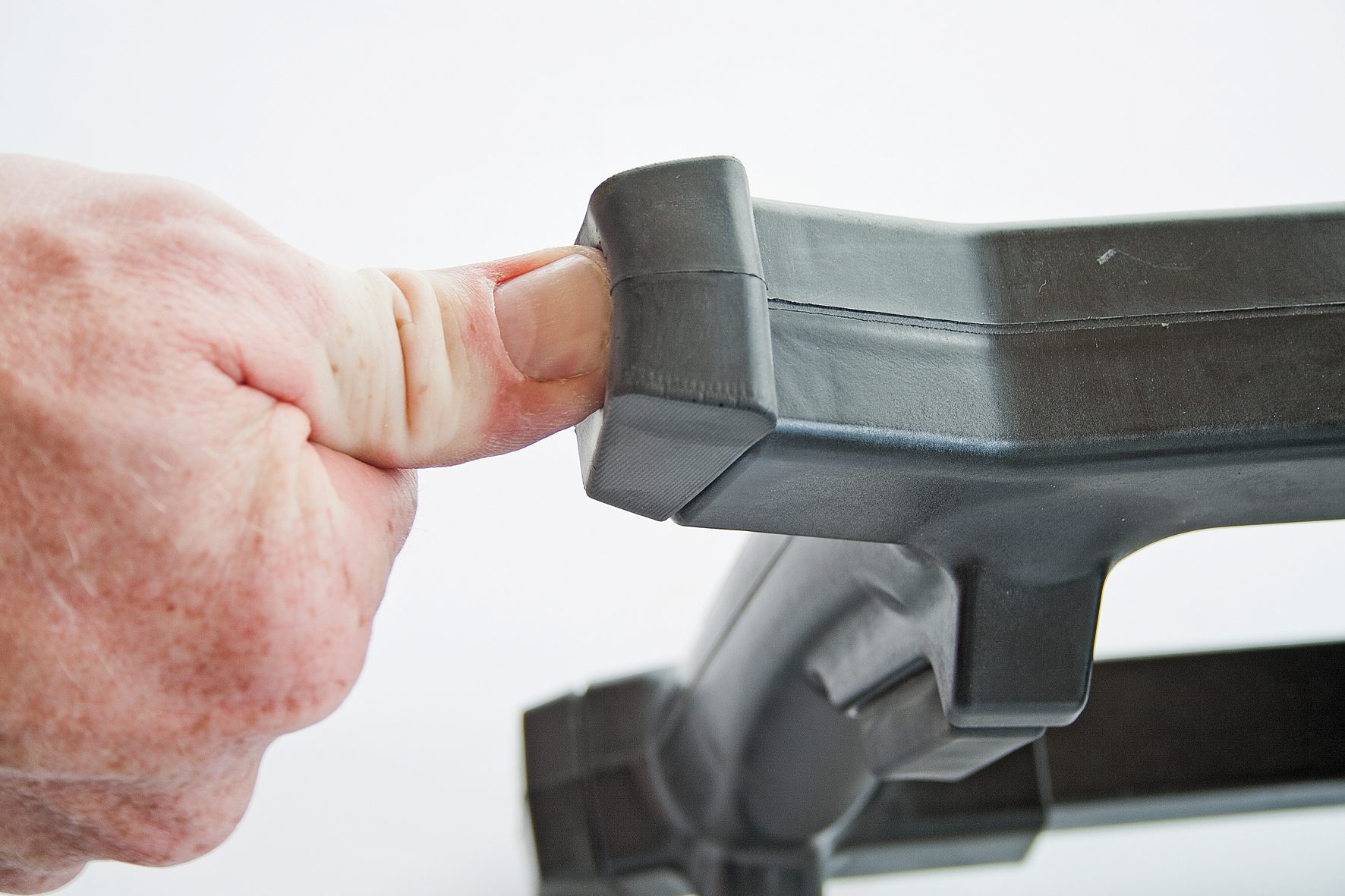

- Frame bumpers for increased drop protection
- Up to 1200 lbs. output per hour
Applications & Usage

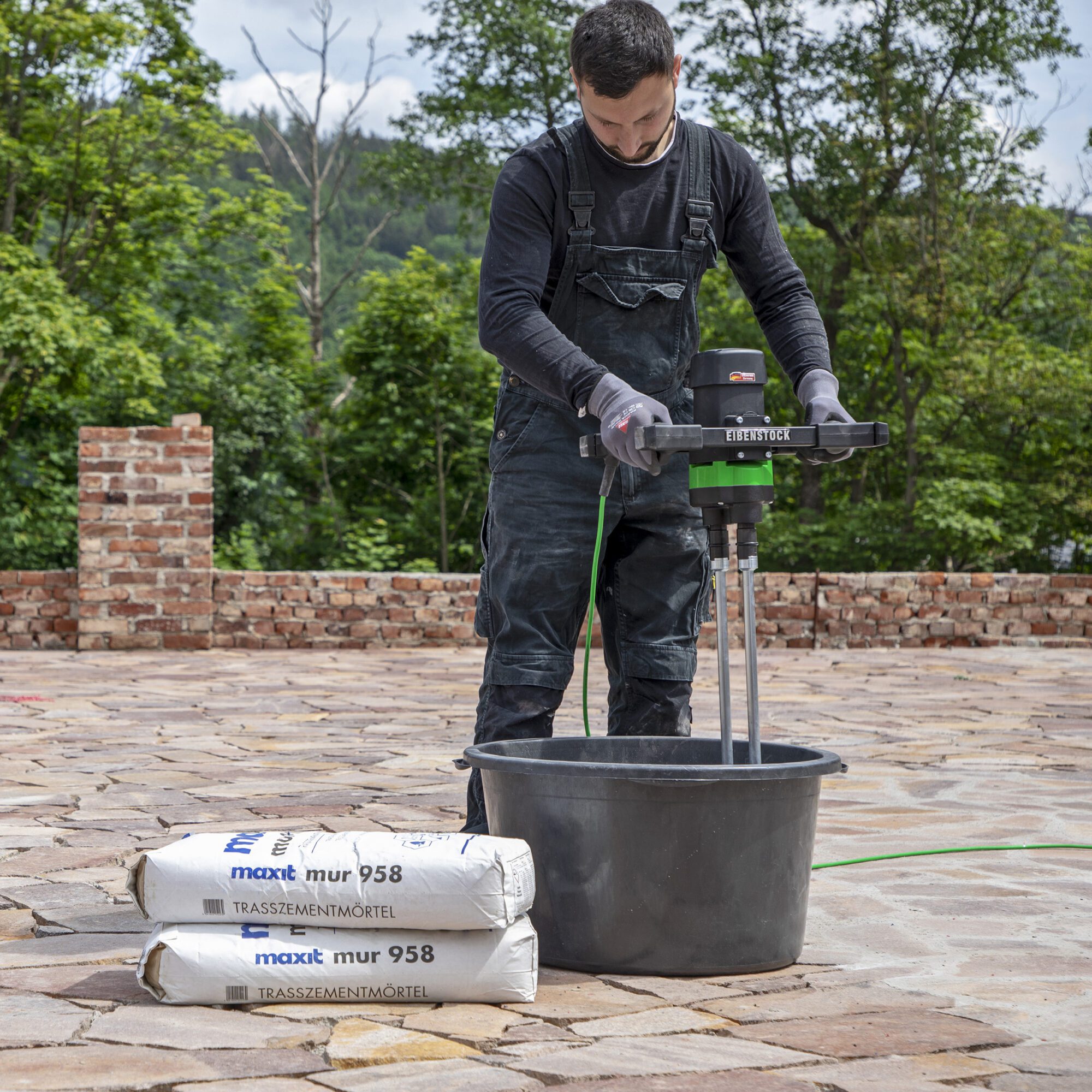

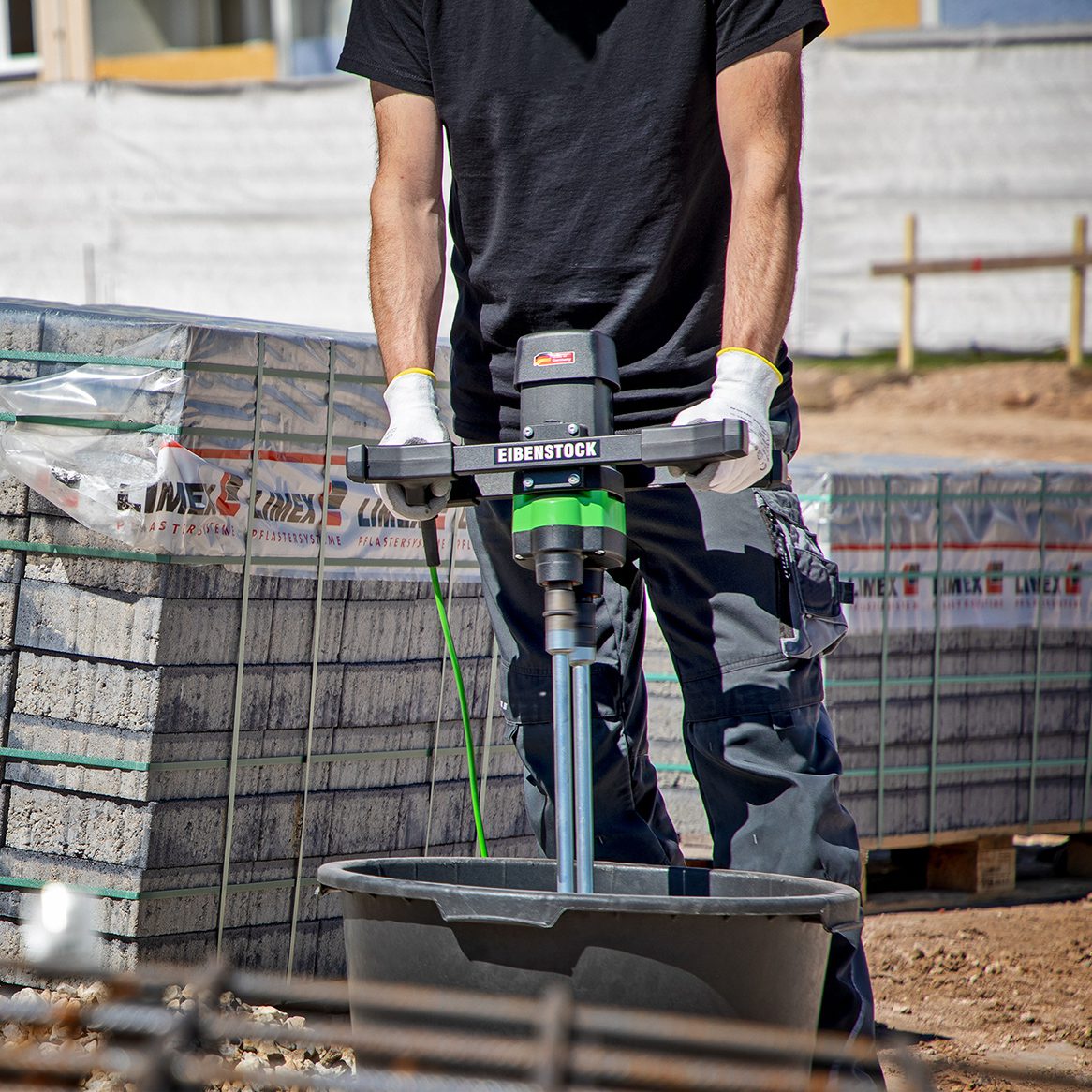

- EZR 24 R R/RL – Dual Paddle Mixer is easy to handle, even while mixing the most demanding of materials
- Mix up to 5 bags / 25 gallons / 3.3FT3 / 200 pounds of high-viscosity materials
- Up to 1200 lbs. output per hour
- Ideal for high-viscosity materials
Technical Specifications
| Model No. | EZR 24 R R/RL |
|---|---|
| Capacity | 5 bags, 25 gal. |
| Output | up to 1200 lbs./hour |
| Power (110V AC) | 14.5 Amp / 1800 W |
| Free Speed | 670 RPM |
| Load Speed | 180-440 RPM |
| Weight | 15 lbs. |
| Included Paddle Pair | P/N 31630000 (4-1/2" Dia. Paddles 8-1/2" Overall Width) |
Optional Accessories
Optional
OptionalRelated PDFs

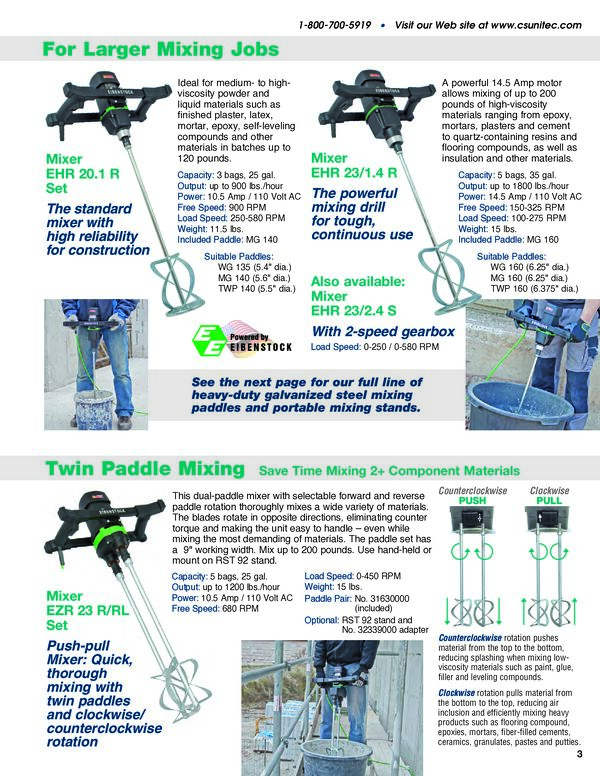

Catalog PDF 1
CAT_EZR23
Download PDF
Catalog PDF 2
CAT_Mixing_Mach
Download PDF
Catalog PDF 3
CAT_Mixing_Paddles
Download PDF

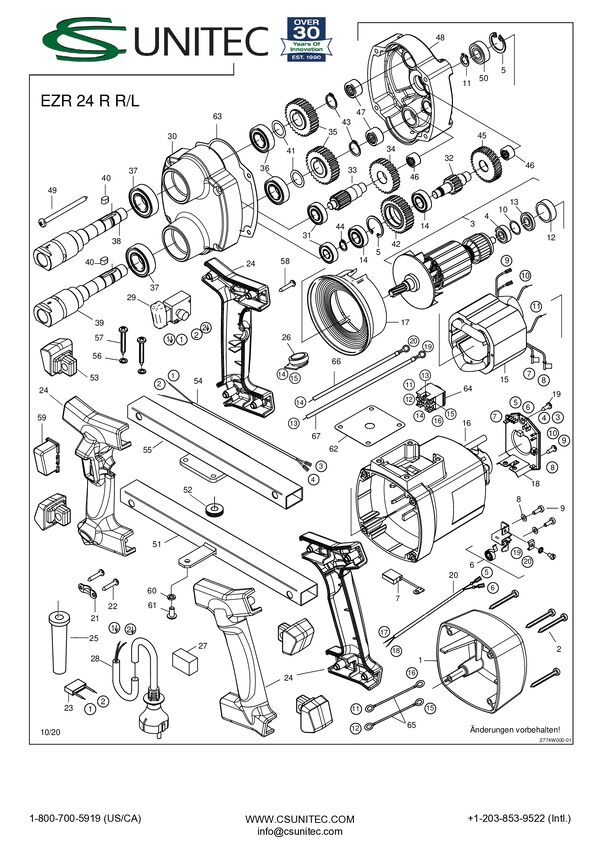

Product Schematic 1
SCHEM_EZR24_R_RL
Download PDF

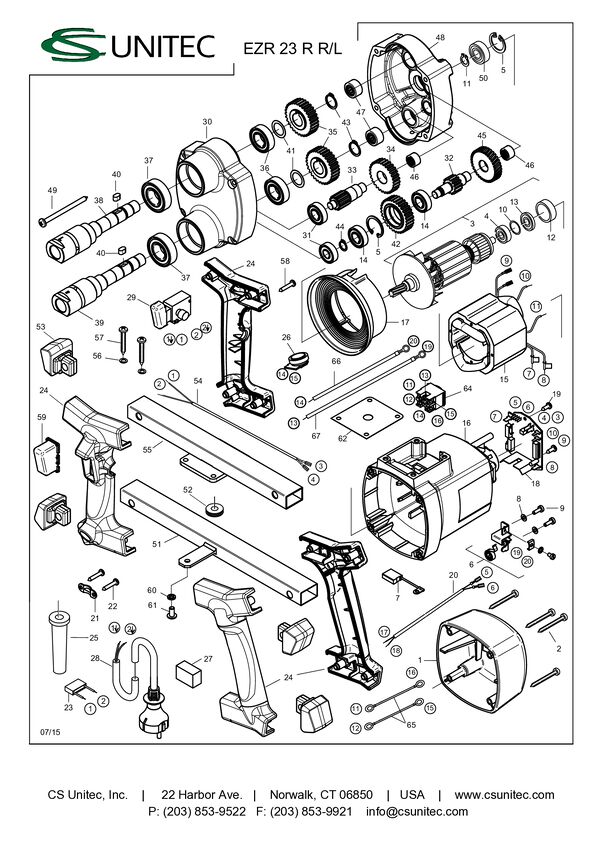

Product Schematic 2
SCHEM_EZR23_R_RL
Download PDF

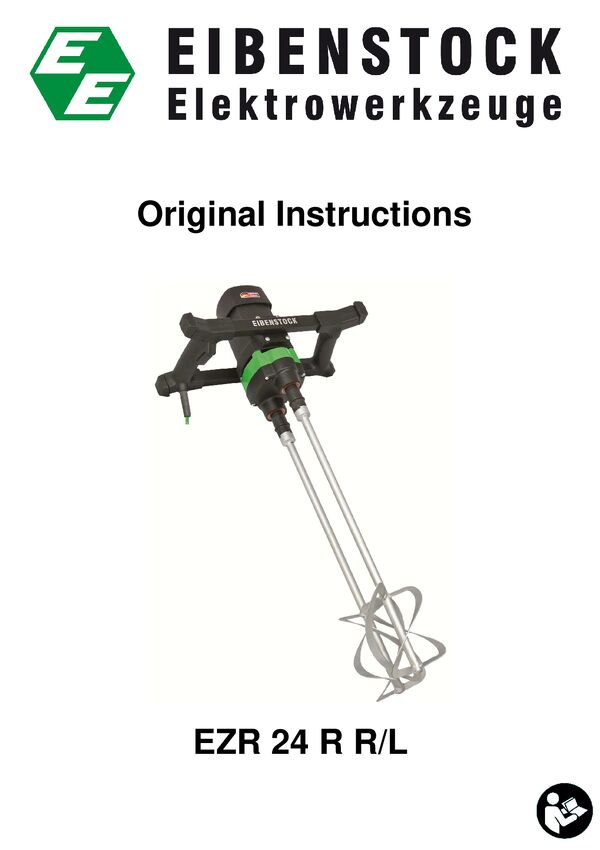

Operating Manual
MANUAL_EZR 24 R RL 120 V
Download PDF
