PORTAMIX® MEGA HIPPO Mixing Stations
- Speed: 175 / 300 / 430 RPM, 3 Speeds
- Capacity: 23 Gal. / 6 bags (50 lbs.)
- Power: 20 Amp
- Dimensions: 23-3/4″ (w) x 48″ (h)
Benefits
- Powerful 3-speed motor maintains higher speeds to handle a wider range of materials

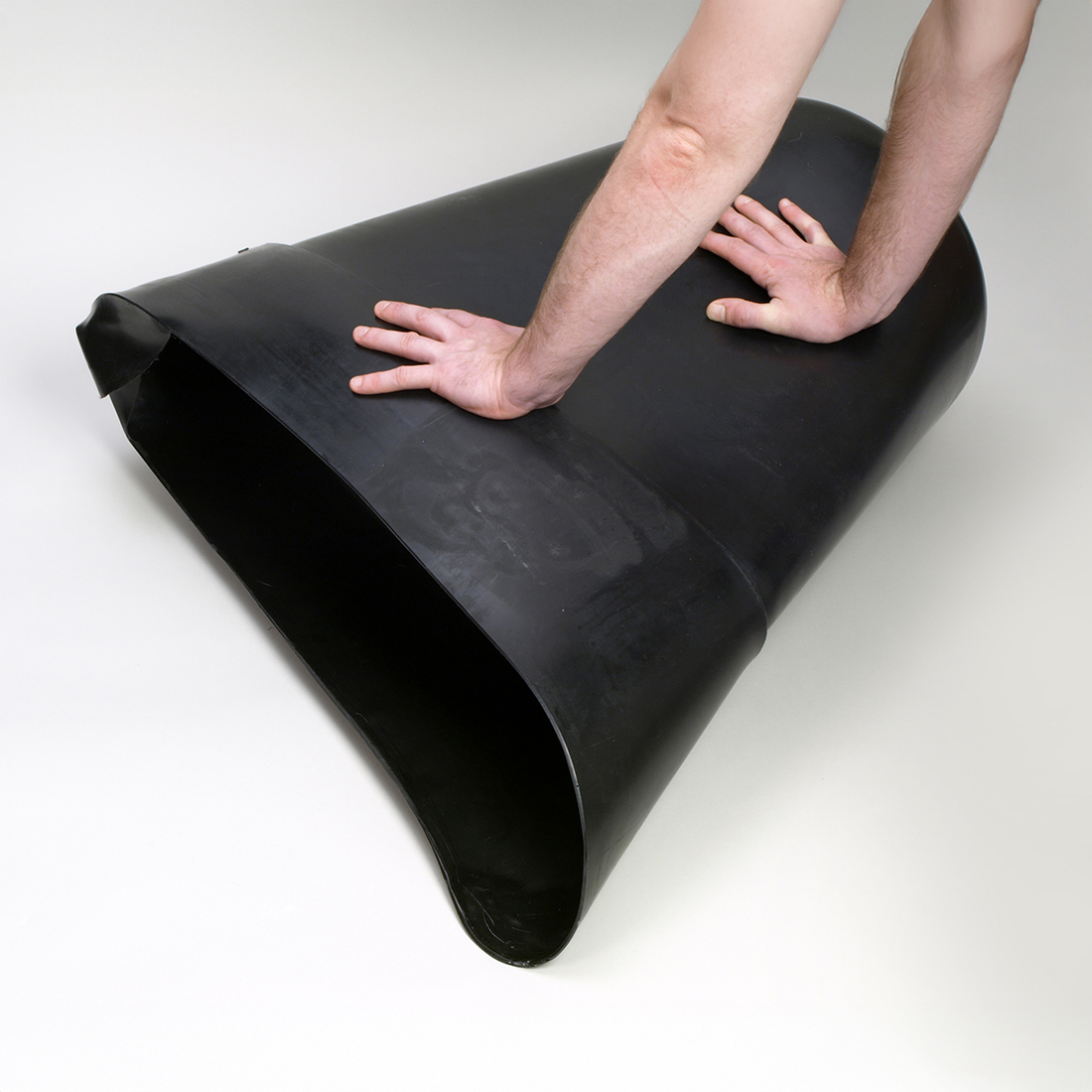

- Replaceable liners increase productivity and eliminate cross-contamination
- Reduce labor costs by up to 86% AND increase output by up to 11x when used with a Pelican Transport Cart
Applications & Usage
- PORTAMIX® MEGA HIPPO Mixing Stations industry standard mixing system for self-levelers.
- With high torque and high speeds, mix thicker compounds and heavier aggregate.
- Ideal for mixing compounds such as concrete, cement, screed, sealant, adhesive, resin, epoxy, textured coatings, and more.
- For uninterrupted mixing, use your MEGA HIPPO Portable Mixing Station as a stationary mixer and pour the mixed material into the Pelican Cart for transport to the application area.
Technical Specifications
| Item IDs: PMH80F-DC3.1 (Flat Floors), PMH80X-DC3.1 (Rough Terrain) | |
| Power | 110 V |
| 3-Speeds | 175 /300 / 430 RPM |
| Bucket Capacity | 23 Gal / 6 bags (50 Lb) / 350 Lbs* 86 L / 6 bags (22 Kg) / 160 Kg |
| Width | 23-3/4" |
| Transport Height | 48" |
| Tilting Cradle | Balanced For Easy Operation |
| Weight | 109 lbs |

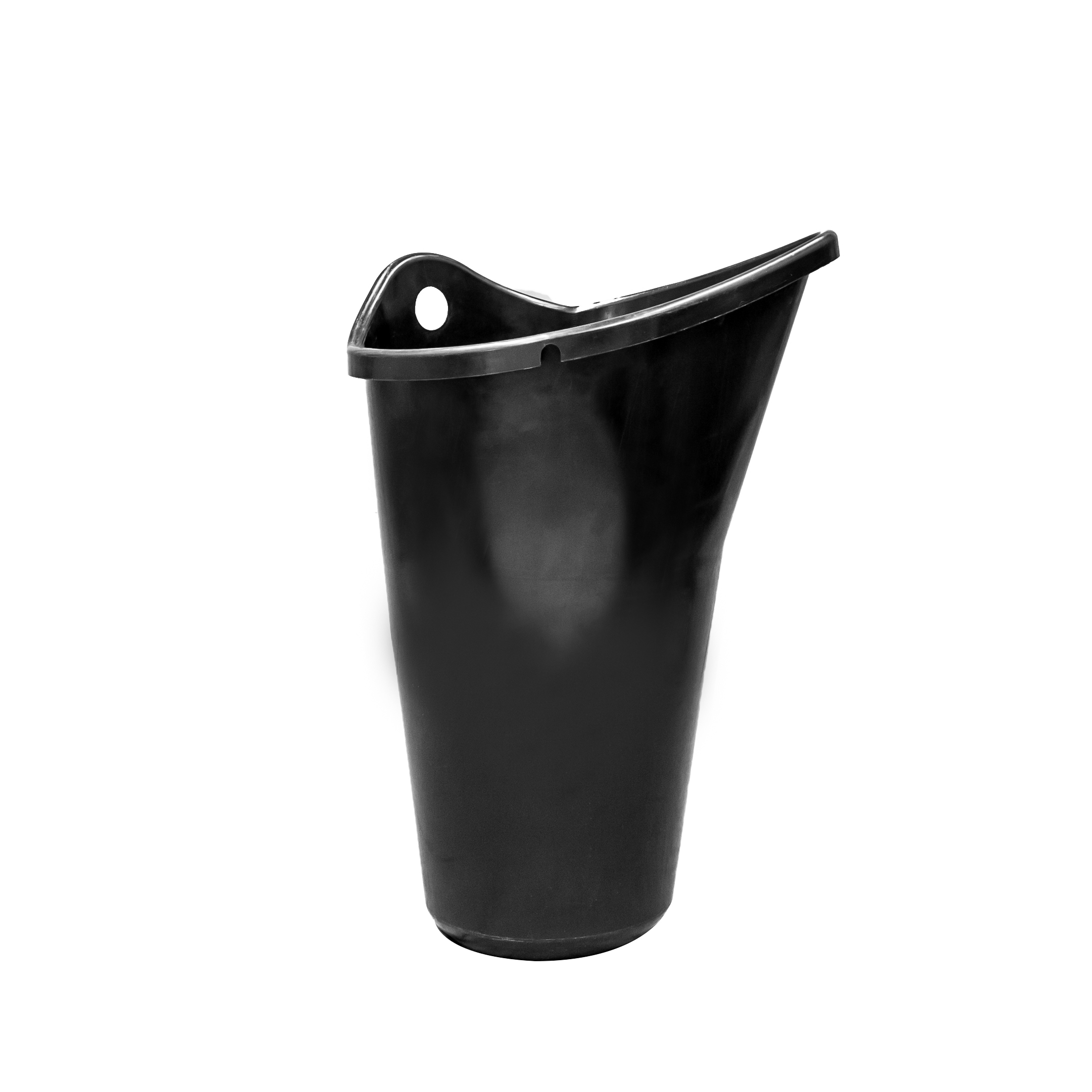

| Package Contents | Both PMH80F-DC3.1 and PMH80X-DC3.1 come with standard equipment. This includes mixing motor (PH 2516 R), bucket, removable liner (PH705), canister cover with hinged lid (PH718) and 2 paddles – TW225 for half batches (2-3 bags) and TW225D for full batches (4-6 bags) |
| * 220 Volt & Air-Powered Models Available, Less material recommended for optimal performance with use of heavier aggregate and thicker flowable material | |
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs
Catalog PDF 1
CAT_Hippo
Download PDF
Catalog PDF 2
CAT_Contractor_Tools_2022
Download PDF
Catalog PDF 3
FLY_Hippo
Download PDF
Product Schematic 1
SCHEM_PMH80RL
Download PDF
Product Schematic 2
SCHEM_PH2516R
Download PDF
Product Schematic 3
SCHEM_EHR32Hippo
Download PDF
Product Schematic 4
SCHEM_LEGACY_PMH80
Download PDF
Operating Manual
MANUAL_Hippo
Download PDF
Usage
- PORTAMIX® MEGA HIPPO Mixing Stations industry standard mixing system for self-levelers.
- With high torque and high speeds, mix thicker compounds and heavier aggregate.
- Ideal for mixing compounds such as concrete, cement, screed, sealant, adhesive, resin, epoxy, textured coatings, and more.
- For uninterrupted mixing, use your MEGA HIPPO Portable Mixing Station as a stationary mixer and pour the mixed material into the Pelican Cart for transport to the application area.
Benefits
- Powerful 3-speed motor maintains higher speeds to handle a wider range of materials
- Replaceable liners increase productivity and eliminate cross-contamination
- Reduce labor costs by up to 86% AND increase output by up to 11x when used with a Pelican Transport Cart
Usage
- PORTAMIX® MEGA HIPPO Mixing Stations industry standard mixing system for self-levelers.
- With high torque and high speeds, mix thicker compounds and heavier aggregate.
- Ideal for mixing compounds such as concrete, cement, screed, sealant, adhesive, resin, epoxy, textured coatings, and more.
- For uninterrupted mixing, use your MEGA HIPPO Portable Mixing Station as a stationary mixer and pour the mixed material into the Pelican Cart for transport to the application area.
Benefits
- Powerful 3-speed motor maintains higher speeds to handle a wider range of materials
- Replaceable liners increase productivity and eliminate cross-contamination
- Reduce labor costs by up to 86% AND increase output by up to 11x when used with a Pelican Transport Cart
