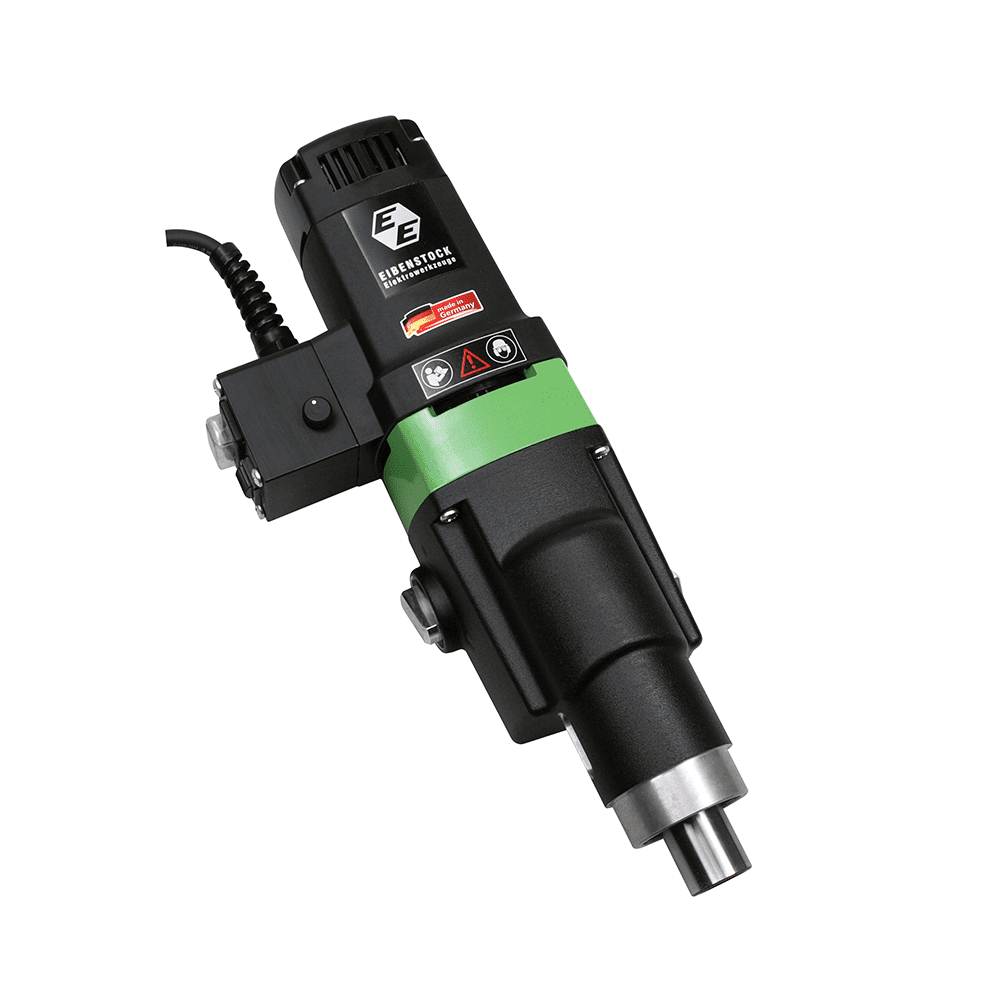

High-Torque Drill Motor EAU 34/4
- Load Speed: 80 / 130 / 360 / 570 RPM (4 gear)
- Reversible: Yes
- Torque Output: 203 ft/lbs.
- Motor Power: 20 Amps
- Ideal for OEM driving applications
Includes (testing):
- Electric Drill Motor
- Integrated Box Control
- EAU 34/4 B includes wires out to connect to external control box
Benefits
- Exceptional high‑torque output designed for large diameter drilling and heavy resistance materials without stalling.
- High-torque, reversible electric drill motors for custom applications
- Built with robust components to withstand continuous use in harsh environments including an oil bath gearbox.
- Adjustable speeds allow operators to match torque and RPM to the material and application, improving accuracy and tool life./li>
- Integrated control box for on/off control (EAU 34/4 CB).
- Wires to connect to external control box (EAU 34/4 B).
Applications & Usage

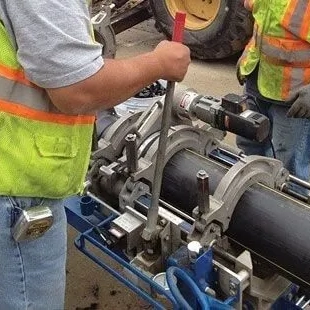

- High-Torque Drill Motor ideal for OEM driving applications, including mills, spindles, bar boring, tube rolling, valve turning and more.
- Heavy duty drilling through structural steel, thick metal plate, and high strength alloys.
- High-torque, reversible electric drill motors for custom applications.
- Repetitive drilling, tapping, and reaming tasks requiring consistent torque and long term durability.
- Onsite equipment repair, machinery maintenance, and industrial service applications.
Special OEM configurations available on request
Technical Specifications
| Item ID: EAU 34/4 CB | |
| Power input | 20 Amp |
| Rated Voltage | 110 V |
| Load speed | 80/130/360/570 RPM |
| Max. drilling diameter wood / aluminum / steel | N/A |
| Reversible | Yes |
| Arbor / Spindle connection | MT3 |
| Max Torque Output | 203 ft/lbs |
| Weight | 19.5 lbs. |
| Integrated control box | Included |
| Wires out to connect to external control box | Order No. EAU 34/4 B |
Recommended Accessories
RecommendedRelated PDFs

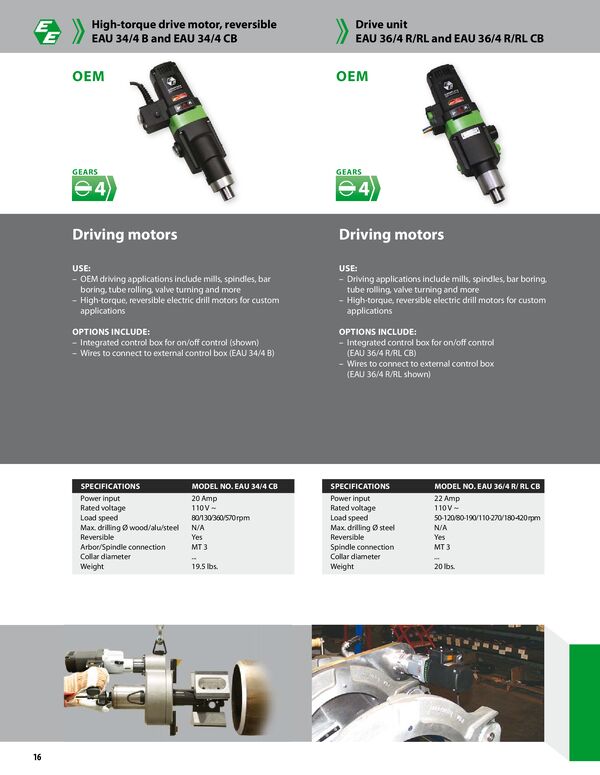

Catalog PDF 1
CAT_EAU344
Download PDF
Catalog PDF 2
FLY_OEM_Motors
Download PDF

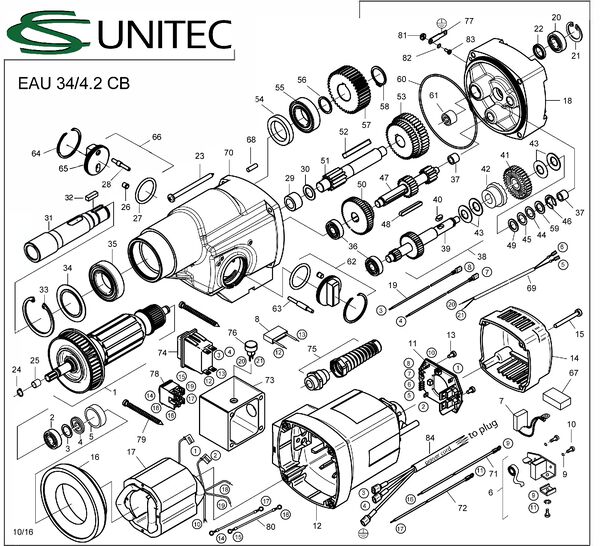

Product Schematic
