MABasic 400
- Cutting Capacity: 1-5/8″ Diameter
- Twist Drill Capacity: 5/8″ Diameter
- Stroke: 6-1/3″, 3-1/3″ with geared chuck
- Speed: 430/760 RPM (2 gears)
- Magnetic Force: 3080 lbs.
- Equipped with Electronic Safety Shutoff Sensor
- MABasic 400
- Auto chuck cutter holder
- 1/2″ geared chuck
- Pilot pin
- Carrying case
- Safety strap
- Carabin hook
- Allen keys
- Operating manual
- Warranty certificate
Benefits
- Compact, ergonomic design improves maneuverability and reduces operator fatigue during field or overhead work.
- Two speed gearbox (250 / 450 RPM) provides optimal torque and cutting speed for both large annular cutters and smaller twist drills.
- 3/4" direct arbor.
- Integrated internal lubrication system ensures smooth drilling, reduced heat, and extended cutter life.
- Simple, ergonomic arrangement of controls for one-handed operation.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage
- MABasic 400 for drilling holes in structural steel, plate, beams, and metal assemblies.
- Ideal for small to mid‑size fabrication shops and routine holemaking tasks.
- Vertical and horizontal drilling on I‑beams, channels, and steel frameworks.
- Lightweight, portable design makes it easy to carry between job sites or elevated work areas.
- Onsite drilling for equipment repair, retrofits, and facility maintenance.
- Useful in plants, warehouses, and industrial buildings.
Technical Specifications
| MABasic 400 | |
|---|---|
| Motor Power | 9.5 Amp / 110 Volt |
| Weight | 27 lbs. |
| Stroke | 6-1/3" (3-1/3" with geared chuck) |
| Hole Capacity | 1-5/8" dia. |
| Twist Drill Capacity | 5/8" dia. |
| Speeds | 430/760 RPM (2 gears) |
| Magnet Base Size | 6-5/8" L x 3-1/3" W |
| Dimensions | 14" H x 9-1/2" L x 6-1/2" W |
| Magnetic Force (1" plate) | 3080 lbs. |
| Arbor Bore | 3/4" Weldon Shank |

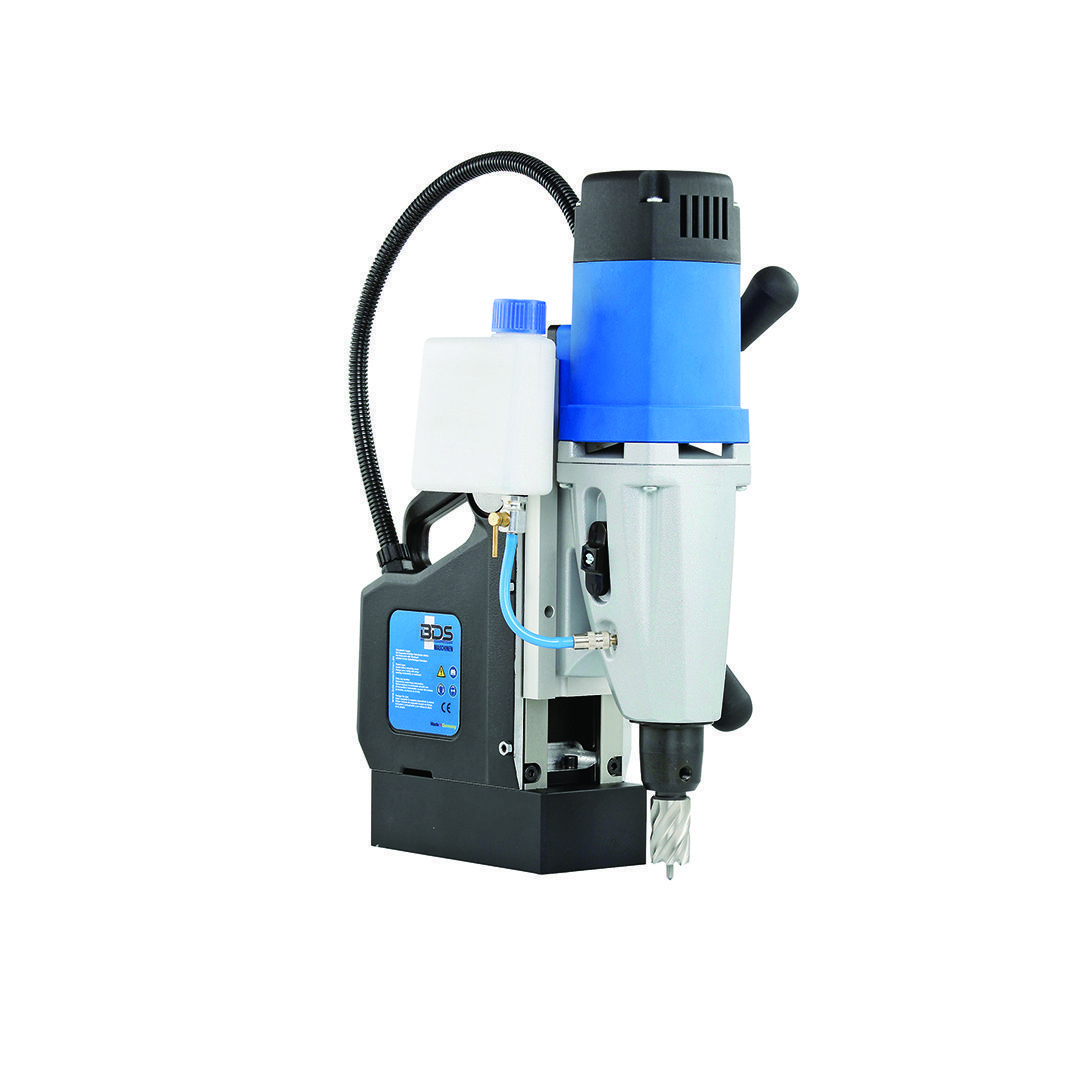

| Internal Lubrication | Oil Bottle Included |
Optional Accessories
Optional
OptionalDepth: 2 3/8" • Diameter: Kit
$0.00
In stock
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF
CAT_MABasic400
Download PDF
Product Schematic
SCHEM_MABasic400
Download PDF
Operating Manual
MANUAL_MABasic
Download PDF
