Hydraulic Chainsaws for Ductile Iron
- Cutting Capacity: Up to 25″
- No Load Speed: 6100 RPM
- Motor Power: 6 HP
- Whip hoses & FF Couplings included
Includes (testing):
- Chain Saw
Benefits
- Engineered for underground pipe cutting, enabling fast, controlled cuts through ductile iron with minimal excavation and reduced trench size.
- Double flat drive shaft eliminates Trantorque components, increasing durability and reducing maintenance requirements.
- High torque hydraulic power delivers exceptional cutting performance, even under heavy load or in abrasive materials.
- PowerGrit® diamond coated chain technology provides superior cutting efficiency, long chain life, and improved operator control compared to abrasive or mechanical methods.
- Cut from a single position, reducing time spent in confined, unstable, or hazardous trenches and improving overall jobsite safety.
- Available in multiple bar lengths to match pipe diameter and jobsite needs.
Applications & Usage
- Hydraulic Chainsaws for ductile iron, cutting PVC, and HDPE pipe during installation, repair, and emergency response.
- Trench work, pipe replacement, valve installation, and infrastructure maintenance.
- Reduces excavation footprint, improving safety and lowering restoration costs.
- Cutting pipe in narrow trenches, confined spaces, and unstable soil conditions.
- Allows operators to complete cuts from a single position, minimizing time in hazardous areas.
- PowerGrit® chain technology improves speed, control, and safety compared to abrasive cutting methods.
Technical Specifications
| Hydraulic PowerGrit Chain Saw | |||||||
| Model No. | Power | No Load Speed | Max. Depth of Cut | Motor Specifications | Weight w/ Bar and Chain | Torque (in.-lbs.) | Noise Level at 3 ft. |
|---|---|---|---|---|---|---|---|
| CS 566110-PG2 | 6 HP | 6100 RPM | 15" | 8 gpm (30lpm) @2500 psi (172.5 bar) |
32 | 122 (13.8 Nm) | 98 dB |
| CS 566110-PG3 | 6 HP | 6100 RPM | 20" | 8 gpm (30lpm) @2500 psi (172.5 bar) |
33 | 122 (13.8 Nm) | 98 dB |
| CS 566110-PG4 | 6 HP | 6100 RPM | 25" | 8 gpm (30lpm) @2500 psi (172.5 bar) |
34 | 122 (13.8 Nm) | 98 dB |
| For 15" PowerGrit Saw and Pipe Clamp – Part No. CS 566110-PG2C For 20" PowerGrit Saw and Pipe Clamp – Part No. CS 566110-PG3C For 25" PowerGrit Saw and Pipe Clamp – Part No. CS 566110-PG4C |
|||||||
Optional Accessories
Optional
OptionalOptional
OptionalRelated PDFs

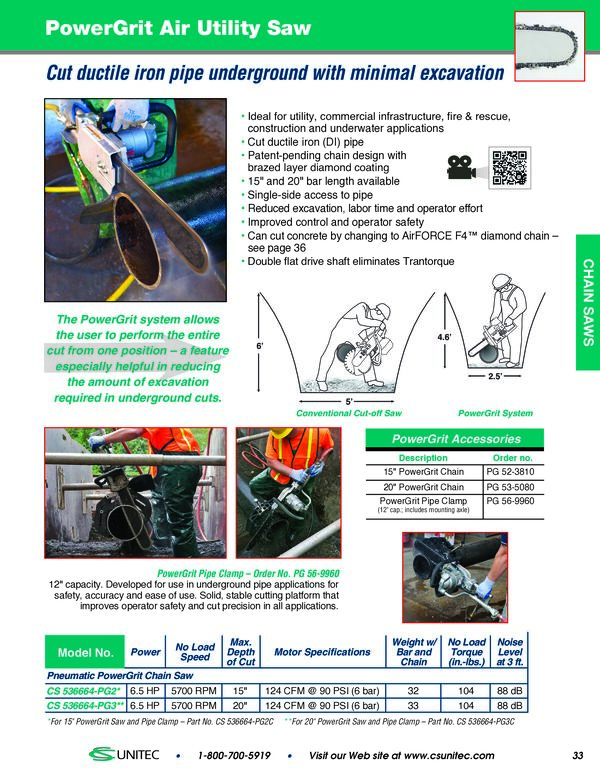

Catalog PDF 1
CAT_PowerGrit_Saws
Download PDF
Catalog PDF 2
CAT_Saws
Download PDF
Usage
- Hydraulic Chainsaws for ductile iron, cutting PVC, and HDPE pipe during installation, repair, and emergency response.
- Trench work, pipe replacement, valve installation, and infrastructure maintenance.
- Reduces excavation footprint, improving safety and lowering restoration costs.
- Cutting pipe in narrow trenches, confined spaces, and unstable soil conditions.
- Allows operators to complete cuts from a single position, minimizing time in hazardous areas.
- PowerGrit® chain technology improves speed, control, and safety compared to abrasive cutting methods.
Benefits
- Engineered for underground pipe cutting, enabling fast, controlled cuts through ductile iron with minimal excavation and reduced trench size.
- Double flat drive shaft eliminates Trantorque components, increasing durability and reducing maintenance requirements.
- High torque hydraulic power delivers exceptional cutting performance, even under heavy load or in abrasive materials.
- PowerGrit® diamond coated chain technology provides superior cutting efficiency, long chain life, and improved operator control compared to abrasive or mechanical methods.
- Cut from a single position, reducing time spent in confined, unstable, or hazardous trenches and improving overall jobsite safety.
- Available in multiple bar lengths to match pipe diameter and jobsite needs.
Usage
- Hydraulic Chainsaws for ductile iron, cutting PVC, and HDPE pipe during installation, repair, and emergency response.
- Trench work, pipe replacement, valve installation, and infrastructure maintenance.
- Reduces excavation footprint, improving safety and lowering restoration costs.
- Cutting pipe in narrow trenches, confined spaces, and unstable soil conditions.
- Allows operators to complete cuts from a single position, minimizing time in hazardous areas.
- PowerGrit® chain technology improves speed, control, and safety compared to abrasive cutting methods.
Benefits
- Engineered for underground pipe cutting, enabling fast, controlled cuts through ductile iron with minimal excavation and reduced trench size.
- Double flat drive shaft eliminates Trantorque components, increasing durability and reducing maintenance requirements.
- High torque hydraulic power delivers exceptional cutting performance, even under heavy load or in abrasive materials.
- PowerGrit® diamond coated chain technology provides superior cutting efficiency, long chain life, and improved operator control compared to abrasive or mechanical methods.
- Cut from a single position, reducing time spent in confined, unstable, or hazardous trenches and improving overall jobsite safety.
- Available in multiple bar lengths to match pipe diameter and jobsite needs.
