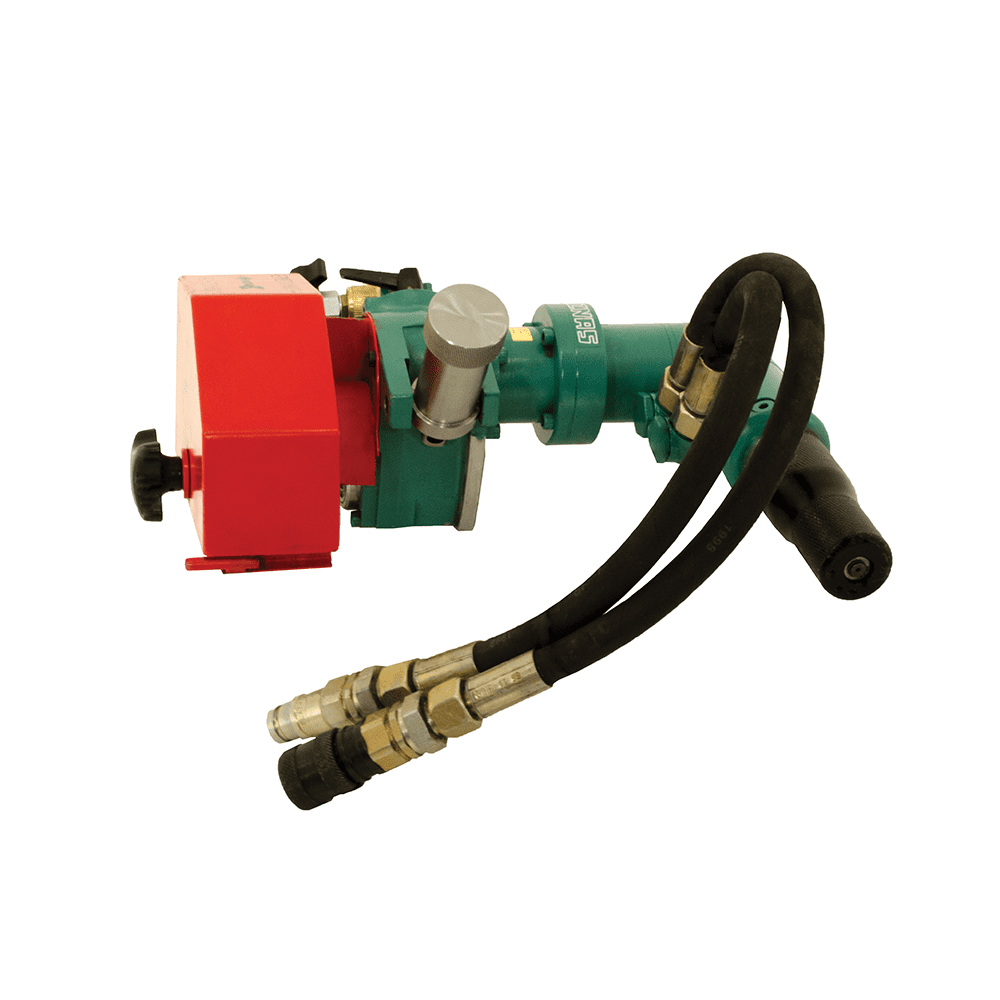

Hydraulic Pipe Cutting Machine (Belly Saw)
- Cutting Capacity: 6″ to 96″ Diameter Pipe
- Speed: 350 / 1800 RPM

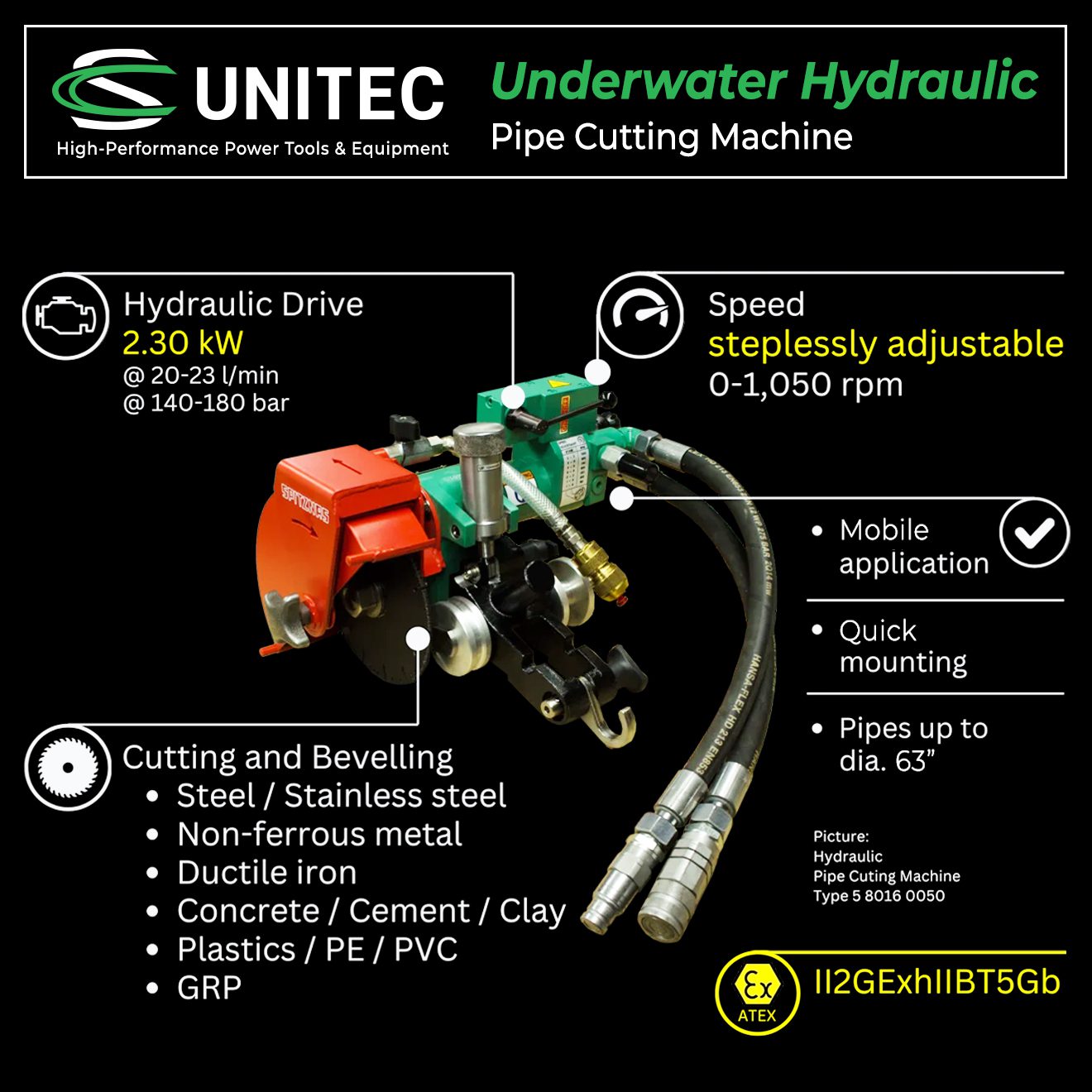

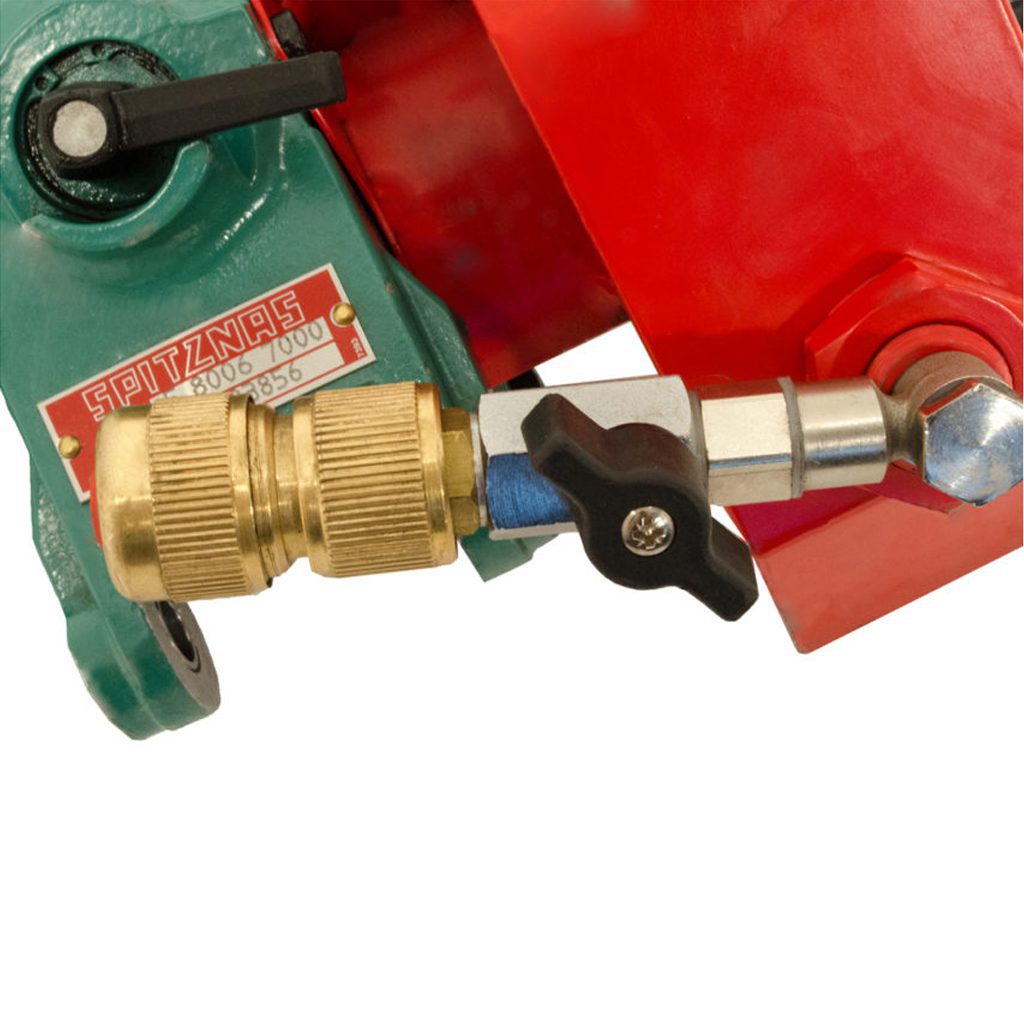

- Connection: 1/2″ FF (HTMA)
- Motor Power: 2.7 HP
- Oil Speed: 6 GPM (up to 13 GPM) @ 2000 PSI
- Whip hoses & FF Couplings included
Includes (testing):
| KITS – For Pipe Diameters | ||
|---|---|---|
| 6″ to 16″ (150-400mm) | 6″ to 32″ (150-800mm) | 6″ to 63″ (150-1600mm) |
|
Kit 5 8006 16HK
(Qty.) x Part
|
Kit 5 8006 32HK
(Qty.) x Part
|
Kit 5 8006 63HK
(Qty.) x Part
|
|
|
||
|
(1) Drive Unit
P/N 5 8006 7000
|
(1) Drive Unit
P/N 5 8006 7000
|
(1) Drive Unit
P/N 5 8006 7000
|
|
(1) Guide Carriage, small
|
(1) Guide Carriage, small
|
(2) Guide Carriage, small
|
|
(1) Chain Tensioner, small
|
(1) Guide Carriage, large
|
(2) Guide Carriage, large
|
|
(1) Guide Chain, 16″ OD
|
(1) Chain Tensioner, large
|
(2) Chain Tensioner, large
|
|
(1) 7″ Dia. Carbide-tipped blade
|
(1) Tensioning Chain
|
(2) Tensioning Chain
|
|
(1) 7″ Dia. Diamond blade
|
(1) Guide Chain, 32″ OD
|
(1) Guide Chain, 63″ OD
|
| (1) 45 degree beveling cutter |
(1) 7″ Dia. Carbide-tipped blade
|
(1) 7″ Dia. Carbide-tipped blade
|
| (1) 60 degree beveling cutter |
(1) 7″ Dia. Diamond blade
|
(1) 7″ Dia. Diamond blade
|
| (1) Tool Kit
P/N 5 8002 9200 |
(1) Tool Kit
P/N 5 8002 9200 |
(1) Tool Kit
P/N 5 8002 9200 |
| (1) Steel Transport Box
P/N 5 8002 9300 |
(1) Steel Transport Box
P/N 5 8002 9300 |
(1) Steel Transport Box
P/N 5 8002 9300 |
Benefits
- Powerful hydraulic drive delivers consistent cutting performance for large diameter and thick wall pipe.
- Cold cutting operation eliminates sparks and heat, making it suitable for hazardous or sensitive environments.
- Handles large pipe diameters with guide chains that wrap securely around the pipe for stable, accurate cutting.

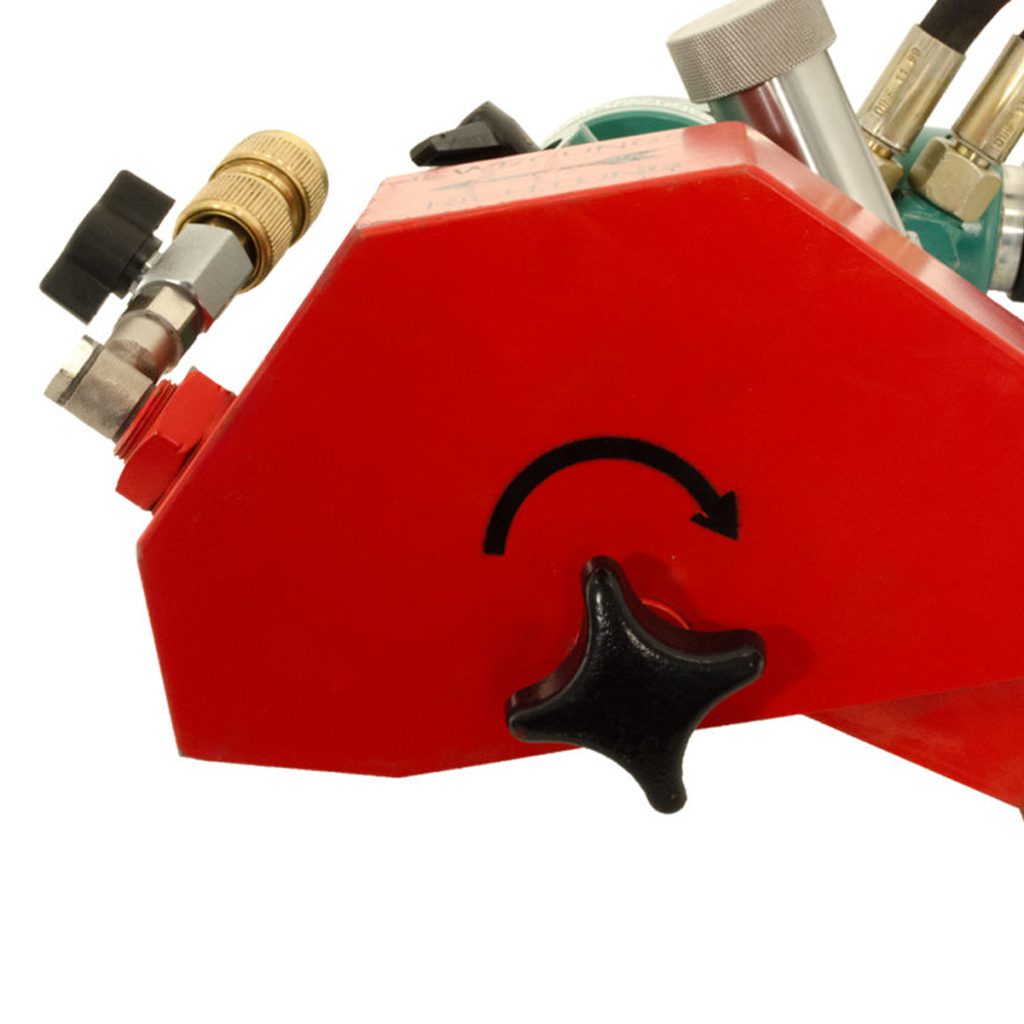

- Fully enclosed blade guard enhances operator safety during operation.

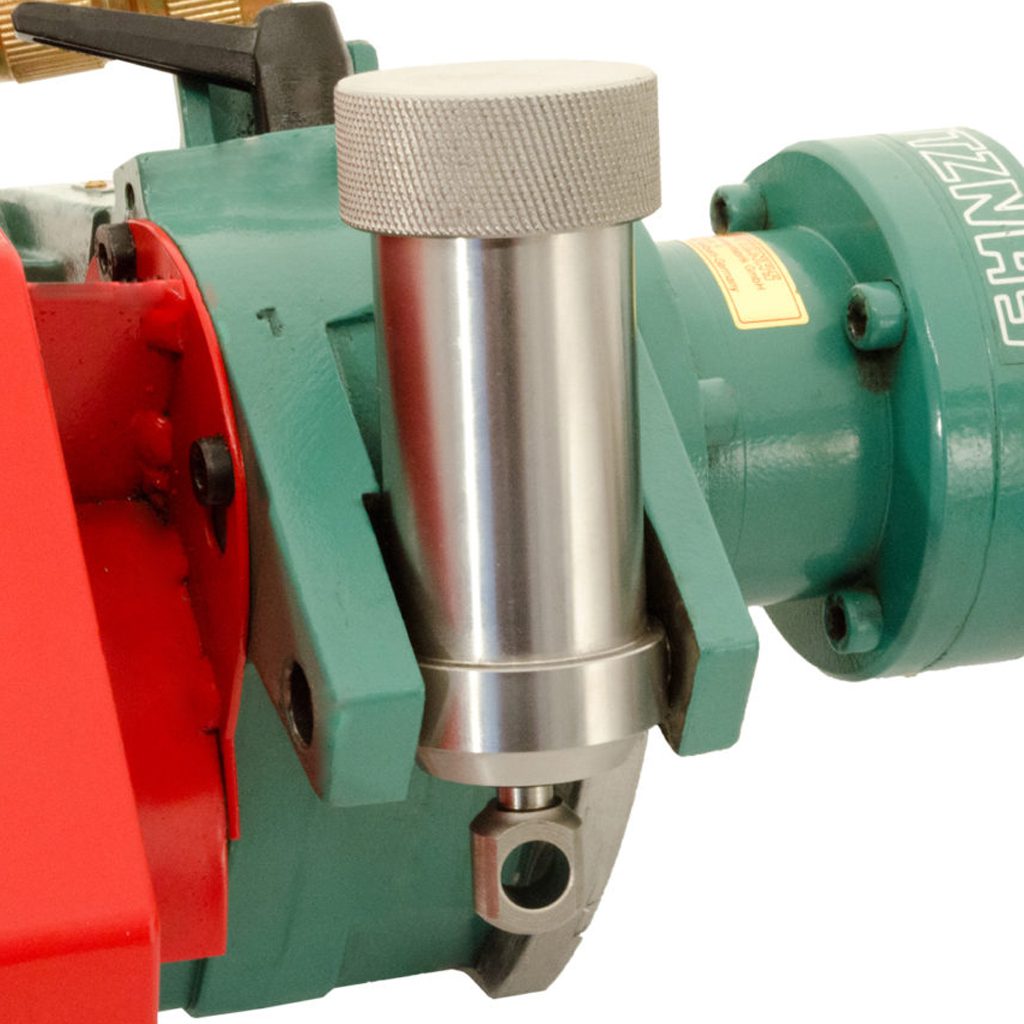

- Semi‑automatic feed system reduces operator fatigue and improves cutting efficiency.
- Durable construction designed for continuous industrial use in demanding field conditions.
Applications & Usage

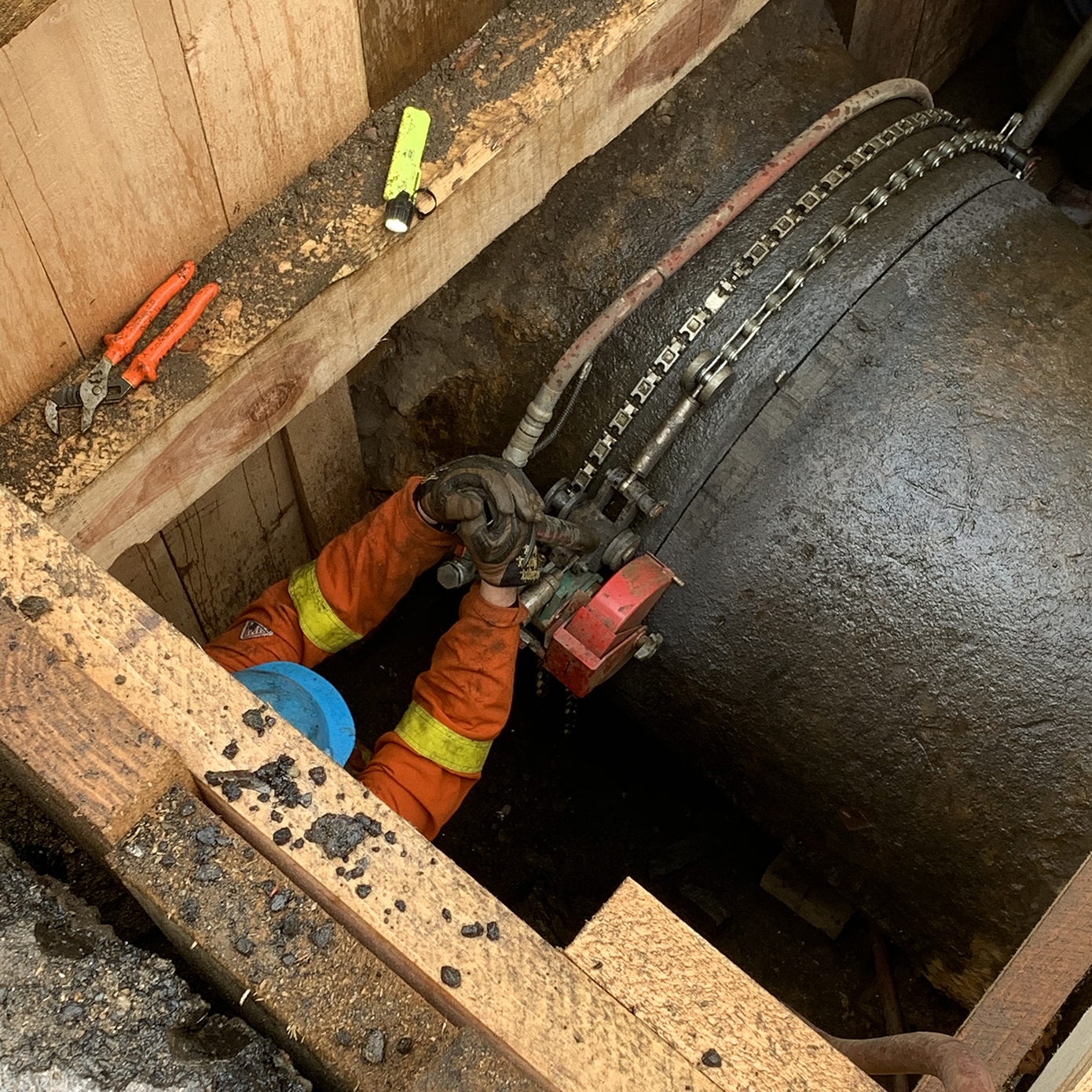

- Hydraulic Pipe Cutting Machines for cutting buried or exposed pipelines during installation, repair, or emergency response.
- Ideal for ductile iron, steel, HDPE, and concrete pipe used in municipal infrastructure.
- Cut pipe quickly from 6″ to 63″ dia. with wall thicknesses from 1/4″ to 2″.
- Suitable for hazardous environments where cold cutting is required and electric tools are restricted.
- Hydraulic Pipe Cutting Machines are used during shutdowns, turnarounds, and maintenance cycles for large diameter process piping.
- Performs reliably in corrosive, wet, and high‑moisture environments.
- Used for cutting large diameter pipe, risers, and structural components on ships and offshore platforms.
- Guide chain is adjustable by adding and removing chain links.
- ATEX certified for use in Ex Zones (ATEX II 2G Ex h IIB T6 Gb)
Technical Specifications
When ordering, specify pipe diameter and application for assistance with determining required blade, feed handle, guide carriage & chain and tensioning chain & tensioner.

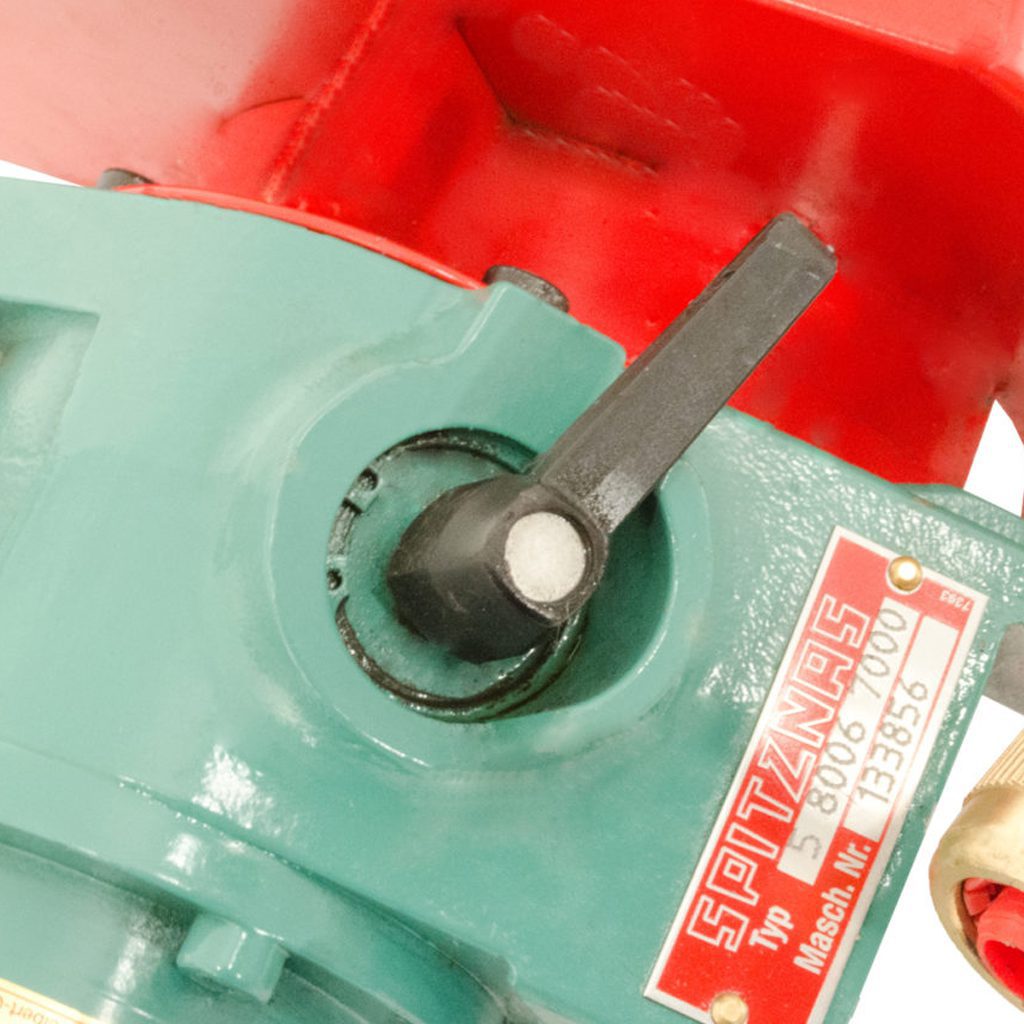

| Hydraulic Pipe Cutting Machine | |
| Item ID: | 5 8006 7000 |
|---|---|
| Power | 2.7 HP |

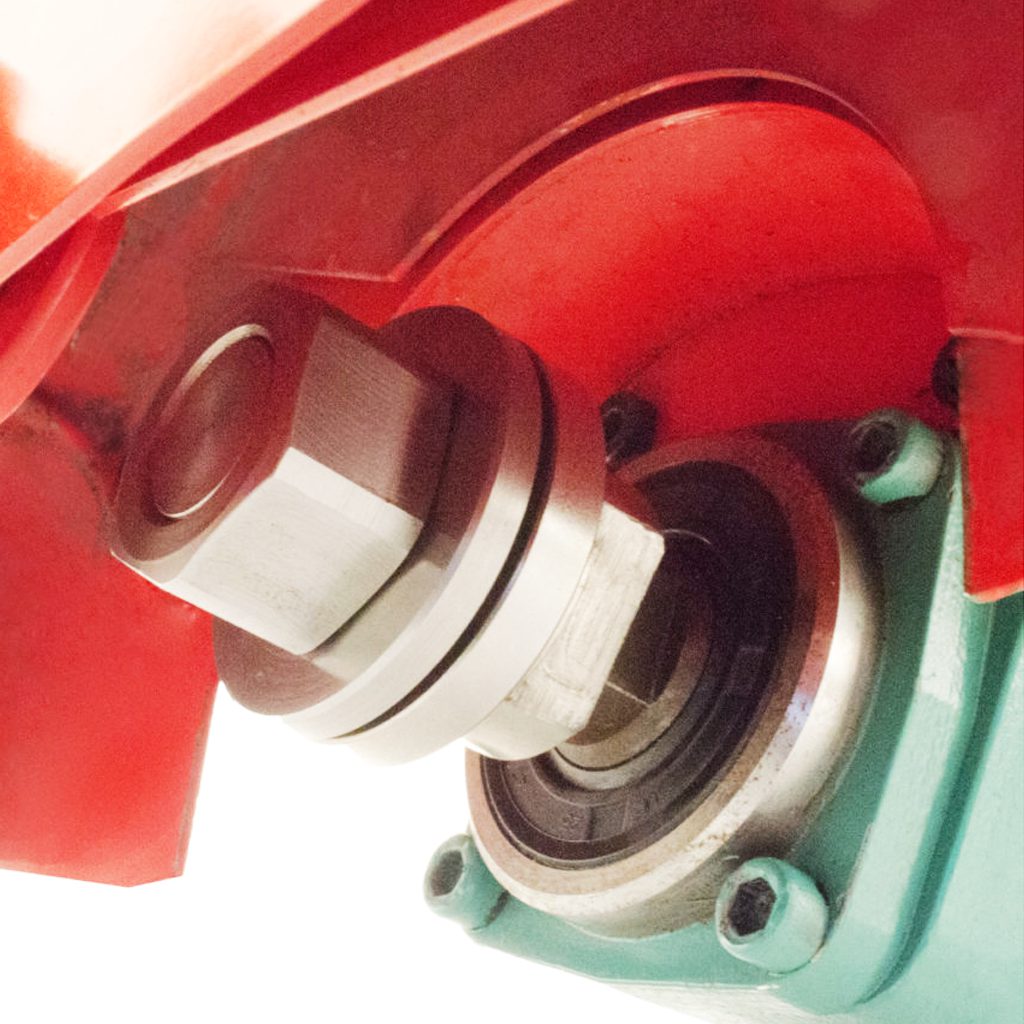

| Blade Arbor | 7/8" |
| Oil Flow | 6-13 Gallons @ 2000 PSI |
| Speed | 350/1800 RPM |
| Blade Dia. | 7" |
| Hose Connection | 1/2" FF (HTMA) |
| Weight | 28 lbs. |
| Pipe Cutting Machine Kits | |
| For Pipe Diameters | Hydraulic Kit Item ID: |
|---|---|
| 6" to 16" (150-400mm) | 5 8006 16HK |
| 6" to 32" (150-800mm) | 5 8006 32HK |
| 6" to 63" (150-1600mm) | 5 8006 63HK |
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs
Catalog PDF 1
CAT_Belly_Saws
Download PDF
Catalog PDF 2
CAT_Saws
Download PDF
Catalog PDF 3
CAT_Metalworking_2024
Download PDF
Product Schematic
PDF
SCHEM_580067000
Download PDF
Operating Manual
PDF
MANUAL_580067000
Download PDF
