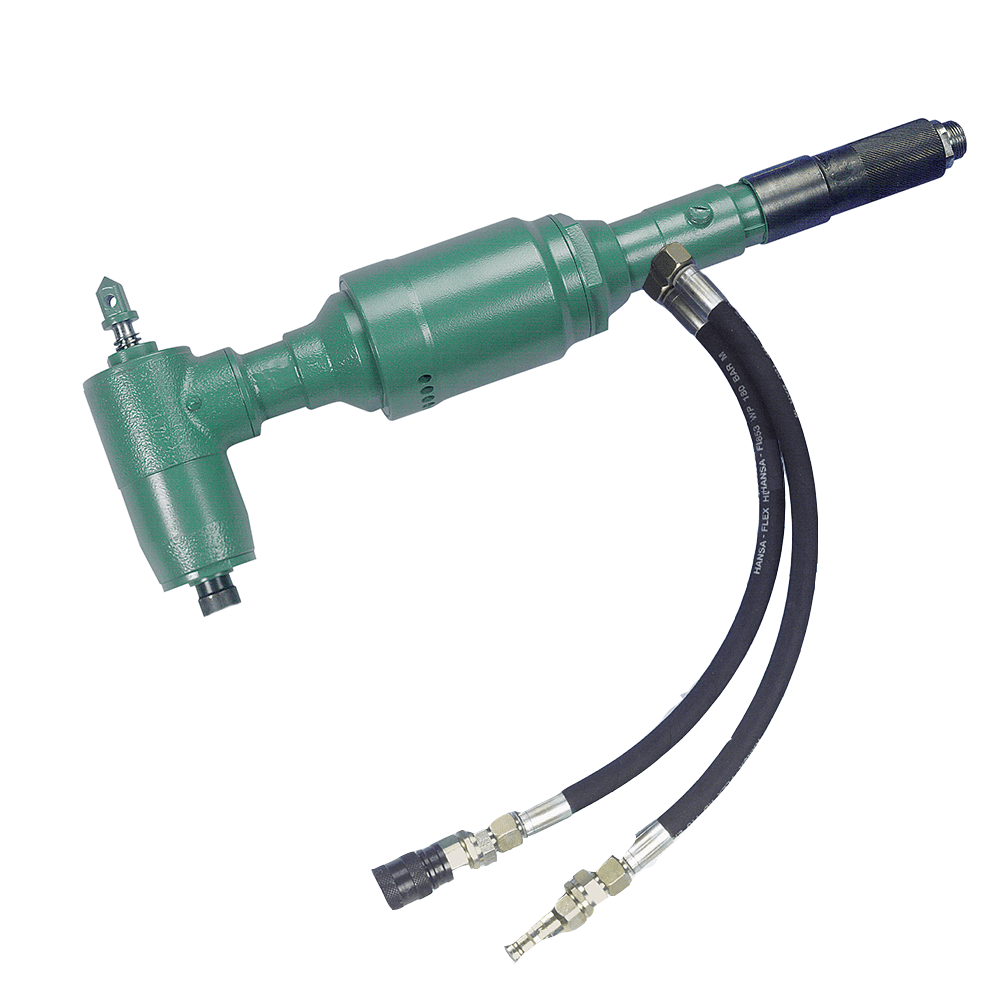

Hydraulic Corner Drill
- Drilling Capacity: 1-1/4″ (steel)
- Reaming Capacity: 1″ (steel)
- Motor Power: 3.8 HP
- Whip hoses & FF Couplings included
Includes (testing):
- Hydraulic Corner Drill
Benefits
- Hydraulic power eliminates electrical hazards and provides consistent output even in wet, dirty, or remote locations.
- Engineered to reach areas where standard drills cannot fit, enabling precise work in confined or obstructed locations.
- The self‑closing throttle automatically returns to the off position when released, giving operators immediate control and reducing the risk of accidental run on during repositioning.
- Integrated lubrication ensures continuous oil delivery to the motor, reducing wear, extending service life, and maintaining smooth hydraulic performance in demanding field conditions.
Applications & Usage
- Hydraulic Corner Drill with small side-to-side distance for working in tight spaces.
- Reaming and enlarging holes in girders, beams, and structural connections where access is limited.
- Onsite reaming and hole alignment for rail bridges, support structures, and rolling stock components.
- Drilling and reaming in confined spaces inside hulls, bulkheads, and structural frames.
- Creating or enlarging holes in thick, high strength steel components used in mining, construction, and industrial machinery.
Technical Specifications
| 2 1806 0010 | |
|---|---|
| Morse Taper | #3 |
| Drilling (in steel) | 1-1/4" |
| Reaming (in steel) | 1" |
| Torque Output (ft./lbs.) | 60 |
| Load Speed (RPM) | 220 |
| Motor Power (HP) | 3.8 |
| Oil Flow PSI | 4 GPM @ 2000 |
| Length | 21" |
| Weight | 25 lbs. |
