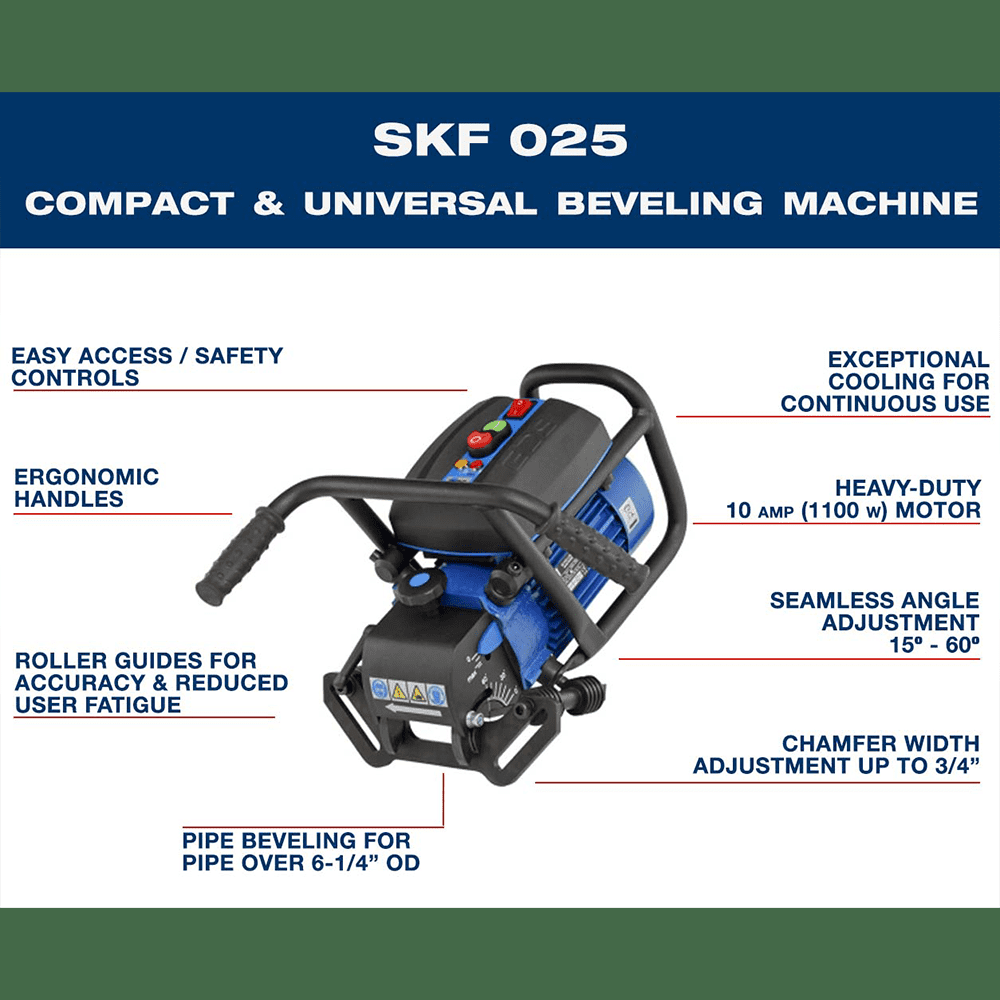

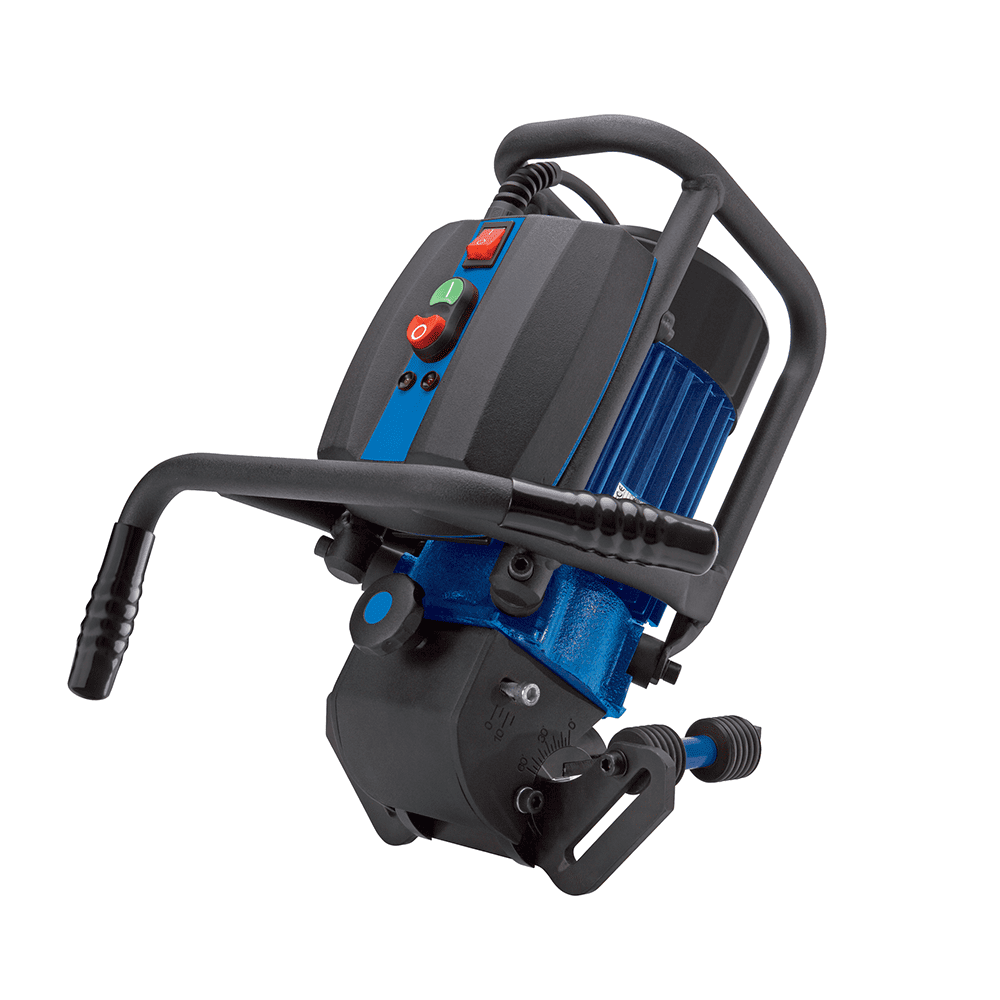

SKF 025 Portable Beveling Machine
- Beveling Angle: 15°- 60°, continuously adjustable
- Max Bevel Width: 3/4″
- Cutting Speed: 2850 min-1
- Motor Power: 10 Amp
SKF 025 Portable Beveler Standard Equipment:
- One milling head
- 10 indexable inserts for fast metal removal and extended tool life
- Tools for assembly
- Built-in pipe roller guide
- Steel carrying case
- User’s manual
Benefits
- Provides fast and easy preparation of weld seams
- Offers high-quality performance that allows for superior weld connections
- Robust design, single operator control and easy handling; designed for continuous operation with smooth roller guides
- Anti-vibration system protects electronics and allows for more comfortable operation
- Includes one milling head and 10 indexable inserts for fast metal removal and extended tool life
- Precise roller guidance, low friction resistance
- Single-operator, straightforward handling
Applications & Usage
- Provides fast and easy preparation of weld seams
- Bevels 15° to 60° angles on plate or pipe with continuously adjustable angle and land width up to 3/4″
- Ideal for use on steel, stainless steel, aluminum and nonferrous metals
- Offers high-quality performance that allows for superior weld connections
Technical Specifications
| Part Number | SKF 025 |
|---|---|
| Beveling Angle | 15° - 60° (continuously adjustable) |
| Max. Bevel Width** | 3/4" |
| Pipe Beveling OD | Fits Pipe Over 6-1/4" OD |
| Motor Power | 10 Amp |
| Voltage | 110 V (220 V / 50 Hz also available) |
| Cutting Speed | 2850 min-1 |
| Cutting Inserts | 10 |
| Dimensions (LxH) | 16-1/2" x 13" |
| Weight | 45 lbs. |
Optional Accessories
Optional
OptionalOptionalRelated PDFs
Catalog PDF
CAT_Port_Beveling_Mach
Download PDF

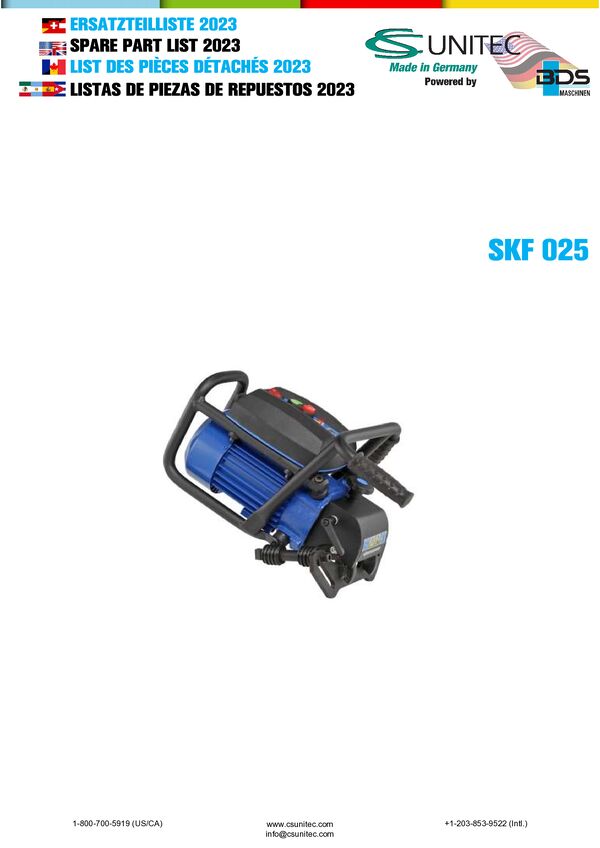

Product Schematic
SCHEM_SKF025
Download PDF

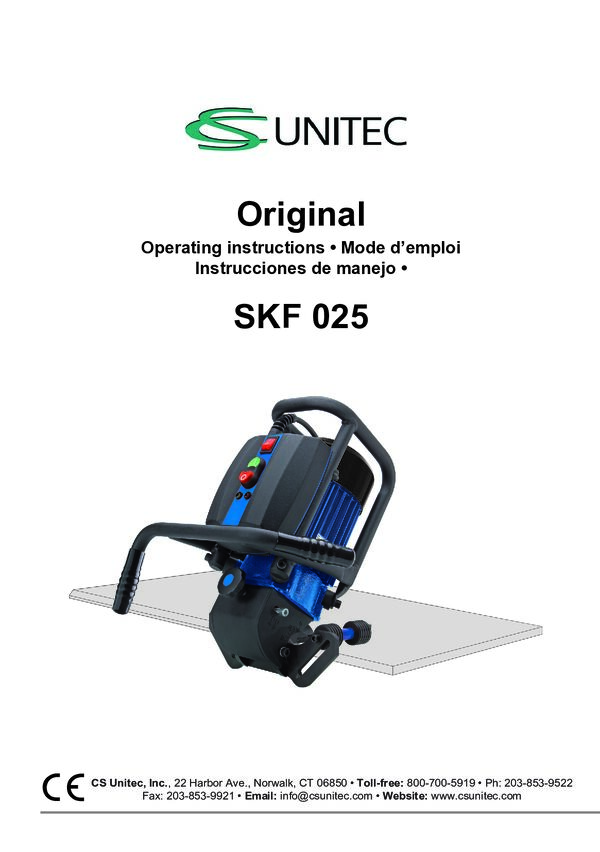

Operating Manual
MANUAL_SKF025
Download PDF
Usage
- Provides fast and easy preparation of weld seams
- Bevels 15° to 60° angles on plate or pipe with continuously adjustable angle and land width up to 3/4″
- Ideal for use on steel, stainless steel, aluminum and nonferrous metals
- Offers high-quality performance that allows for superior weld connections
Benefits
- Provides fast and easy preparation of weld seams
- Offers high-quality performance that allows for superior weld connections
- Robust design, single operator control and easy handling; designed for continuous operation with smooth roller guides
- Anti-vibration system protects electronics and allows for more comfortable operation
- Includes one milling head and 10 indexable inserts for fast metal removal and extended tool life
- Precise roller guidance, low friction resistance
- Single-operator, straightforward handling
Usage
- Provides fast and easy preparation of weld seams
- Bevels 15° to 60° angles on plate or pipe with continuously adjustable angle and land width up to 3/4″
- Ideal for use on steel, stainless steel, aluminum and nonferrous metals
- Offers high-quality performance that allows for superior weld connections
Benefits
- Provides fast and easy preparation of weld seams
- Offers high-quality performance that allows for superior weld connections
- Robust design, single operator control and easy handling; designed for continuous operation with smooth roller guides
- Anti-vibration system protects electronics and allows for more comfortable operation
- Includes one milling head and 10 indexable inserts for fast metal removal and extended tool life
- Precise roller guidance, low friction resistance
- Single-operator, straightforward handling
