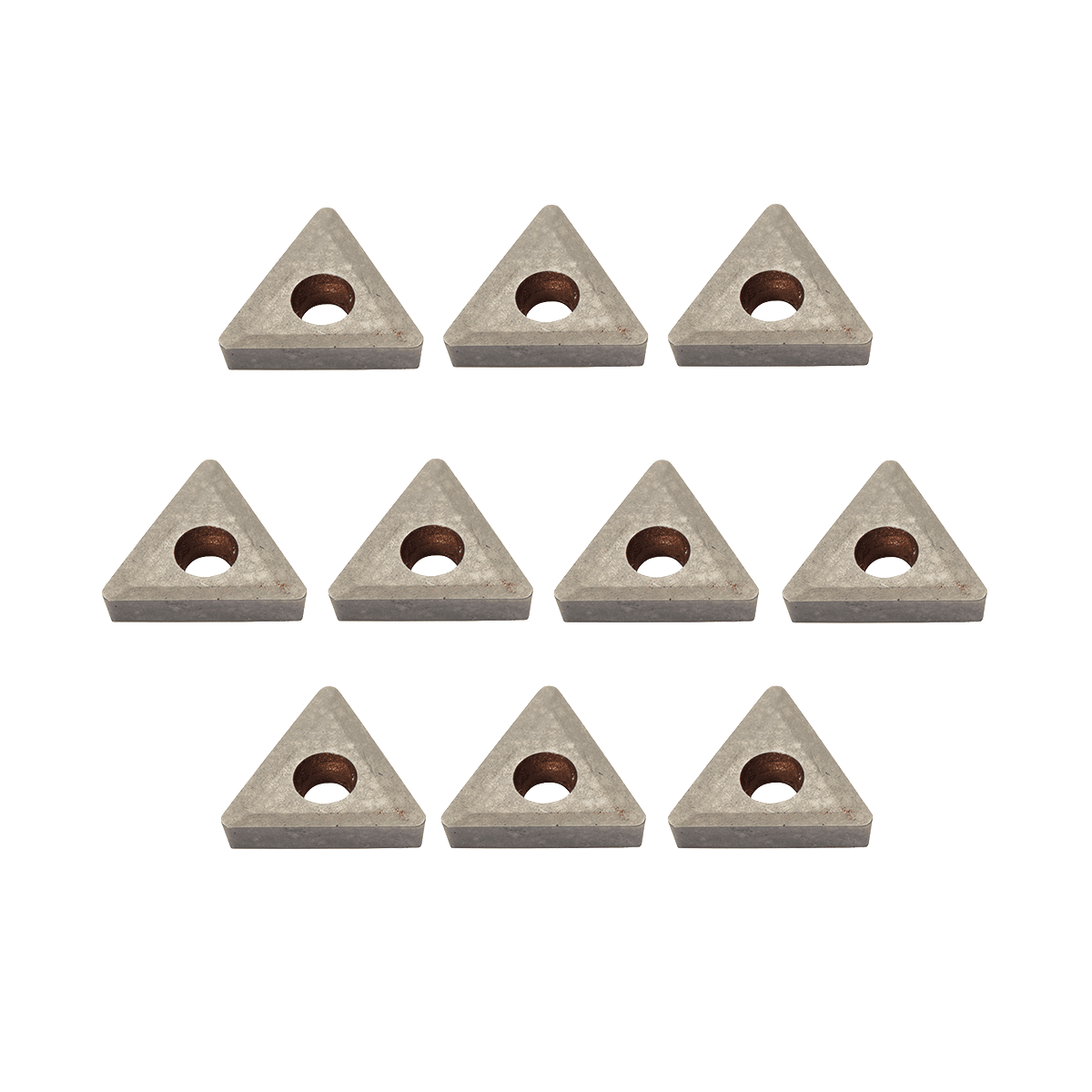

Cutting Inserts
- For Beveling Machines
- Sold in packs of 10
- 10 cutters per pack
Benefits
- Ideal for straight edges, inner and outer radii
- Designed to bevel 15º to 60º (SKF 025) or fixed degrees 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics
- Fine adjustment feature for slight chamfers when deburring for the preparation of weld seams
Applications & Usage
- For Beveling Machines
- Sold in packs of 10
Technical Specifications
| Beveler Cutting Inserts | ||
| Item ID: | Milling Head Compatibility | Description |
|---|---|---|
| SHM 200 | ZFR 300.3, ZFR 450.3 | 30º or 45º |
| SHM 200-E | ZFR 300.3, ZFR 450.3 | 30º or 45º for stainless steel |
| SHM 201 | ZFR 452.3 | 1.6mm radius (0.063") |
| SHM 202 | ZFR 452.3 | 2.5mm radius (0.098") |

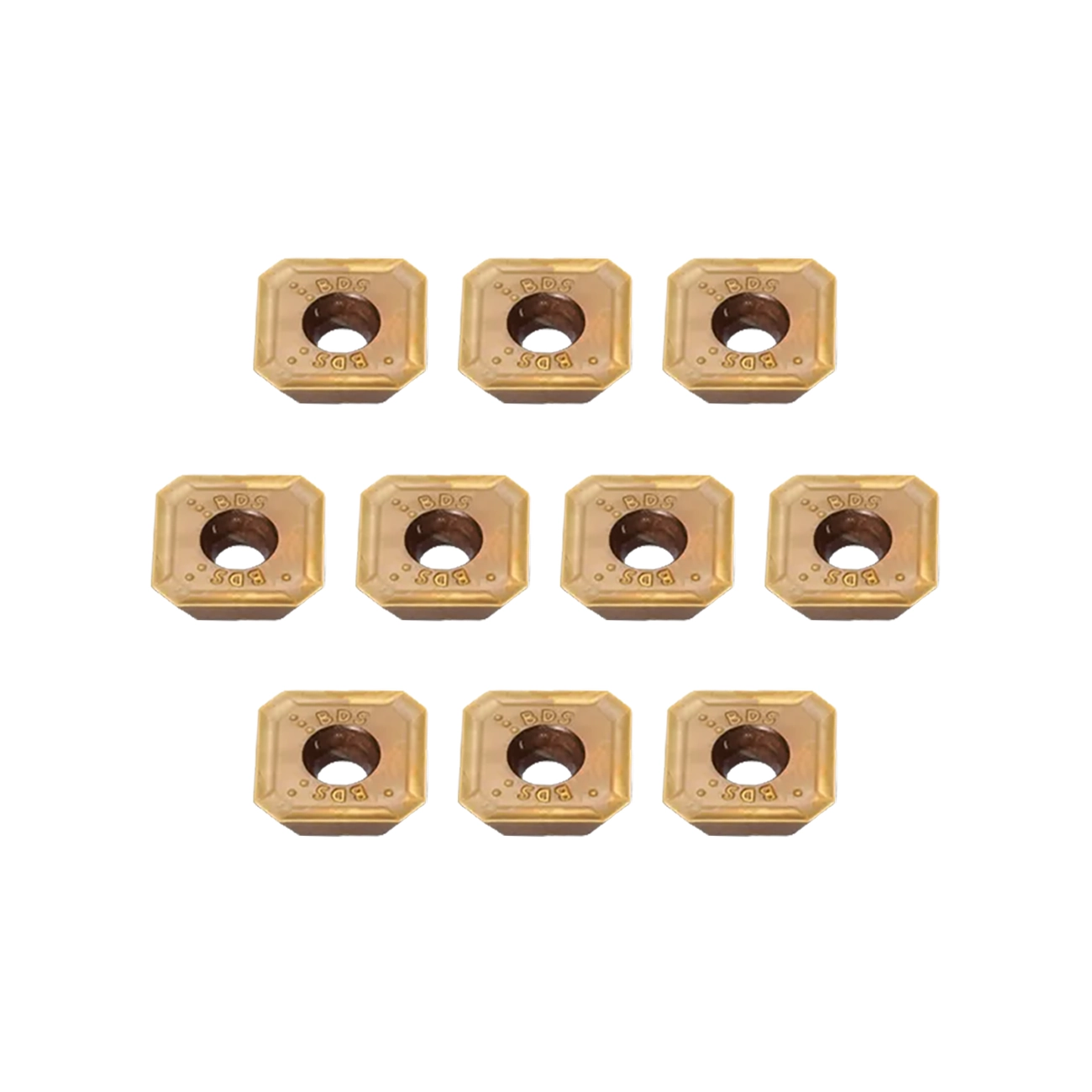

| SHM 800 | ZFR 250 | 15° to 60° |

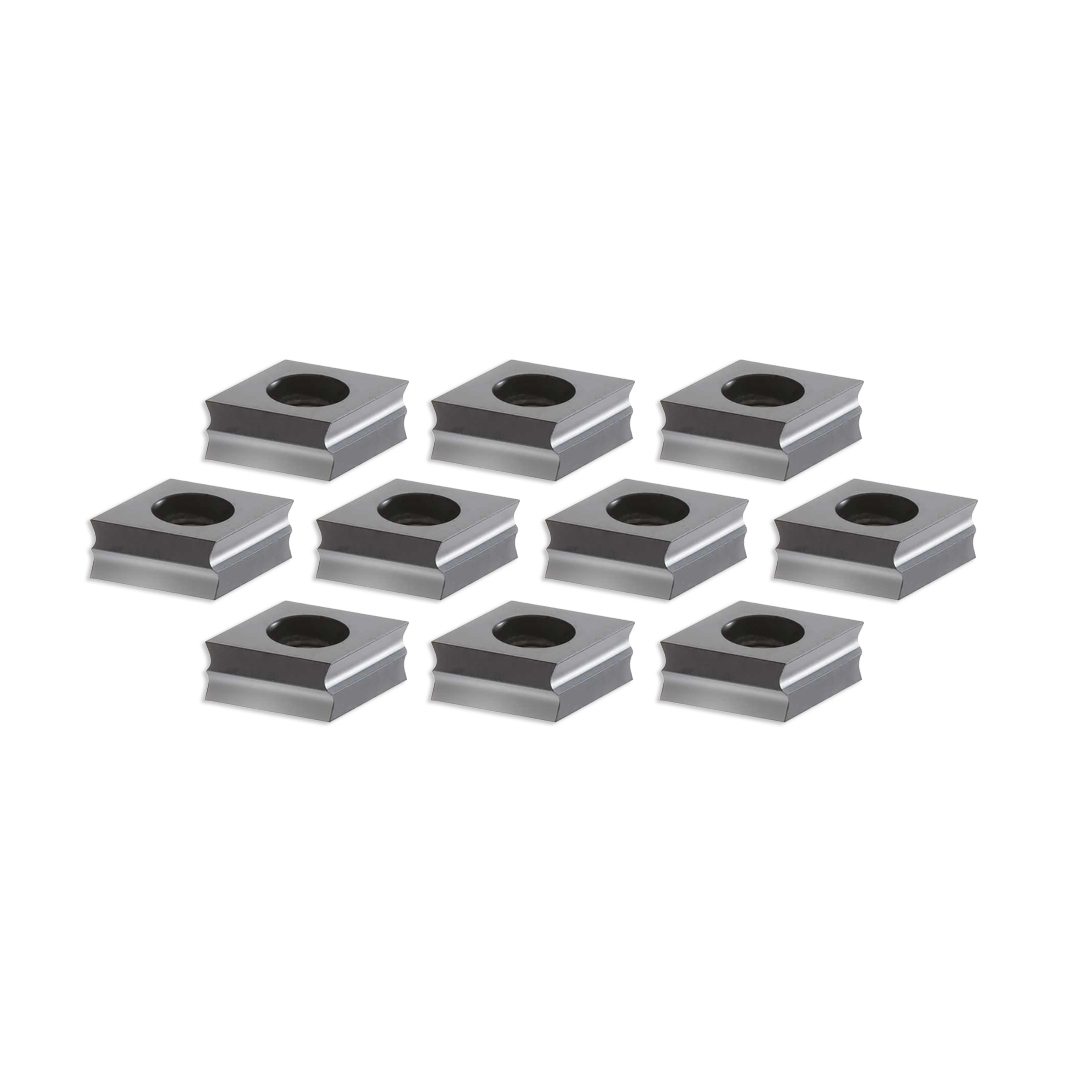

| SHM 900 | ZFR 630, ZFR 645 | 30˚ or 45˚ |
| SHM 900-E | ZFR 630, ZFR 645 | 30˚ or 45˚ for stainless steel |
Related PDFs

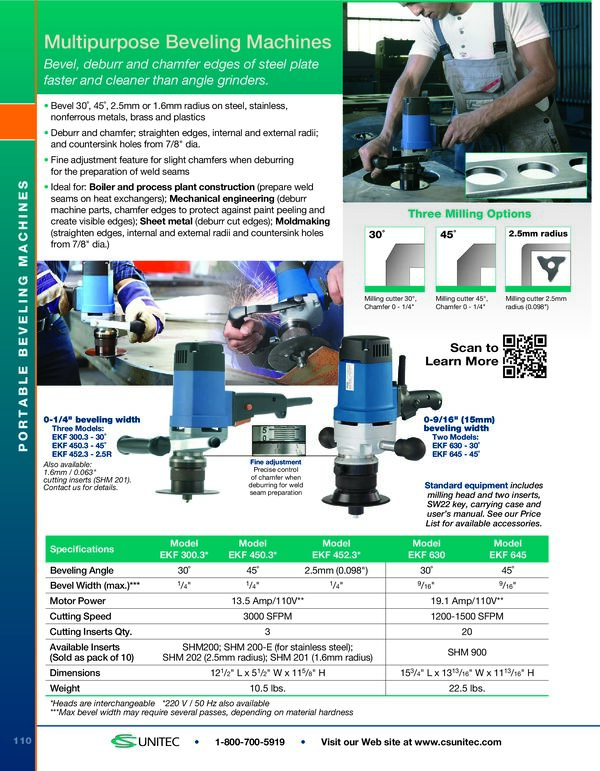

Catalog PDF
CAT_Port_Beveling_Mach
Download PDF

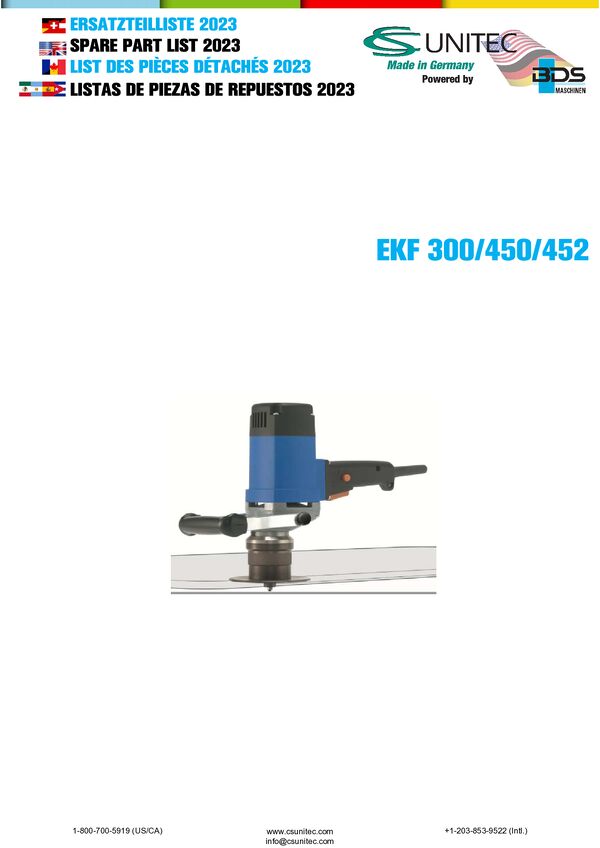

Product Schematic 1
SCHEM_EKF300_450_452
Download PDF

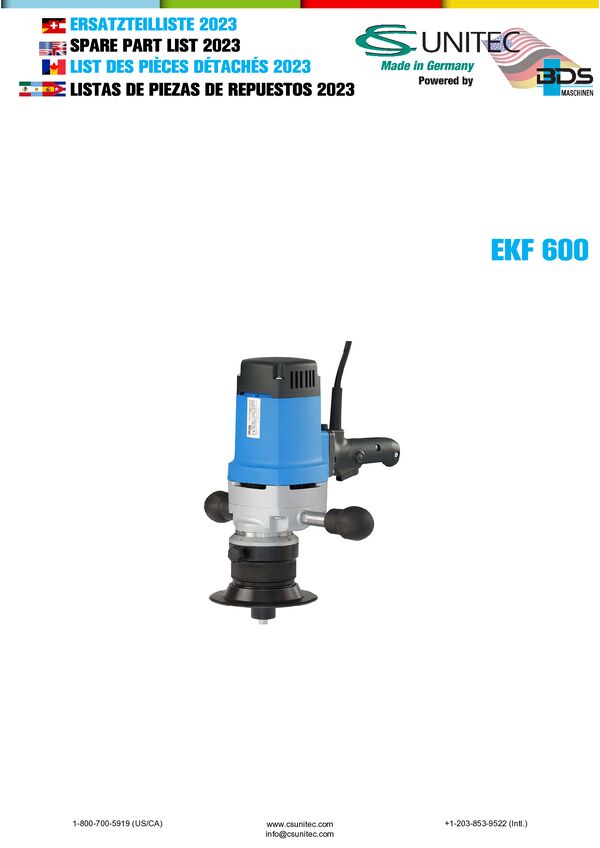

Product Schematic 2
SCHEM_EKF600
Download PDF
Product Schematic 3
SCHEM_SKF025
Download PDF
Operating Manual 1
MANUAL_EKF300_450_452
Download PDF
Operating Manual 2
MANUAL_SKF025
Download PDF
Usage
- For Beveling Machines
- Sold in packs of 10
Benefits
- Ideal for straight edges, inner and outer radii
- Designed to bevel 15º to 60º (SKF 025) or fixed degrees 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics
- Fine adjustment feature for slight chamfers when deburring for the preparation of weld seams
Usage
- For Beveling Machines
- Sold in packs of 10
Benefits
- Ideal for straight edges, inner and outer radii
- Designed to bevel 15º to 60º (SKF 025) or fixed degrees 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics
- Fine adjustment feature for slight chamfers when deburring for the preparation of weld seams
