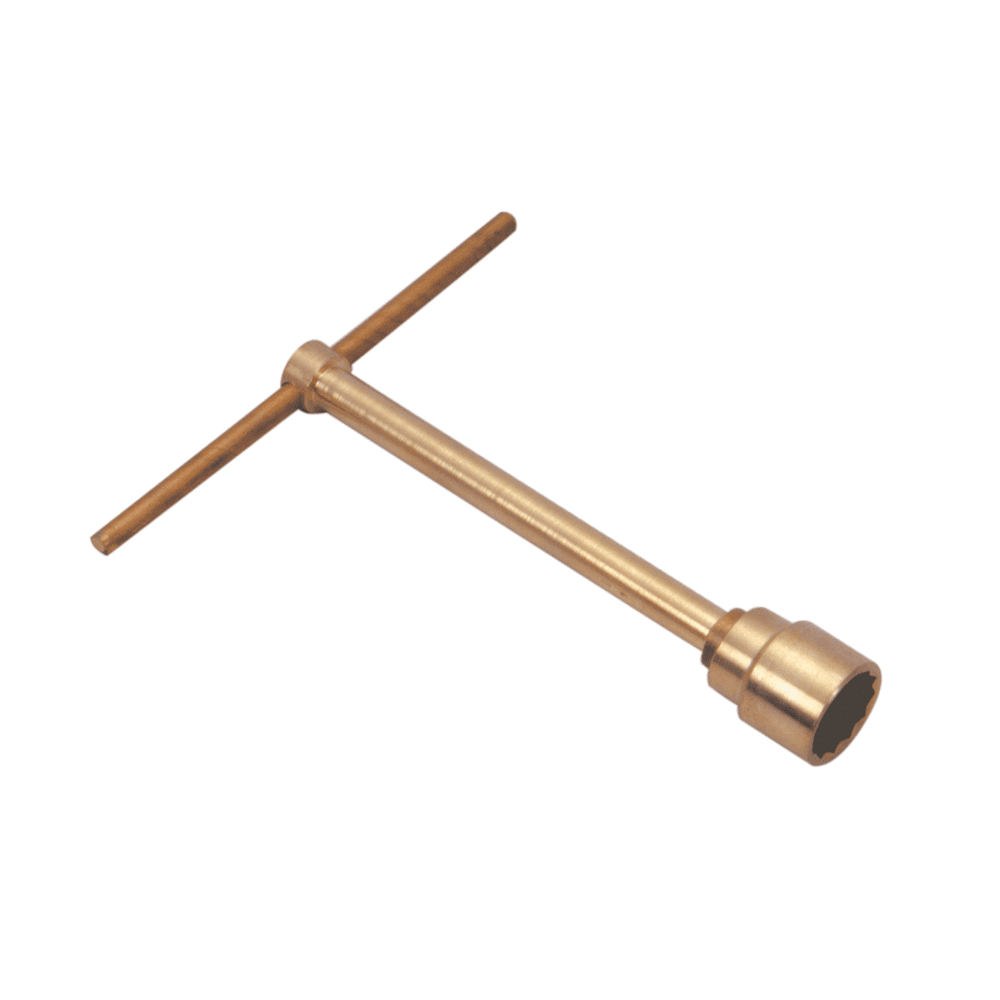

T-Type Socket Wrench, 12-Point

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Included Components

  • Socket Wrench, T-Type, 12-Point

Benefits

  • Fast spin handle
  • 12-point engagement
  • Lightweight body

Applications & Usage

  • T-Type Socket Wrench is Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2008 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex702-005UA Ex702-005UB
No. s in. a in. l in. Wt. lbs.
Ex702-005U 5/16 8 6 3/4 1.28
Ex702-010U 11/32 8 6 3/4 1.28
Ex702-015U 3/8 8 6 3/4 1.28
Ex702-020U 13/32 8 6 3/4 1.28
Ex702-025U 7/16 8 6 3/4 1.28
Ex702-030U 1/2 8 6 3/4 1.28
Ex702-035U 9/16 8 6 3/4 1.28
Ex702-040U 19/32 10 10 3/8 1.59
Ex702-045U 5/8 10 10 3/8 1.59
Ex702-050U 11/16 10 10 3/8 1.59
Ex702-055U 3/4 8 9 3/16 1.59
Ex702-060U 25/32 10 10 3/8 1.59
Ex702-065U 13/16 10 10 3/8 1.59
Ex702-070U 7/8 10 10 3/8 2.14
Ex702-075U 15/16 10 10 3/8 2.09
Ex702-080U 31/32 10 3/8 10 3/8 2.14
Ex702-085U 1 10 3/8 10 3/8 2.14
Ex702-090U 1 1/16 10 3/8 10 3/8 2.14
Ex702-095U 1 1/8 10 3/8 10 3/8 2.14
Ex702-100U 1 3/16 10 3/8 10 3/8 2.29
Ex702-105U 1 1/4 11 3/16 11 3/16 2.47
Ex702-110U 1 5/16 11 3/16 11 3/16 2.47
Metric Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex702-8A Ex702-8B

No. s mm a mm l mm Wt. kg
Ex702-8 8 200 170 0.58
Ex702-9 9 200 170 0.58
Ex702-10 10 200 170 0.58
Ex702-11 11 200 170 0.58
Ex702-12 12 200 170 0.58
Ex702-13 13 200 170 0.58
Ex702-14 14 200 170 0.58
Ex702-15 15 200 230 0.72
Ex702-16 16 200 230 0.72
Ex702-17 17 200 230 0.72
Ex702-18 18 200 230 0.72
Ex702-19 19 200 230 0.72
Ex702-20 20 250 260 0.97
Ex702-21 21 250 260 0.97
Ex702-22 22 250 260 0.97
Ex702-23 23 250 260 0.97
Ex702-24 24 250 260 0.95
Ex702-25 25 260 260 1.04
Ex702-26 26 260 260 1.04
Ex702-27 27 260 260 1.04
Ex702-28 28 260 260 1.04
Ex702-29 29 260 260 1.04
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
Socket wrenches are made in a wide range of sizes and capacities. All have square drives ranging from 1/4" to 1". Drive size is a measure of capacity. Since Detachable Socket wrenches provide an almost endless combination of handles, attachments and sockets, it is possible to assemble a proper tool for almost any type of service within the tool's capacity. Never use a pipe extension or other form of "cheater" to increase the leverage of any wrench. Select a wrench whose opening exactly fits the nut. If possible, always pull on a wrench handle and adjust your stance to prevent a fall if something lets go. There are three types of Sockets hand, power and impact all different in design and hardness. Hand Sockets should never be used on power drive or impact wrenches.
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Related PDFs

Catalog PDF 1
CAT_Safety_Tools_2023 thumbnail
CAT_Safety_Tools_2023 Download PDF
Catalog PDF 2
FLY_SAFETY TOOL POSTER thumbnail
FLY_SAFETY TOOL POSTER Download PDF
Operating Manual 1
SDS_Aluminum_Bronze thumbnail
SDS_Aluminum_Bronze Download PDF
Operating Manual 2
SDS_Copper_Beryllium thumbnail
SDS_Copper_Beryllium Download PDF

Related Articles

Non-Sparking & Non-Magnetic Safety Tools FAQ
Non-Sparking & Non-Magnetic Safety Tools FAQ

Usage

  • T-Type Socket Wrench is Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2008 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Fast spin handle
  • 12-point engagement
  • Lightweight body

Usage

  • T-Type Socket Wrench is Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2008 certified production, TUV materials certified
  • Lifetime Warranty

Benefits

  • Fast spin handle
  • 12-point engagement
  • Lightweight body
Empty tab. Edit page to add content here.
Alloy

Aluminum Bronze (AlBr), Copper Beryllium (CuBe)
Length-s

5/16", 11/32", 3/8", 13/32", 7/16", 1/2", 9/16", 19/32", 5/8", 11/16", 3/4", 25/32", 13/16", 7/8", 15/16", 31/32", 1", 1-1/16", 1-1/8", 1-3/16", 1-1/4", 1-5/16", 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 21 mm, 22 mm, 23 mm, 24 mm, 25 mm, 26 mm, 27 mm, 28 mm, 29 mm
