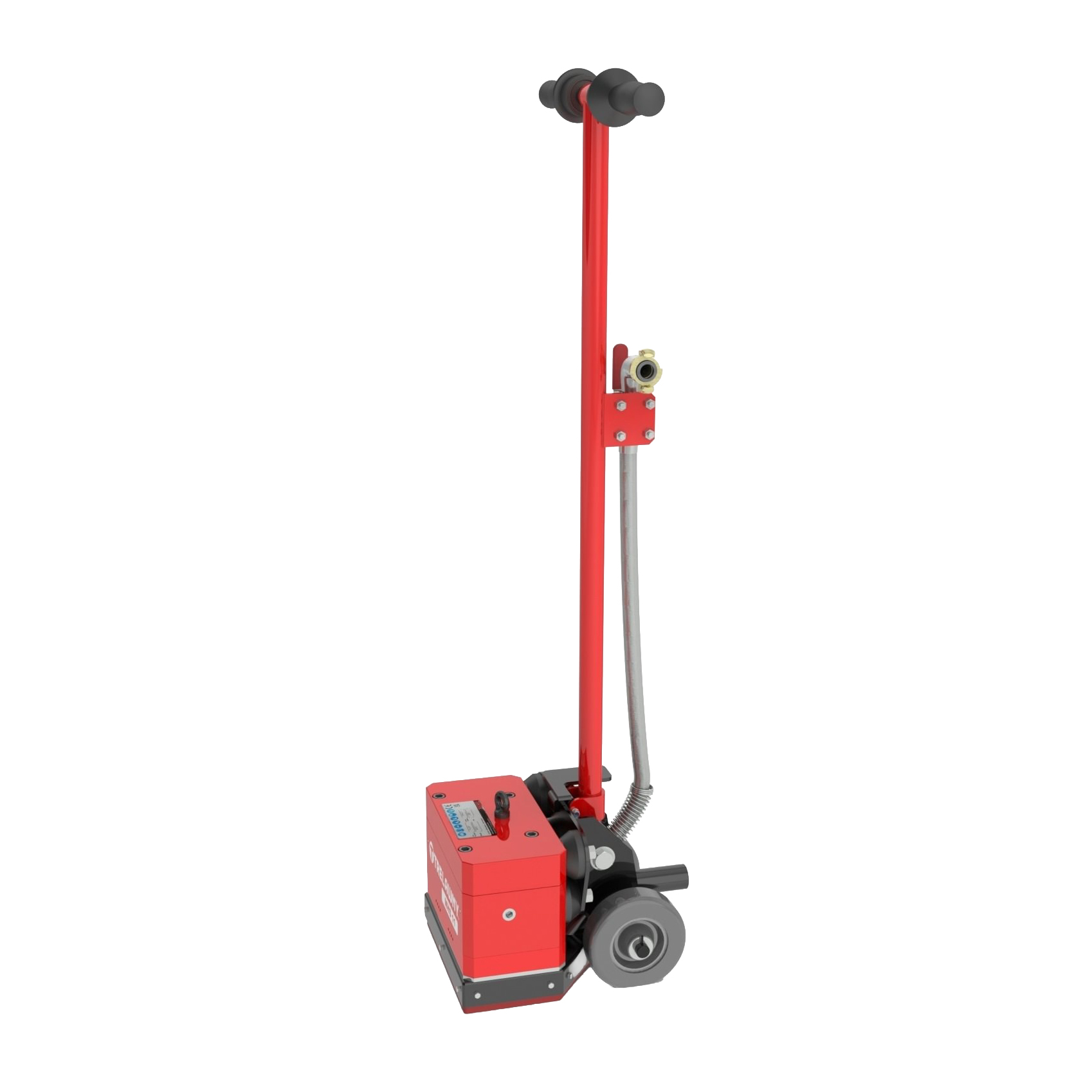

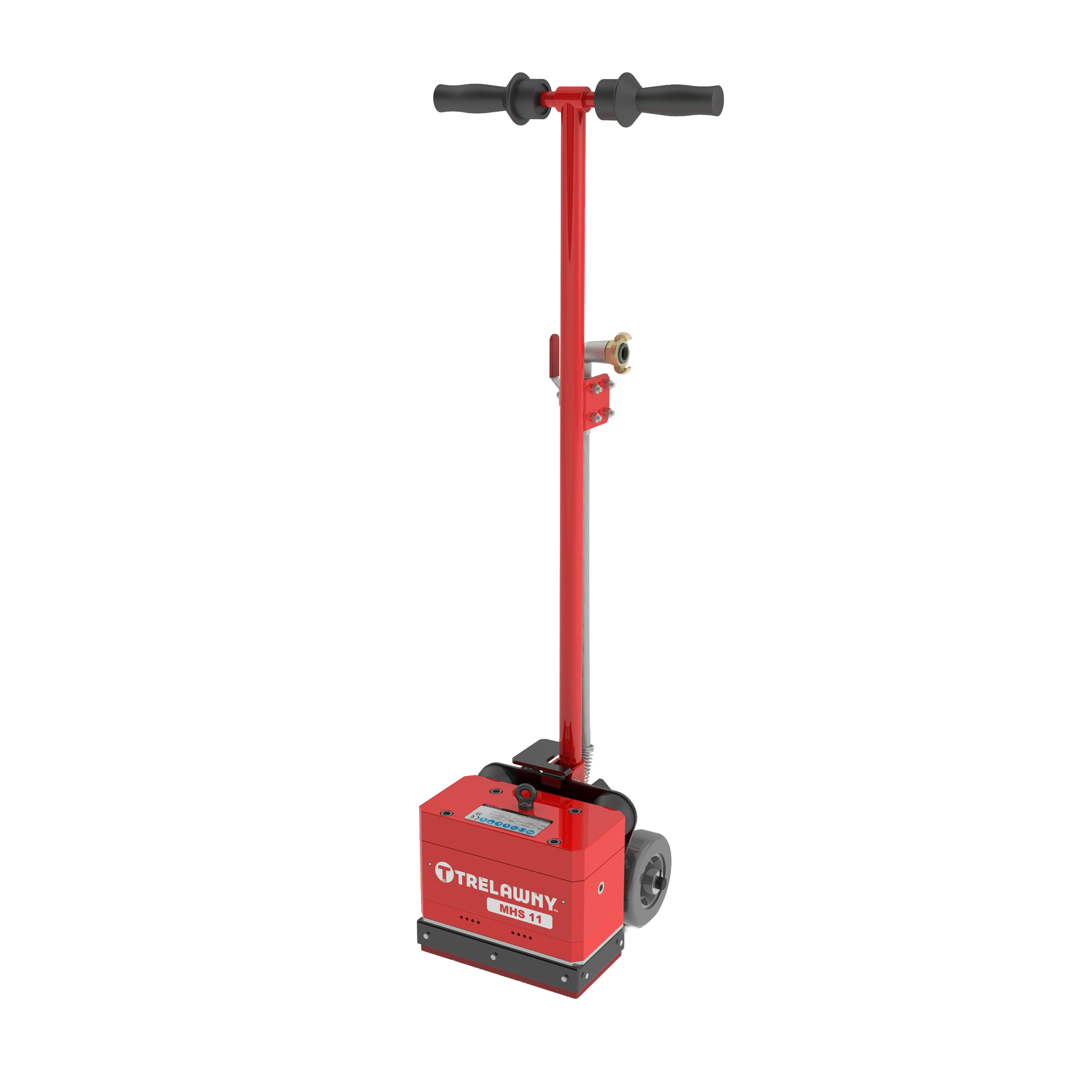

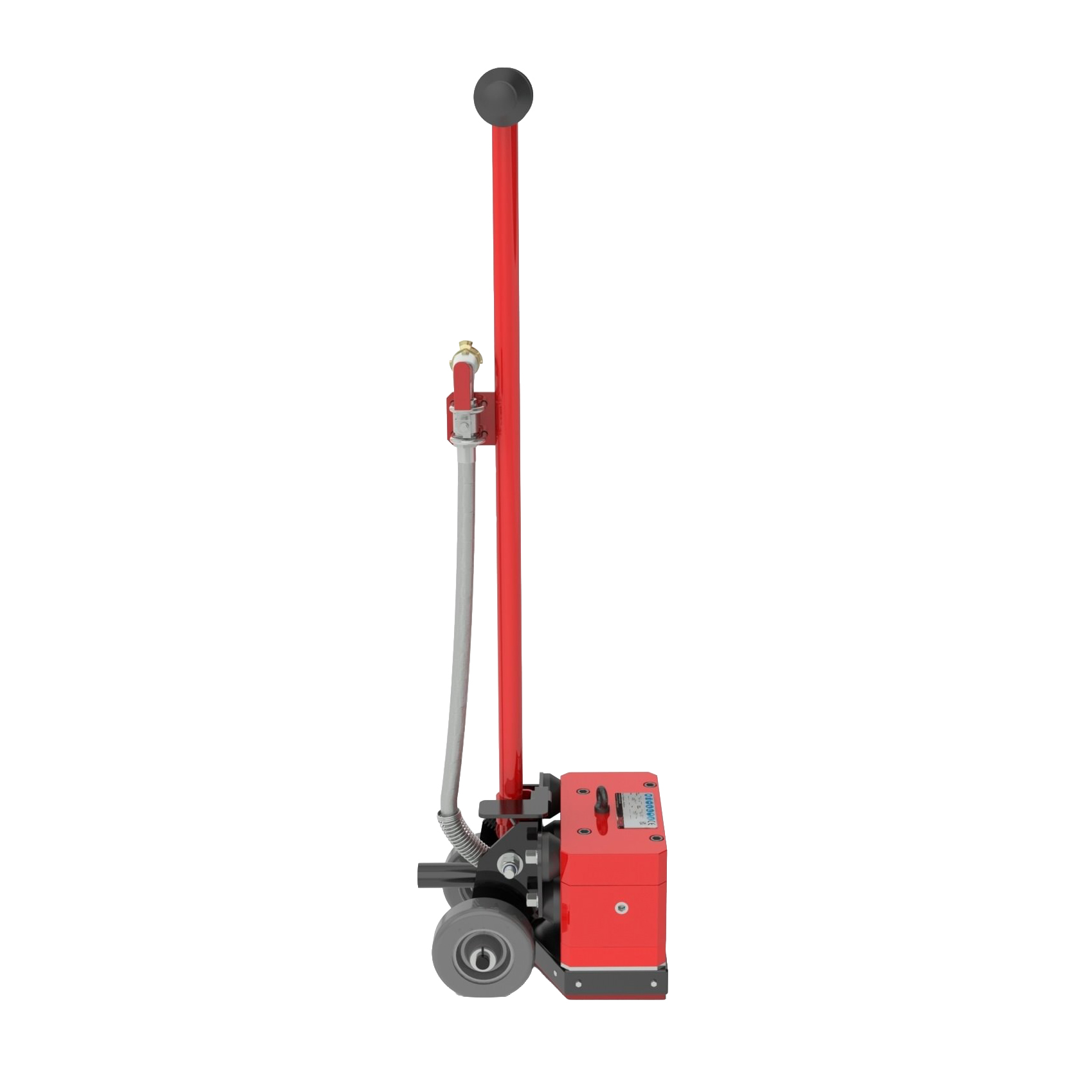

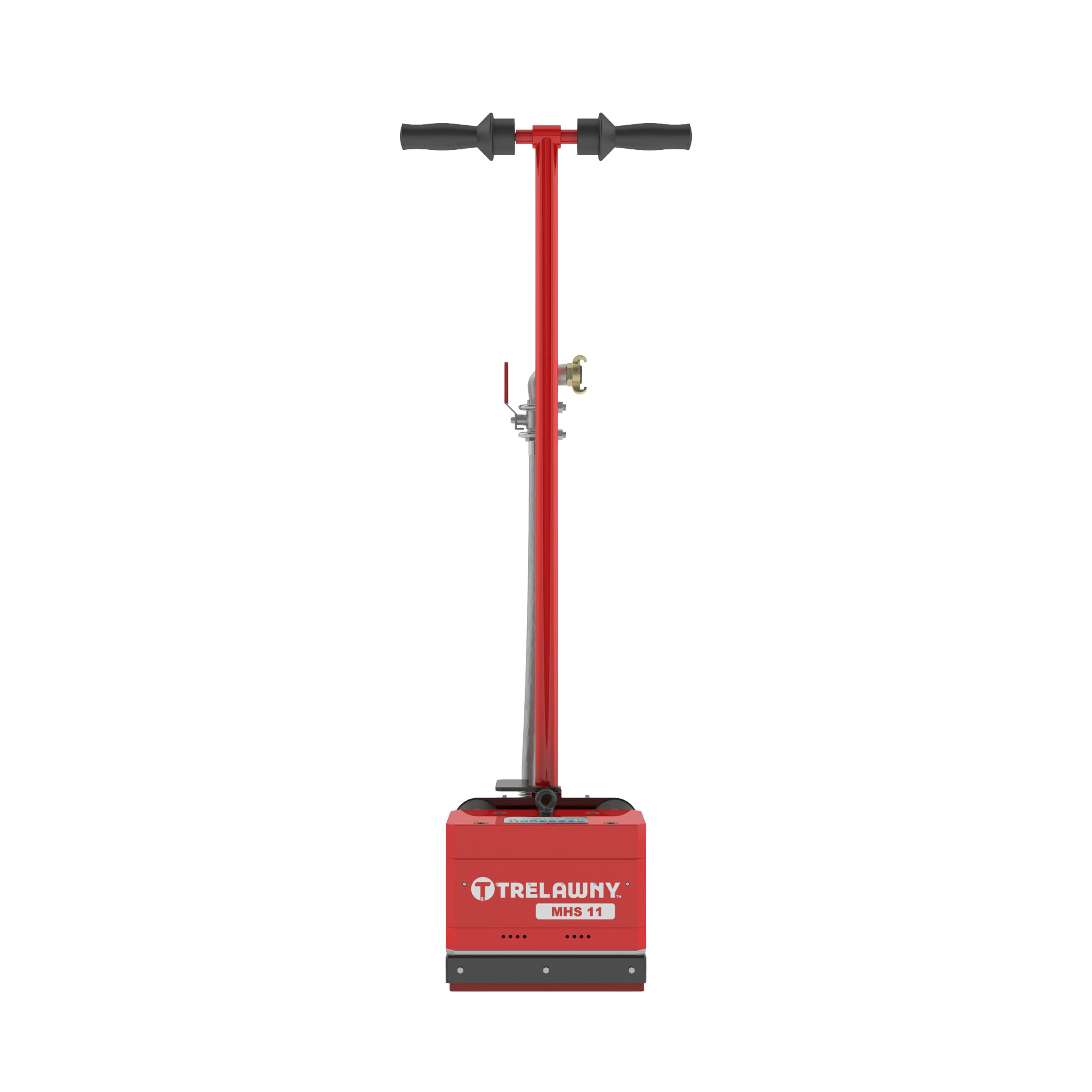

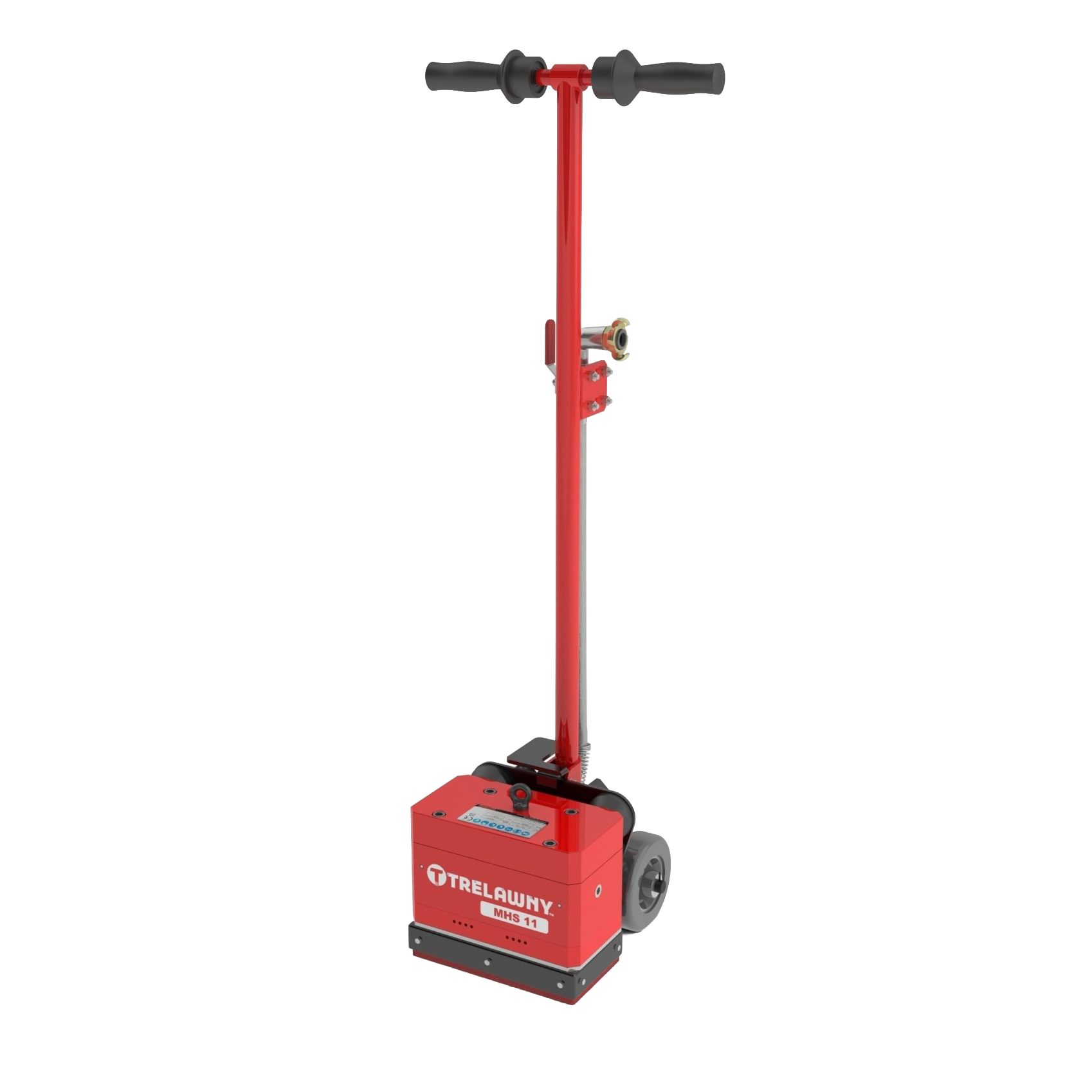

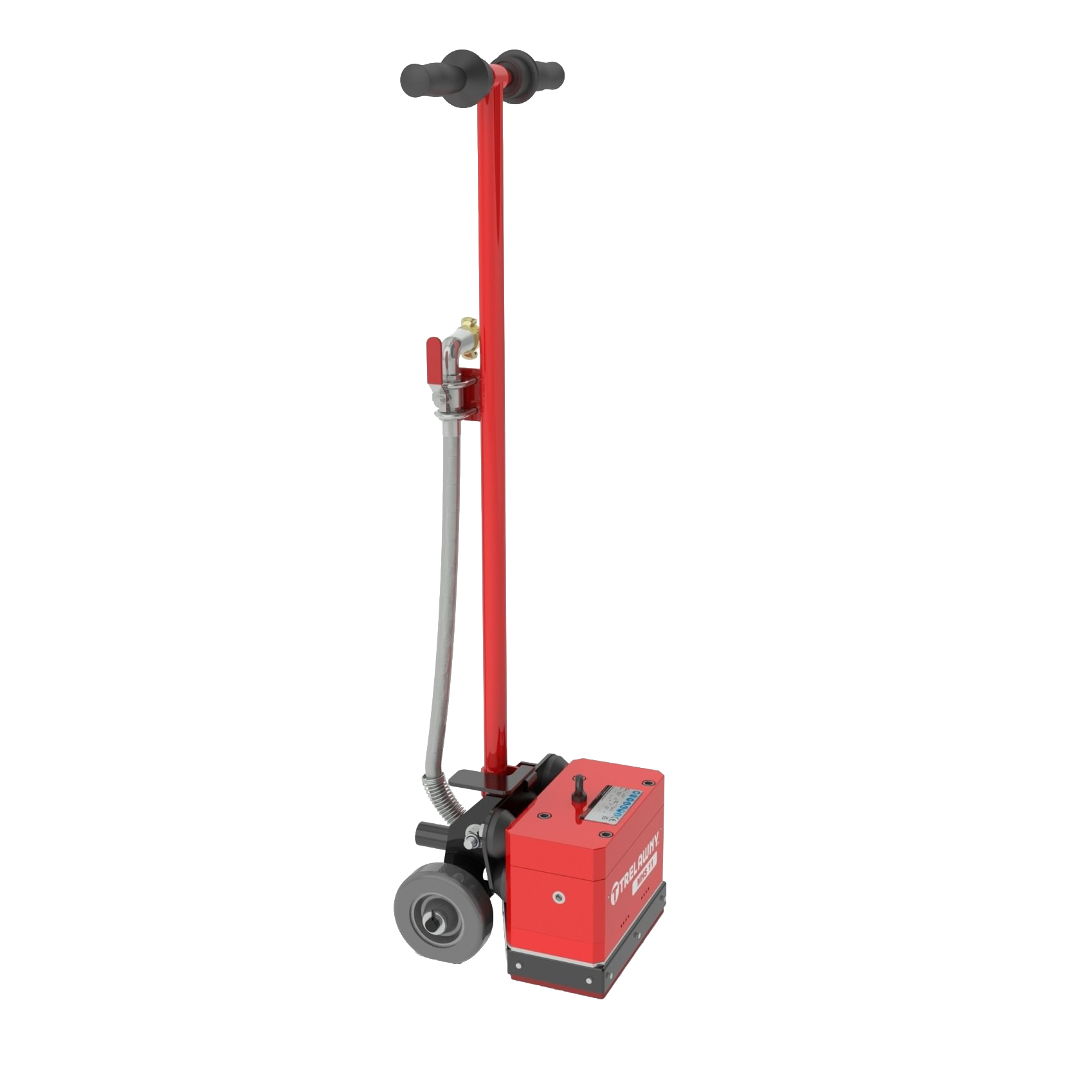

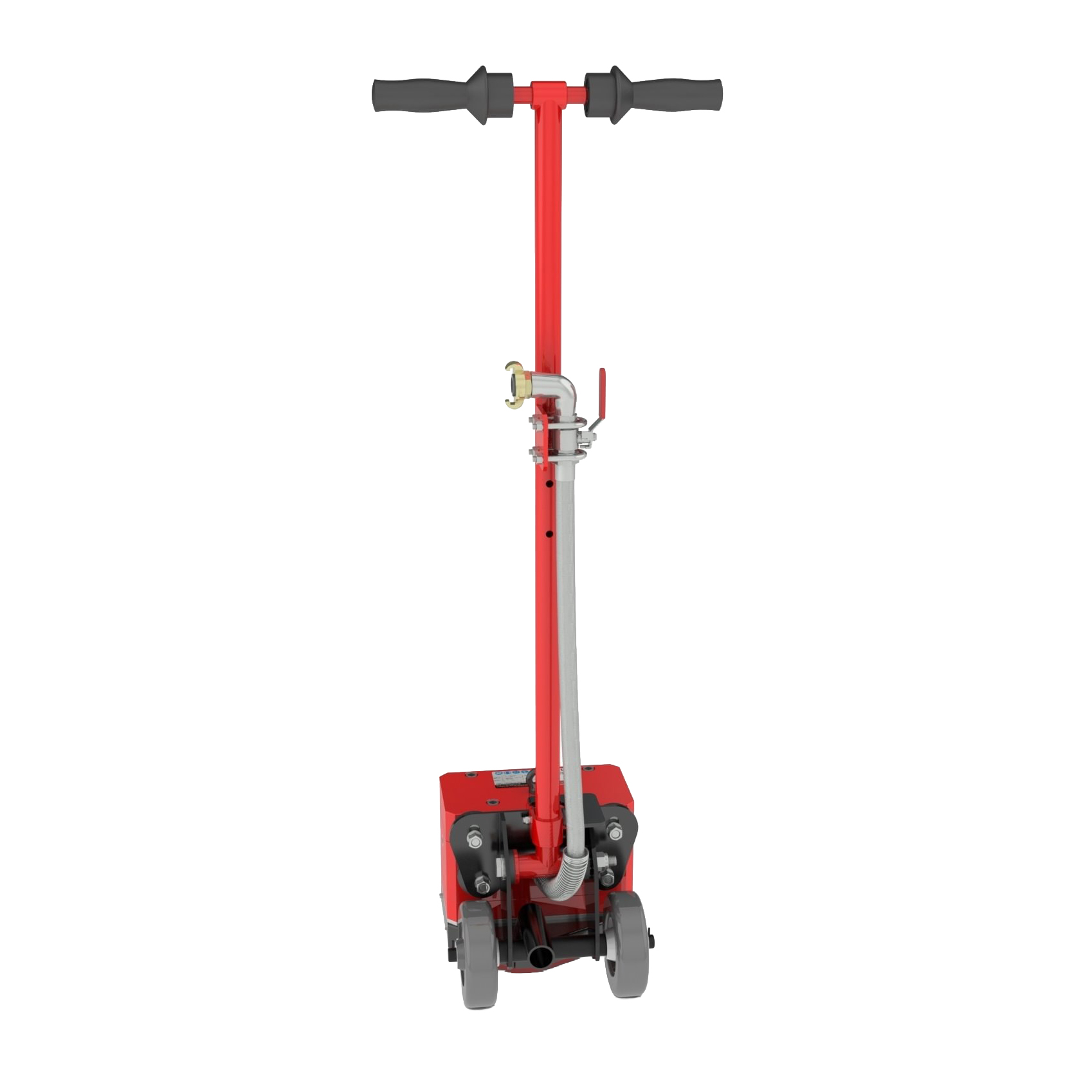

11-Head Pneumatic Concrete Floor Scabbler Vibro-Lo™
- Cutting Width: 10″
- Production Rate: 325 sq. ft./hr.
- Blows per Minute: 24,200
- Vibration Levels: 4.69 m/s2
- Motor Power: 55 CFM (90 PSI)
Includes (testing):
- Vibro-Lo 11 Head Floor Scabbler with Dust Shroud and Bush Hammer Heads
Benefits
- The integrated Vibro‑Lo™ vibration‑reduction system reduces hand arm vibration by up to 8x compared to standard scabblers, significantly improving operator comfort and safety.
- The tool delivers 24,000 light blows per minute, enabling fast, consistent surface preparation across large concrete areas.

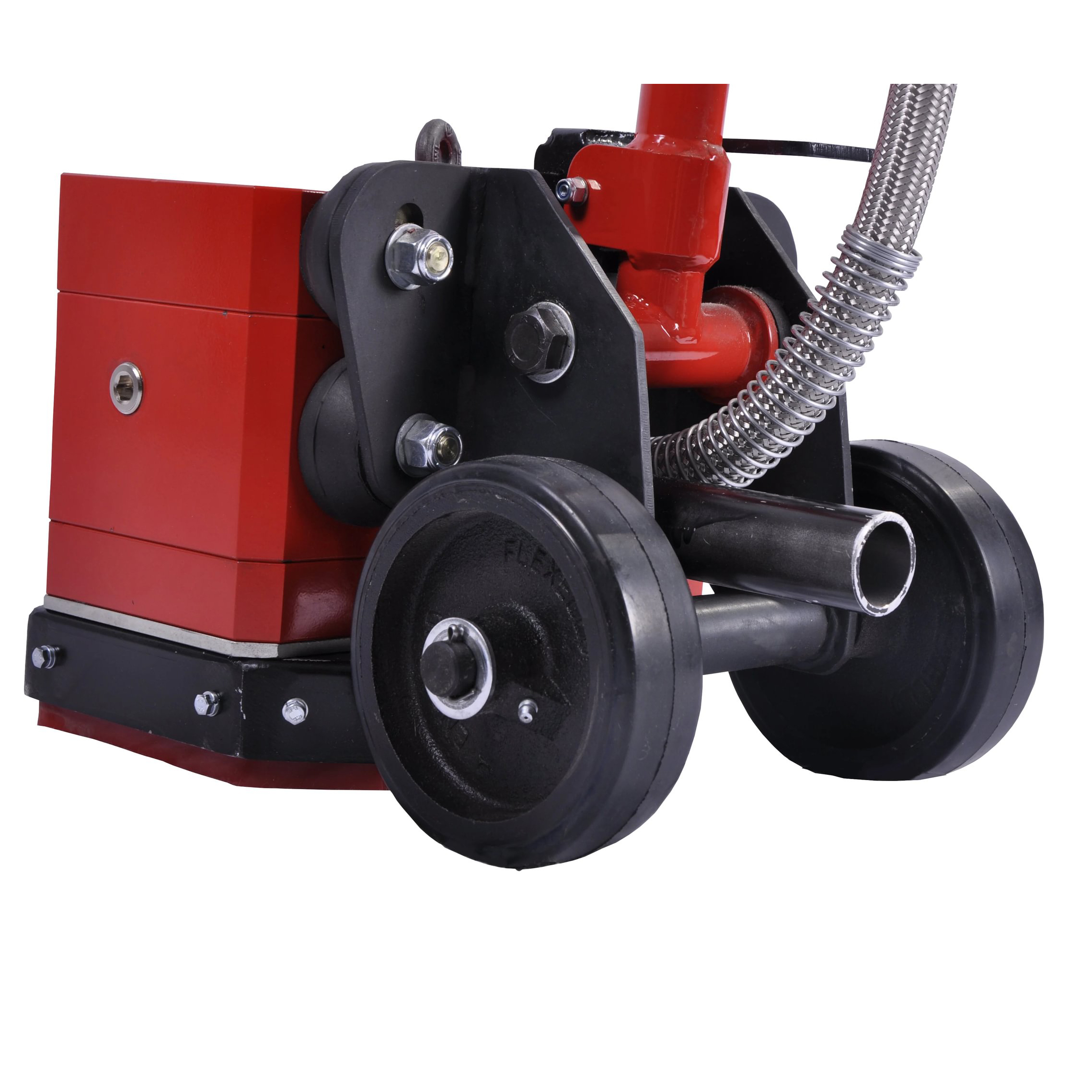

- Its built‑in dust shroud (Model No. 159.6051) captures dust and debris at the source to support cleaner, safer job sites and compliance with dust control requirements.
- The compact, portable design allows operators to maneuver the machine easily in tight or obstructed spaces while maintaining high productivity.
- The MHS11’s 3‑point mechanical vibration damping system offsets hammer impact forces, reducing operator fatigue and extending safe working time.
Applications & Usage
- 11-Head Pneumatic Concrete Floor Scabbler provides effective concrete keying to create a strong mechanical bond for overlays, coatings, and repair materials.
- Removes laitance and weak surface layers to expose a clean, durable concrete substrate ready for resurfacing.
- Ideal for applications requiring gentle yet effective scabbling that removes surface material without damaging the underlying concrete.
- Prepares concrete floors, decks, and industrial surfaces for waterproofing, protective coatings, and resurfacing systems.
- Delivers controlled surface reduction for environments where precision and substrate protection are essential, such as restoration or refurbishment projects.
Technical Specifications
| Blows per minute – 24,200 Air flow – 55 CFM @ 90 PSI Production rate – 325 sq. ft./hour Cutter life – 32,000 sq. ft. Noise level – 97 dB(a) | ||||||
| Description | Model No. | Weight (lbs.) | Dimensions (WxLxH) | Cutting Width | Vibration Levels m/s2 | Vibro-Lo™ |
| With Dust Shroud and Bush Hammer Heads | 159.6050 | 155 | 11.25" x 13.5" x 50" | 10" | 4.96 | Yes |
| Head | Applications |
|---|---|
| Bush Hammer Heads | Ideal for laitance removal; roughing concrete for resurfacing; bridge deck preparation for waterproofing. |
| Cruciform Cutter Heads | Ideal for leveling floors, reducing concrete; removal of floor paints and coatings. Call for details on complete MHS 11 with Cruciform Heads. |
Optional Accessories
Optional
OptionalFor Scabbler: 5 head & pole scabblers • Product: 5 point bush hammer head
$0.00
In stock
OptionalFor Scabbler: 5 head & pole scabblers • Product: 9 point bush hammer head
$0.00
In stock
Optional
OptionalProduct: Standard air tool oil • Size Quantity: 1 qt
$0.00
In stock
Related PDFs

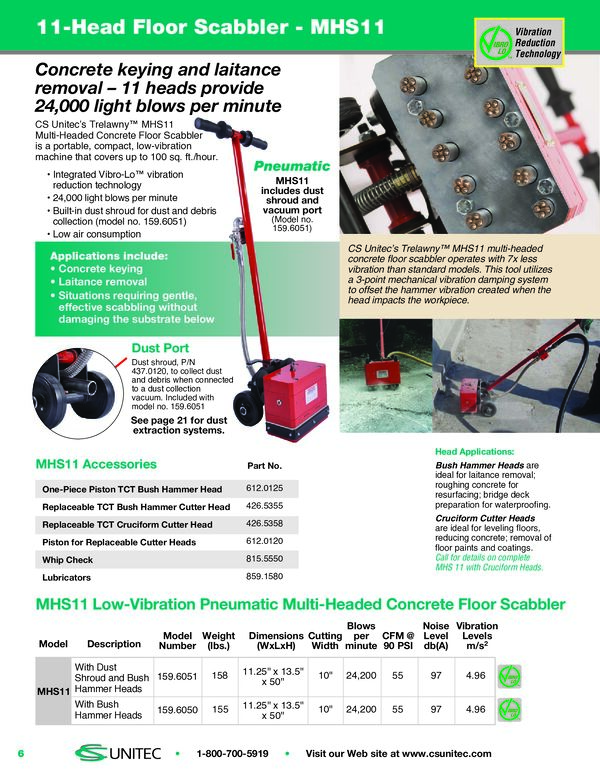

Catalog PDF 1
CAT_MHS11
Download PDF
Catalog PDF 2
CAT_Contractor_Tools_2022
Download PDF

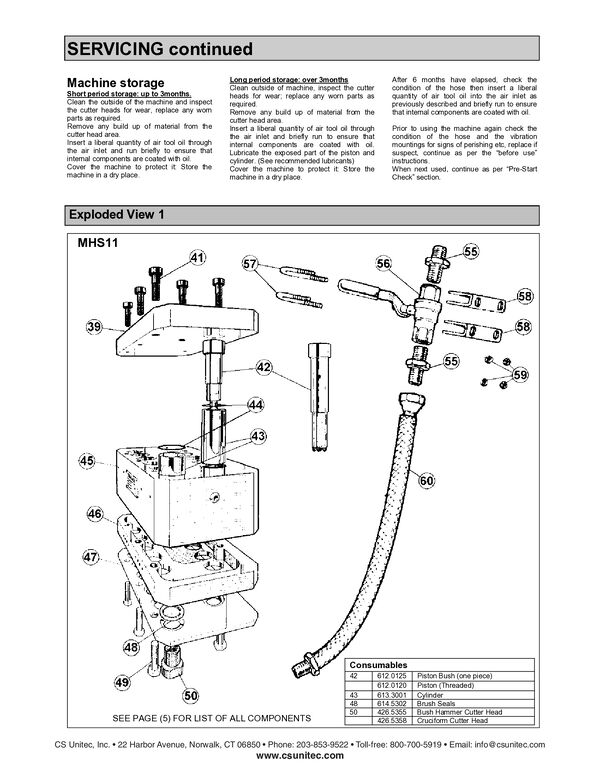

Product Schematic
SCHEM_MHS11
Download PDF

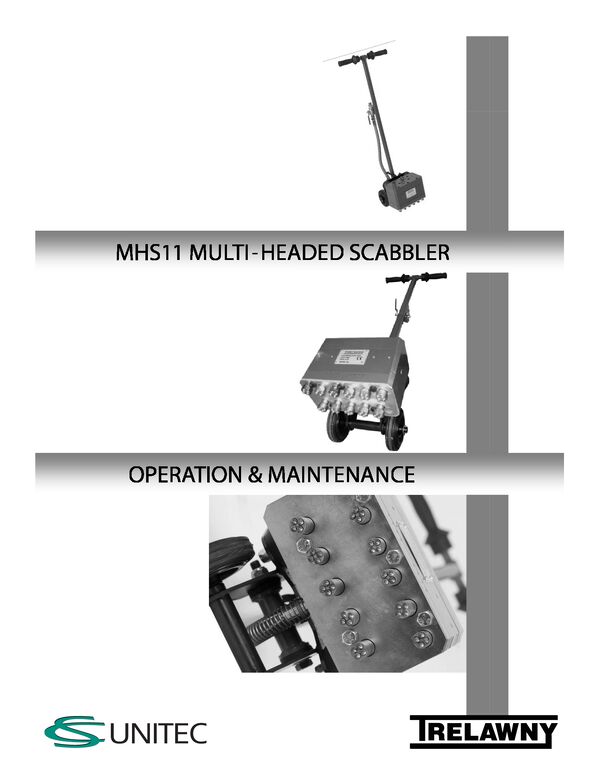

Operating Manual
MANUAL_MHS11
Download PDF
Usage
- 11-Head Pneumatic Concrete Floor Scabbler provides effective concrete keying to create a strong mechanical bond for overlays, coatings, and repair materials.
- Removes laitance and weak surface layers to expose a clean, durable concrete substrate ready for resurfacing.
- Ideal for applications requiring gentle yet effective scabbling that removes surface material without damaging the underlying concrete.
- Prepares concrete floors, decks, and industrial surfaces for waterproofing, protective coatings, and resurfacing systems.
- Delivers controlled surface reduction for environments where precision and substrate protection are essential, such as restoration or refurbishment projects.
