Pneumatic Handheld Scabbling Hammer – Single & Triple
- Production Rate: Up to 100 sq. ft./hr.
- Blows per Minute: Up to 8400
- Vibration Levels: Up to 41.6 m/s2
- Motor Power: Up to 16 CFM (90 PSI)
Includes (testing):
- Single or Triple Head Concrete Scabbler with Steel Bush or TCT Cruciform Pistons
Benefits
- Engineered with an ergonomic integrated back handle, each tool provides improved operator control, stability, and comfort during extended periods of surface preparation.
- Equipped with Vibro‑Lo™ vibration‑reduction technology on single‑head models, the scabbler minimizes hand arm vibration exposure, operating with up to 8x less vibration than standard scabblers to support safer, more productive use.
- Designed for precision material removal, the tools allow operators to target specific areas, edges, and confined spaces where grinders or larger scarifiers cannot reach.
- Constructed with durable, jobsite ready components, the scabblers withstand heavy use in concrete repair, industrial maintenance, and infrastructure environments.
- Optimized for efficient surface preparation, the single‑head model excels in detail work and vertical surfaces, while the triple‑head model increases productivity on larger horizontal areas requiring faster, uniform texturing.
Applications & Usage

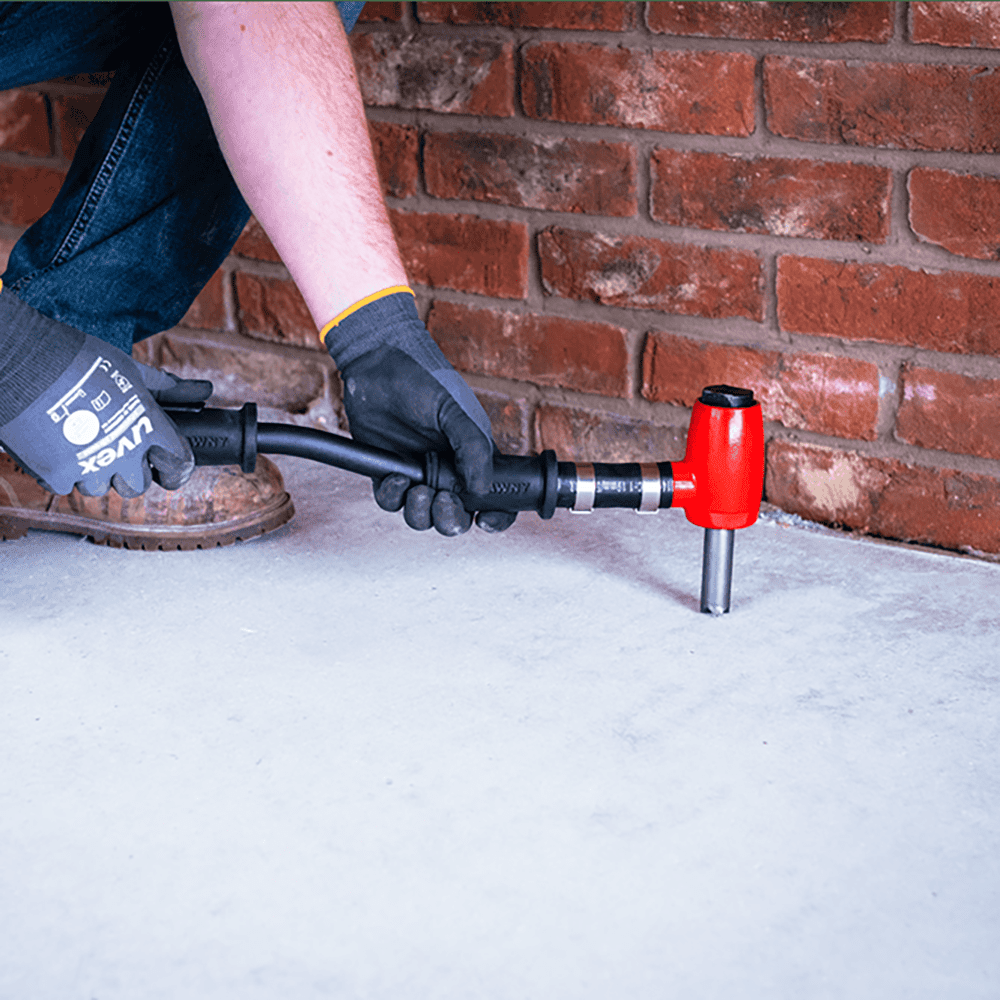

- Pneumatic Handheld Scabbling Hammer designed for scabbling concrete to expose aggregate while delivering controlled impact energy. Removes surface laitance and opens the concrete profile for strong mechanical bonding with new coatings, overlays, and waterproofing systems.
- Ideal for leveling uneven concrete surfaces and block joints, allowing operators to reduce high spots, correct misaligned masonry, and achieve uniform substrate conditions prior to repair or resurfacing work.
- Used for texturing and roughening concrete, the single‑head and triple‑head scabblers create a consistent Concrete Surface Profile (CSP) that enhances adhesion for epoxies, membranes, cementitious toppings, and other protective materials.
- Pneumatic Handheld Scabbling Hammer is effective for reducing concrete thickness in localized areas, enabling precise material removal during patching, edge work, and surface correction.
- Well suited for bridge maintenance and infrastructure repair, providing a reliable method for removing deteriorated concrete, preparing surfaces for patching compounds.
Technical Specifications

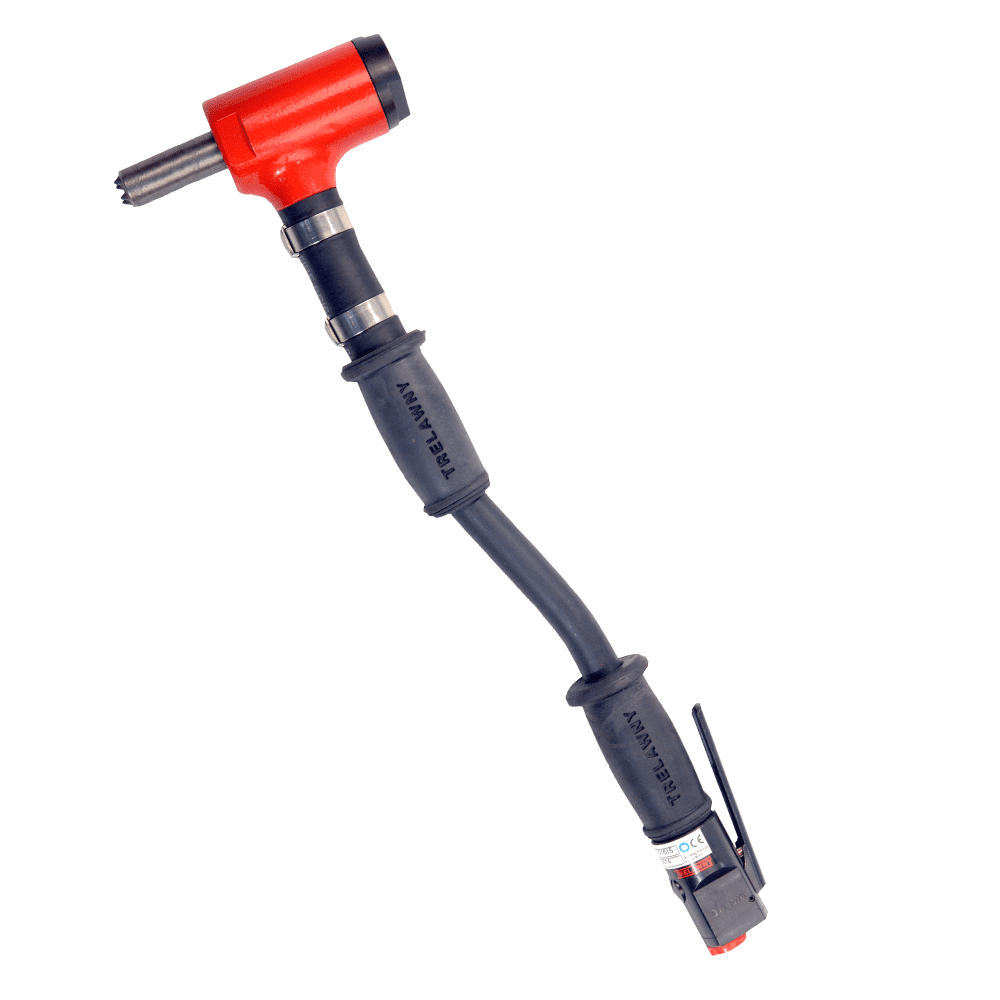

Vibro-Lo Single Head Handheld Scabblers

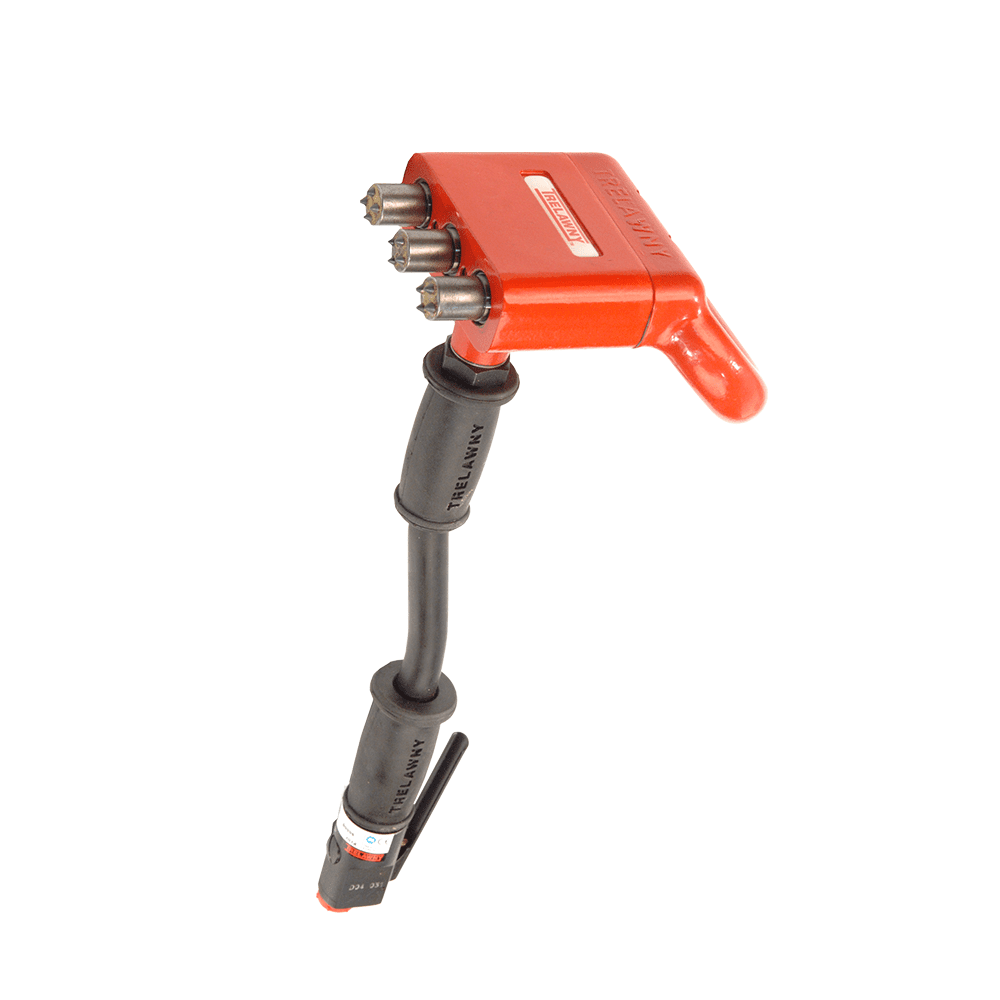

Triple Head Handheld Concrete Scabblers
| Production rate – 50 sq. ft./hour Cutter life – 5,300 sq. ft. | ||||||||
| Description | Model No. | Weight (lbs.) | Dimensions (LxH) | Blows per Minute | CFM @ 90 PSI | Noise Level dB(a) | Vibration Levels m/s2 | Vibro-Lo™ |
|---|---|---|---|---|---|---|---|---|
| Steel Bush Hammer Piston | 151.6171 | 6.5 | 19" x 6.2" | 2800 | 12 | 98.5 | 4.6 | Yes |
| TCT Cruciform Piston | 151.6170 | 6.5 | 19" x 6.2" | 2800 | 12 | 98.5 | 4.6 | Yes |
| Production rate – 100 sq. ft./hour Cutter life – 10,500 sq. ft. | |||||||
| Description | Model No. | Weight (lbs.) | Dimensions (LxH) | Blows per Minute | CFM @ 90 PSI | Noise Level dB(a) | Vibration Levels m/s2 |
|---|---|---|---|---|---|---|---|
| Steel Bush Hammer Pistons | 153.6151 | 10.5 | 19" x 8.6" | 8400 | 16 | 98.5 | 41.6 |
| TCT Cruciform Pistons | 153.6150 | 10.5 | 19" x 8.6" | 8400 | 16 | 98.5 | 41.6 |
Optional Accessories
Optional
Optional
Optional
OptionalProduct: Standard air tool oil • Size Quantity: 4 x 1 gallon
$0.00
In stock
Related PDFs
Catalog PDF 1
CAT_Scaling_Hammers
Download PDF
Catalog PDF 2
CAT_Metalworking_2024
Download PDF

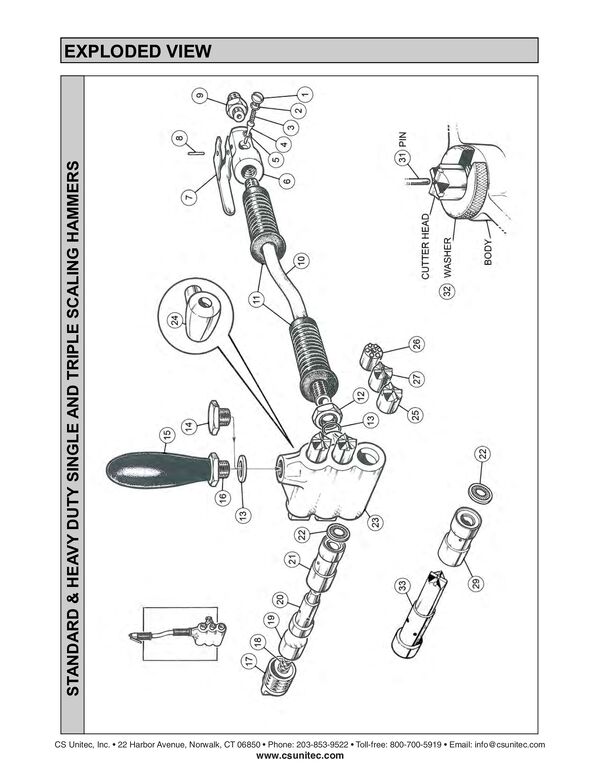

Product Schematic
SCHEM_Scaling_Hammers
Download PDF

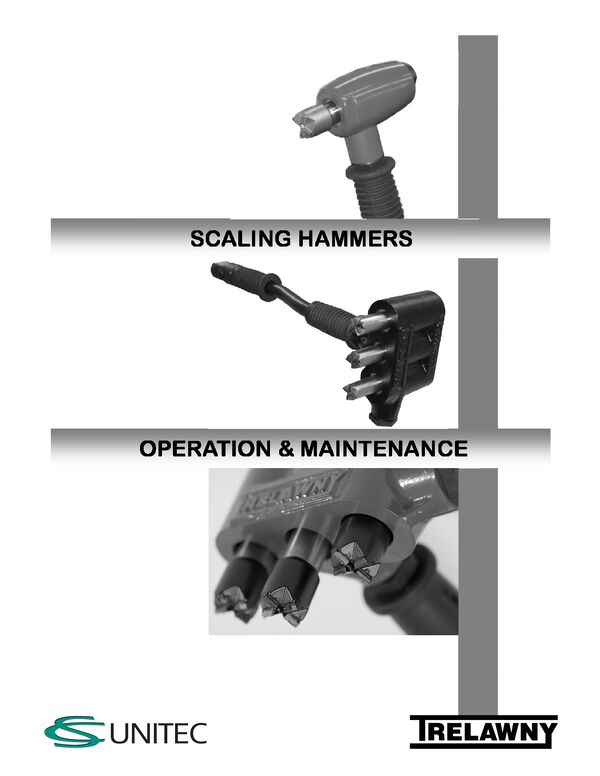

Operating Manual
MANUAL_Scaling_Hammers
Download PDF
Usage
- Pneumatic Handheld Scabbling Hammer designed for scabbling concrete to expose aggregate while delivering controlled impact energy. Removes surface laitance and opens the concrete profile for strong mechanical bonding with new coatings, overlays, and waterproofing systems.
- Ideal for leveling uneven concrete surfaces and block joints, allowing operators to reduce high spots, correct misaligned masonry, and achieve uniform substrate conditions prior to repair or resurfacing work.
- Used for texturing and roughening concrete, the single‑head and triple‑head scabblers create a consistent Concrete Surface Profile (CSP) that enhances adhesion for epoxies, membranes, cementitious toppings, and other protective materials.
- Pneumatic Handheld Scabbling Hammer is effective for reducing concrete thickness in localized areas, enabling precise material removal during patching, edge work, and surface correction.
- Well suited for bridge maintenance and infrastructure repair, providing a reliable method for removing deteriorated concrete, preparing surfaces for patching compounds.
Benefits
- Engineered with an ergonomic integrated back handle, each tool provides improved operator control, stability, and comfort during extended periods of surface preparation.
- Equipped with Vibro‑Lo™ vibration‑reduction technology on single‑head models, the scabbler minimizes hand arm vibration exposure, operating with up to 8x less vibration than standard scabblers to support safer, more productive use.
- Designed for precision material removal, the tools allow operators to target specific areas, edges, and confined spaces where grinders or larger scarifiers cannot reach.
- Constructed with durable, jobsite ready components, the scabblers withstand heavy use in concrete repair, industrial maintenance, and infrastructure environments.
- Optimized for efficient surface preparation, the single‑head model excels in detail work and vertical surfaces, while the triple‑head model increases productivity on larger horizontal areas requiring faster, uniform texturing.
Usage
- Pneumatic Handheld Scabbling Hammer designed for scabbling concrete to expose aggregate while delivering controlled impact energy. Removes surface laitance and opens the concrete profile for strong mechanical bonding with new coatings, overlays, and waterproofing systems.
- Ideal for leveling uneven concrete surfaces and block joints, allowing operators to reduce high spots, correct misaligned masonry, and achieve uniform substrate conditions prior to repair or resurfacing work.
- Used for texturing and roughening concrete, the single‑head and triple‑head scabblers create a consistent Concrete Surface Profile (CSP) that enhances adhesion for epoxies, membranes, cementitious toppings, and other protective materials.
- Pneumatic Handheld Scabbling Hammer is effective for reducing concrete thickness in localized areas, enabling precise material removal during patching, edge work, and surface correction.
- Well suited for bridge maintenance and infrastructure repair, providing a reliable method for removing deteriorated concrete, preparing surfaces for patching compounds.
Benefits
- Engineered with an ergonomic integrated back handle, each tool provides improved operator control, stability, and comfort during extended periods of surface preparation.
- Equipped with Vibro‑Lo™ vibration‑reduction technology on single‑head models, the scabbler minimizes hand arm vibration exposure, operating with up to 8x less vibration than standard scabblers to support safer, more productive use.
- Designed for precision material removal, the tools allow operators to target specific areas, edges, and confined spaces where grinders or larger scarifiers cannot reach.
- Constructed with durable, jobsite ready components, the scabblers withstand heavy use in concrete repair, industrial maintenance, and infrastructure environments.
- Optimized for efficient surface preparation, the single‑head model excels in detail work and vertical surfaces, while the triple‑head model increases productivity on larger horizontal areas requiring faster, uniform texturing.
