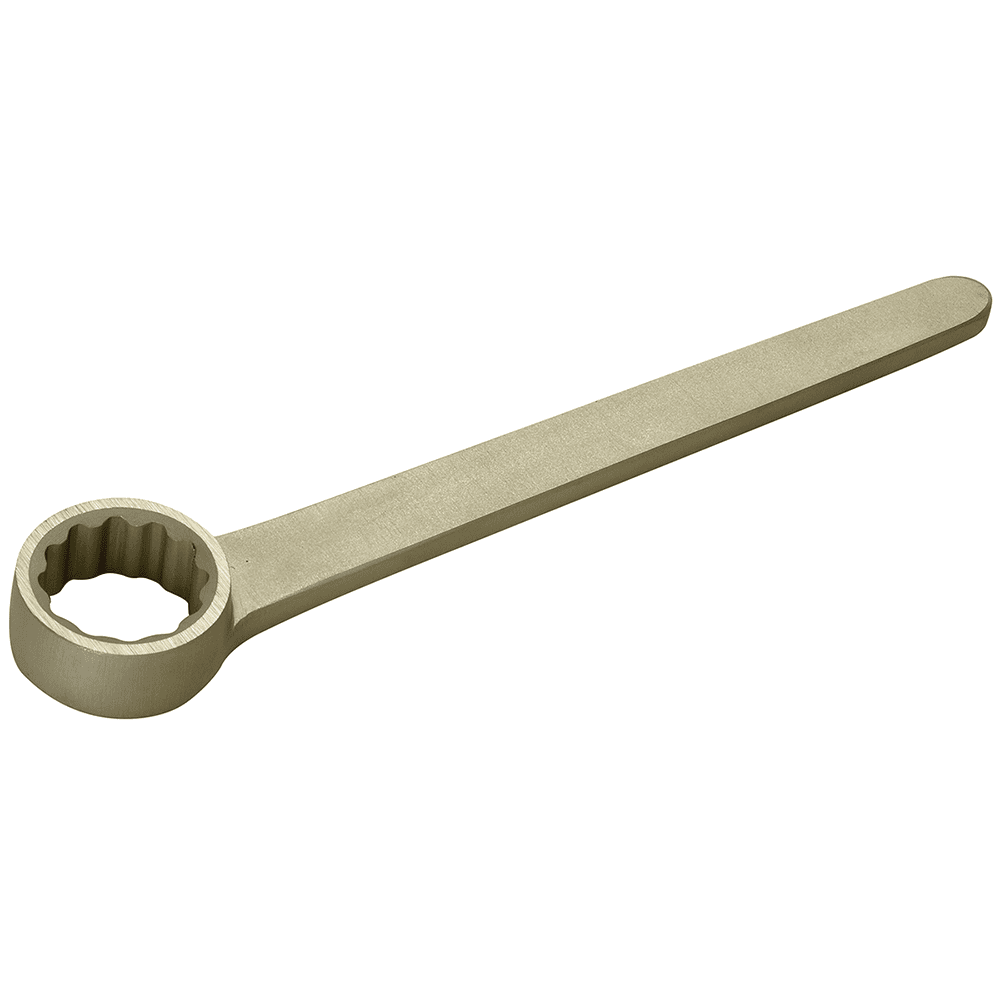

12-Point Box End Wrench

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Includes (testing):

  • Box End Wrench - 12-Point

Benefits

  • Fine-tooth engagement
  • Tight-space rotation
  • DIN-spec geometry

Applications & Usage

  • 12-Point Box End Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex204D-005UA Ex204D-005UB
No. Material s inch l inch Wt. lbs.
Ex204D-005UA Aluminum Bronze 1/2 5-1/2 0.13
Ex204D-005UB Copper Beryllium 1/2 5-1/2 0.13
Ex204D-010UA Aluminum Bronze 9/16 5-1/2 0.13
Ex204D-010UB Copper Beryllium 9/16 5-1/2 0.13
Ex204D-015UA Aluminum Bronze 19/32 5-1/2 0.13
Ex204D-015UB Copper Beryllium 19/32 5-1/2 0.13
Ex204D-020UA Aluminum Bronze 5/8 6-3/16 0.20
Ex204D-020UB Copper Beryllium 5/8 6-3/16 0.20
Ex204D-025UA Aluminum Bronze 11/16 6-3/16 0.20
Ex204D-025UB Copper Beryllium 11/16 6-3/16 0.20
Ex204D-030UA Aluminum Bronze 3/4 6-3/16 0.26
Ex204D-030UB Copper Beryllium 3/4 6-3/16 0.26
Ex204D-035UA Aluminum Bronze 25/32 7-9/16 0.37
Ex204D-035UB Copper Beryllium 25/32 7-9/16 0.37
Ex204D-040UA Aluminum Bronze 13/16 7-9/16 0.37
Ex204D-040UB Copper Beryllium 13/16 7-9/16 0.37
Ex204D-045UA Aluminum Bronze 7/8 7-9/16 0.37
Ex204D-045UB Copper Beryllium 7/8 7-9/16 0.37
Ex204D-050UA Aluminum Bronze 15/16 8-9/16 0.53
Ex204D-050UB Copper Beryllium 15/16 8-9/16 0.53
Ex204D-055UA Aluminum Bronze 31/32 8-9/16 0.53
Ex204D-055UB Copper Beryllium 31/32 8-9/16 0.53
Ex204D-060UA Aluminum Bronze 1 8-9/16 0.53
Ex204D-060UB Copper Beryllium 1 8-9/16 0.53
Ex204D-065UA Aluminum Bronze 1-1/16 9-3/16 0.71
Ex204D-065UB Copper Beryllium 1-1/16 9-3/16 0.71
Ex204D-070UA Aluminum Bronze 1-1/8 10-1/8 0.95
Ex204D-070UB Copper Beryllium 1-1/8 10-1/8 0.95
Ex204D-075UA Aluminum Bronze 1-3/16 10-1/8 0.95
Ex204D-075UB Copper Beryllium 1-3/16 10-1/8 0.95
Metric Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex204D-14A Ex204D-14B
No. Material s mm l mm Wt. kg
Ex204D-14A Aluminum Bronze 14 138 0.06
Ex204D-14B Copper Beryllium 14 138 0.06
Ex204D-15A Aluminum Bronze 15 155 0.09
Ex204D-15B Copper Beryllium 15 155 0.09
Ex204D-16A Aluminum Bronze 16 155 0.09
Ex204D-16B Copper Beryllium 16 155 0.09
Ex204D-17A Aluminum Bronze 17 155 0.09
Ex204D-17B Copper Beryllium 17 155 0.09
Ex204D-18A Aluminum Bronze 18 171 0.12
Ex204D-18B Copper Beryllium 18 171 0.12
Ex204D-19A Aluminum Bronze 19 171 0.12
Ex204D-19B Copper Beryllium 19 171 0.12
Ex204D-20A Aluminum Bronze 20 190 0.17
Ex204D-20B Copper Beryllium 20 190 0.17
Ex204D-21A Aluminum Bronze 21 190 0.17
Ex204D-21B Copper Beryllium 21 190 0.17
Ex204D-22A Aluminum Bronze 22 190 0.17
Ex204D-22B Copper Beryllium 22 190 0.17
Ex204D-23A Aluminum Bronze 23 215 0.24
Ex204D-23B Copper Beryllium 23 215 0.24
Ex204D-24A Aluminum Bronze 24 215 0.24
Ex204D-24B Copper Beryllium 24 215 0.24
Ex204D-25A Aluminum Bronze 25 230 0.32
Ex204D-25B Copper Beryllium 25 230 0.32
Ex204D-26A Aluminum Bronze 26 230 0.32
Ex204D-26B Copper Beryllium 26 230 0.32
Ex204D-27A Aluminum Bronze 27 230 0.32
Ex204D-27B Copper Beryllium 27 230 0.32
Ex204D-28A Aluminum Bronze 28 254 0.43
Ex204D-28B Copper Beryllium 28 254 0.43
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
Box wrenches in the regular pattern are designed for general service. The Heavy- Duty and Striking Face patterns are designed for the service indicated. The Electronic Hex Box patterns are designed for the lighter service encountered in electronic, carburetor and ignition work. Ratcheting Box and split box wrenches are for light duty and should not be used in heavy-duty applications. Never use a hammer on any wrench other than a Striking Face wrench. Use a sledge type hammer. Never use an extension on the wrench handle.
