Air Diamond Core Drills
- Drilling Diameter: Up to 3″ (Hand-Held) and up to 12″ (with Stand)
- Load Speeds: 300 / 700 / 1350 RPM
- Wet Drilling
Includes (testing):
- Air Core Drill
Benefits
- Powerful 3 speed motor delivers strong, consistent torque for drilling reinforced concrete, stone, and dense masonry.
- Maintains power under load for fast, efficient coring.
- Engineered for long lasting tool life with heat-treated gears and mechanical slip clutch in case of jamming.
- Built-in Water Swivel.
- Handheld models excel in tight spaces and smaller diameters.
- Rig‑mounted systems provide precision, stability, and control for large diameter or deep coring.
- Built to withstand harsh job site conditions, including moisture, vibration, and abrasive environments.
Applications & Usage
- Air Diamond Core Drills ideal for drilling refractory brick concrete and reinforced concrete, as well as use in hazardous environments.
- Drill holes from 1/2” to 12” diameter in concrete, reinforced concrete, asphalt, natural stone and refractory.
- Ideal for drilling in chemical plants, wastewater facilities, tunnels, mines, shipyards, and industrial zones where electric tools pose risks.
- Safe for environments with moisture, conductive materials, or airborne particulates.
- Supports coring for bridges, tunnels, foundations, utility vaults, and infrastructure upgrades.
Technical Specifications
| 2 1333 0010 | |
|---|---|
| Motor Power | 2.1 HP (1.6 kW) |
| Max. Drilling Dia. | 6" |
| Air Connection | 3/4" NPT |
| Air Consumption | 77 CFM @ 90 PSI |
| Free Speed (RPM) | 400 / 900 / 1600 |
| Connecting Threads | 1-1/4"x7 UNC Male; 5/8"x11 UNC Male; G 1/2" Female |
| Motor ATEX Classification | II2GcT6 |
| Model No. | Weight | Stand |
|---|---|---|

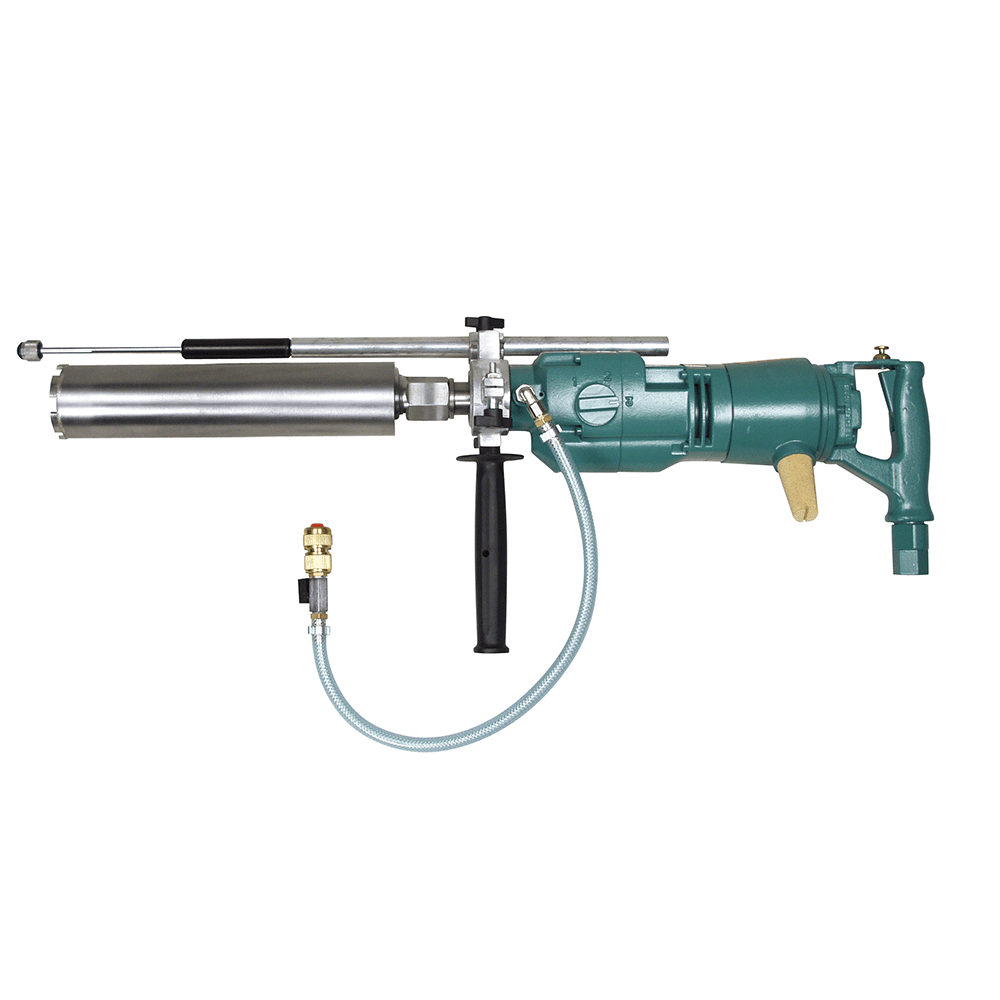

| 2 1333 0010 Hand-Held | 18 lbs. | N/A |

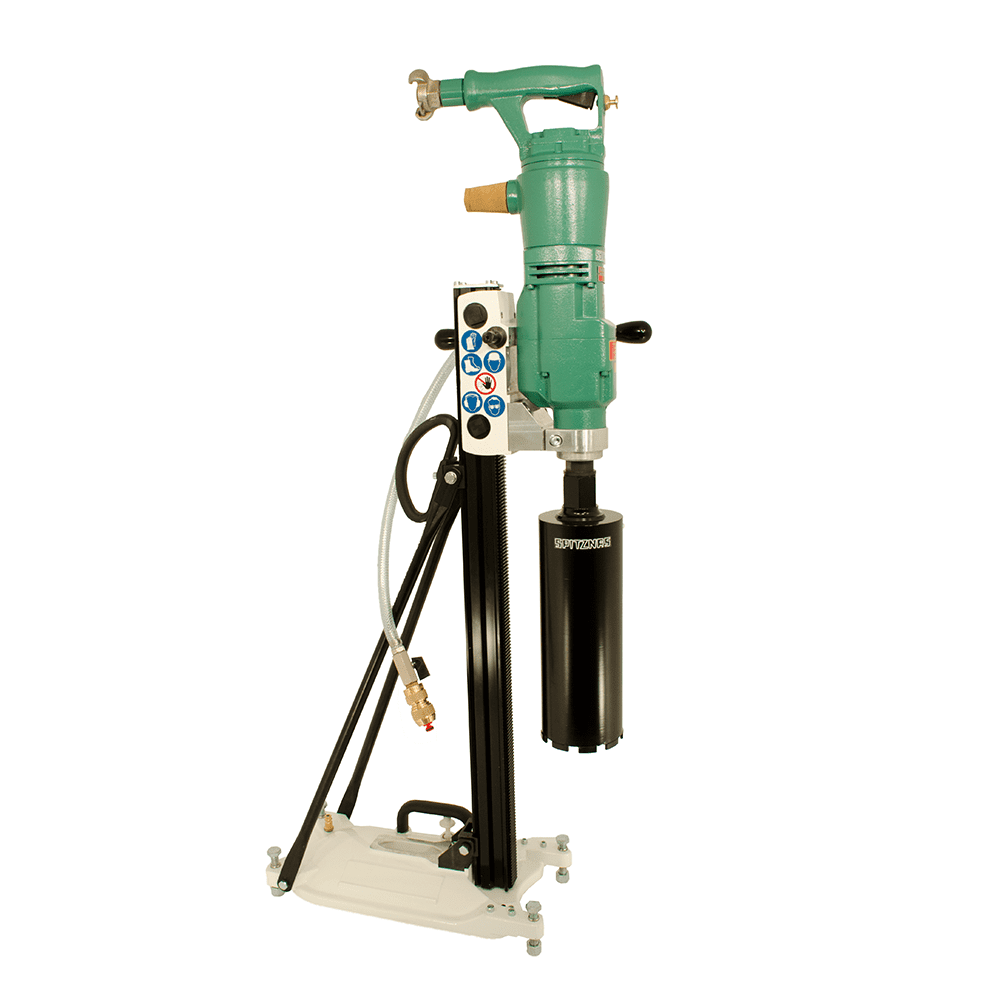

| 2 1333 0010 SA | 49 lbs. | Anchor Stand |
| 2 1333 0010 SV | 51 lbs. | Combination Anchor / Vacuum Stand with Vacuum Pump |
| 2 1335 0010 | |
|---|---|
| Motor Power | 3.8 HP (2.8 kW) |
| Max. Drilling Dia. | 3" |
| Air Connection | 3/4" NPT |
| Air Consumption | 123 CFM @ 90 PSI |
| Free Speed (RPM) | 300 / 700 / 1350 |
| Connecting Threads | 1-1/4"x7 UNC Male; 5/8"x11 UNC Male; G 1/2" Female |
| Motor ATEX Classification | II2GcT6 |
| Model No. | Weight | Stand |
|---|---|---|
| 2 1335 0010 Hand-Held | 21 lbs. | N/A |
| 2 1335 0010 SA | 52 lbs. | Anchor Stand |
| 2 1335 0010 SV | 54 lbs. | Combination Anchor / Vacuum Stand with Vacuum Pump |
| 2 1328 0050 SA | |
|---|---|
| Motor Power | 3.8 HP (2.8 kW) |
| Air Consumption | 123 CFM @ 90 PSI |
| Max. Drilling Dia. | 12" |
| Free Speed (RPM) | 300 / 700 / 1350 |
| Air Connection | 3/4" NPT |
| Connecting Threads | 1-1/4"x7 UNC Male 5/8"x11 UNC Male* G 1/2" Female |
| Weight | 66 lbs. |
| Stand | Anchor Stand (P/N BST 300 V) |
| Motor ATEX Classification | II2GcT6 |
| * Optional | |
| 2 1328 0050 SV | |
|---|---|
| Motor Power | 3.8 HP (2.8 kW) |
| Air Consumption | 123 CFM @ 90 PSI |
| Max. Drilling Dia. | 12" |
| Free Speed (RPM) | 300 / 700 / 1350 |
| Air Connection | 3/4" NPT |
| Connecting Threads | 1-1/4"x7 UNC Male 5/8"x11 UNC Male* G 1/2" Female |
| Weight | 72 lbs. |
| Stand | Anchor Stand (P/N BST 300 V) and Vacuum Pump (P/N 253 542) |
| Motor ATEX Classification | II2GcT6 |
| * Optional | |
Optional Accessories
Optional
Optional
Optional
OptionalBarrel Size: None • Diameter: 1" • Product: Drill bit only
$0.00
In stock
Optional
OptionalLength: 12" • Product: Extension rod • Thread Connection: 1 1/4" x 7 unc
$0.00
In stock
Related PDFs
Catalog PDF 1
CAT_Core_Drills
Download PDF
Catalog PDF 2
FLY_Core_Drills
Download PDF

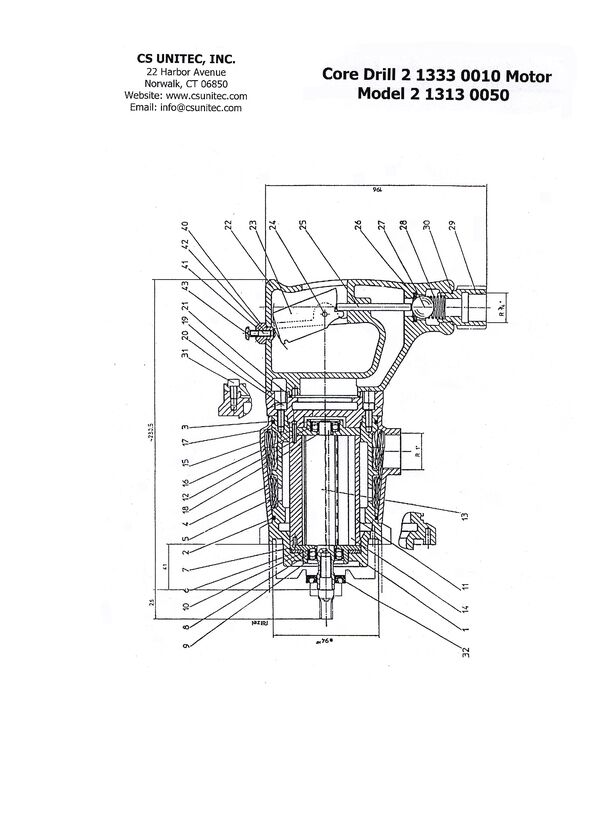

Product Schematic 1
SCHEM_213130050
Download PDF

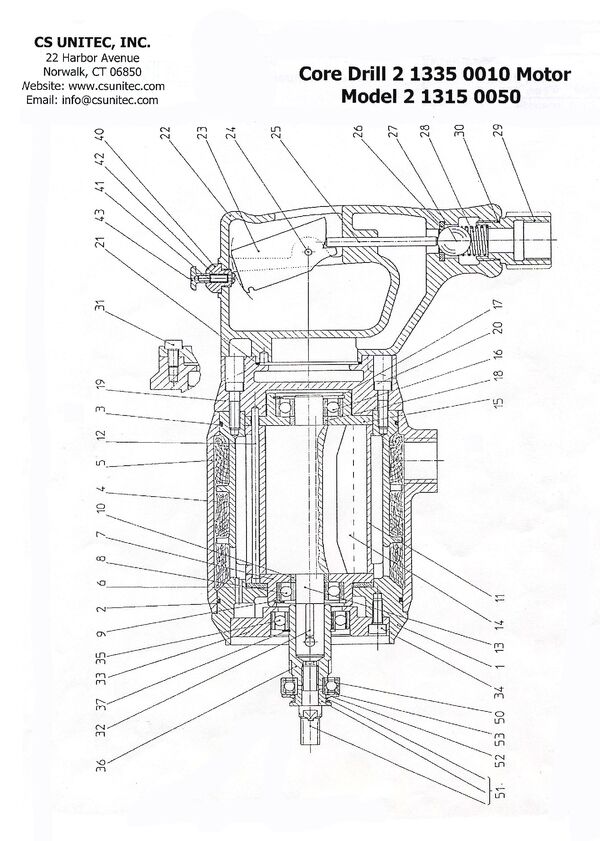

Product Schematic 2
SCHEM_213150050
Download PDF

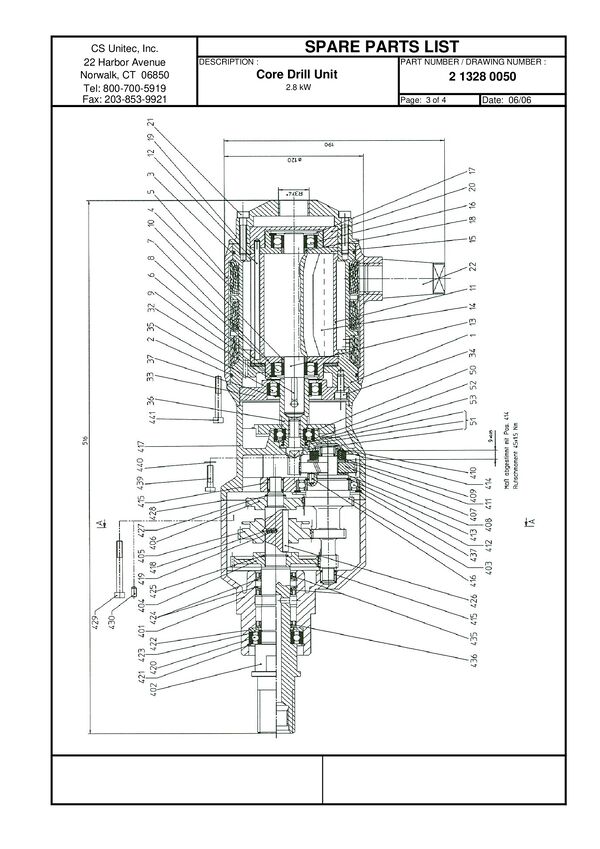

Product Schematic 3
SCHEM_213280050
Download PDF
Product Schematic 4
SCHEM_213280050SV
Download PDF
Product Schematic 5
SCHEM_213280050SA
Download PDF

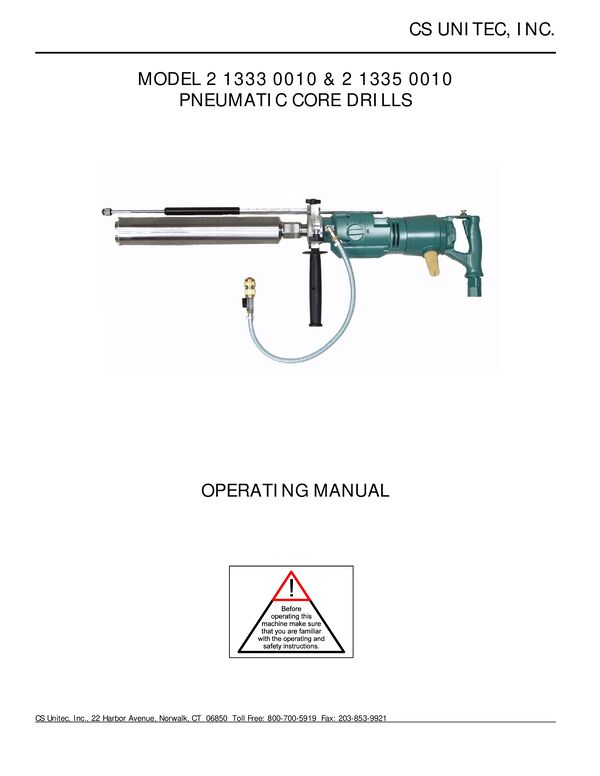

Operating Manual 1
MANUAL_213330010_213350010
Download PDF

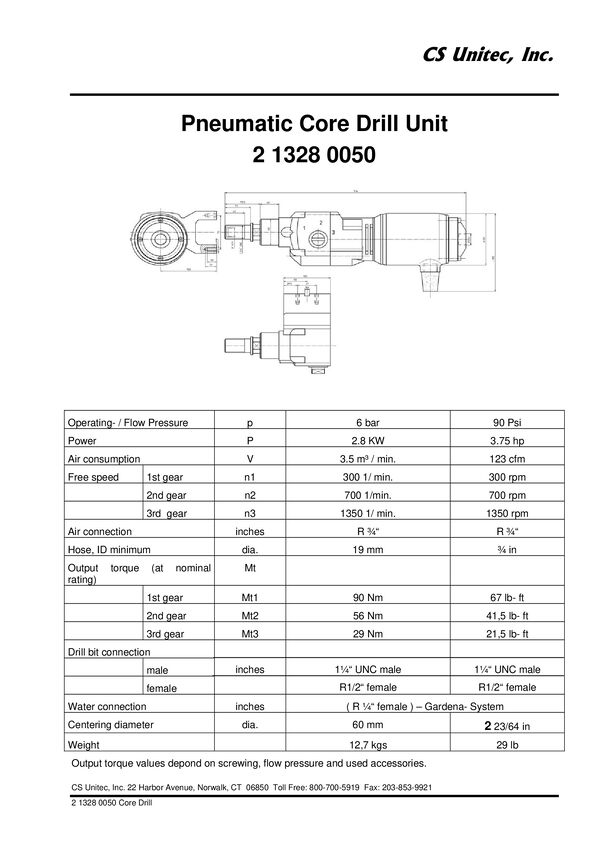

Operating Manual 2
