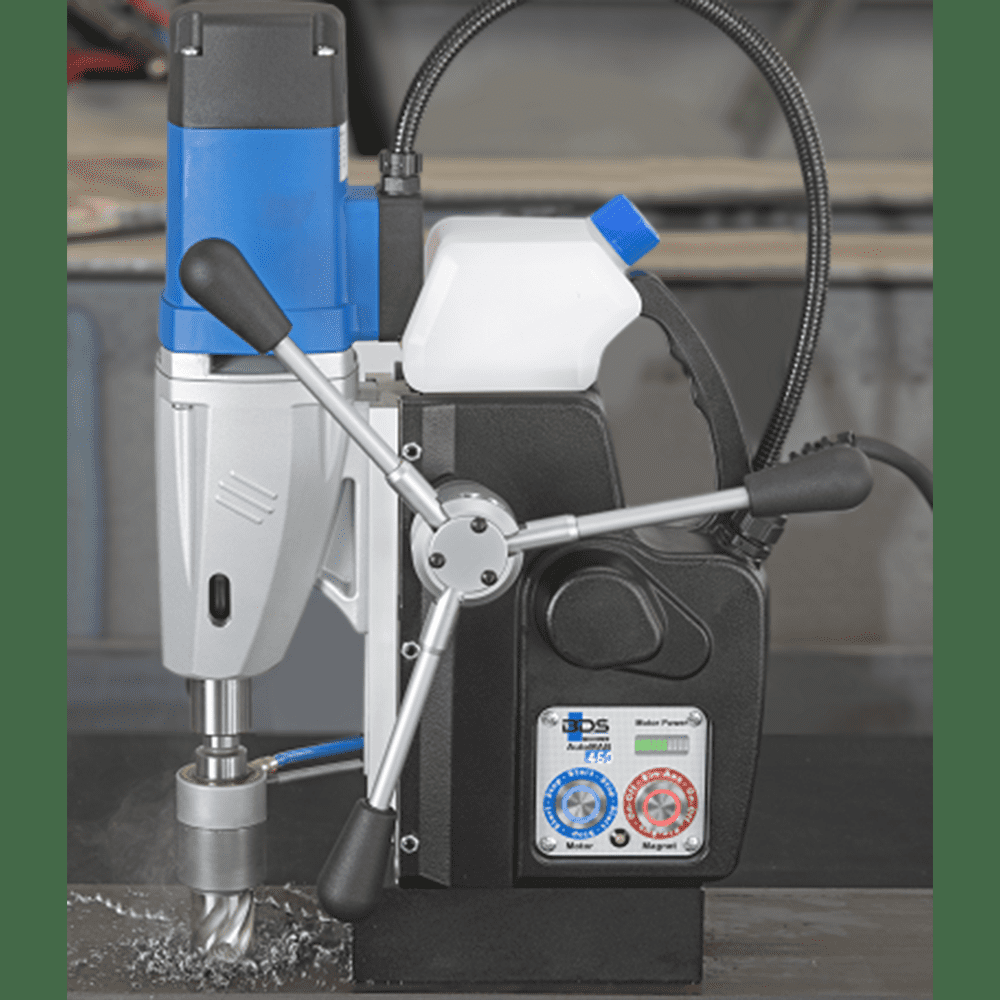

AutoMAB 450
- Cutting Capacity: 2″ Diameter
- Twist Drill Capacity: 3/4″ Diameter
- Stroke: 6″
- Morse Taper: MT2
- Magnetic Force: 3750 lbs.
- Automatic feed with auto stop and retraction
- Ideal for production: one user can operate multiple drills
- Maintain optimal RPM and feed rate/pressure for longer cutter life
- MT2 – 3/4″ direct arbor with automatic cooling
- AutoMAB 450
- Carrying Case
- Drift Key MT2 (P/N 1960002)
- Operating Manual
- Warranty Certificate
- Auto Lubrication
- Safety Strap
- Carbin Hook
- Allen Key
Benefits
- Fully automatic drilling feed increases productivity, ensures consistent hole quality, and minimizes operator effort, ideal for repetitive or high volume drilling.
- Smart auto control system automatically adjusts feed pressure for optimal cutting speed, extending annular cutter life and improving efficiency.
- MT2 - 3/4" direct arbor with automatic cooling. Higher cutting capacity (up to 1‑5/8") provides more versatility for medium to heavy duty structural steel applications.
- Integrated cutting oil reservoir.
- Automatic internal lubrication.
- Simple, ergonomic arrangement of controls for one-handed operation.
- Safety Features:
- SafeMag™: green/red LED magnetic force indicator for safe operation.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage
- AutoMAB 450 produces high volume drilling in structural steel, plate, beams, and assemblies.
- Ideal for repetitive holemaking where automatic feed significantly boosts productivity.
- Drilling on I‑beams, columns, and steel frameworks, especially vertical or overhead applications.
- Drilling mounting holes for piping, conduit supports, HVAC brackets, and mechanical systems.
- Suitable for power plants, refineries, and industrial facilities requiring consistent hole quality.
- Automatic feed improves productivity for technicians working across multiple job sites.
- Compact, portable design makes it easy to transport and set up in remote or elevated locations.
Technical Specifications
| AutoMAB 450 | |
|---|---|
| Motor Power | 10.5 Amp / 110 Volt |
| Weight | 35-1/4 lbs. |
| Stroke | 6" |
| Hole Capacity | 2" dia. with TCT Carbide cutters 1-3/4" dia. with HSS cutters |
| Drilling Depth | 2-3/8" with pilot pin 4-3/8" without pilot pin |
| Speed | 250 / 450 RPM |
| Magnet Base Size | 6-5/8" L x 3-1/3" W |
| Dimensions | 16-7/8" H x 9-1/8" L x 7-3/4" W |
| Magnetic Force (1" plate) | 3,750 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Automatic Lubrication | Included |

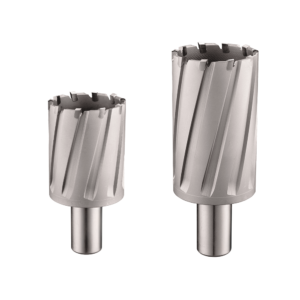

Optional Accessories
Optional
OptionalDepth: 2 3/8" • Diameter: Kit
$0.00
In stock
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF 1
CAT_AutoMAB350450
Download PDF
Catalog PDF 2
CAT_AutoMAB450
Download PDF

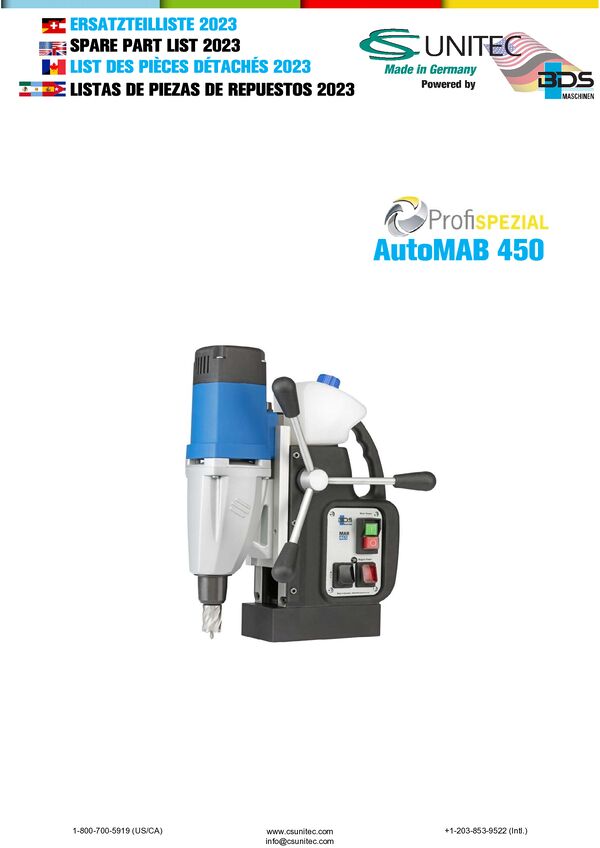

Product Schematic
SCHEM_AutoMAB450
Download PDF
