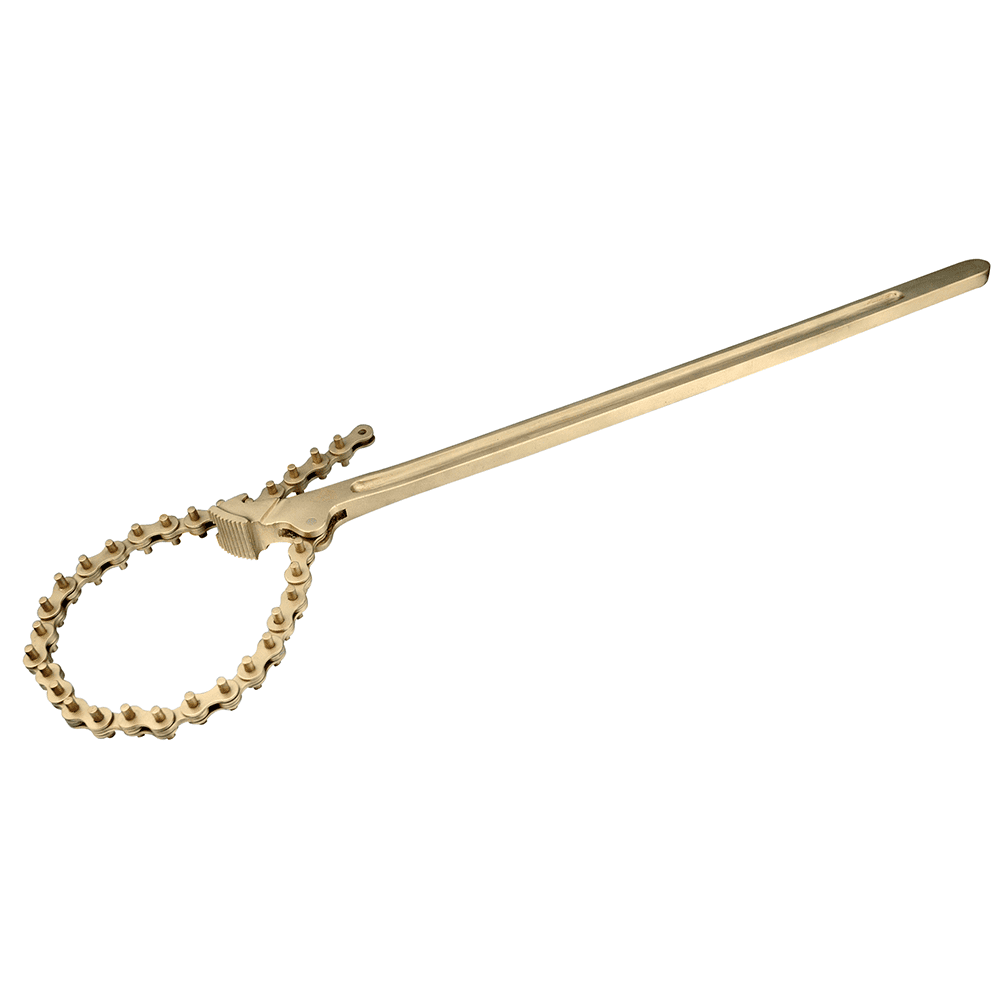

Chain Pipe Wrench

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Included Components

  • Chain Pipe Wrench

Benefits

  • Wrap-around chain
  • Grips irregular shapes
  • High-torque leverage

Applications & Usage

  • Chain Pipe Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex600-2A Ex600-2B
No. d max inch l inch Wt. lbs. d max mm l mm Wt. kg
Ex600-2 2 24 3.53 50 600 1.60
Ex600-4 4 24 3.99 100 600 1.81
Ex600-6 6 24 4.39 150 600 1.99
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
When using a heavy-duty Pipe Wrench, maintain a gap between the back of the hook jaw and the pipe. This concentrates the pressure at the jaw teeth only and produces the maximum gripping force and aids ratcheting action. If possible, always pull rather than push on the pipe wrench handle and maintain a proper stance with feet firm to hold balance. Pipe Wrenches are designed to turn or hold pipe; never use a Pipe Wrench to bend, raise or left a pipe. Select a Pipe Wrench with sufficient capacity and leverage; never use a pipe extender or "cheater". Do not use a Pipe Wrench as a hammer, nor strike a Pipe Wrench with a hammer. Inspect Pipe Wrenches periodically for worn or unsafe parts and replace them.
