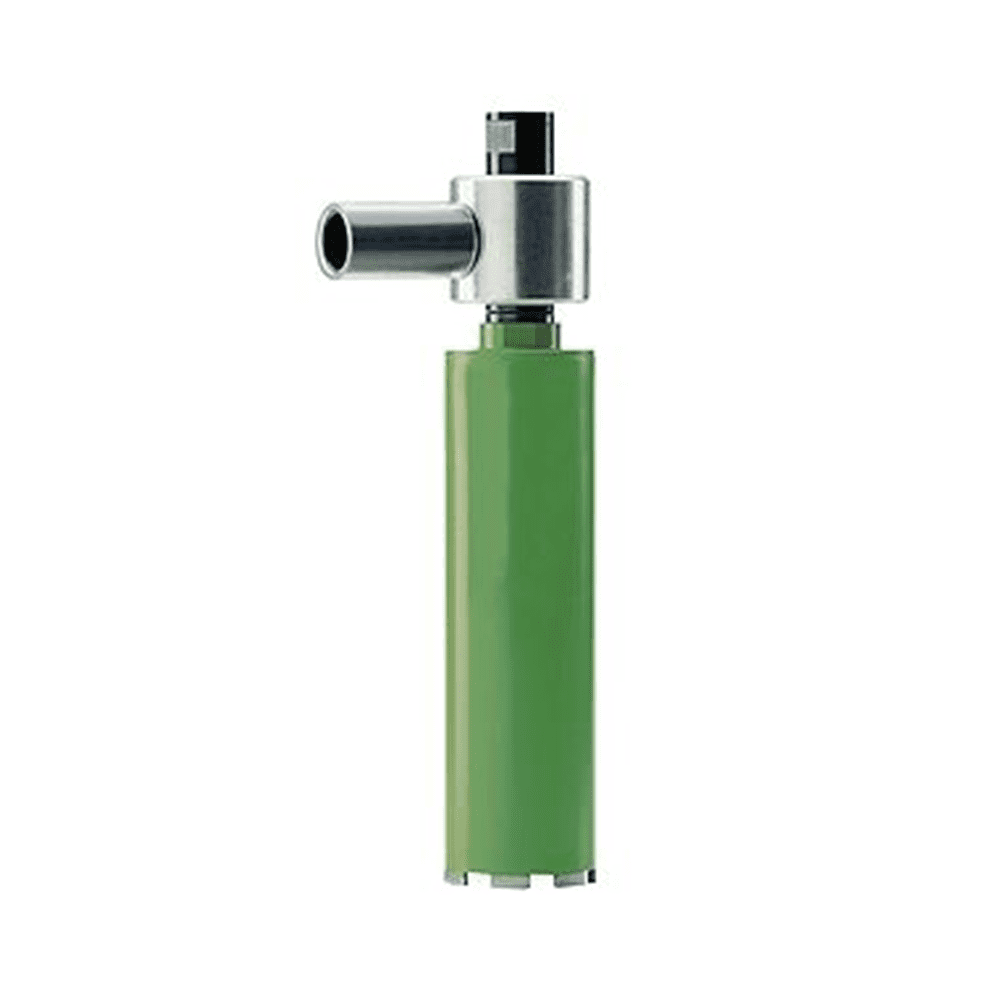

Dry Diamond Vacuum Drill Bit
- Quickly drills through block and brick with no water
- Drill depth up to 8″
- 1-1/4 – 12 female threaded hub
Includes (testing):
- Dry Diamond Core Drill Bit with Vacuum Swivel Connection
Benefits
- Designed for dust controlled dry drilling, eliminating the need for water supply, slurry cleanup, or surface protection.
- Built in vacuum channels connect directly to dust collection systems to capture dust at the source.
- High performance diamond segments deliver rapid penetration in concrete, block, brick, and other masonry materials.
- Less feed pressure required due to segments.
Applications & Usage
- Dry Diamond Vacuum Drill Bit perfect for drilling in brick and block in finished spaces, commercial interiors, and occupied buildings where water use is restricted.
- Drill depth up to 8″, suitable for drilling holes for fixtures and fittings in concrete or block walls.
- Dry vacuum bits are for cured concrete and masonry. They are not used in reinforced concrete where the steel is heavier than wire mesh.
- Dry drilling with vacuum extraction minimizes dust spread, making these bits suitable for schools, hospitals, offices, and residential spaces.
- Handheld applications ensures clean, precise hole geometry for secure fastening.
Technical Specifications
| Part No. | Diameter | Maximum RPM | Minimum RPM |
|---|---|---|---|
| 4CB026-DVB | 1" | 6000 | 2300 |
| 4CB032-DVB | 1-1/4" | 6000 | 2300 |
| 4CB040-DVB | 1-1/2" | 5000 | 1600 |
| 4CB045-DVB | 1-3/4" | 5000 | 1600 |
| 4CB052-DVB | 2" | 5000 | 1200 |
| 4CB057-DVB | 2-1/4" | 5000 | 1200 |
| 4CB065-DVB | 2-1/2" | 5000 | 1200 |
| 4CB078-DVB | 3" | 5000 | 800 |
| 4CB089-DVB | 3-1/2" | 5000 | 800 |
| 4CB102-DVB | 4" | 5000 | 700 |
| 4CB112-DVB | 4-1/2" | 5000 | 700 |
| 4CB127-DVB | 5" | 3500 | 700 |
| 4CB152-DVB | 6" | 2500 | 600 |
