Tap Collets and Reducing Adapters

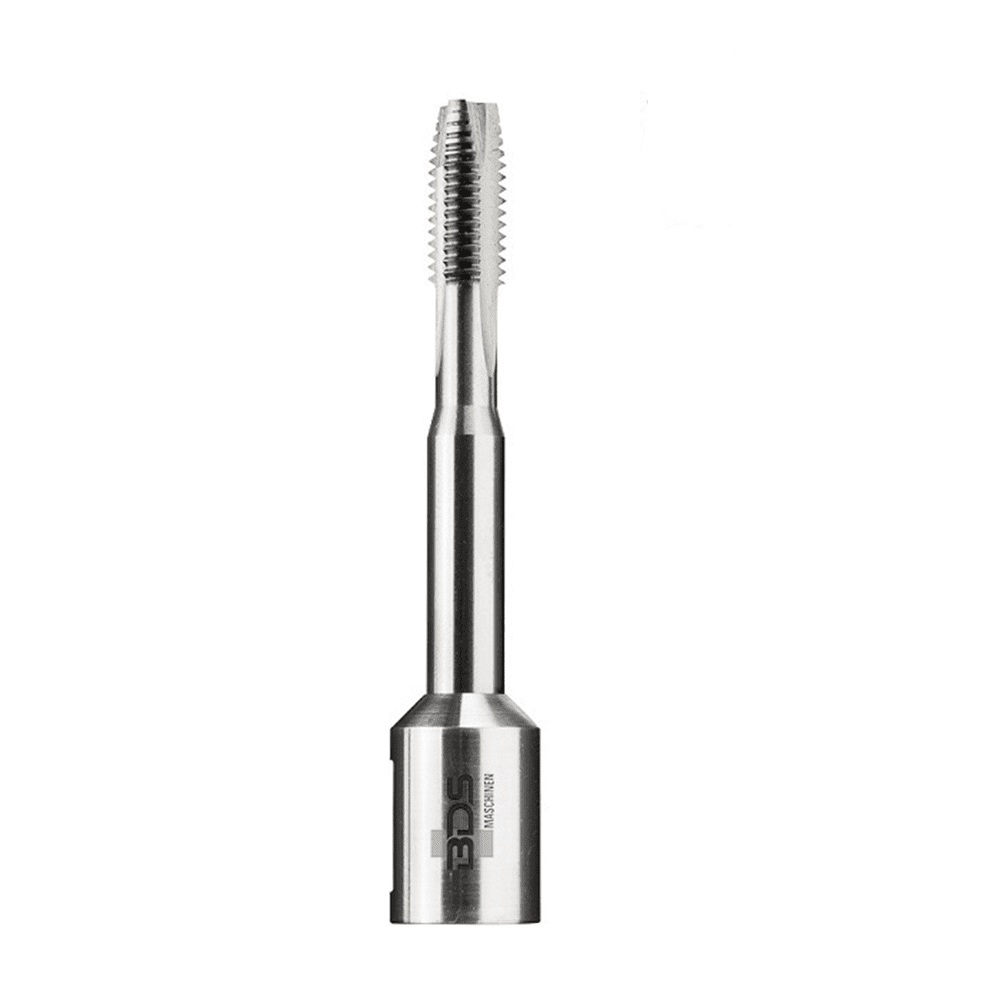

- Tap Collets with 3/4″ or 1-1/4″ Weldon shank
- All threads shown are ASA Standard (or DIN 376 for metric)

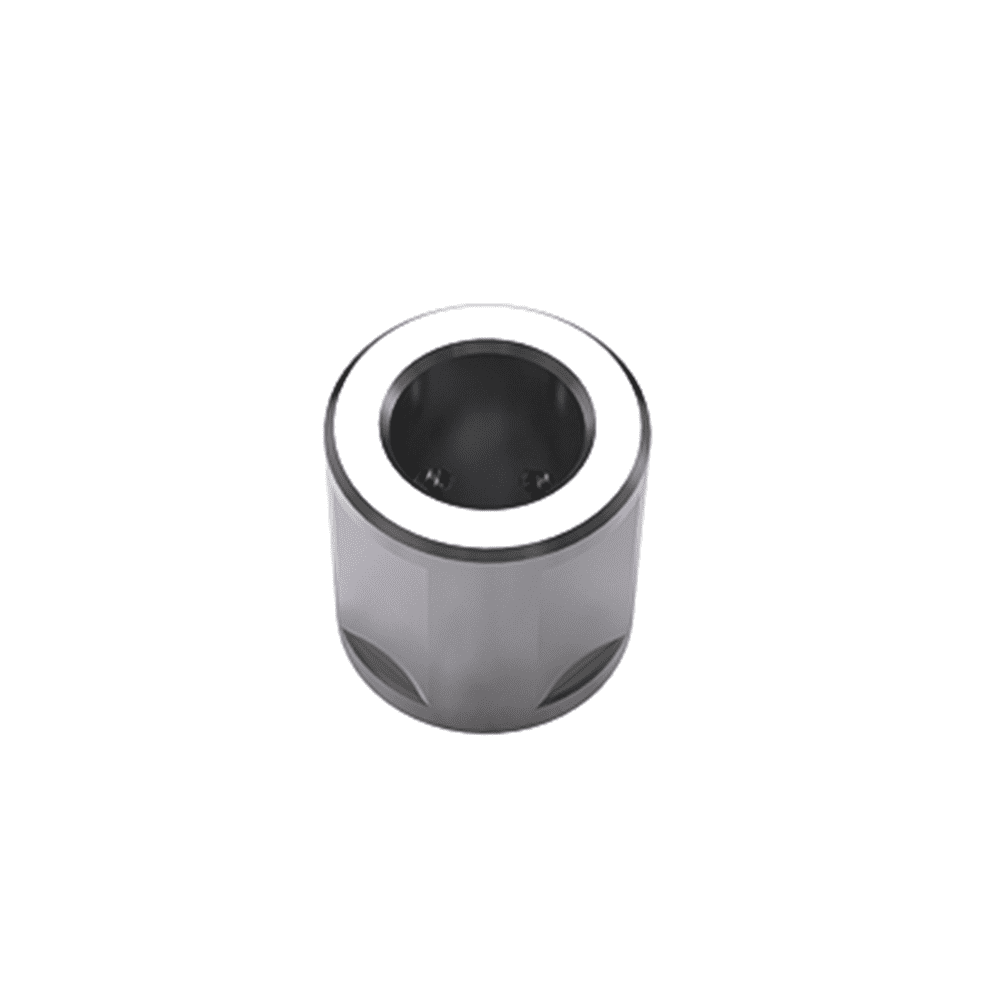

- Bushing reduces 1-1/4″ Weldon shank to 3/4″ Weldon shank
- Reducing Sleeve adapts MT4 to MT3
- Tap Collect
- OR Bushing & Reducing Sleeve can be purchased individually
Benefits
- Collets come with 3/4" or 1‑1/4" Weldon shanks, the most common interface for magnetic drills.
- Tap collets are available in a wide range of ASA‑standard thread sizes (from 1/4 to 3/4 inch).
- The bushing reduces a 1‑1/4" Weldon shank to 3/4", allowing larger drills to accept smaller tooling.
- The reducing sleeve adapts MT4 to MT3, enabling compatibility between Morse taper tooling and different drill spindles.
Applications & Usage
- Tap Collets and Reducing Adapters are designed specifically for portable magnetic drills, enabling tapping in steel structures, fabrication shops, and field work.
- Useful for creating threaded holes in structural steel, machinery frames, and heavy equipment.
- Allows technicians to perform onsite tapping without removing large components.
- Reducing adapters help match available tooling to whatever drill is on hand.
- Supports both ASA (imperial) and DIN 376 (metric) threading systems.
Technical Specifications
| Part No. | Thread |
|---|---|
| TCM 1/4 | 1/4 |
| TCM 5/16 | 5/16 |
| TCM 3/8 | 3/8 |
| TCM 7/16 | 7/16 |
| TCM 1/2 | 1/2 |
| TCM 9/16 | 9/16 |
| TCM 5/8 | 5/8 |
| TCM 11/16 | 11/16 |
| TCM 3/4 | 3/4 |
| ZAP 200 | Bushing 3/4 reduces 1-1/4" Weldon shank to 3/4" Weldon shank |
| ZRH 430 | Reducing Sleeve adapts MT4 to MT3 |
