SDS Max Core Bits
- Designed for 2″ Rotary Hammer Drills

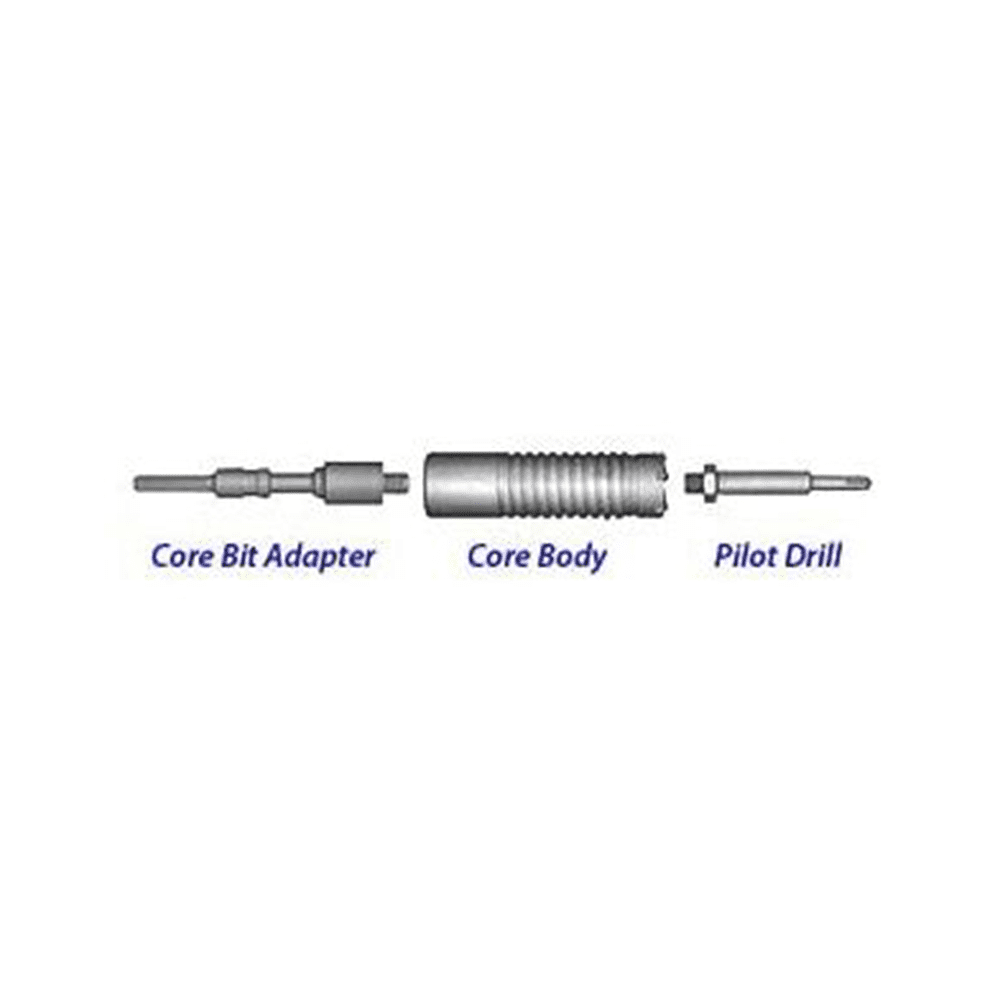

- These SDS Max core bits include a pilot drill to eliminate the need for knockout and taper holes, placing less stress on the core bit adapter.
- Drill up to 6″ diameter holes
Includes (testing):
- SDS Max Core Bit
Benefits
- These SDS Max core bits include a pilot drill to eliminate the need for knockout and taper holes, placing less stress on the core bit adapter.
- Built with carbide‑tipped cutting segments and robust steel bodies designed to withstand repeated impact.
- Durable cutting edges resist heat and wear, delivering extended tool life even in reinforced concrete.
- Pilot Drill eliminates need for knockout and taper holes, placing less stress on the Core Bit Adapter.
- Provides a secure, high torque connection for maximum energy transfer and stable drilling performance.
Applications & Usage
- SDS Max Core Bits specially designed and manufactured to use in our 2″ Pneumatic Rotary Hammer Drills and our 2″ Hydraulic Rotary Hammer Drills.
- Engineered for highspeed penetration in reinforced concrete, block, brick, and stone.
- Drilling openings in slabs, walls, beams, and foundations for anchors, fasteners, and pass throughs.
- Ideal for drilling in warehouses, plants, commercial buildings, and structural concrete.
- Ideal for continuous drilling in tough materials.
- Wide range of sizes supports everything from small penetrations to large diameter openings.
Technical Specifications
| Part No. | Description/Bit Diameter | Overall Length |
|---|---|---|
| PAT-SMAX | SDS Max Core Bit Adapter | |
| PC-9888 | 1" | 6" |
| PC-9999 | 1-1/8" | 6" |
| PC-9100 | 1-1/4" | 6" |
| PC-9110 | 1-1/2" | 6" |
| PC-9120 | 1-3/4" | 6" |
| PC-9130 | 2" | 6" |
| PC-9140 | 2-1/2" | 6" |
| PC-9145 | 2-3/4" | 6" |
| PC-9150 | 3" | 6" |
| PC-9160 | 3-1/2" | 6" |
| PC-9170 | 4" | 6" |
| PC-9172 | 4-1/2" | 6" |
| PC-9173 | 5" | 6" |
| PC-9174 | 6" | 6" |
| PC-9200 | Pilot Drill for 1-1/2" - 6" Core Bits | |
| PDE-6 | 6" OAL Core Bit Extension | |
| PDE-12 | 12" OAL Core Bit Extension | |
| T-750 | Threaded Coupler for All Core Bits | |
Related PDFs
Catalog PDF
CAT_Rotary_Hammer_Drills
Download PDF
