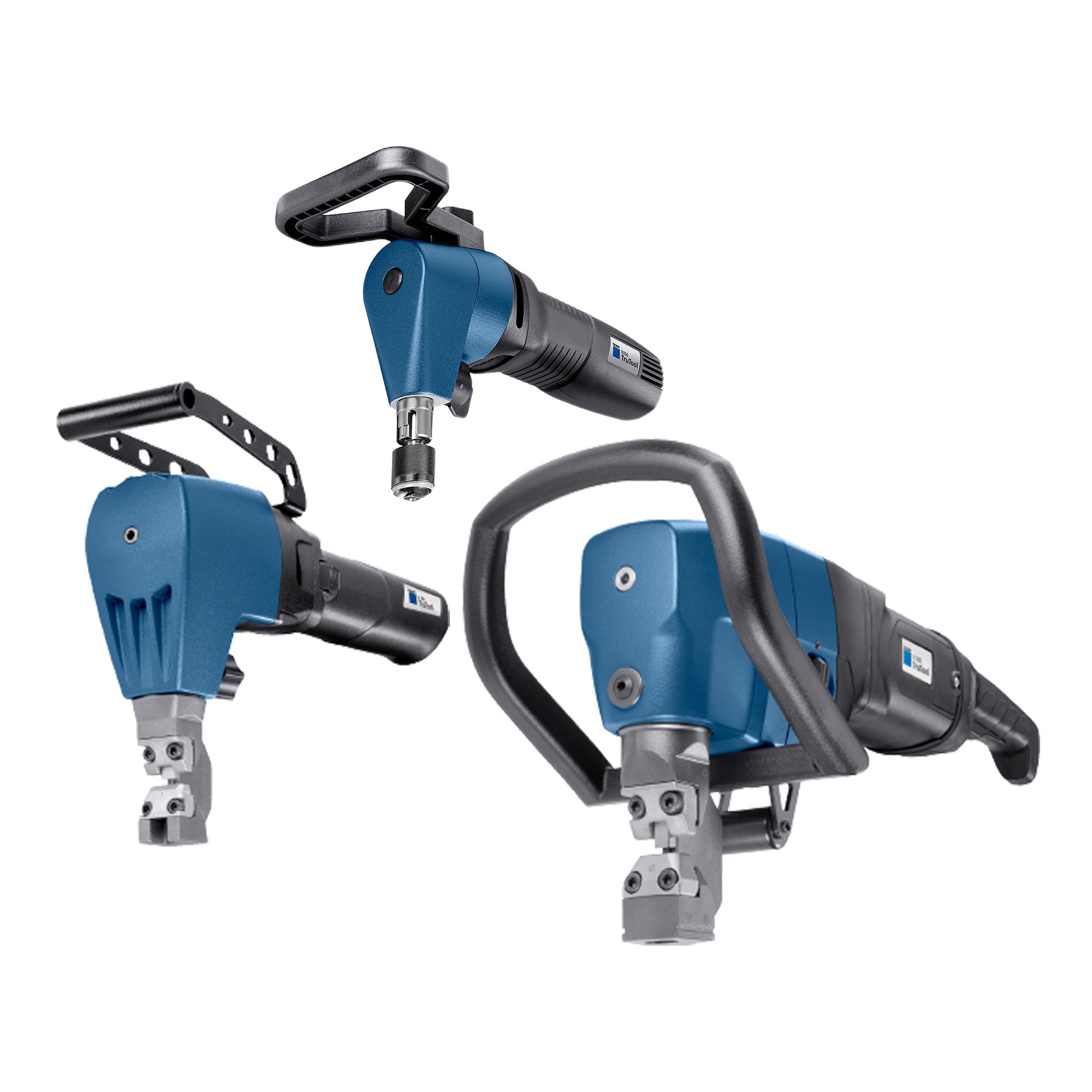

Electric Nibblers
- Cutting Capacity: Up to 0.375″ in mild steel and 0.276″ in stainless steel
- Strokes per Minute: Single and 2 gear options available
- Power: 7 to 17 Amp
Includes (testing):
- Electric Nibbler
Benefits

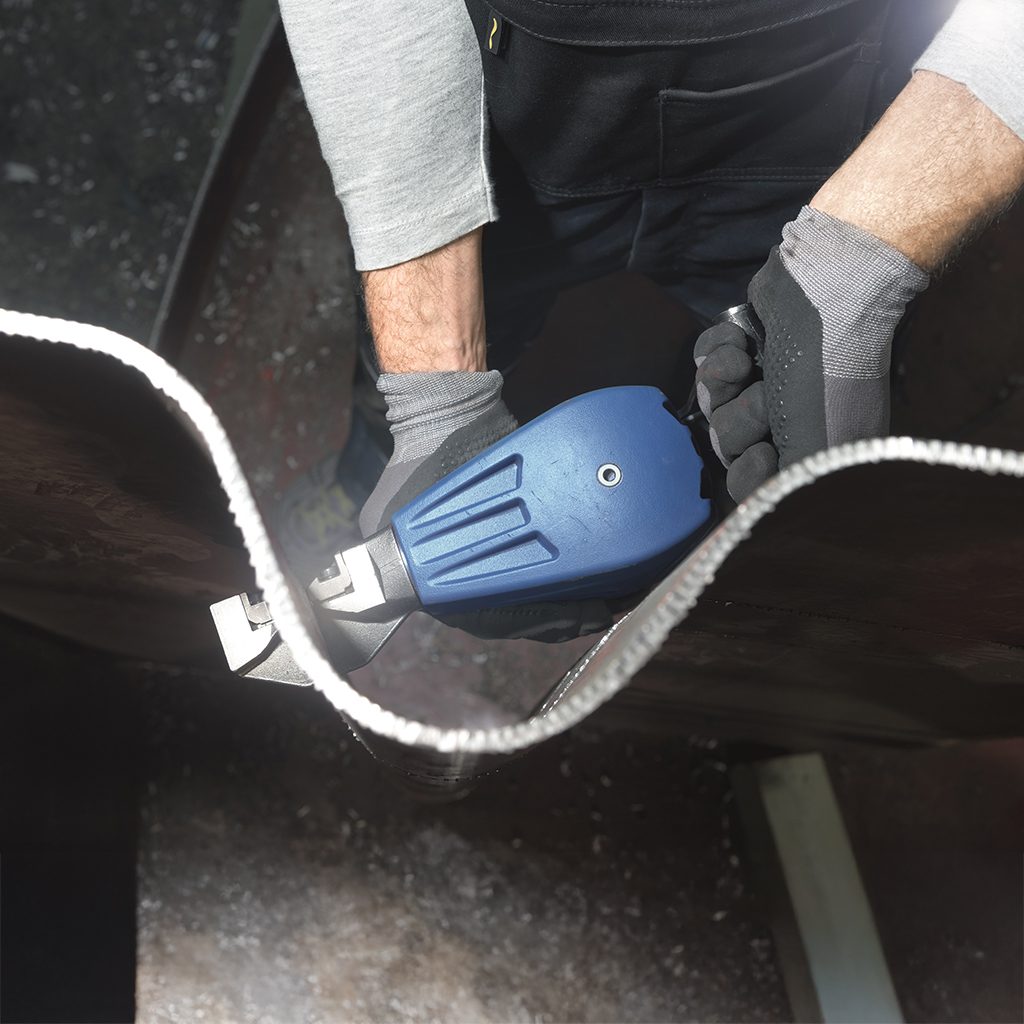

- Fast, clean cutting of sheet metal with minimal distortion, ideal for fabrication, installation, and field work.
- Head can be rotated to four 90° positions. Precision cutting performance allows operators to follow tight curves, profiles, and complex shapes with excellent control.
- Cut over 90° bends with optional die.
- High‑torque motors deliver consistent cutting power through steel, stainless steel, aluminum, and other metals.
- CS-3400 E with a two speed gearbox for cutting up to 3/8" steel at up to 5' per minute.
- Compact, lightweight housings make them easy to maneuver in tight or overhead spaces.
- Industrial grade durability withstands heavy daily use in fabrication shops, construction sites, and manufacturing environments.
- Built for continuous professional use, supporting metalworkers, installers, contractors, and maintenance crews.
Applications & Usage
- Electric Nibblers for cutting sheet metal, stainless steel, aluminum, and non‑ferrous materials.
- Up to 3/8″ cutting capacity in mild steel
- Ideal for forming panels, enclosures, brackets, and custom components.

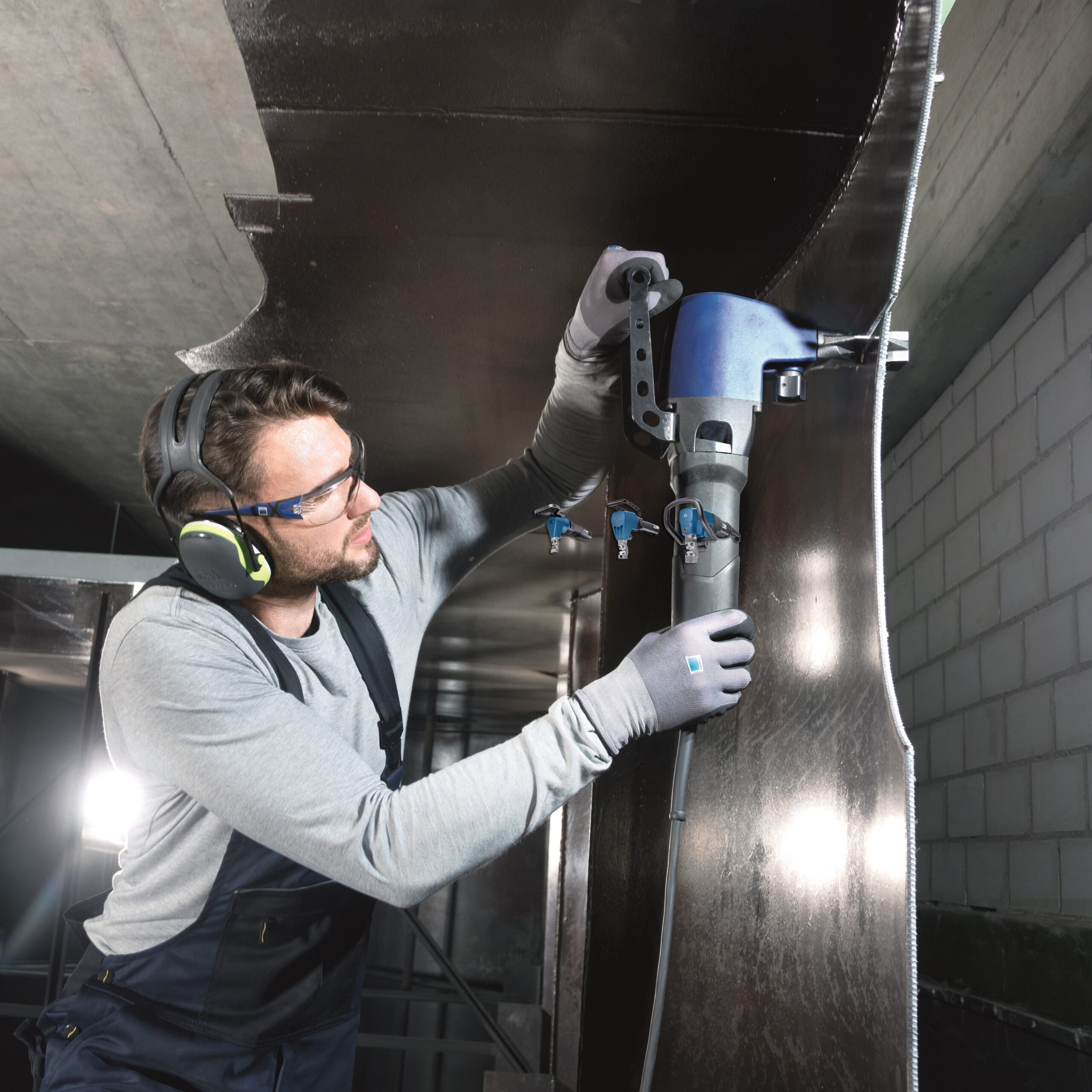

- Cutting ductwork, roofing panels, flashing, and metal siding.
- Perfect for trimming sheet metal on site without distortion.
- Cutting body panels, patch panels, and thin gauge steel.
- Useful for restoration, repair, and custom fabrication.
- Cutting sheet metal for repairs, retrofits, and equipment modifications.
- Cutting corrugated panels, trapezoidal sheets, and standing seam materials.

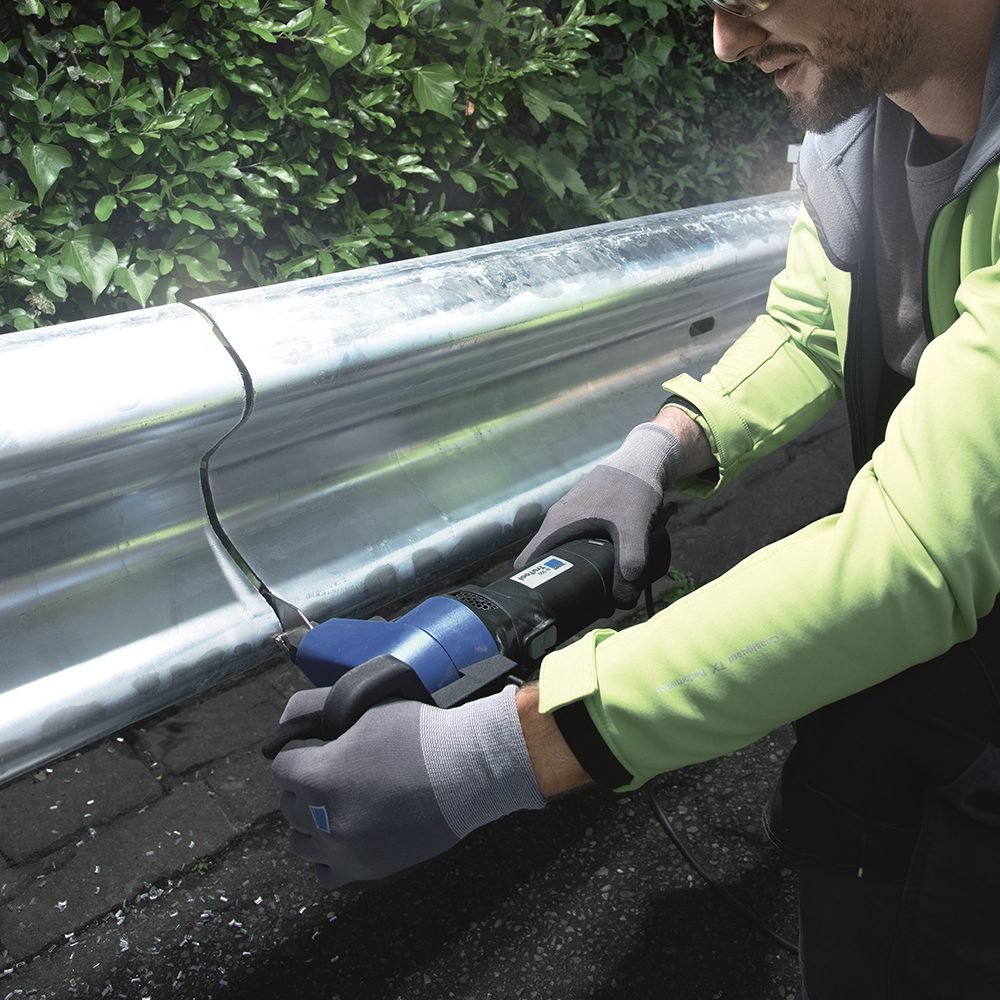

- Nibblers excel at curved cuts and profile following.
Technical Specifications
| Electric Nibblers | |||||||||
| Item ID: | Working Speed | Start Hole Dia. | Min. Radius | Strokes per Min. | Mild Steel | Stainless Steel | Aluminum | Weight | Power |
| CS-350-E | 4 ft/min | 1.25" | .280" | 650 | .135" | .090" | .135" | 7.5 lbs. | 12 Amp/ 110 V |

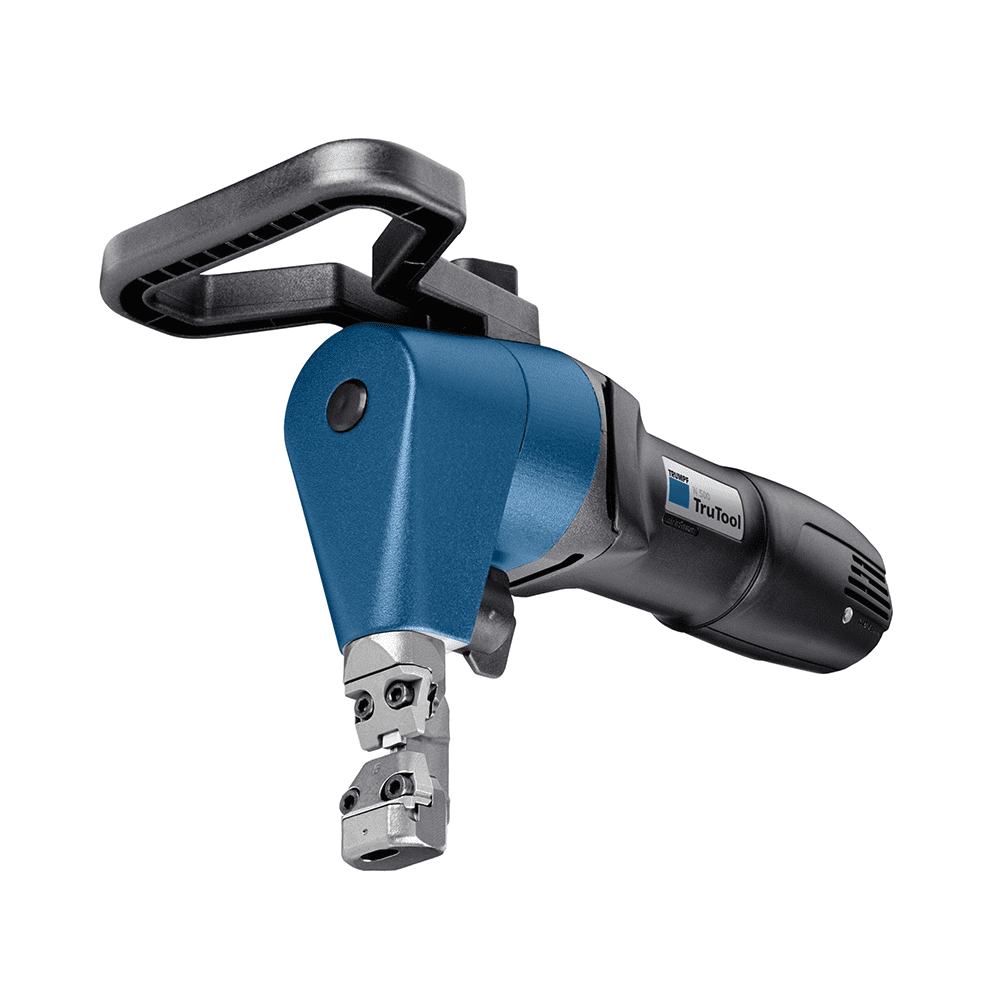

| CS-500-E | 4.5 ft/min | 1.25" | 3.125" | 600 | .197" | .135" | .276" | 8.5 lbs. | 12 Amp/ 110 V |

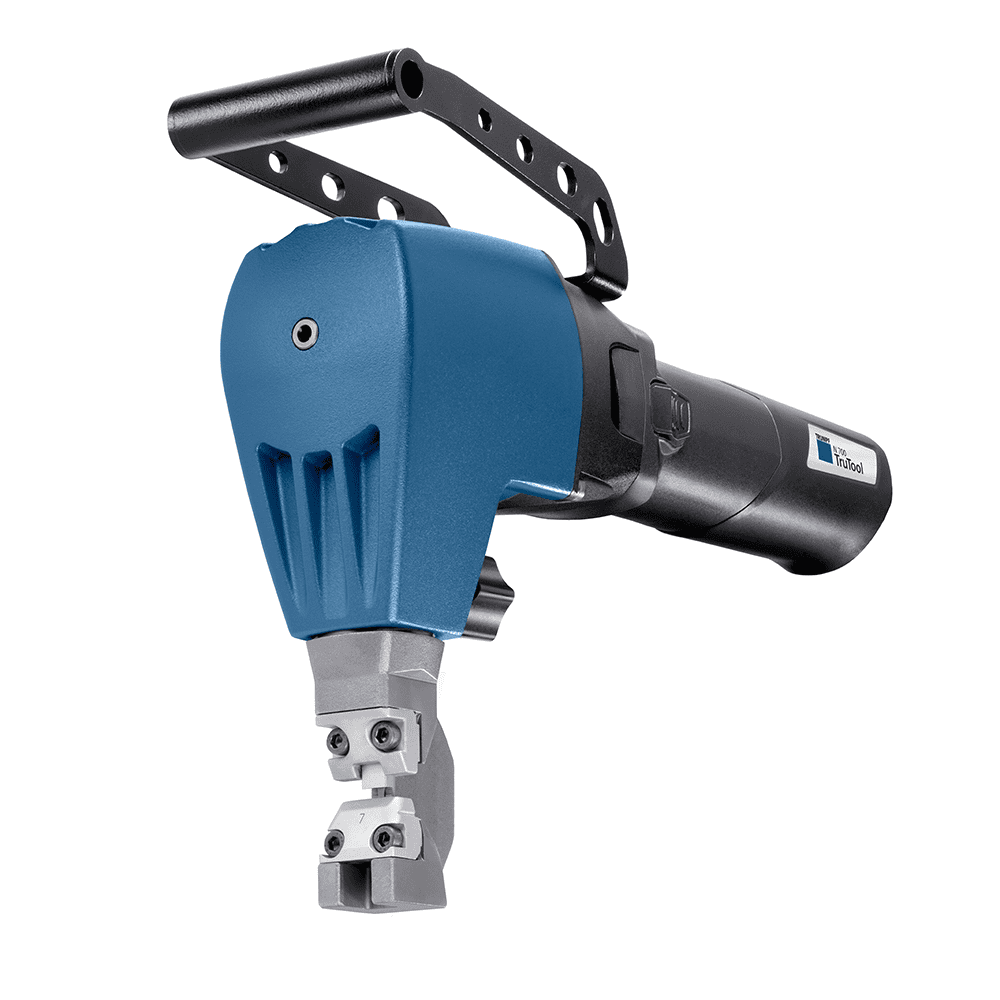

| CS-700-E | 5 ft/min | 2.75" | 5.5" | 400 | .276" | .197" | .394" | 26 lbs. | 17 Amp/ 110 V |

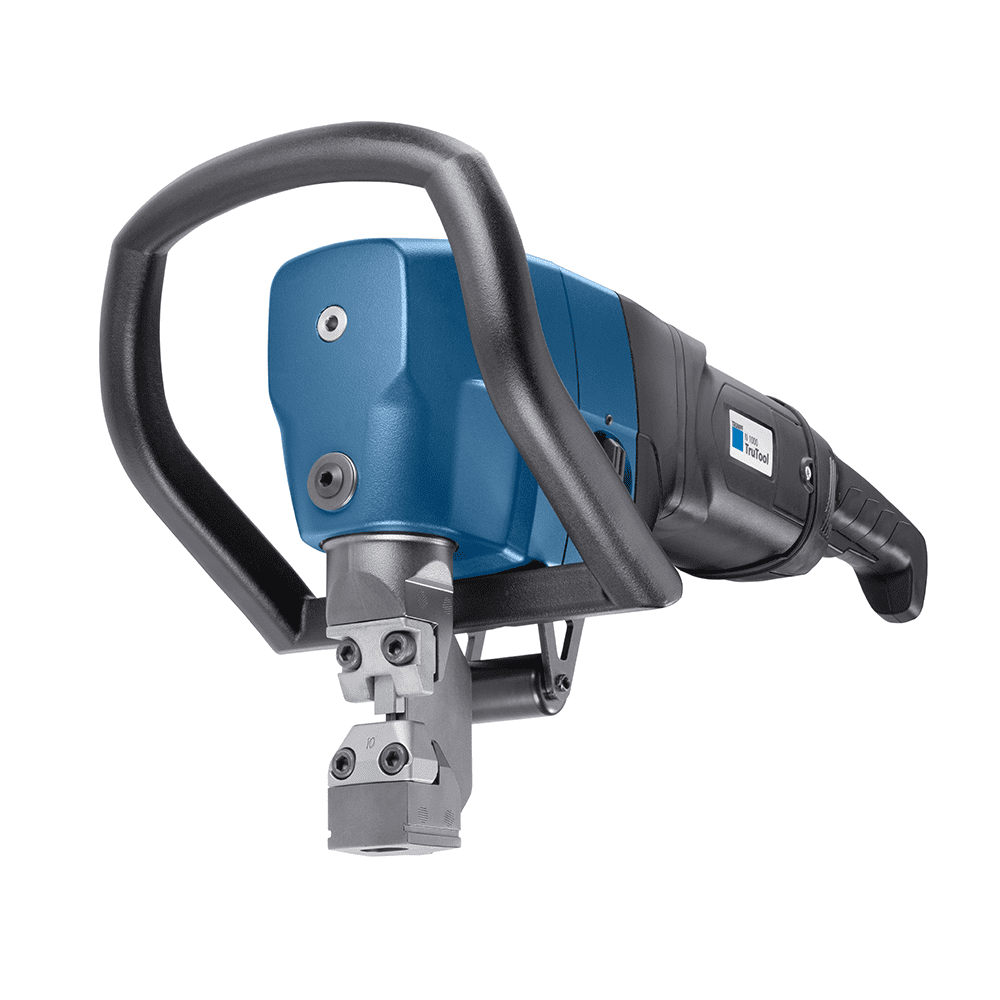

| CS-3400-E* | 5.2 ft/min | 3" | 16" | 230/370 | .375" | .276" | .500" | 32 lbs. | 7 Amp/ 110 V |
| * 2-speed gearbox | |||||||||
Optional Accessories
Optional
OptionalRelated PDFs

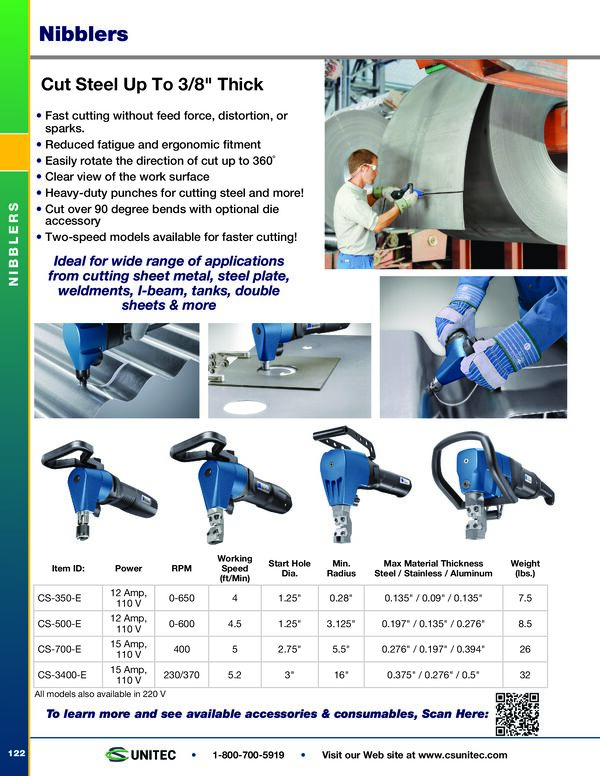

Catalog PDF 1
CAT_Nibblers
Download PDF
Catalog PDF 2
CAT_Saws
Download PDF

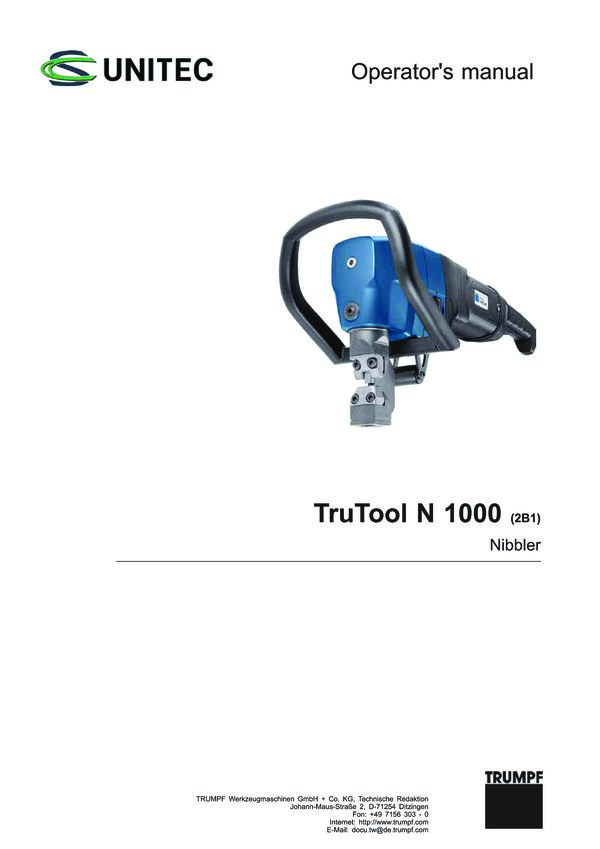

Operating Manual 1
MANUAL_CS-3400-E
Download PDF

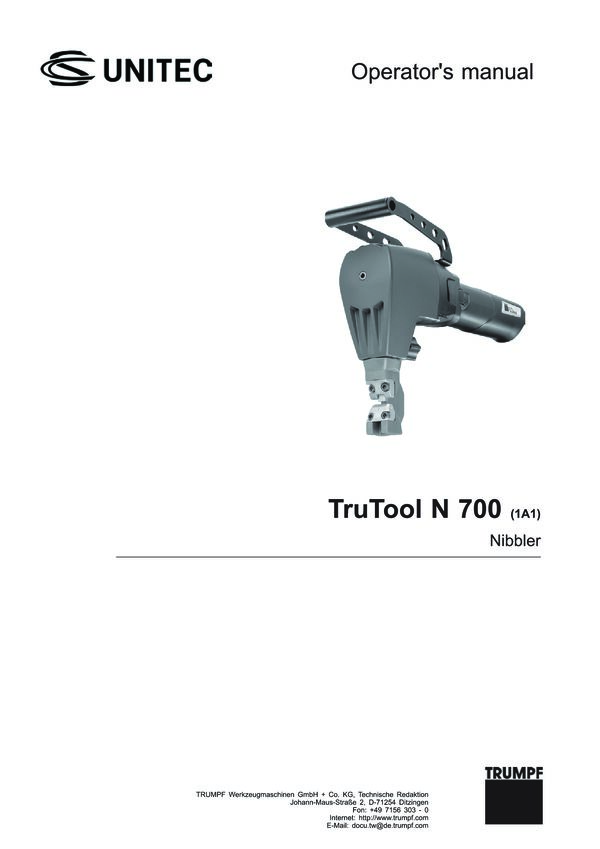

Operating Manual 2
MANUAL_CS-700-E
Download PDF

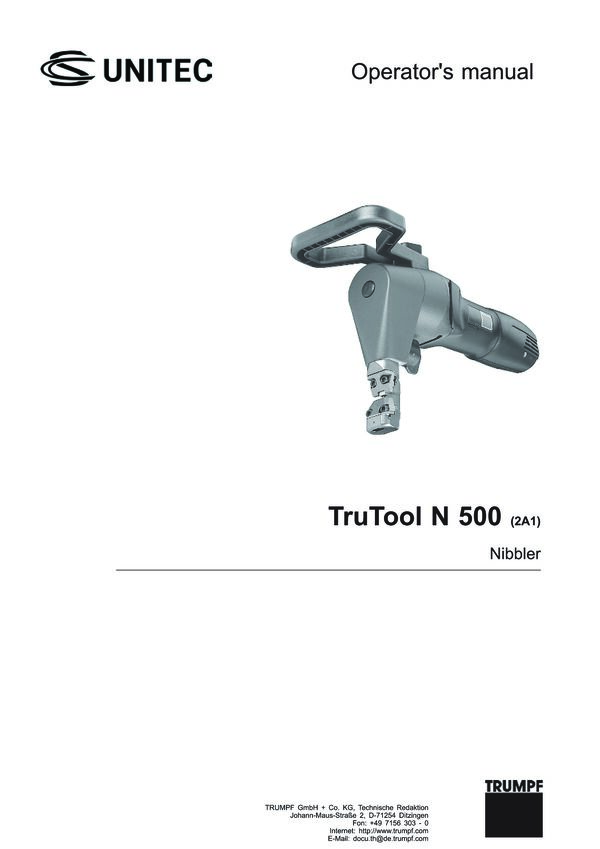

Operating Manual 3
MANUAL_CS-500-E
Download PDF
Operating Manual 4
PDF
MANUAL_CS-350-E.pdf
Download PDF
