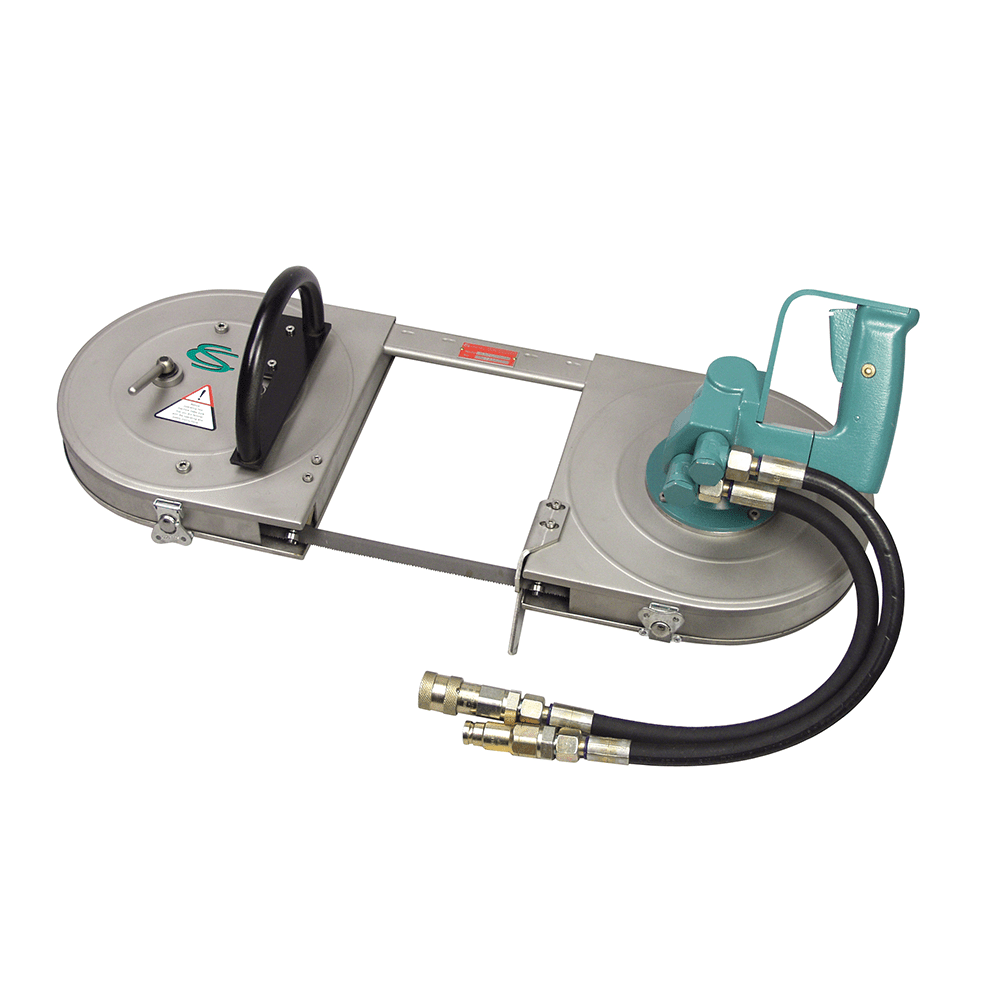

Hydraulic Band Saws
- Cutting Capacity: Up to 8″ (Round), 9″x8-1/5″ (Rectangular)
- Blade Speed: 4.2 ft/sec
- Connection: 1/2″ FF (HTMA) COUPLINGS
- Motor Power: 1.6 HP
- Oil Flow: 4 GPM @ 2000 PSI
- Whip hoses & FF Couplings included
- ATEX Certified for EX Zones
Includes (testing):
- (1) Hydraulic Band Saw
Benefits
- Heavy‑duty hydraulic power delivers strong, consistent cutting performance for demanding industrial environments
- Designed for extreme conditions including offshore, mining, marine, and hazardous locations where electric tools are restricted.
- Cold‑cutting operation minimizes sparks and heat, supporting safer cutting in sensitive or explosive‑risk areas.
- Reliable performance during shutdowns, turnarounds, and high‑volume industrial maintenance tasks.
Applications & Usage
- Hydraulic Band Saws cut steel, stainless steel, inconel, chrome alloys, hastelloy, aluminum, copper, cast iron, fiberglass, and plastic pipe.
- Suitable for cutting pipe, structural components, and heavy materials in underground or hazardous locations.
- Designed for corrosive, high‑moisture environments such as offshore platforms, ship repair yards, and marine maintenance facilities.
- Supports precise cutting of structural steel, profiles, and heavy‑wall materials in fabrication shops and on job sites.
Technical Specifications
| Model 5 6043 0010 – Hydraulic – 1/2" FF (HTMA) Couplings | Motor Power and Specs | 1.6 HP, 2000 PSI, 4 GPM |
|---|---|
| Blade Speed | 4.2 ft/sec |
| Capacity (Round) | 4" |
| Capacity (Rectangular) | 4" x 4" |
| Blade Size | 44-7/8" x 1/2" |
| Housing | Stainless Steel |
| Overall Length | 22" |
| Weight | 23 lbs. |
| Model 5 6041 0010 – Deep Throat™ Hydraulic – 1/2" FF (HTMA) Couplings | |
|---|---|
| Motor Power and Specs | 1.6 HP, 2000 PSI, 4 GPM |
| Blade Speed | 4.2 ft/sec |
| Capacity (Round) | 7" |
| Capacity (Rectangular) | 7" X 7" |
| Blade Size | 66" x 5/8" |
| Housing | Stainless Steel |
| Overall Length | 28-3/4" |
| Weight | 28 lbs. |
| Model 5 6054 0010 – Wide Mouth™ Hydraulic – 1/2" FF (HTMA) Couplings | |
|---|---|
| Motor Power and Specs | 1.6 HP, 2000 PSI, 4 GPM |
| Blade Speed | 4.2 ft/sec |
| Capacity (Round) | 8" |
| Capacity (Rectangular) | 9" x 8-1/2" |
| Blade Size | 71" x 5/8" |
| Housing | Stainless Steel |
| Overall Length | 30-3/4" |
| Weight | 35.6 lbs. |

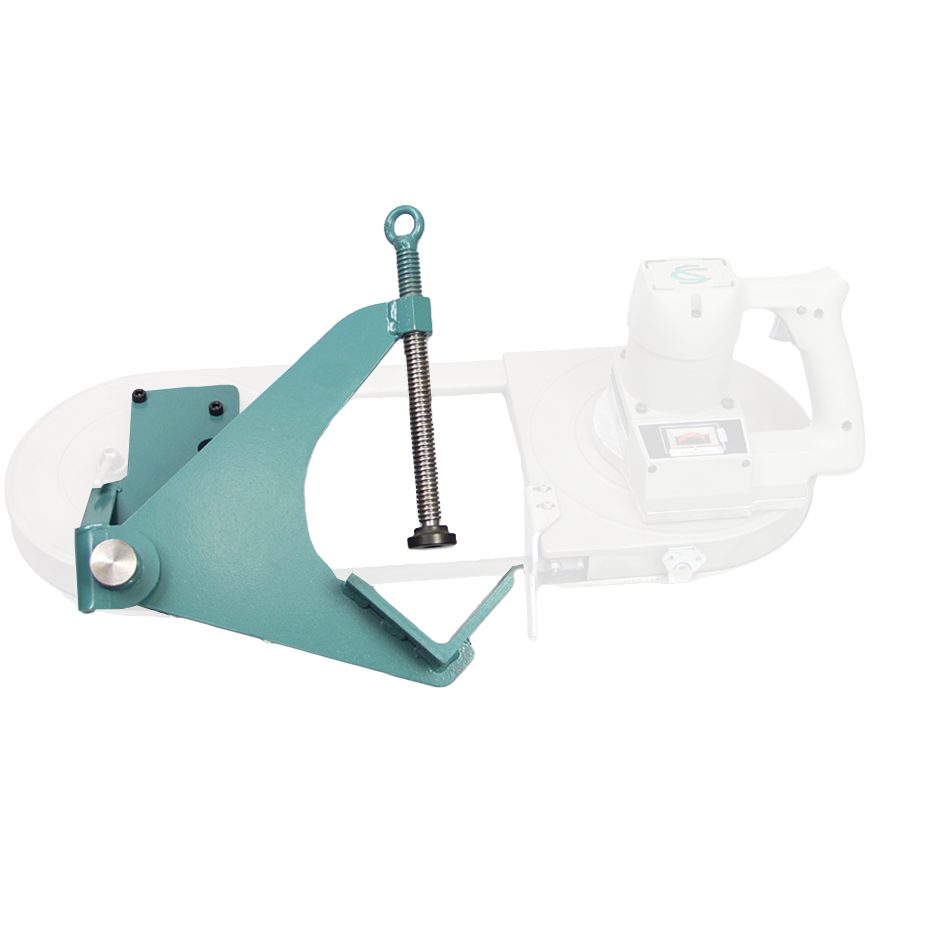

Optional Accessories
Optional
Optional
OptionalRelated PDFs
Catalog PDF 1
CAT_Band_Saws
Download PDF
Catalog PDF 2
CAT_Saws
Download PDF
Catalog PDF 3
CAT_Hydraulic_Band_Saws
Download PDF

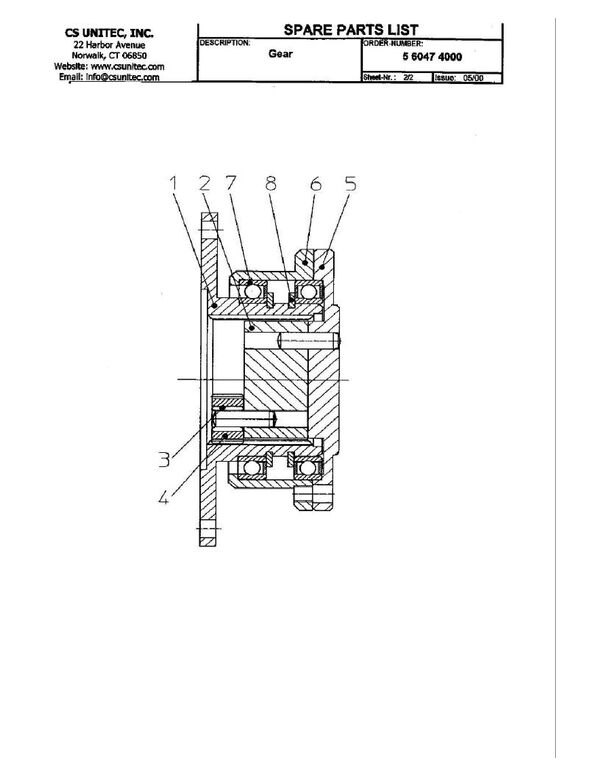

Product Schematic 1
SCHEM_560410010
Download PDF

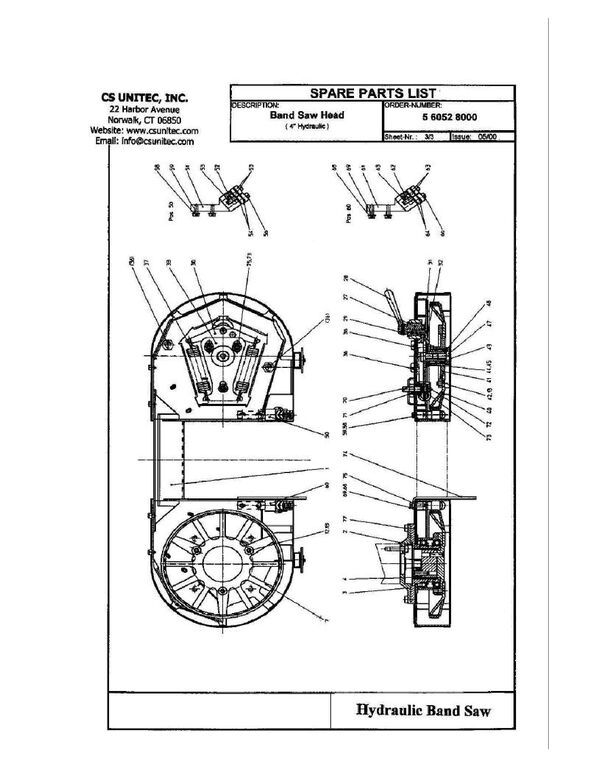

Product Schematic 2
SCHEM_560430010
Download PDF

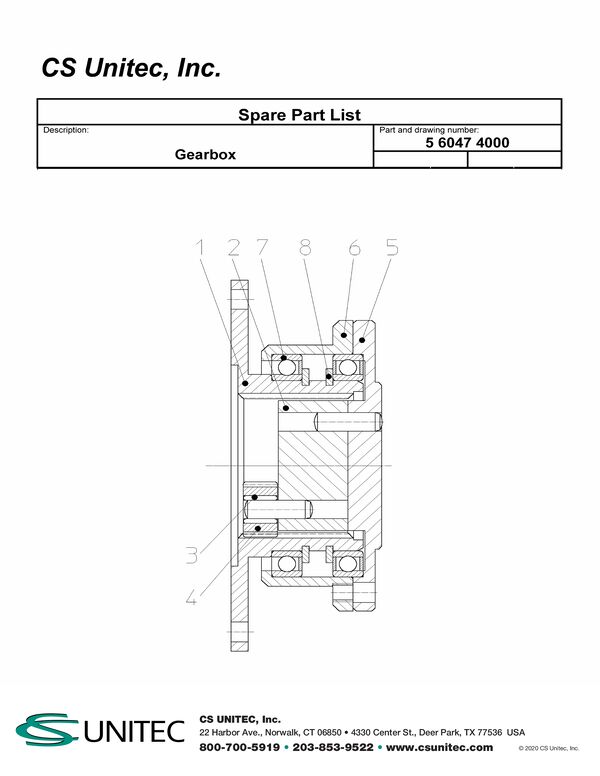

Product Schematic 3
SCHEM_560474000
Download PDF

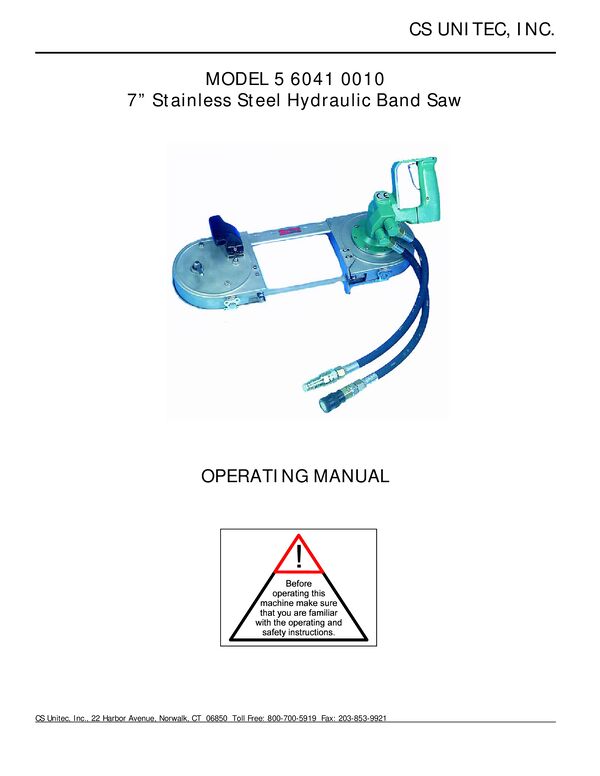

Operating Manual
MANUAL_5 6041 0010
Download PDF
