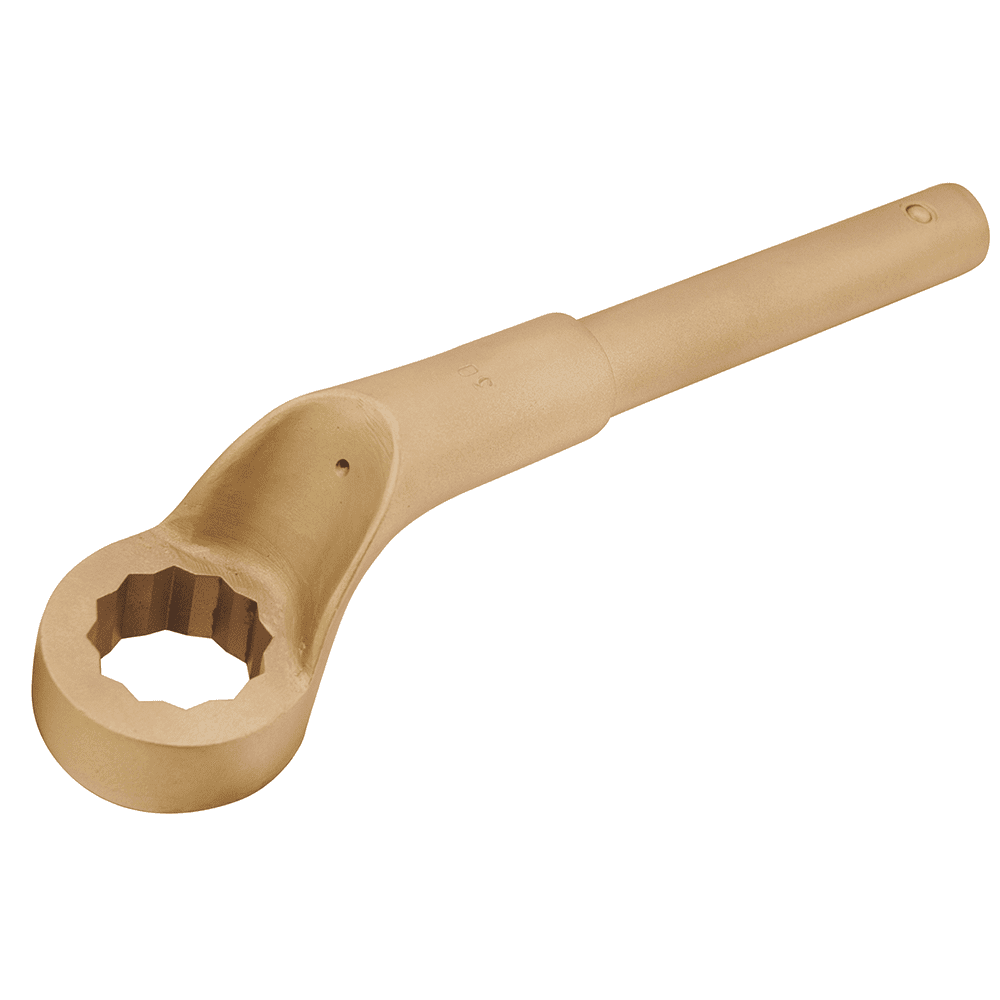

Extension Box Wrench

$0.00
  • Non-Sparking
  • Non-Magnetic
  • Corrosion Resistant

Scroll to product video(s) ➔

Item ID: N/A Category Tags , , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Included Components

  • Box, for Extension

Benefits

  • Deep-reach access
  • Slim extension body
  • Strong square drive

Applications & Usage

  • Extension Box Wrench Non-Sparking & Non-Magnetic
  • Corrosion Resistant
  • ISO 9001:2015 certified production, TUV materials certified
  • Lifetime Warranty

Technical Specifications

Standard Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex215-005UA Ex215-005UB

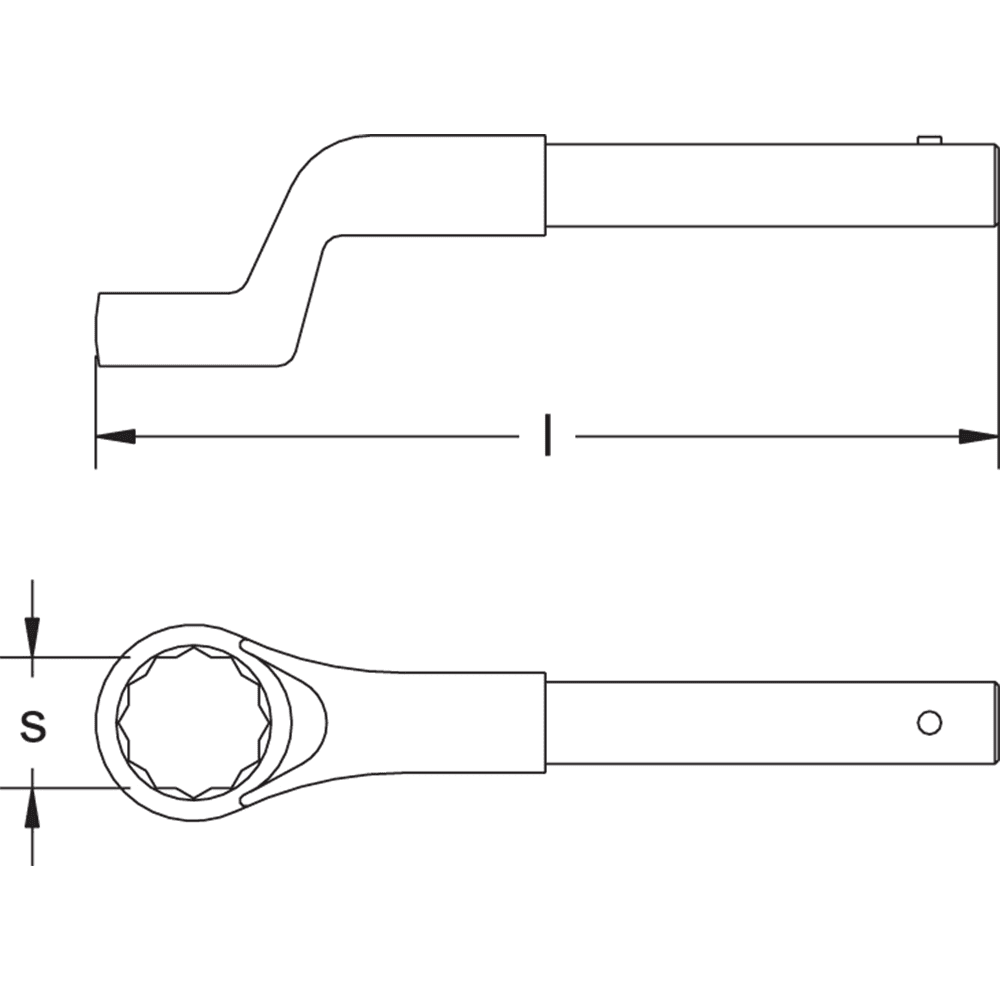

No. S inch l inch Wt. lbs.
Ex215-005U 1-3/16 8 2.03 For use with extension Ex216-22
Ex215-010U 1-1/4 9-3/8 2.14
Ex215-015U 1-5/16 9-3/8 2.14
Ex215-020U 1-3/8 9-3/8 2.14
Ex215-025U 1-7/16 9-3/4 2.27
Ex215-030U 1-1/2 10 2.51
Ex215-035U 1-9/16 10-9/16 2.78
Ex215-040U 1-5/8 10-9/16 2.78
Ex215-045U 1-11/16 10-9/16 2.78
Ex215-050U 1-3/4 11-3/16 3.53 For use with extension Ex216-25
Ex215-055U 1-13/16 11-3/16 3.53
Ex215-060U 1-7/8 11-3/16 3.53
Ex215-065U 2 11-3/16 3.90
Ex215-070U 2-1/16 11-3/16 3.90
Ex215-075U 2-1/8 11- 9/16 4.30
Ex215-080U 2-3/16 11- 9/16 4.30
Ex215-085U 2-1/4 13- 3/16 6.39
Ex215-090U 2-5/16 13 3/16 6.39
Ex215-095U 2-3/8 13 3/16 6.39 For use with extension Ex216-30
Ex215-100U 2-7/16 14 6.83
Ex215-105U 2-1/2 14 6.83
Ex215-110U 2-9/16 14 6.83
Ex215-115U 2-5/8 14-3/8 7.72
Ex215-120U 2-3/4 14-3/8 7.72
Ex215-125U 2-13/16 14-3/8 7.72
Metric Sizes
When ordering, specify:
A = Aluminum Bronze B = Copper Beryllium
Example: Ex215-30A Ex215-30B
No. S mm l mm Wt. kg
Ex215-30 30 200 0.92 For use with extension Ex216-22
Ex215-32 32 235 0.97
Ex215-33 33 235 0.97
Ex215-34 34 235 0.97
Ex215-35 35 245 1.03
Ex215-36 36 245 1.03
Ex215-37 37 250 1.14
Ex215-38 38 250 1.14
Ex215-41 41 265 1.26
Ex215-42 42 265 1.26
Ex215-46 46 280 1.60 For use with extension Ex-216-25
Ex215-47 47 280 1.60
Ex215-50 50 280 1.77
Ex215-52 52 280 1.77
Ex215-55 55 290 1.95
Ex215-58 58 330 2.90 For use with extension Ex216-30
Ex215-60 60 330 2.90
Ex215-65 65 350 3.10
Ex215-70 70 360 3.50
More sizes available. Contact us for information.
How to Choose the Correct Alloy for Your Application
Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2 Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe. Very durable due to high hardness and tensile strength.
Magnetic Properties Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications. Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance
For More Information on Choosing The Correct Alloy for Your Application - Click Here
Use Guidelines
Proper Use Misuse
Box wrenches in the regular pattern are designed for general service. The Heavy- Duty and Striking Face patterns are designed for the service indicated. The Electronic Hex Box patterns are designed for the lighter service encountered in electronic, carburetor and ignition work. Ratcheting Box and split box wrenches are for light duty and should not be used in heavy-duty applications. Never use a hammer on any wrench other than a Striking Face wrench. Use a sledge type hammer. Never use an extension on the wrench handle.
