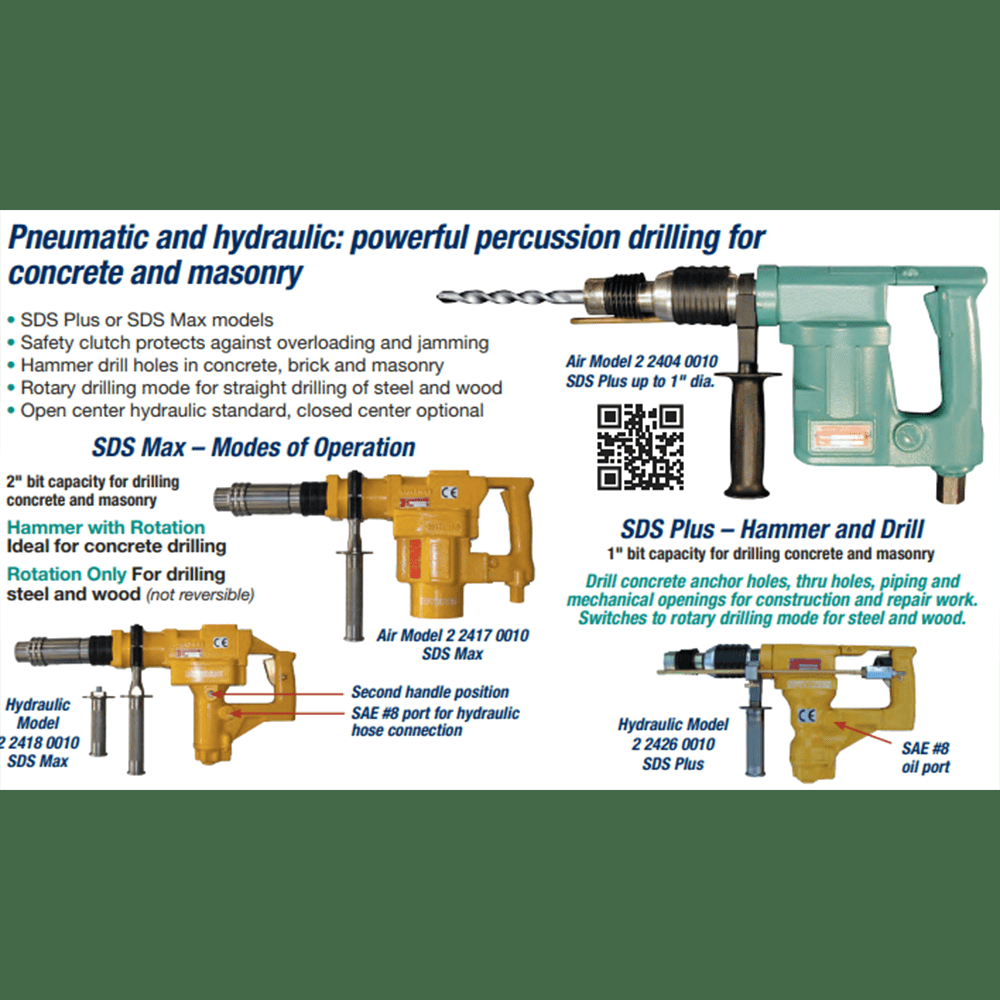

Air Rotary Hammer Drill SDS Plus & SDS Max

$0.00
  • ATEX Certified for hazardous environments
  • Concrete Drilling Capacity: Up to 2″ (solid bit – concrete), Up to 6″ (core bit)
  • Wood Drilling Capacity: Up to 1-1/4″ (twist drill)
  • Drill Speed: Variable Speed Options
  • Power: 0.7 HP (SDS Plus) & 1.6 HP (SDS Max) (at 90 PSI)
  • Underwater design on select models
  • Safety slip clutch prevents overloading

Scroll to product video(s) ➔

Item ID: N/A Categories , Tags , , Brand

Ask a QuestionAccessories
  • Free shipping on all orders over $50
  • 30 days easy returns
  • All taxes and customs duties included

Includes (testing):

  • Air Rotary Hammer Drill

Benefits

  • ATEX certified for hazardous environments.
  • Rotary Hammer mode for concrete.
  • Rotary drill mode for steel and wood.
  • Air motors deliver strong impact energy with minimal tool weight, reducing operator fatigue.
  • Safety clutch feature on models protects against overloading and jamming on the drill.
  • Durable construction and stainless streel gear housing withstands harsh jobsite conditions.
  • Compact, lightweight bodies provide precise handling for overhead, vertical, or awkward drilling positions.

Applications & Usage

  • Air Rotary Hammer Drill for drilling anchor holes, dowel holes, and penetrations in concrete, block, and masonry.
  • Safe for use in hazardous, flammable, or vapor rich environments where electric tools pose risks.
  • Ideal for drilling in confined, poorly ventilated, or moisture heavy environments.
  • Reliable in wet, corrosive, and salt exposed conditions where electric tools fail.
  • Model 2 1266 0010 with 1/2″ geared chuck is ideal for underwater use, and can be used for hammer drilling, but converts into straight drilling for wood and steel.
  • All other models include hammer drilling for brick and masonry, and rotary drilling modes for steel and wood.

Technical Specifications

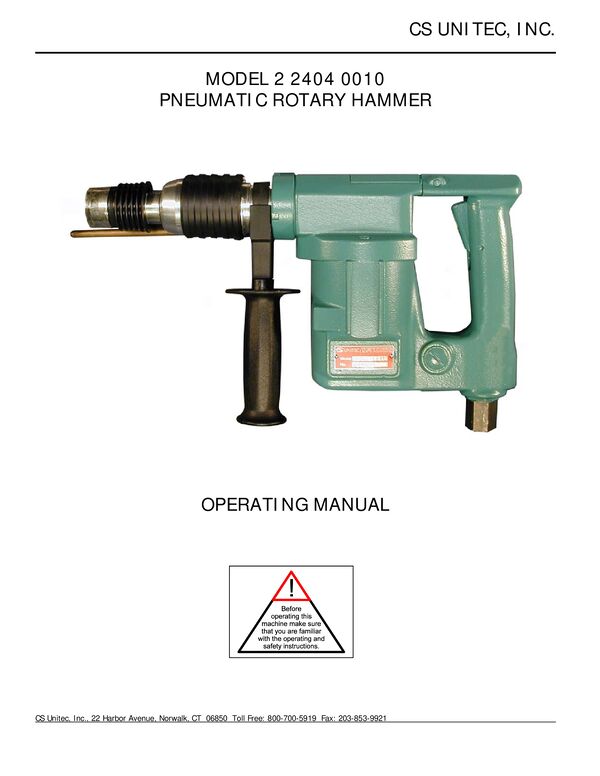

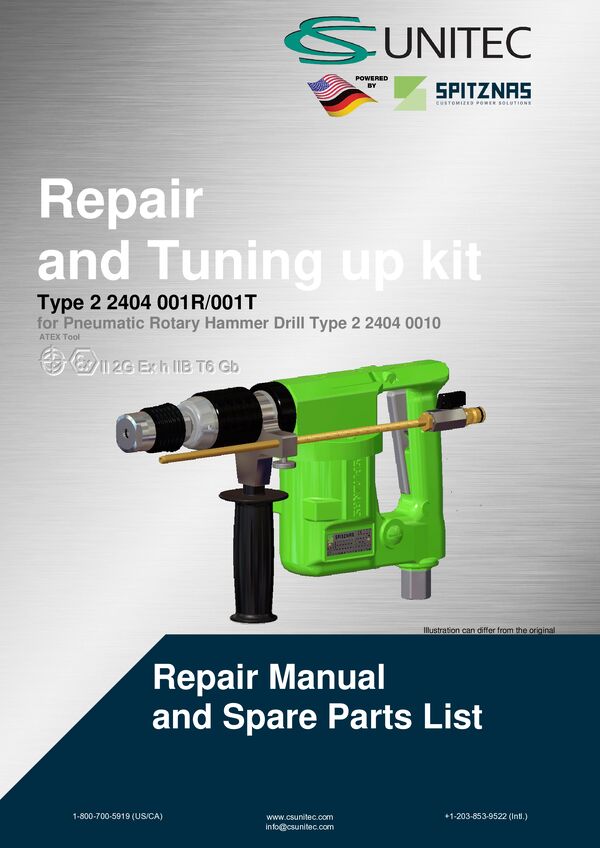

Model: 2 2404 0010 - SDS Plus
Blows / Minute (BPM) 0-3000
Drill Speed RPM 0-625
Power at 90 PSI 0.7 HP
Tool System SDS Plus
Air Consumption at 90 PSI 21 CFM
Hole Capacity (Solid Bit - Concrete) 1" dia.
Hole Capacity (Core Bit - Concrete) 3" dia.
Twist Drill (Wood) 3/4" dia.
Weight 11 lbs.
ATEX Classification:  EX II 2Gc T6
Dimensions 16" x 8-1/2" x 4"

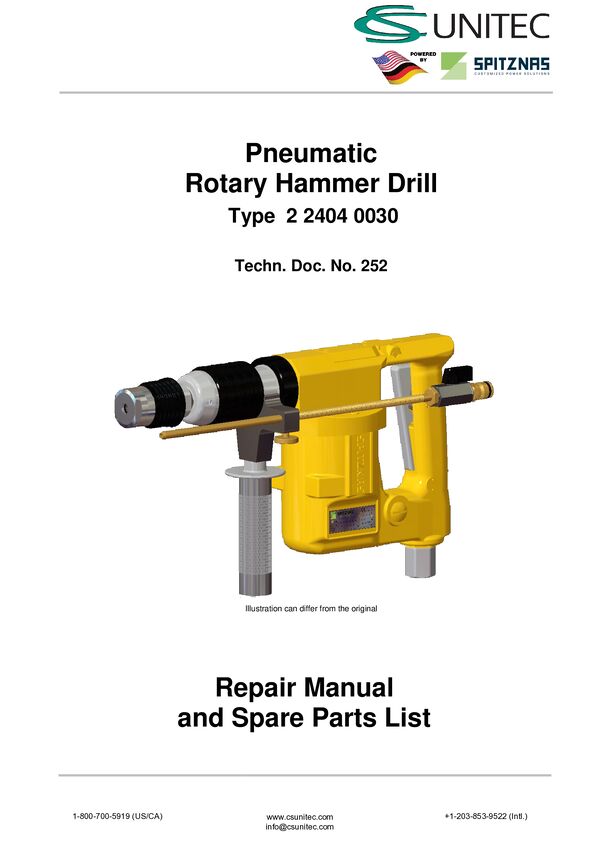

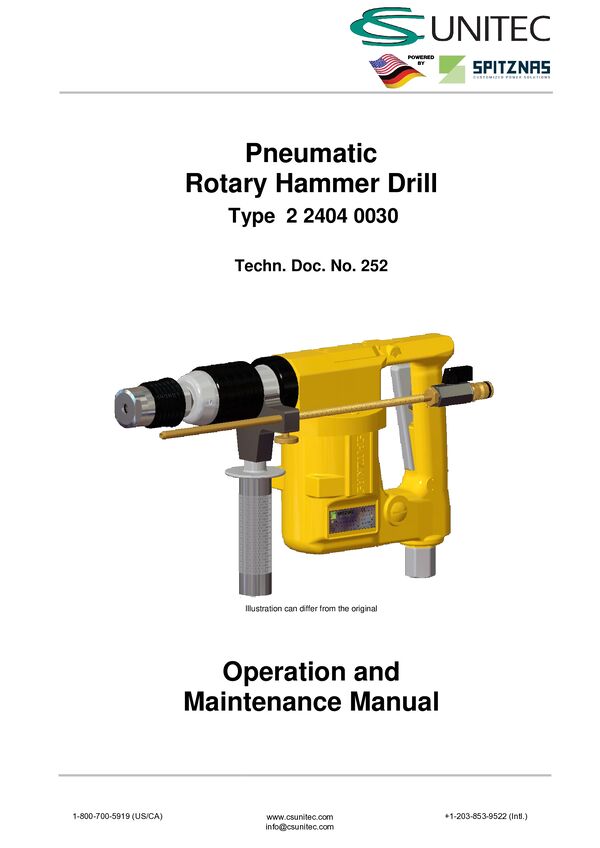

Model: 2 2404 0030 - SDS Plus for Underwater
Blows / Minute (BPM) 0-3000
Drill Speed (RPM) 0-625
Power at 90 PSI 0.7 HP
Air Consumption at 90 PSI 21 CFM
Tool System SDS Plus
Solid Bit (Concrete) 1" dia.
Core Bit (Concrete) 3" dia.
Twist Drill (Wood) 3/4" dia.
Dimensions 16" x 8-1/2" x 4"
Weight 11 lbs.

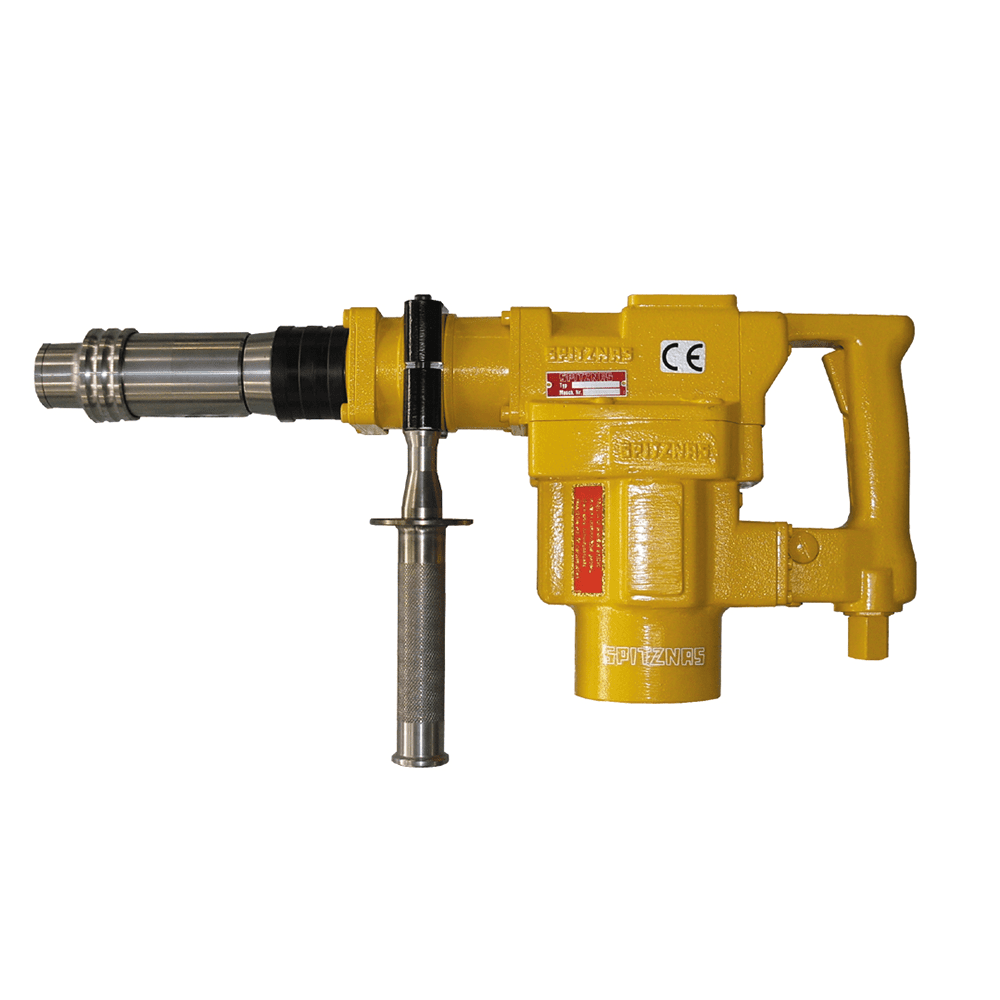

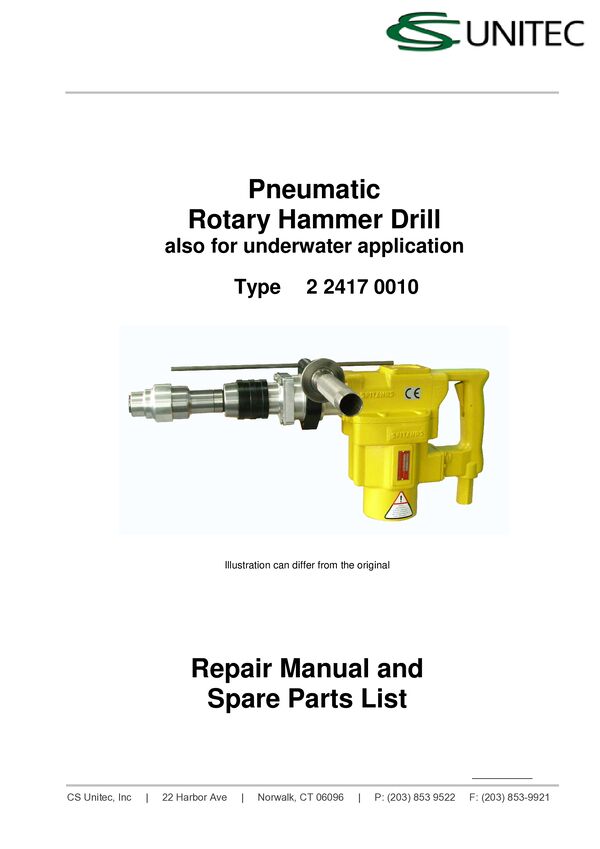

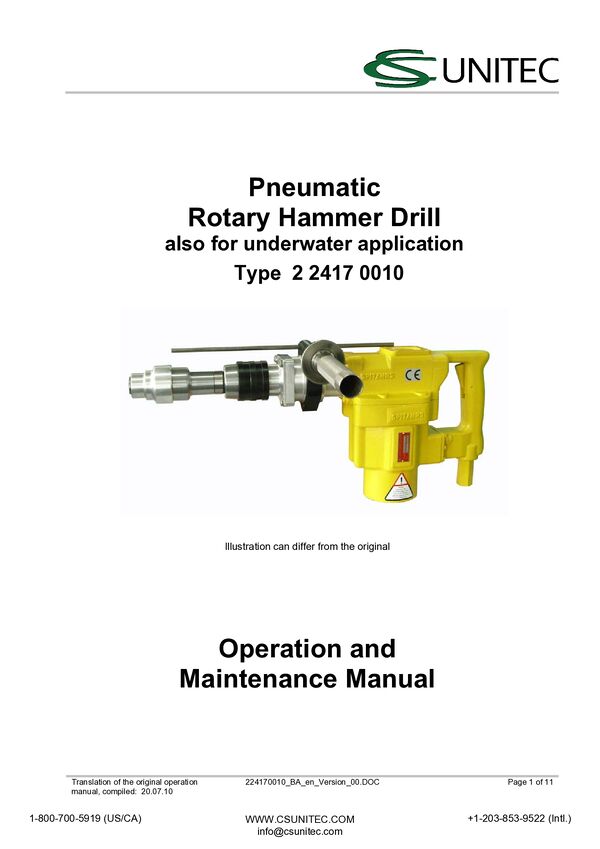

Model: 2 2417 0010 - SDS Max
Blows / Minute (BPM) 0-2500
Drill Speed (RPM) 0-250
Power at 90 PSI 1.6 HP
Air Consumption at 90 PSI 53 CFM
Tool System SDS Max
Solid Bit (Concrete) 2" dia.
Core Bit (Concrete) 6" dia.
Twist Drill (Wood) 1-1/4" dia.
Dimensions 19-1/2" x 9.8" x 4-1/2"
Weight 26 lbs.

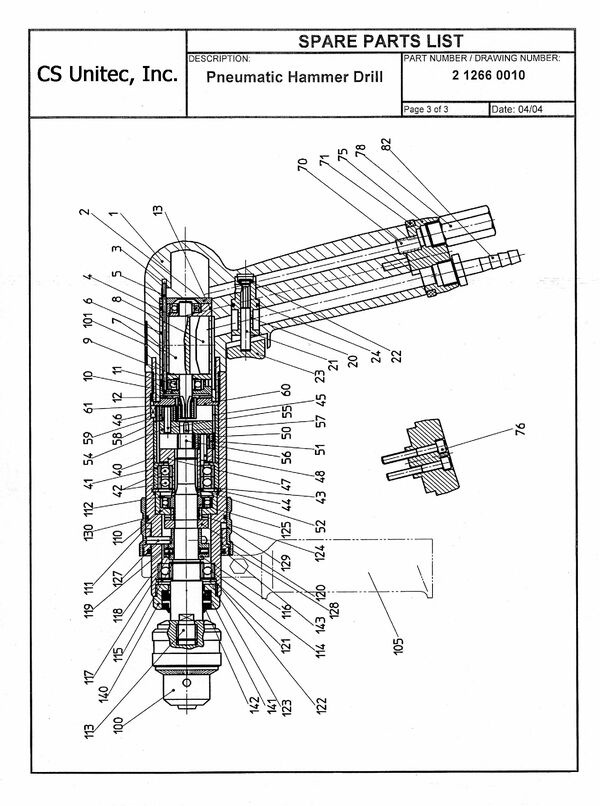

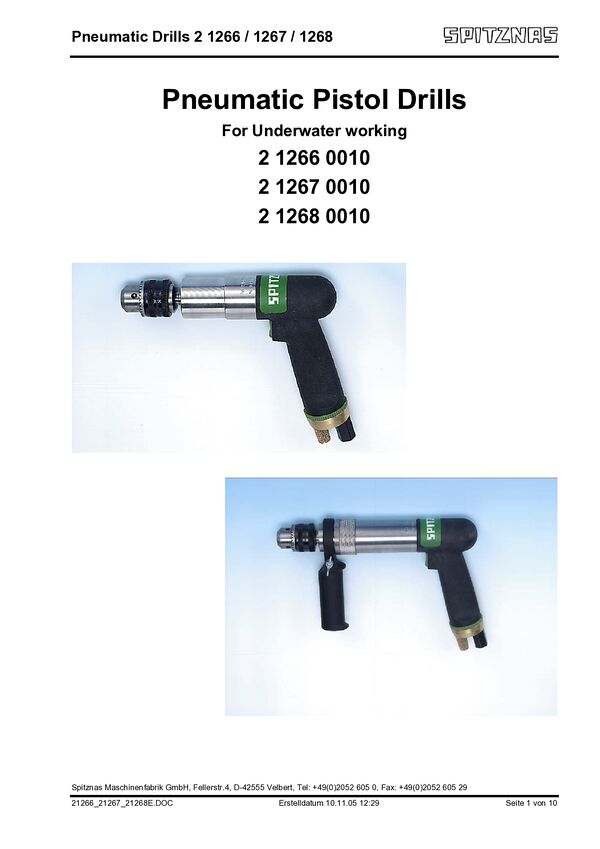

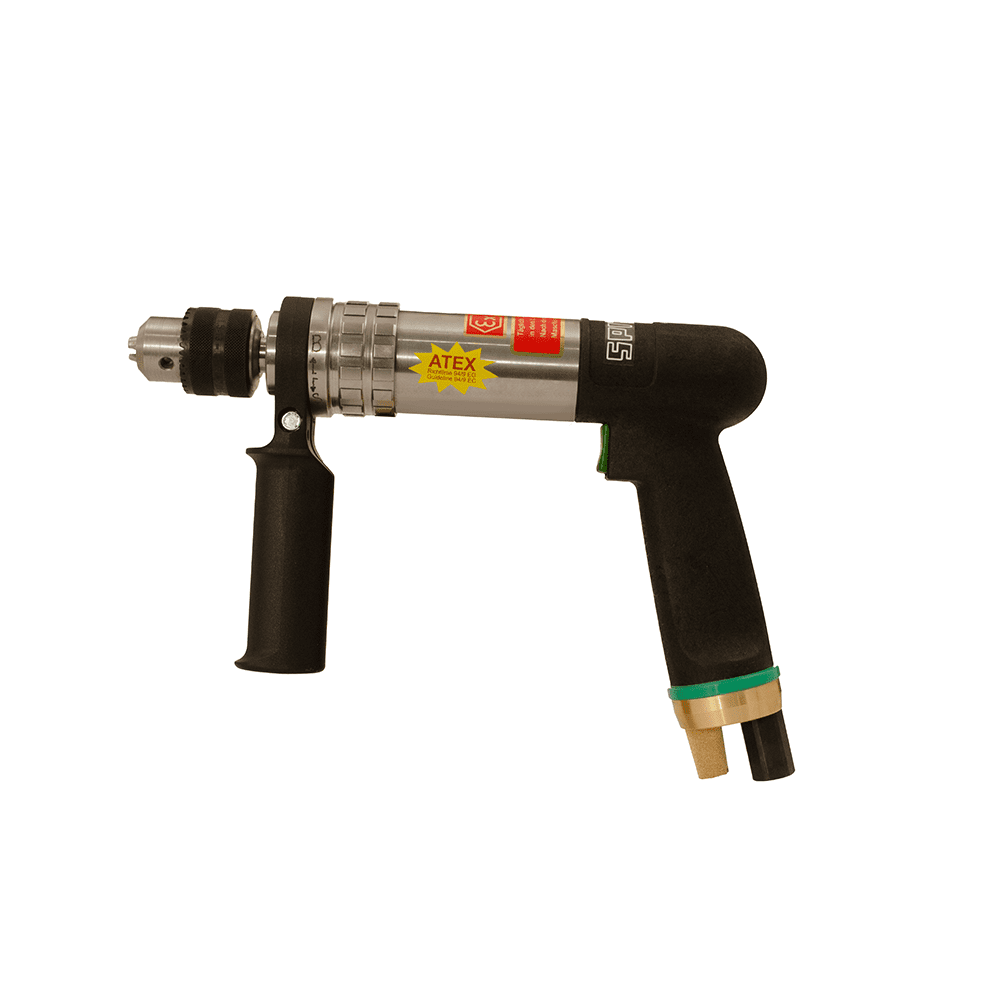

Model: 2 1266 0010 - Non-SDS (Geared 1/2" Chuck)
Blows / Minute (BPM) 0-2000
Drill Speed (RPM) 0-950
Power at 90 PSI 0.75 HP
Air Consumption at 90 PSI 21 CFM
Tool System 1/2" Chuck
Solid Bit (Concrete) 1/2" dia.
Twist Drill (Wood) 3/8" dia.
Dimensions 12" x 8-1/2" x 4"
Weight 7 lbs.
