Hydraulic Nut Runners
- Drive Torque: Up to 369 ft.-lbs.
- Load Speed: Up to 95 RPM
- Oil Flow: 4-13 GPM
- Power: 1.6 HP
- Whip hoses & FF Couplings included

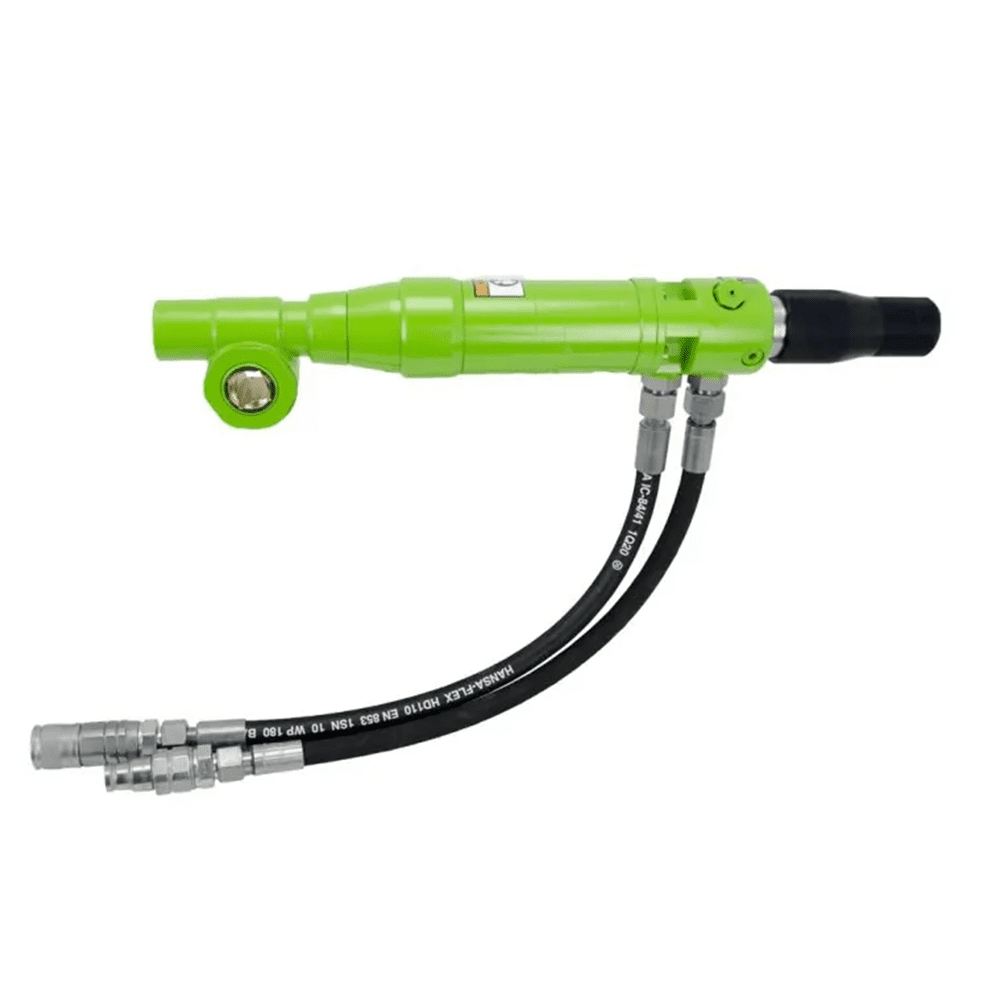

- Hydraulic Nut Runner
Benefits
- Lightweight and reversible
- High torque
- Compact angle head allows access to confined spaces
- Pneumatic Nut Runners also available.
Applications & Usage
- Hydraulic Nut Runners ideal for turning valves, tightening, tapping, reaming, pipe beveling, expanding, and more.
- Worm gear drive provides high torque – up to 369 ft.-lbs.
- Available with Male or Female Square Drives in a variety of sizes
Technical Specifications
Power = 1.6 HP Side to Center Distance = 1" Length = 20" Connection = Quick Couplers, 1/2" FF
| Model No. | Square Drive | Drive Torque (ft.-lbs.) | Load Speed (RPM) | Oil Flow (GPM) | Oil Pressure (PSI) |
|---|---|---|---|---|---|
| 3 6242 0010 | 3/4" F | 369 | 20 | 4-13 | 870-2000 |
| 3 6242 0075 | 3/4" M | 369 | 20 | 4-13 | 870-2000 |
| 3 6242 0099 | 1/2" M | 369 | 20 | 4-13 | 870-2000 |
| 3 6243 0010 | 3/4" F | 118 | 95 | 4-13 | 1300-2000 |
| 3 6243 0075 | 3/4" M | 118 | 95 | 4-13 | 1300-2000 |
| 3 6243 0099 | 1/2" M | 118 | 95 | 4-13 | 1300-2000 |
Optional Accessories
Optional
OptionalRelated PDFs
Catalog PDF
CAT_Nut_Runners
Download PDF

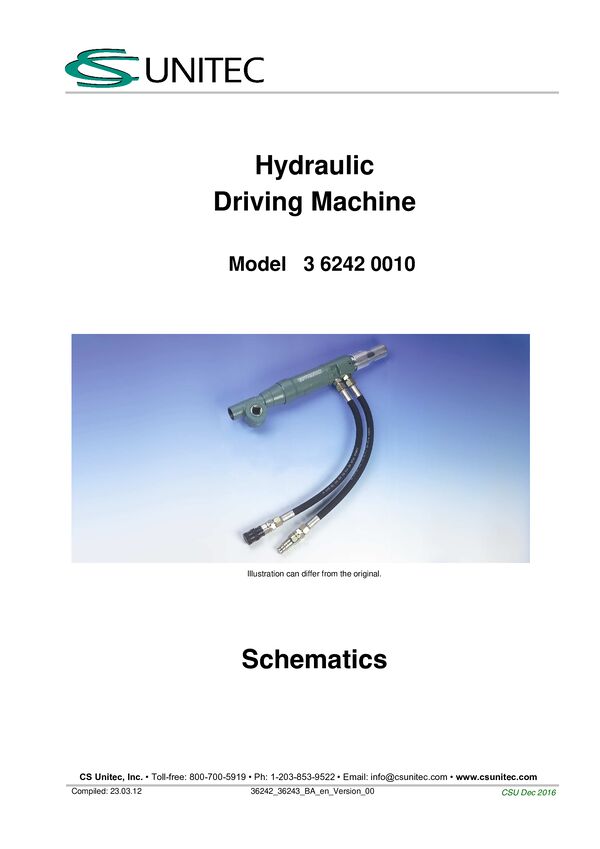

Product Schematic 1
SCHEM_362420010
Download PDF

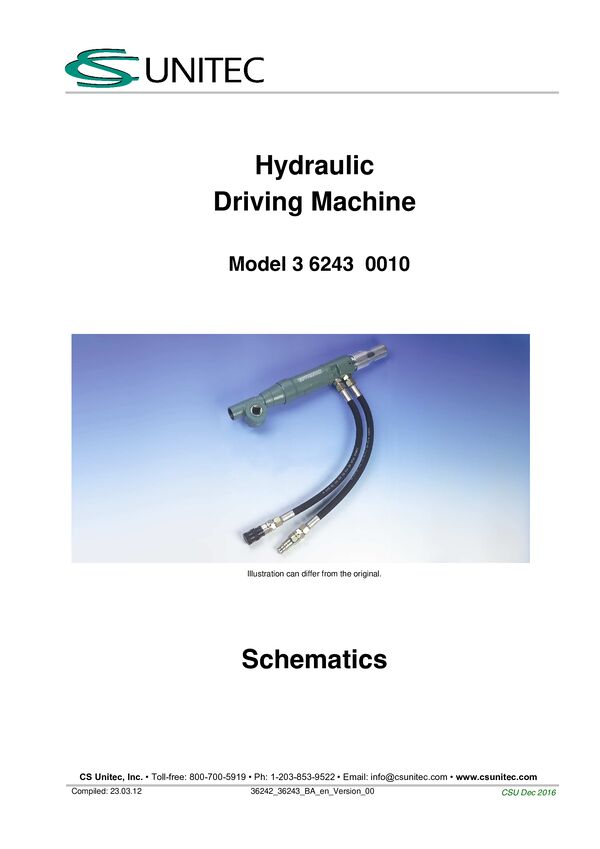

Product Schematic 2
SCHEM_362430010
Download PDF

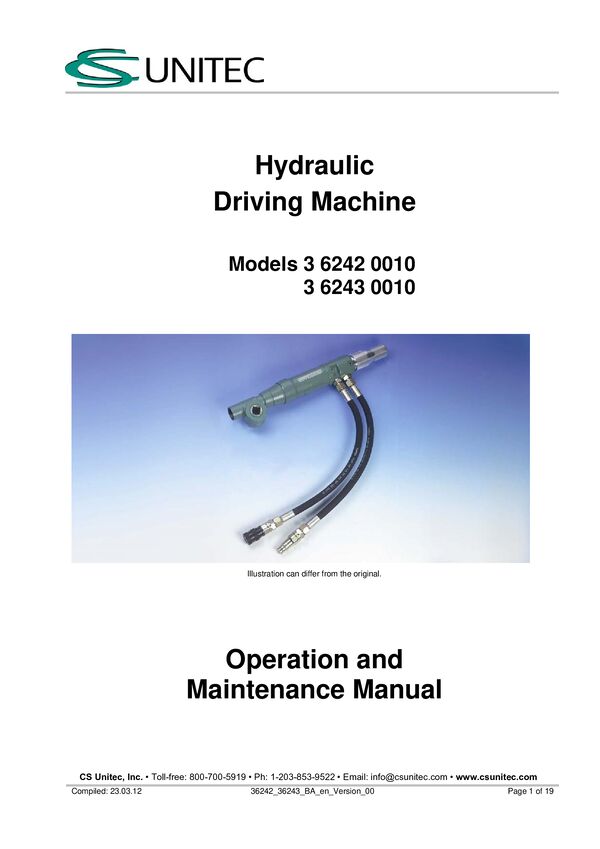

Operating Manual
MANUAL_362420010
Download PDF
Usage
- Hydraulic Nut Runners ideal for turning valves, tightening, tapping, reaming, pipe beveling, expanding, and more.
- Worm gear drive provides high torque – up to 369 ft.-lbs.
- Available with Male or Female Square Drives in a variety of sizes
Benefits
- Lightweight and reversible
- High torque
- Compact angle head allows access to confined spaces
- Pneumatic Nut Runners also available.
Usage
- Hydraulic Nut Runners ideal for turning valves, tightening, tapping, reaming, pipe beveling, expanding, and more.
- Worm gear drive provides high torque – up to 369 ft.-lbs.
- Available with Male or Female Square Drives in a variety of sizes
Benefits
- Lightweight and reversible
- High torque
- Compact angle head allows access to confined spaces
- Pneumatic Nut Runners also available.
