High-Torque Drill Motor ETE 32/2.3 R/RL
- Drilling Capacity: 4″ (wood), 2-1/4″ (aluminum), 1-1/4″ (steel)
- Reversible: Yes
- Morse Taper 3 Spindle
- 1/2″, 3/4″, and 1″ Square Drives Available
- Load Speed: 30-75 / 90-230 RPM (2 gear, variable)
- Motor Power: 15 Amps
- Electric Drill Motor
- Box
- Drift Key
Benefits
- High-torque, slow-speed two-geared and variable-speed reversible motors.
- Designed to power through large diameter holes and high resistance materials without stalling.
- Engineered for reliability, minimizing downtime and maximizing productivity. Mechanical safety clutch prevents operator injury or damage to the tool.
- Efficiently drills steel, aluminum, composites, hardwood, and other dense materials with a versatile Morse Taper #3 arbor.
- Optional square drive adapter available (see accessories).
Applications & Usage
- High-Torque Drill Motor ETE 32/2.3 drilling, tapping, and reaming tasks requiring consistent, repeatable performance.
- Perfect for tube rolling and expanding for fire tube and water tube boilers.
- OEM driving applications include mills, spindles, bar boring, pipe beveling and valve turning.
- Drilling into dense building materials, heavy timber, and composite structures on job sites.
- Versatile drilling for plant maintenance, equipment repair, and industrial service operations.
Special OEM configurations available on request
Technical Specifications
| Item ID: ETE 32/2.3 R/RL | |
| Power input | 15 Amp |
| Rated Voltage | 110 V |
| Load speed | 30-75 / 90-230 RPM |
| Max. drilling diameter wood / aluminum / steel | 4" / 2-1/4" / 1-1/4" |
| Reversible | Yes |
| Arbor / Spindle connection | MT3 |
| Collar diameter | 2-1/2" |
| Weight | 15 lbs. |
| Package Contents | Box and drift key |
| Machine Performance - 1st Gear | |||||
| Torque [Nm] / [Ft/lb] | Power Input [W] | Speed [RPM] | Current [Amps] | Power Output [W] | cos φ |
|---|---|---|---|---|---|
| 0 / 0 | 200 | 76 | 3.55 | 0 | 0.51 |
| 38 / 28.0 | 590 | 75 | 7.63 | 299.35 | 0.70 |
| 77 / 57 | 980 | 74 | 11 | 590.32 | 0.81 |
| 115 / 85 | 1370 | 73 | 13.7 | 872.92 | 0.91 |
| 153 / 113 | 1690 | 68 | 16.3 | 1088.53 | 0.94 |
| 192 / 142 | 2000 | 61 | 19 | 1224.60 | 0.96 |
| 230 / 167 | 2300 | 53 | 21.9 | 1281.12 | 0.95 |
| Machine Performance - 2nd Gear | |||||
| Torque [Nm] / [Ft/lb] | Power Input [W] | Speed [RPM] | Current [Amps] | Power Output [W] | cos φ |
|---|---|---|---|---|---|
| 0 / 0 | 200 | 253 | 3.55 | 0 | 0.51 |
| 11 / 8 | 590 | 251 | 7.63 | 288.98 | 0.70 |
| 23 / 17 | 980 | 247 | 11 | 594.61 | 0.81 |
| 34 / 25 | 1370 | 244 | 13.7 | 868.31 | 0.91 |
| 46 / 34 | 1690 | 228 | 16.3 | 1097.74 | 0.94 |
| 57 / 42 | 2000 | 205 | 19 | 1223.03 | 0.96 |
| 68 / 50 | 2300 | 179 | 21.9 | 1274 | 0.95 |
Optional Accessories
Optional
Optional
Optional
OptionalRelated PDFs
Catalog PDF
CAT_EAW162
Download PDF

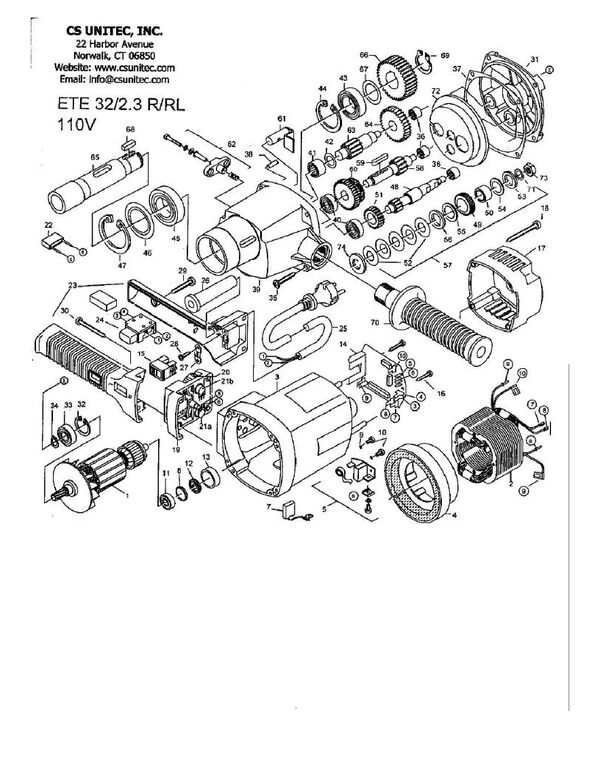

Product Schematic 1
SCHEM_ETE322.3RRL
Download PDF

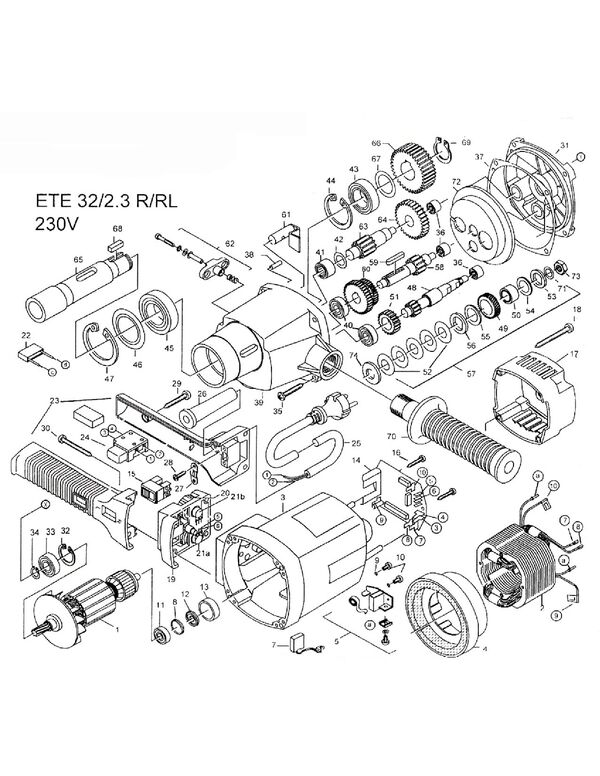

Product Schematic 2
SCHEM_ETE322.3230V
Download PDF

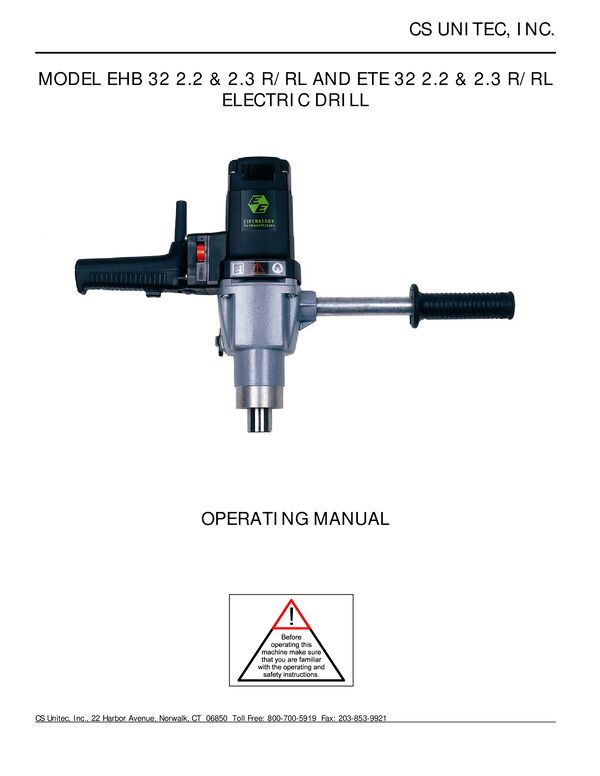

Operating Manual 1
MANUAL_EHB322.2
Download PDF

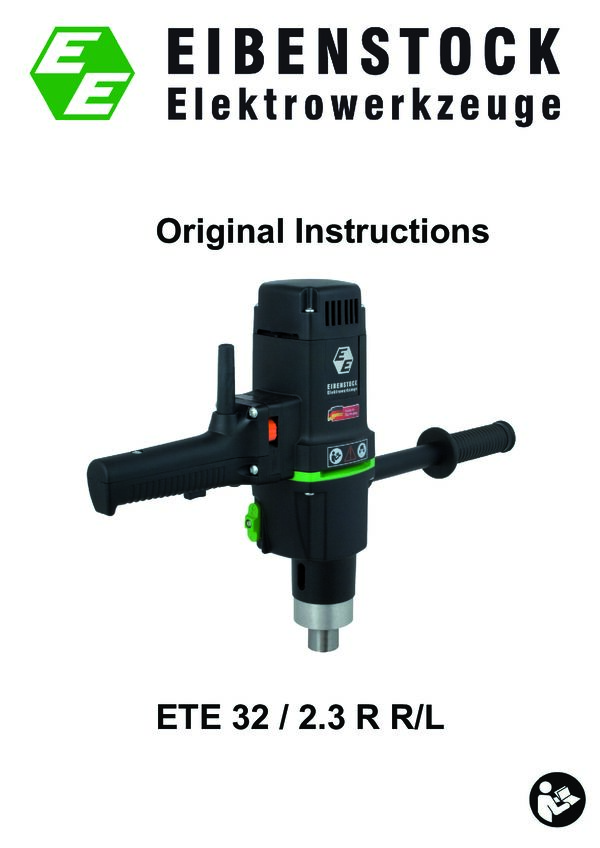

Operating Manual 2
MANUAL_ETE 32 2.3 R RL 120 V
Download PDF
Usage
- High-Torque Drill Motor ETE 32/2.3 drilling, tapping, and reaming tasks requiring consistent, repeatable performance.
- Perfect for tube rolling and expanding for fire tube and water tube boilers.
- OEM driving applications include mills, spindles, bar boring, pipe beveling and valve turning.
- Drilling into dense building materials, heavy timber, and composite structures on job sites.
- Versatile drilling for plant maintenance, equipment repair, and industrial service operations.
Special OEM configurations available on request
Benefits
- High-torque, slow-speed two-geared and variable-speed reversible motors.
- Designed to power through large diameter holes and high resistance materials without stalling.
- Engineered for reliability, minimizing downtime and maximizing productivity. Mechanical safety clutch prevents operator injury or damage to the tool.
- Efficiently drills steel, aluminum, composites, hardwood, and other dense materials with a versatile Morse Taper #3 arbor.
- Optional square drive adapter available (see accessories).
Usage
- High-Torque Drill Motor ETE 32/2.3 drilling, tapping, and reaming tasks requiring consistent, repeatable performance.
- Perfect for tube rolling and expanding for fire tube and water tube boilers.
- OEM driving applications include mills, spindles, bar boring, pipe beveling and valve turning.
- Drilling into dense building materials, heavy timber, and composite structures on job sites.
- Versatile drilling for plant maintenance, equipment repair, and industrial service operations.
Special OEM configurations available on request
Benefits
- High-torque, slow-speed two-geared and variable-speed reversible motors.
- Designed to power through large diameter holes and high resistance materials without stalling.
- Engineered for reliability, minimizing downtime and maximizing productivity. Mechanical safety clutch prevents operator injury or damage to the tool.
- Efficiently drills steel, aluminum, composites, hardwood, and other dense materials with a versatile Morse Taper #3 arbor.
- Optional square drive adapter available (see accessories).
