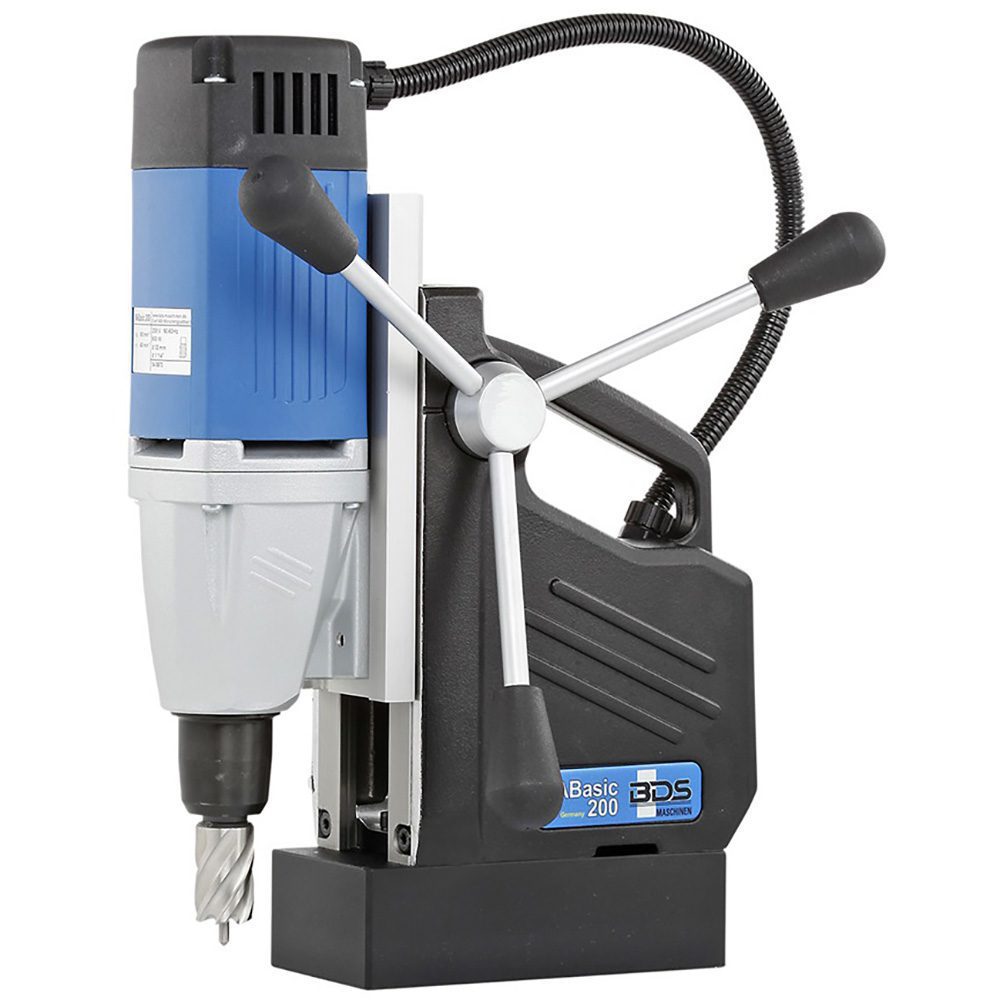

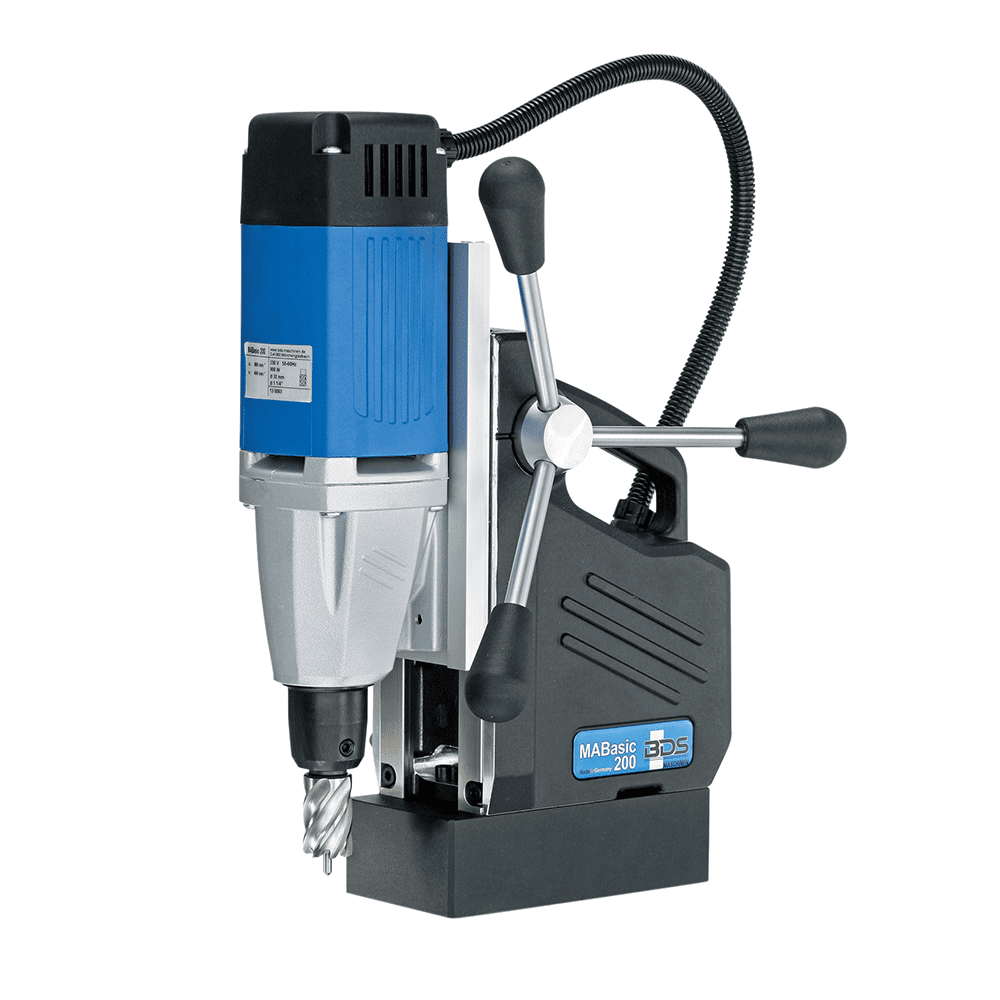

MABasic 200
- Cutting Capacity: 1-3/8″ Diameter
- Twist Drill Capacity: 1/2″ Diameter
- Stroke: 6-1/3″, 3-1/3″ with geared chuck
- Speed: 450 RPM
- Magnetic Force: 3080 lbs.
- Equipped with Electronic Safety Shutoff Sensor
Includes (testing):
- MABasic 200
- 3/4″ Weldon shank

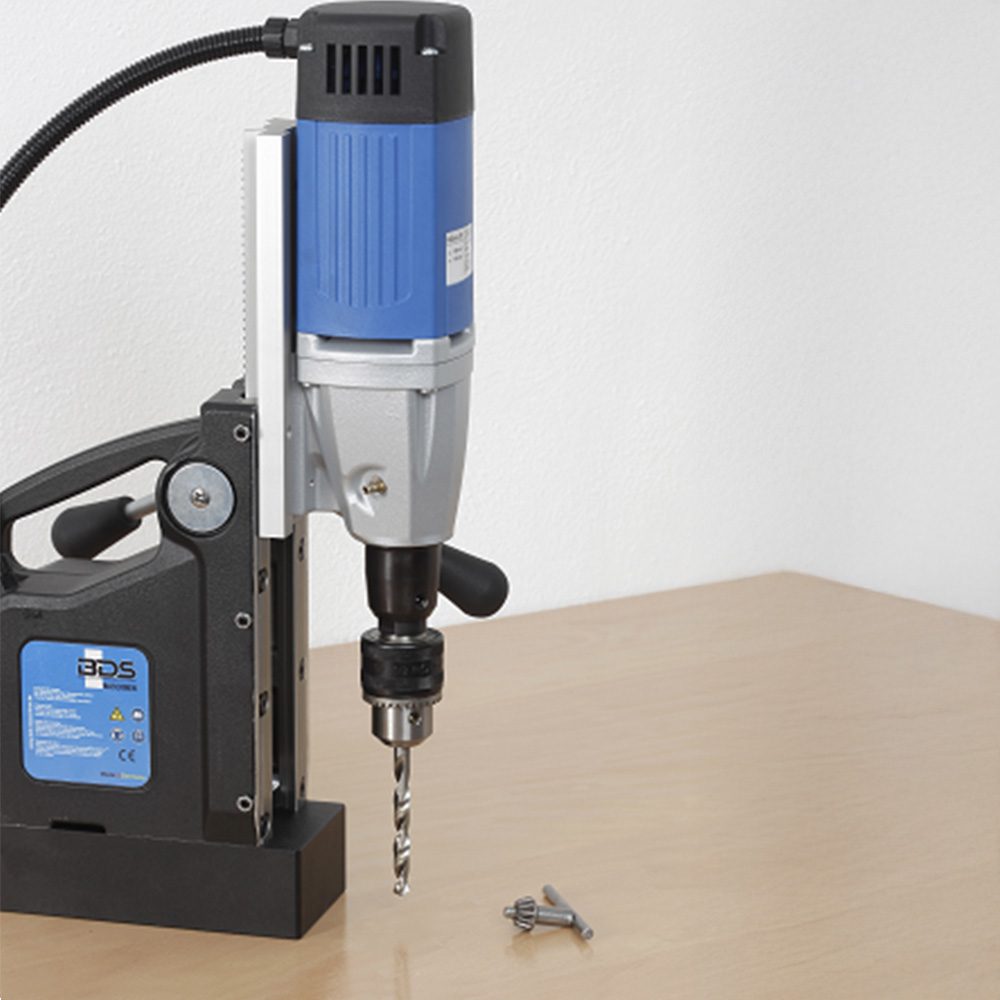

- 1/2″ Geared chuck
- Carrying case
- Operating manual
- Warranty certificate
- Lubrication bottle
- Safety strap
- Carabin hook
- Allen keys
- Pilot pin
Benefits
- Lightweight and compact design makes it easy to transport and ideal for field work, elevated positions, and tight spaces.

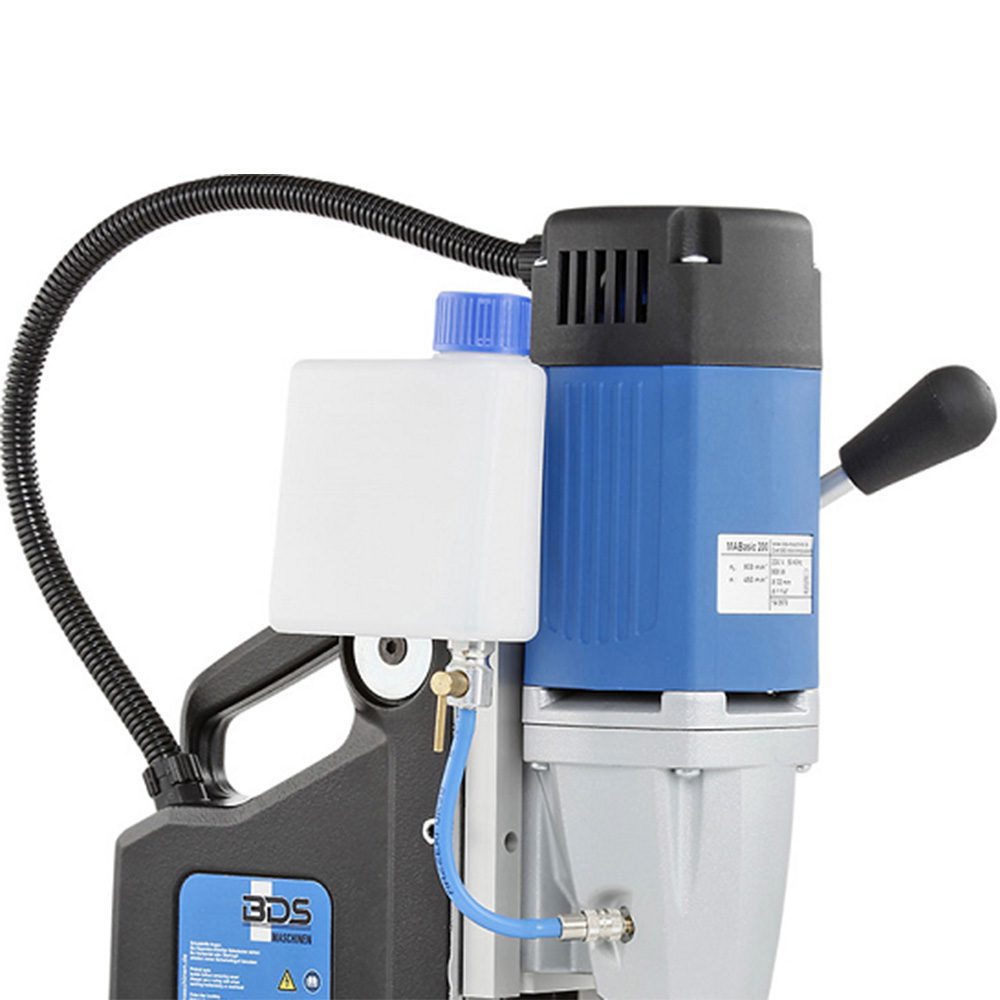

- Integrated lubrication system ensures smooth drilling, reduced heat, and longer cutter life.

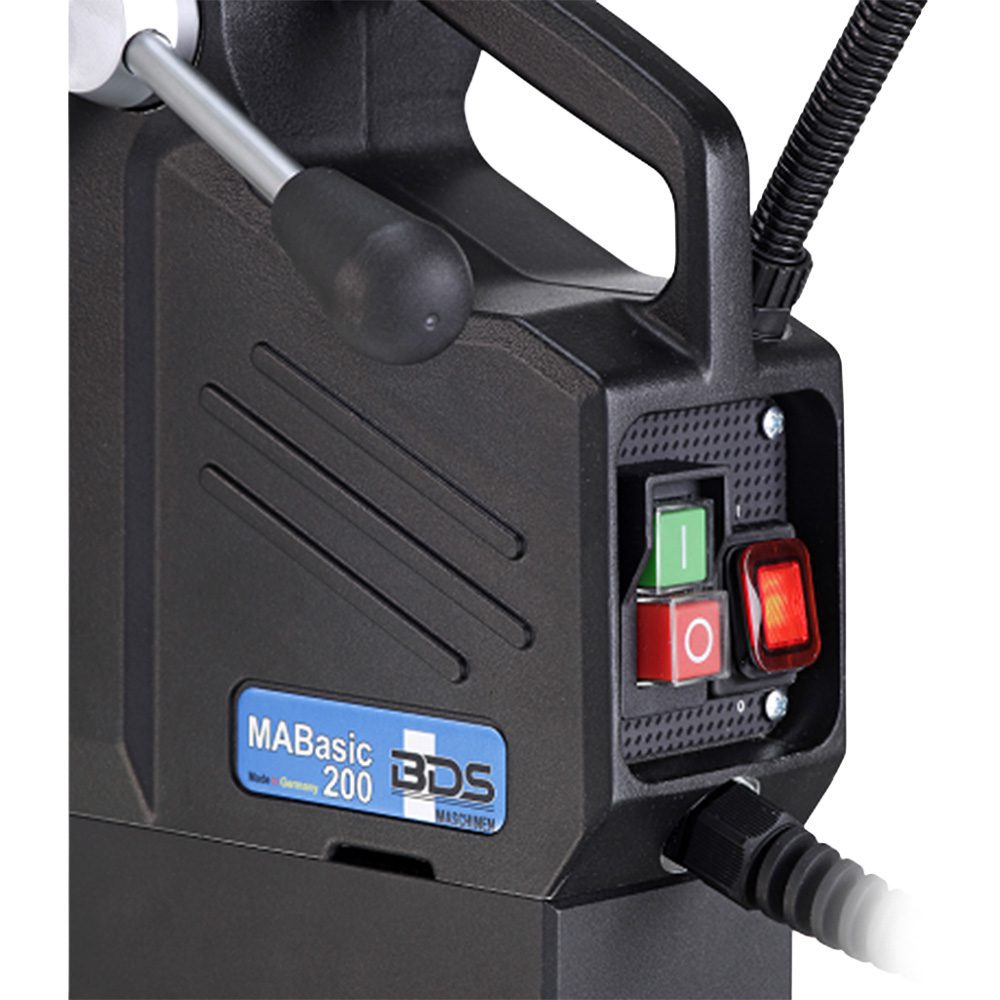

- Simple, user friendly controls reduce setup time and make operation straightforward for both new and experienced users.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
- Cost effective solution for contractors and technicians who need dependable magnetic drilling performance without unnecessary complexity.
Applications & Usage

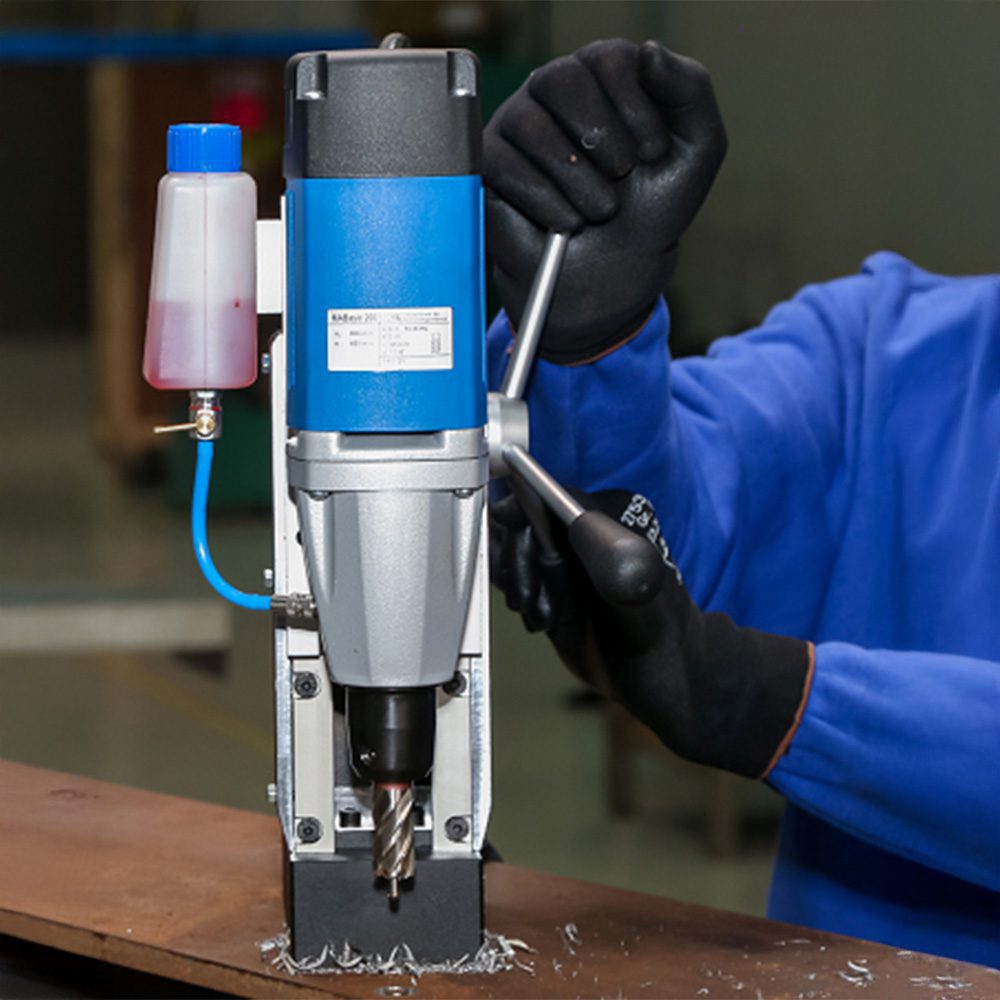

- MABasic 200 for drilling holes in structural steel, plate, beams, and metal assemblies.
- Ideal for small fabrication shops and routine holemaking tasks.
- For vertical and horizontal drilling on I‑beams, channels, and steel frameworks.
- Drilling mounting holes for conduit supports, cable trays, HVAC brackets, and mechanical systems.
- Ideal for installers who need a portable, reliable magnetic drill.
- Onsite drilling for equipment repair, retrofits, and facility maintenance.
- Useful in plants, warehouses, and industrial buildings.
Technical Specifications
| MABasic 200 | |
|---|---|
| Motor Power | 8.2 Amp/110 Volt |
| Weight | 27 lbs. |
| Stroke | 6-1/3" (3-1/3" with geared chuck) |
| Hole Capacity | 1-3/8" dia. |
| Twist Drill Capacity | 1/2" dia. |
| Speed | 450 RPM |
| Magnet Base Size | 6-5/8" L x 3-1/3" W |
| Dimensions | 12-1/4" H x 9" L x 6-1/2" W |
| Magnetic Force (1"Plate) | 3080 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Automatic Lubrication | Oil Bottle Included |
Optional Accessories
Optional
Optional
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF
CAT_MABasic200
Download PDF
Product Schematic
SCHEM_MABasic200
Download PDF
Operating Manual
MANUAL_MABasic
Download PDF
