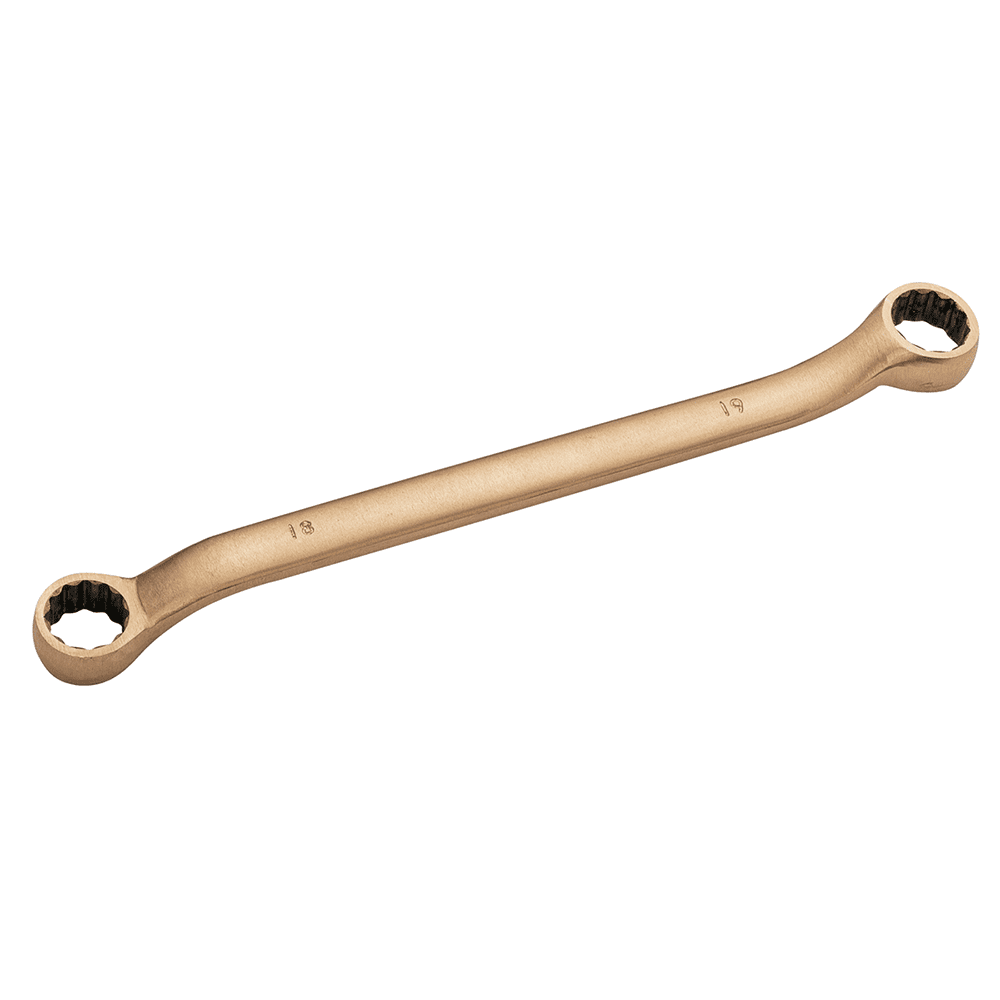

Offset Double Box End Wrench – 12-Point

$0.00

Non-Sparking
Non-Magnetic
Corrosion Resistant

Scroll to product video(s) ➔

Alloy

Length-s1-x-s2 Clear

Item ID: N/A Category Safety Tools Tags Aluminum Bronze, Copper Beryllium, Wrenches, Box End Wrenches Brand Carltsoe

Ask a QuestionAccessories

Free shipping on all orders over $50
30 days easy returns
All taxes and customs duties included

Included Components

Box End, Double, Offset – 12-Point

Benefits

Offset dual heads
Better bolt access
Strong forged body
ISO 9001:2015 certified production, TUV materials certified
Lifetime Warranty

Applications & Usage

Offset Double Box End Wrench Non-Sparking & Non-Magnetic
Non-sparking box end wrench for use in petrochemical, grain production (explosive-dust), utilities, and hazmat applications.
Non-magnetic box end wrench for use in MRI/NMR, nuclear products, electronic manufacturing, and other sensitive equipment.
Corrosion Resistant box end wrench for use in desalination plants, chemical/paper manufacturing, and shipyards.

Technical Specifications

Standard Sizes

When ordering, specify:
	A = Aluminum Bronze	B = Copper Beryllium
Example:	Ex202F-005UA	Ex202F-005UB

No.	Material	S1 x S2 inch	l inch	Wt. lbs.
Ex202F-005UA	Aluminum Bronze	7/32 x 1/4	4 3/4	0.06
Ex202F-005UB	Copper Beryllium	7/32 x 1/4	4 3/4	0.06
Ex202F-010UA	Aluminum Bronze	1/4 x 9/32	4 3/4	0.07
Ex202F-010UB	Copper Beryllium	1/4 x 9/32	4 3/4	0.07
Ex202F-015UA	Aluminum Bronze	1/4 x 5/16	5 3/16	0.07
Ex202F-015UB	Copper Beryllium	1/4 x 5/16	5 3/16	0.07
Ex202F-020UA	Aluminum Bronze	1/4 x 3/8	5 3/16	0.09
Ex202F-020UB	Copper Beryllium	1/4 x 3/8	5 3/16	0.09
Ex202F-025UA	Aluminum Bronze	5/16 x 3/8	5 3/16	0.10
Ex202F-025UB	Copper Beryllium	5/16 x 3/8	5 3/16	0.10
Ex202F-030UA	Aluminum Bronze	3/8 x 7/16	5 3/16	0.18
Ex202F-030UB	Copper Beryllium	3/8 x 7/16	5 3/16	0.18
Ex202F-035UA	Aluminum Bronze	3/8 x 9/16	7 3/16	0.18
Ex202F-035UB	Copper Beryllium	3/8 x 9/16	7 3/16	0.18
Ex202F-040UA	Aluminum Bronze	7/16 x 1/2	7 3/16	0.22
Ex202F-040UB	Copper Beryllium	7/16 x 1/2	7 3/16	0.22
Ex202F-045UA	Aluminum Bronze	7/16 x 9/16	7 3/16	0.22
Ex202F-045UB	Copper Beryllium	7/16 x 9/16	7 3/16	0.22
Ex202F-050UA	Aluminum Bronze	1/2 x 9/16	7 3/16	0.22
Ex202F-050UB	Copper Beryllium	1/2 x 9/16	7 3/16	0.22
Ex202F-055UA	Aluminum Bronze	1/2 x 19/32	7 3/16	0.22
Ex202F-055UB	Copper Beryllium	1/2 x 19/32	7 3/16	0.22
Ex202F-060UA	Aluminum Bronze	9/16 x 5/8	8 3/4	0.33
Ex202F-060UB	Copper Beryllium	9/16 x 5/8	8 3/4	0.33
Ex202F-065UA	Aluminum Bronze	5/8 x 11/16	8 3/4	0.44
Ex202F-065UB	Copper Beryllium	5/8 x 11/16	8 3/4	0.44
Ex202F-070UA	Aluminum Bronze	5/8 x 3/4	8 3/4	0.44
Ex202F-070UB	Copper Beryllium	5/8 x 3/4	8 3/4	0.44
Ex202F-075UA	Aluminum Bronze	11/16 x 7/8	10	0.49
Ex202F-075UB	Copper Beryllium	11/16 x 7/8	10	0.49
Ex202F-080UA	Aluminum Bronze	11/16 x 25/32	10	0.49
Ex202F-080UB	Copper Beryllium	11/16 x 25/32	10	0.49
Ex202F-085UA	Aluminum Bronze	11/16 x 7/8	11 3/16	0.62
Ex202F-085UB	Copper Beryllium	11/16 x 7/8	11 3/16	0.62
Ex202F-090UA	Aluminum Bronze	3/4 x 13/16	11 3/16	0.62
Ex202F-090UB	Copper Beryllium	3/4 x 13/16	11 3/16	0.62
Ex202F-095UA	Aluminum Bronze	3/4 x 7/8	11 3/16	0.62
Ex202F-095UB	Copper Beryllium	3/4 x 7/8	11 3/16	0.62
Ex202F-100UA	Aluminum Bronze	3/4 x 15/16	12 3/8	0.93
Ex202F-100UB	Copper Beryllium	3/4 x 15/16	12 3/8	0.93
Ex202F-105UA	Aluminum Bronze	13/16 x 7/8	12 3/8	0.93
Ex202F-105UB	Copper Beryllium	13/16 x 7/8	12 3/8	0.93
Ex202F-110UA	Aluminum Bronze	7/8 x 15/16	12 3/8	0.93
Ex202F-110UB	Copper Beryllium	7/8 x 15/16	12 3/8	0.93
Ex202F-115UA	Aluminum Bronze	7/8 x 31/32	12 3/8	0.93
Ex202F-115UB	Copper Beryllium	7/8 x 31/32	12 3/8	0.93
Ex202F-120UA	Aluminum Bronze	7/8 x 1	12 3/8	0.93
Ex202F-120UB	Copper Beryllium	7/8 x 1	12 3/8	0.93
Ex202F-125UA	Aluminum Bronze	7/8 x 1 1/16	13 9/16	1.17
Ex202F-125UB	Copper Beryllium	7/8 x 1 1/16	13 9/16	1.17
Ex202F-130UA	Aluminum Bronze	15/16 x 1	13 9/16	1.17
Ex202F-130UB	Copper Beryllium	15/16 x 1	13 9/16	1.17
Ex202F-135UA	Aluminum Bronze	15/16 x 1 1/16	13 9/16	1.10
Ex202F-135UB	Copper Beryllium	15/16 x 1 1/16	13 9/16	1.10
Ex202F-140UA	Aluminum Bronze	15/16 x 1 3/16	14 3/8	1.19
Ex202F-140UB	Copper Beryllium	15/16 x 1 3/16	14 3/8	1.19
Ex202F-145UA	Aluminum Bronze	1 x 1 1/16	13 9/16	1.17
Ex202F-145UB	Copper Beryllium	1 x 1 1/16	13 9/16	1.17
Ex202F-150UA	Aluminum Bronze	1 x 1 1/8	13 9/16	1.17
Ex202F-150UB	Copper Beryllium	1 x 1 1/8	13 9/16	1.17
Ex202F-155UA	Aluminum Bronze	1 1/16 x 1 1/8	14 3/8	1.21
Ex202F-155UB	Copper Beryllium	1 1/16 x 1 1/8	14 3/8	1.21
Ex202F-160UA	Aluminum Bronze	1 1/16 x 1 1/4	15 3/16	1.59
Ex202F-160UB	Copper Beryllium	1 1/16 x 1 1/4	15 3/16	1.59
Ex202F-165UA	Aluminum Bronze	1 1/8 x 1 5/16	15 3/16	1.59
Ex202F-165UB	Copper Beryllium	1 1/8 x 1 5/16	15 3/16	1.59
Ex202F-170UA	Aluminum Bronze	1 3/16 x 1 1/4	15 3/16	1.59
Ex202F-170UB	Copper Beryllium	1 3/16 x 1 1/4	15 3/16	1.59
Ex202F-175UA	Aluminum Bronze	1 3/16 x 1 7/16	16 3/4	2.18
Ex202F-175UB	Copper Beryllium	1 3/16 x 1 7/16	16 3/4	2.18
Ex202F-180UA	Aluminum Bronze	1 1/4 x 1 5/16	16 3/4	2.18
Ex202F-180UB	Copper Beryllium	1 1/4 x 1 5/16	16 3/4	2.18
Ex202F-185UA	Aluminum Bronze	1 1/4 x 1 7/16	16 3/4	2.18
Ex202F-185UB	Copper Beryllium	1 1/4 x 1 7/16	16 3/4	2.18
Ex202F-190UA	Aluminum Bronze	1 7/16 x 1 5/8	18 3/16	2.18
Ex202F-190UB	Copper Beryllium	1 7/16 x 1 5/8	18 3/16	2.18
Ex202F-195UA	Aluminum Bronze	1 5/8 x 1 13/16	18 3/4	3.53
Ex202F-195UB	Copper Beryllium	1 5/8 x 1 13/16	18 3/4	3.53
Ex202F-200UA	Aluminum Bronze	1 13/16 x 2	19 9/16	4.59
Ex202F-200UB	Copper Beryllium	1 13/16 x 2	19 9/16	4.59
Ex202F-205UA	Aluminum Bronze	2 x 2 3/16	20 3/8	5.56
Ex202F-205UB	Copper Beryllium	2 x 2 3/16	20 3/8	5.56

Metric Sizes

When ordering, specify:
	A = Aluminum Bronze	B = Copper Beryllium
Example:	Ex202F-6-7A	Ex202F-6-7B

No.	Material	S1 x S2 mm	l mm	Wt. kg
Ex202F-6-7A	Aluminum Bronze	6 x 7	120	0.03
Ex202F-6-7B	Copper Beryllium	6 x 7	120	0.03
Ex202F-7-9A	Aluminum Bronze	7 x 9	130	0.03
Ex202F-7-9B	Copper Beryllium	7 x 9	130	0.03
Ex202F-8-9A	Aluminum Bronze	8 x 9	130	0.04
Ex202F-8-9B	Copper Beryllium	8 x 9	130	0.04
Ex202F-8-10A	Aluminum Bronze	8 x 10	130	0.04
Ex202F-8-10B	Copper Beryllium	8 x 10	130	0.04
Ex202F-9-11A	Aluminum Bronze	9 x 11	160	0.04
Ex202F-9-11B	Copper Beryllium	9 x 11	160	0.04
Ex202F-10-11A	Aluminum Bronze	10 x 11	160	0.08
Ex202F-10-11B	Copper Beryllium	10 x 11	160	0.08
Ex202F-10-12A	Aluminum Bronze	10 x 12	160	0.08
Ex202F-10-12B	Copper Beryllium	10 x 12	160	0.08
Ex202F-10-14A	Aluminum Bronze	10 x 14	180	0.10
Ex202F-10-14B	Copper Beryllium	10 x 14	180	0.10
Ex202F-11-12A	Aluminum Bronze	11 x 12	180	0.10
Ex202F-11-12B	Copper Beryllium	11 x 12	180	0.10
Ex202F-11-14A	Aluminum Bronze	11 x 14	180	0.10
Ex202F-11-14B	Copper Beryllium	11 x 14	180	0.10
Ex202F-12-13A	Aluminum Bronze	12 x 13	180	0.10
Ex202F-12-13B	Copper Beryllium	12 x 13	180	0.10
Ex202F-12-14A	Aluminum Bronze	12 x 14	180	0.10
Ex202F-12-14B	Copper Beryllium	12 x 14	180	0.10
Ex202F-13-15A	Aluminum Bronze	13 x 15	200	0.14
Ex202F-13-15B	Copper Beryllium	13 x 15	200	0.14
Ex202F-14-15A	Aluminum Bronze	14 x 15	200	0.15
Ex202F-14-15B	Copper Beryllium	14 x 15	200	0.15
Ex202F-14-17A	Aluminum Bronze	14 x 17	220	0.15
Ex202F-14-17B	Copper Beryllium	14 x 17	220	0.15
Ex202F-16-17A	Aluminum Bronze	16 x 17	220	0.20
Ex202F-16-17B	Copper Beryllium	16 x 17	220	0.20
Ex202F-16-18A	Aluminum Bronze	16 x 18	220	0.18
Ex202F-16-18B	Copper Beryllium	16 x 18	220	0.18
Ex202F-17-19A	Aluminum Bronze	17 x 19	220	0.22
Ex202F-17-19B	Copper Beryllium	17 x 19	280	0.22
Ex202F-17-22A	Aluminum Bronze	17 x 22	280	0.28
Ex202F-17-22B	Copper Beryllium	17 x 22	280	0.28
Ex202F-18-19A	Aluminum Bronze	18 x 19	250	0.22
Ex202F-18-19B	Copper Beryllium	18 x 19	250	0.22
Ex202F-19-22A	Aluminum Bronze	19 x 22	280	0.28
Ex202F-19-22B	Copper Beryllium	19 x 22	280	0.28
Ex202F-19-24A	Aluminum Bronze	19 x 24	310	0.42
Ex202F-19-24B	Copper Beryllium	19 x 24	310	0.42
Ex202F-20-22A	Aluminum Bronze	20 x 22	280	0.28
Ex202F-20-22B	Copper Beryllium	20 x 22	280	0.28
Ex202F-21-23A	Aluminum Bronze	21 x 23	310	0.42
Ex202F-21-23B	Copper Beryllium	21 x 23	310	0.42
Ex202F-22-24A	Aluminum Bronze	22 x 24	310	0.42
Ex202F-22-24B	Copper Beryllium	22 x 24	310	0.42
Ex202F-22-27A	Aluminum Bronze	22 x 27	340	0.50
Ex202F-22-27B	Copper Beryllium	22 x 27	340	0.50
Ex202F-24-26A	Aluminum Bronze	24 x 26	340	0.50
Ex202F-24-26B	Copper Beryllium	24 x 26	340	0.50
Ex202F-24-27A	Aluminum Bronze	24 x 27	340	0.50
Ex202F-24-27B	Copper Beryllium	24 x 27	340	0.50
Ex202F-24-30A	Aluminum Bronze	24 x 30	360	0.54
Ex202F-24-30B	Copper Beryllium	24 x 30	360	0.54
Ex202F-25-28A	Aluminum Bronze	25 x 28	340	0.53
Ex202F-25-28B	Copper Beryllium	25 x 28	340	0.53
Ex202F-26-29A	Aluminum Bronze	26 x 29	360	0.55
Ex202F-26-29B	Copper Beryllium	26 x 29	360	0.55
Ex202F-27-29A	Aluminum Bronze	27 x 29	360	0.55
Ex202F-27-29B	Copper Beryllium	27 x 29	360	0.55
Ex202F-27-30A	Aluminum Bronze	27 x 30	360	0.55
Ex202F-27-30B	Copper Beryllium	27 x 30	360	0.55
Ex202F-27-32A	Aluminum Bronze	27 x 32	380	0.72
Ex202F-27-32B	Copper Beryllium	27 x 32	380	0.72
Ex202F-30-32A	Aluminum Bronze	30 x 32	380	0.72
Ex202F-30-32B	Copper Beryllium	30 x 32	380	0.72
Ex202F-30-36A	Aluminum Bronze	30 x 36	420	0.99
Ex202F-30-36B	Copper Beryllium	30 x 36	420	0.99
Ex202F-32-36A	Aluminum Bronze	32 x 36	420	0.99
Ex202F-32-36B	Copper Beryllium	32 x 36	420	0.99
Ex202F-34-36A	Aluminum Bronze	34 x 36	420	0.99
Ex202F-34-36B	Copper Beryllium	34 x 36	420	0.99
Ex202F-36-41A	Aluminum Bronze	36 x 41	455	1.28
Ex202F-36-41B	Copper Beryllium	36 x 41	455	1.28
Ex202F-41-46A	Aluminum Bronze	41 x 46	470	1.60
Ex202F-41-46B	Copper Beryllium	41 x 46	470	1.60
Ex202F-46-50A	Aluminum Bronze	46 x 50	490	2.08
Ex202F-46-50B	Copper Beryllium	46 x 50	490	2.08
Ex202F-50-55A	Aluminum Bronze	50 x 55	510	2.52
Ex202F-50-55B	Copper Beryllium	50 x 55	510	2.52

How to Choose the Correct Alloy for Your Application
	Aluminum-Bronze (AlBr) Alloy	Copper-Beryllium (CuBe2) Alloy
Zone Compatibility	Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2	Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness	27 HRC	38 HRC
Durability	Not as durable as CuBe.	Very durable due to high hardness and tensile strength.
Magnetic Properties	Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications.	Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition	Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance	Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance

For More Information on Choosing The Correct Alloy for Your Application - Click Here

Use Guidelines
Proper Use	Misuse
Box wrenches in the regular pattern are designed for general service. The Heavy- Duty and Striking Face patterns are designed for the service indicated. The Electronic Hex Box patterns are designed for the lighter service encountered in electronic, carburetor and ignition work. Ratcheting Box and split box wrenches are for light duty and should not be used in heavy-duty applications.	Never use a hammer on any wrench other than a Striking Face wrench. Use a sledge type hammer. Never use an extension on the wrench handle.

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Related PDFs

Usage

Offset Double Box End Wrench Non-Sparking & Non-Magnetic
Non-sparking box end wrench for use in petrochemical, grain production (explosive-dust), utilities, and hazmat applications.
Non-magnetic box end wrench for use in MRI/NMR, nuclear products, electronic manufacturing, and other sensitive equipment.
Corrosion Resistant box end wrench for use in desalination plants, chemical/paper manufacturing, and shipyards.

Benefits

Offset dual heads
Better bolt access
Strong forged body
ISO 9001:2015 certified production, TUV materials certified
Lifetime Warranty

Usage

Offset Double Box End Wrench Non-Sparking & Non-Magnetic
Non-sparking box end wrench for use in petrochemical, grain production (explosive-dust), utilities, and hazmat applications.
Non-magnetic box end wrench for use in MRI/NMR, nuclear products, electronic manufacturing, and other sensitive equipment.
Corrosion Resistant box end wrench for use in desalination plants, chemical/paper manufacturing, and shipyards.

Benefits

Offset dual heads
Better bolt access
Strong forged body
ISO 9001:2015 certified production, TUV materials certified
Lifetime Warranty

Empty tab. Edit page to add content here.

Alloy

Aluminum Bronze (AlBr), Copper Beryllium (CuBe)

Length-s1-x-s2

7/32" x 1/4", 1/4" x 9/32", 1/4" x 5/16", 1/4" x 3/8", 5/16" x 3/8", 3/8" x 7/16", 3/8" x 9/16", 7/16" x 1/2", 7/16" x 9/16", 1/2" x 9/16", 1/2" x 19/32", 9/16" x 5/8", 5/8" x 11/16", 5/8" x 3/4", 11/16" x 7/8", 11/16" x 25/32", 3/4" x 13/16", 3/4" x 7/8", 3/4" x 15/16", 13/16" x 7/8", 7/8" x 15/16", 7/8" x 31/32", 7/8" x 1", 7/8" x 1-1/16", 15/16" x 1", 15/16" x 1-1/16", 15/16" x 1-3/16", 1" x 1-1/16", 1" x 1-1/18", 1-1/16" x 1-1/8", 1-1/16" x 1-1/4", 1-1/8" x 1-5/16", 1-3/16" x 1-1/4", 1-3/16" x 1-7/16", 1-1/4" x 1-5/16", 1-1/4" x 1-7/16", 1-7/16" x 1-5/8", 1-5/8" x 1-13/16", 1-13/16" x 2", 2" x 2-3/16", 6 mm x 7 mm, 7 mm x 9 mm, 8 mm x 9 mm, 8 mm x 10 mm, 9 mm x 11 mm, 10 mm x 11 mm, 10 mm x 12 mm, 10 mm x 14 mm, 11 mm x 12 mm, 11 mm x 14 mm, 12 mm x 13 mm, 12 mm x 14 mm, 13 mm x 15 mm, 14 mm x 15 mm, 14 mm x 17 mm, 16 mm x 17 mm, 16 mm x 18 mm, 17 mm x 19 mm, 17 mm x 22 mm, 18 mm x 19 mm, 19 mm x 22 mm, 19 mm x 24 mm, 20 mm x 22 mm, 21 mm x 23 mm, 22 mm x 24 mm, 22 mm x 27 mm, 24 mm x 26 mm, 24 mm x 27 mm, 24 mm x 30 mm, 25 mm x 28 mm, 26 mm x 29 mm, 27 mm x 29 mm, 27 mm x 30 mm, 27 mm x 32 mm, 30 mm x 32 mm, 30 mm x 36 mm, 32 mm x 36 mm, 34 mm x 36 mm, 36 mm x 41 mm, 41 mm x 46 mm, 46 mm x 50 mm, 50 mm x 55 mm

Empty tab. Edit page to add content here.

Offset Double Box End Wrench – 12-Point

$0.00

Benefits

Applications & Usage

Technical Specifications

Related PDFs

Catalog PDF 1

Catalog PDF 2

Operating Manual 1

Operating Manual 2

Related Articles

Usage

Benefits

Usage

Benefits

You might also like

Air Hacksaws for Cutting Pipe$0.00

Air Reciprocating Saw – The CHEETAH$0.00

Hydraulic Reciprocating Saws$0.00

Hydraulic Hacksaws$0.00

Air Band Saws$0.00

Air Pipe Cutting Machine (Belly Saw)$0.00

Hydraulic Pipe Cutting Machine (Belly Saw)$0.00

Hydraulic Circular Saws$0.00

TOOL TYPES

APPLICATIONS

RESOURCES
